I use Telerik 2014.2.618.45 and have the problem with RadOrgChart.

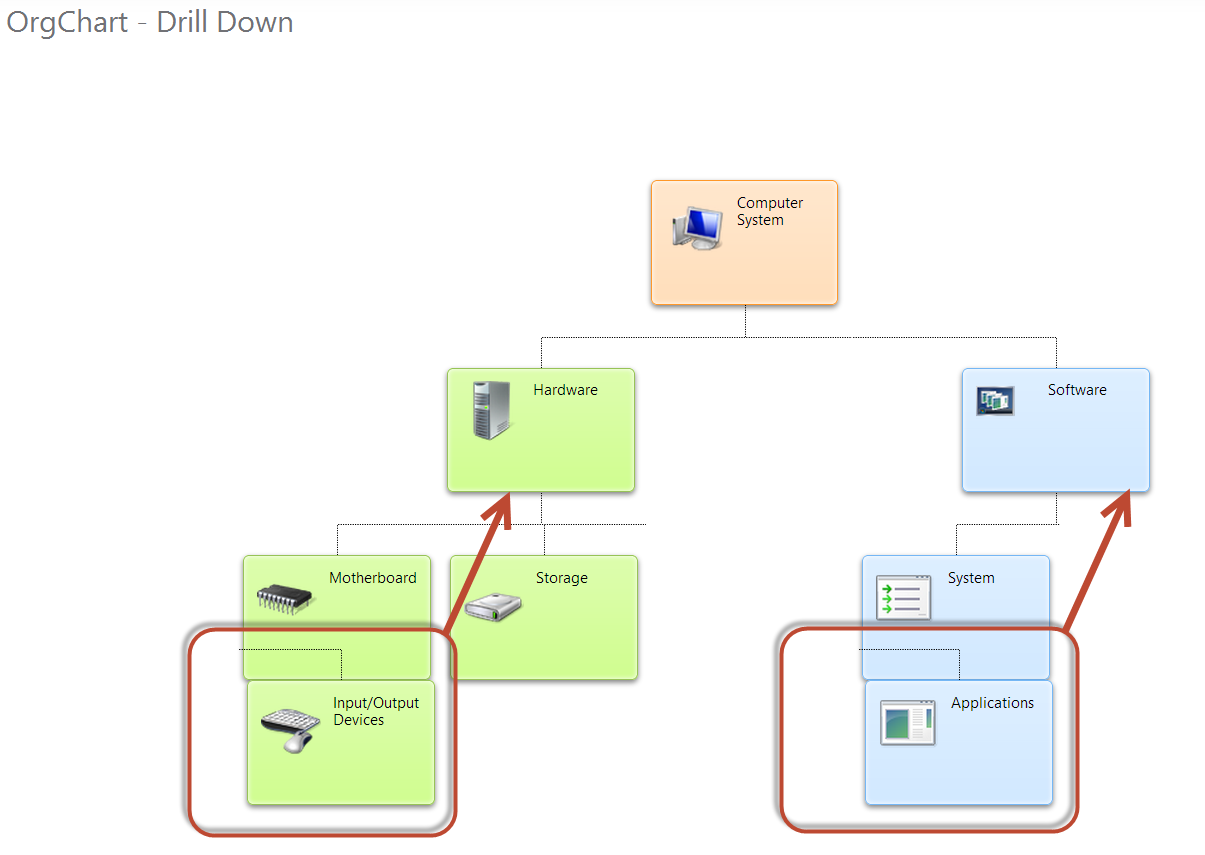

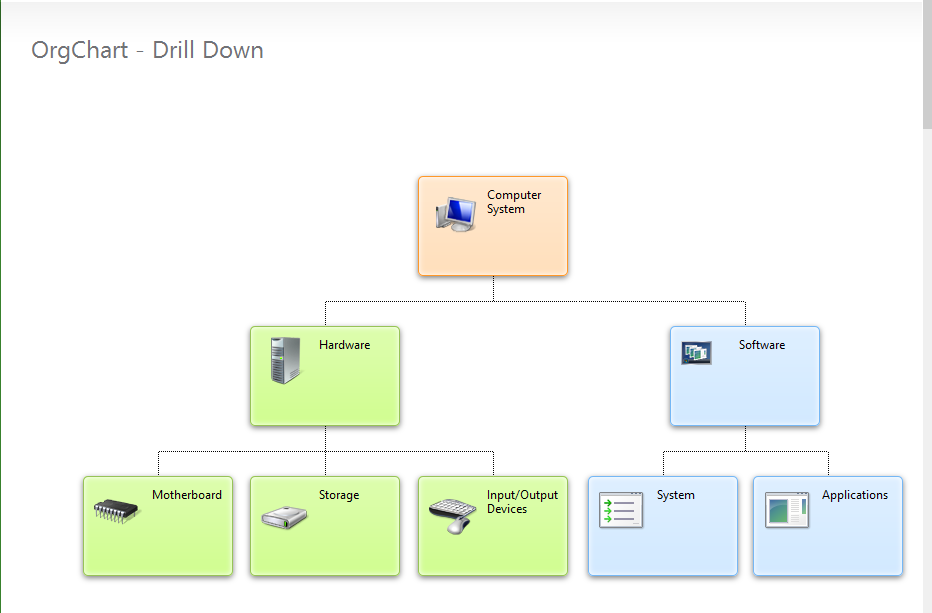

When I bind data with only 2 or 3 nodes at the same level, it is shown collectedly. However, if there are a lot of nodes, the nodes on the right will be dropped to the new line. I also found this problem on your example about Drill Down.
I try to solve this problem by using the suggestion from Node Alignment Issue, but it didn't help since I didn't hide the RadOrgChart. I called it on Page_Load. In addition, I'm using this RadOrgChart Inside RadPageView (My OrgChart is showing on the first page)
When I bind data with only 2 or 3 nodes at the same level, it is shown collectedly. However, if there are a lot of nodes, the nodes on the right will be dropped to the new line. I also found this problem on your example about Drill Down.
I try to solve this problem by using the suggestion from Node Alignment Issue, but it didn't help since I didn't hide the RadOrgChart. I called it on Page_Load. In addition, I'm using this RadOrgChart Inside RadPageView (My OrgChart is showing on the first page)
<
