Tooltip for xcategory in chart

1 Answer 28 Views
Chart
This is a migrated thread and some comments may be shown as answers.
ajin prasad
Top achievements
Rank 1
ajin prasad asked on 19 Oct 2016, 06:12 AM

Hi,



I am using Radchart and I use StackedBarSeriesDefinition and SeriesMappingCollection to bind it to Rad chart.

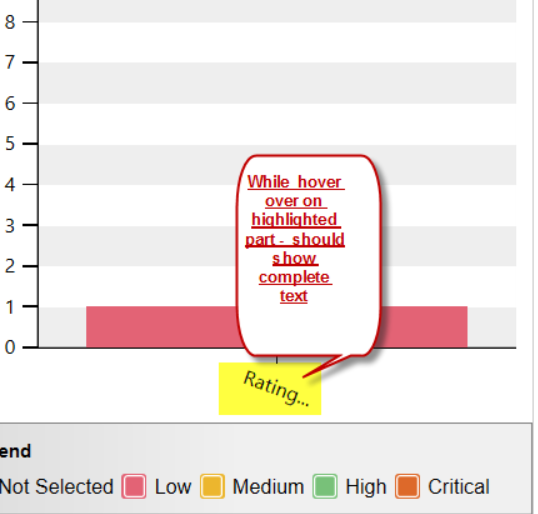

I have shortened the string to show it in x-axis. ie the Xcategory value. I need to show the full text on hover the label. Do we have any such things to show tooltip on Xaxis value?





1 Answer, 1 is accepted

Sort by
0
Peshito
Telerik team
answered on 19 Oct 2016, 12:04 PM
Hello,

This scenario can be achieved by setting a custom AxisLabel2D style as shown below:
<Style x:Key="ItemLabelStyle" TargetType="telerik:AxisLabel2D">
            <Setter Property="Foreground" Value="Orange" />
            <Setter Property="FontSize" Value="13.333" />
            <Setter Property="FontStyle" Value="Italic" />
            <Setter Property="ToolTip" Value="{Binding Value}" />
 </Style>
then attach to ChartArea's Loaded event and set the style for each axis label:
private void ChartArea_Loaded(object sender, RoutedEventArgs e)
        {
            ChartArea area = sender as ChartArea;
            HorizontalAxisLabels2D axisLabelsContainer = area.FindChildByType<HorizontalAxisLabels2D>();
            var axisLabels = axisLabelsContainer.ChildrenOfType<AxisLabel2D>();
            Style style = this.Resources["ItemLabelStyle"] as Style;

            foreach (var item in axisLabels)
            {
                item.Style = style;
            }
        }
In order to show your desired tooltip value, use the Tooltip property and  bind its value to a property of your business object.

I would also recommend using the newer RadChartView control for new development. More about comparing both charts can be found here.

Hope this helps.
