To remove chart border or plotarea border

4 posts, 0 answers
  1. Nirav
    Nirav avatar
    3 posts
    Member since:
    Sep 2013

    Posted 22 Oct 2013 Link to this post

    Hello Guys,

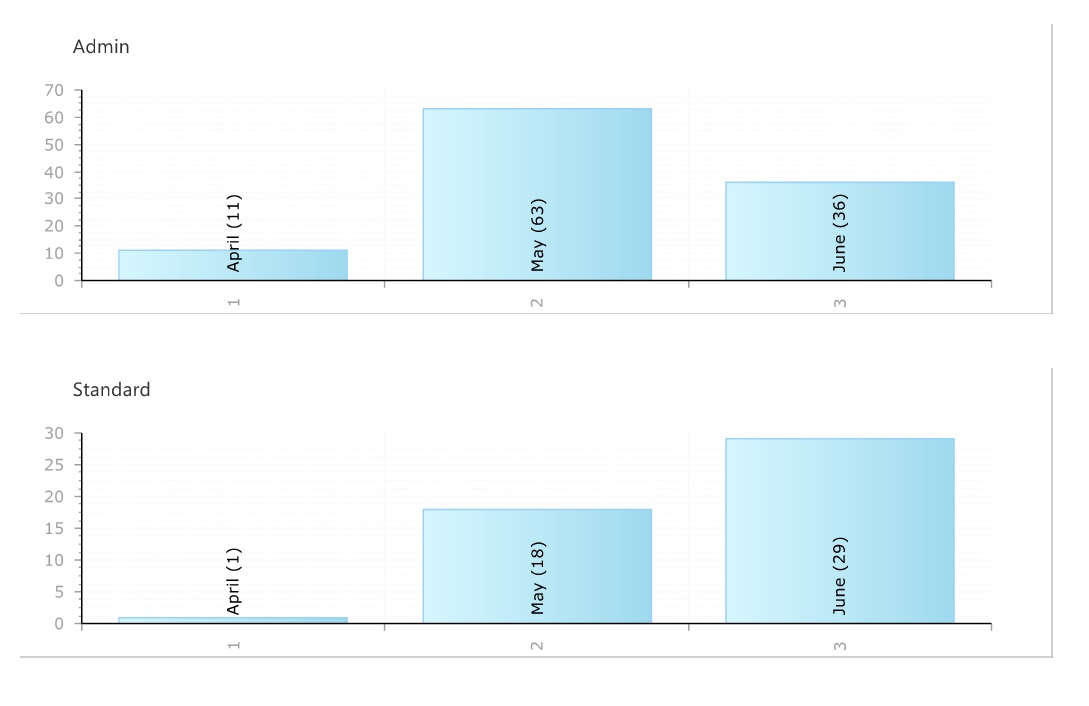

    I am programmatically generating the chart using the below code and while doing so i am getting unexpected border on Right and Bottom side of the chart [refer the attachment] so can you please give us an idea about how to remove those border?

    i have already searched a lot about it and tried following options,

    Chart.Appearance.Border.Visible = false;
    Chart.Appearance.Border.Color = Color.Transparent; // or Color.White

    Chart.PlotArea.Appearance.Border.Visible = false;
    Chart.PlotArea.Appearance.Border.Color = Color.Transparent; // or Color.White

    even tried to set the Border thickness to zero but still getting the border so please let us help to remove the border at the earliest.

    Refer actual code below if needed,

    Telerik.Reporting.Chart defChart = new Telerik.Reporting.Chart();
                            defChart.BitmapResolution = 96F;
                            defChart.ChartTitle.TextBlock.Text = departmentName;
                            defChart.ChartTitle.TextBlock.Appearance.TextProperties.Font = new System.Drawing.Font(new FontFamily("Segoe UI"), 10.0f, FontStyle.Regular);
                            defChart.ChartTitle.Appearance.Position.Auto = false;
                            defChart.ChartTitle.Appearance.Position.AlignedPosition = Telerik.Reporting.Charting.Styles.AlignedPositions.TopLeft;
                            defChart.ImageFormat = System.Drawing.Imaging.ImageFormat.Emf;
                            defChart.Name = "chtContactsPerDay" + departmentCount;
                            defChart.PlotArea.EmptySeriesMessage.Appearance.Visible = true;
                            defChart.PlotArea.EmptySeriesMessage.Visible = true;
                            defChart.Size = new Telerik.Reporting.Drawing.SizeU(Telerik.Reporting.Drawing.Unit.Cm(19.05000114440918D), Telerik.Reporting.Drawing.Unit.Cm(5.3340005874633789D));
                            defChart.Location = new Telerik.Reporting.Drawing.PointU(locationX, locationY);
                            defChart.AutoLayout = true;

                            defChart.Appearance.Border.Visible = false;
                    defChart.Appearance.Shadow.Color = System.Drawing.Color.Transparent;
                    defChart.Appearance.Shadow.Position = Telerik.Reporting.Charting.Styles.ShadowPosition.Behind;
                    defChart.ChartTitle.Appearance.Shadow.Color = System.Drawing.Color.Transparent;
                    defChart.ChartTitle.Appearance.Shadow.Position = Telerik.Reporting.Charting.Styles.ShadowPosition.Behind;
                    defChart.ImageFormat = System.Drawing.Imaging.ImageFormat.Emf;
                    defChart.Legend.Appearance.Shadow.Color = System.Drawing.Color.Transparent;
                    defChart.Legend.Appearance.Shadow.Position = Telerik.Reporting.Charting.Styles.ShadowPosition.Behind;
                    defChart.PlotArea.Appearance.FillStyle.FillType = Telerik.Reporting.Charting.Styles.FillType.Solid;
                    defChart.PlotArea.Appearance.FillStyle.MainColor = System.Drawing.Color.Transparent;
                    defChart.PlotArea.Appearance.Shadow.Color = System.Drawing.Color.Transparent;
                    defChart.PlotArea.Appearance.Shadow.Position = Telerik.Reporting.Charting.Styles.ShadowPosition.Behind;
                    defChart.PlotArea.EmptySeriesMessage.Appearance.Visible = true;
                    defChart.PlotArea.EmptySeriesMessage.Visible = true;
                    defChart.IntelligentLabelsEnabled = false;
                    defChart.Appearance.ImageQuality = Telerik.Reporting.Charting.Styles.ImageQuality.HighQuality | Telerik.Reporting.Charting.Styles.ImageQuality.AntiAlias;
                    defChart.Appearance.TextQuality = Telerik.Reporting.Charting.Styles.TextQuality.ClearTypeGridFit;
                    defChart.BitmapResolution = 600;
                    defChart.PlotArea.Appearance.Border.Visible = false;
                    defChart.PlotArea.EmptySeriesMessage.TextBlock.Text = ReportResources.NoDataFoundMessage;
                    defChart.PlotArea.EmptySeriesMessage.TextBlock.Appearance.TextProperties.Font = new System.Drawing.Font(new FontFamily("Segoe UI"), 10.0f, FontStyle.Regular);

                            defChart.ChartTitle.Visible = true;

                            Telerik.Reporting.Charting.Styles.ChartMargins chartMargins1 = new Telerik.Reporting.Charting.Styles.ChartMargins();
                            chartMargins1.Bottom = new Telerik.Reporting.Charting.Styles.Unit(12D, Telerik.Reporting.Charting.Styles.UnitType.Percentage);
                            chartMargins1.Left = new Telerik.Reporting.Charting.Styles.Unit(12D, Telerik.Reporting.Charting.Styles.UnitType.Percentage);
                            chartMargins1.Right = new Telerik.Reporting.Charting.Styles.Unit(10D, Telerik.Reporting.Charting.Styles.UnitType.Percentage);
                            chartMargins1.Top = new Telerik.Reporting.Charting.Styles.Unit(10D, Telerik.Reporting.Charting.Styles.UnitType.Percentage);

                            defChart.PlotArea.Appearance.Dimensions.Margins = chartMargins1;
                            defChart.PlotArea.YAxis.AxisLabel.Appearance.RotationAngle = 180F;
                            defChart.PlotArea.XAxis.Appearance.LabelAppearance.RotationAngle = 270F;
                            defChart.SeriesOrientation = ChartSeriesOrientation.Vertical;

                            ChartSeries serie = new ChartSeries();
                            serie.Type = ChartSeriesType.Bar;
                            serie.Clear();
                            serie.Appearance.LegendDisplayMode = Telerik.Reporting.Charting.ChartSeriesLegendDisplayMode.Nothing;
                            serie.Appearance.ShowLabels = true;
                            serie.Appearance.LabelAppearance.Position.AlignedPosition = Telerik.Reporting.Charting.Styles.AlignedPositions.Bottom;
                            serie.Appearance.LabelAppearance.LabelLocation = Telerik.Reporting.Charting.Styles.StyleSeriesItemLabel.ItemLabelLocation.Inside;

                            foreach (string key in countWeekday.Keys)
                            {
                                ChartSeriesItem item = new ChartSeriesItem();
                                item.YValue = (double)countWeekday[key];
                                item.Name = key;
                                item.Label.TextBlock.Text = string.Format("{0} ({1})", item.Name, item.YValue);
                                item.Label.TextBlock.Appearance.TextProperties.Color = Color.Black;
                                item.Label.Appearance.RotationAngle = 270;
                                serie.Items.Add(item);
                            }
                            defChart.Series.Add(serie);
                            pnlContactsPerDay_Chart.Items.Add(defChart);



    Thanks,
    Nirav


  2. Evgenia
    Admin
    Evgenia avatar
    1406 posts

    Posted 25 Oct 2013 Link to this post

    Hello Nirav,

     You'll need to hide the PlotArea border by turning off its visibility:

    RadChart1.PlotArea.Appearance.Border.Visible = false;

    Regards,

    Evgenia
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for SILVERLIGHT.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  3. DevCraft banner
  4. Nirav
    Nirav avatar
    3 posts
    Member since:
    Sep 2013

    Posted 29 Oct 2013 Link to this post

    Hello Evgenia,

    Thanks for the answer but i have already tried disabling the border of plot area but it still shows the border and i have also mentioned the codes [first code snippet] which is already tried.

    so can you please tell me what could be other scenario causing this problem?

    Regards,
    Nirav
  5. Evgenia
    Admin
    Evgenia avatar
    1406 posts

    Posted 31 Oct 2013 Link to this post

    Hello Nirav,

    On a second glance it looks to me that these unwanted borders are actually the Axes of the Chart. Could you try and tweak the PlotArea -> XAxis / YAxis -> Appearance properties so that you either reduce their thickness or modify their Color?

    Regards,
    Evgenia
    Telerik
