Tiles are combined in two columns, not one

7 posts, 0 answers
  1. Лена
    Лена avatar
    9 posts
    Member since:
    Oct 2015

    Posted 20 Oct 2015 Link to this post

    Hello!

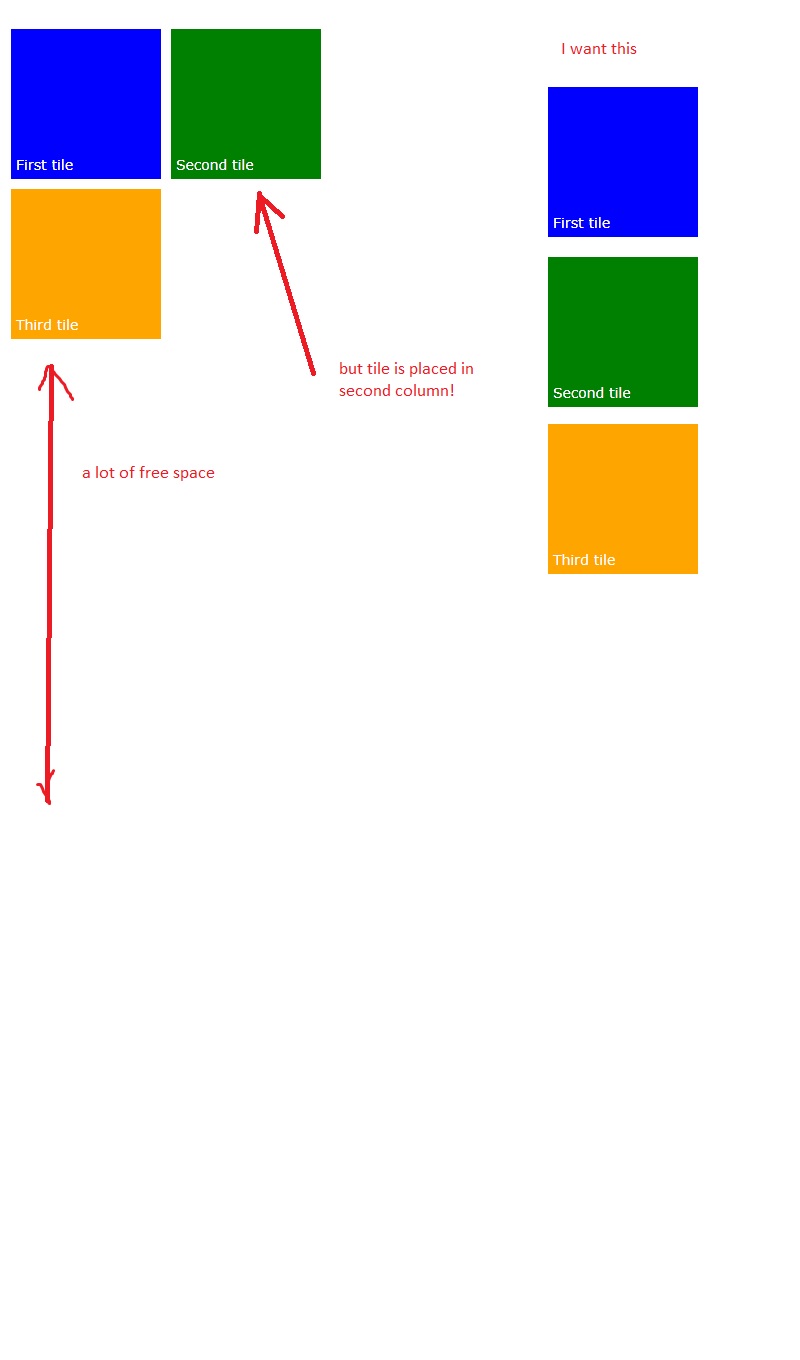

    I'm working with RadTileList, I have several "single" tiles and I want to place them in one column, and only when column is full, wrap the rest of tiles to the second column. But they always are placed in two columns.

    Is this possible?

    Thank you in advance.

  2. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 20 Oct 2015 Link to this post

    Hi Lena,

    Currently, such functionality is not available. A single column is with the size of a double tile (or two single tiles) and the arranging algorithm cannot be modified to calculate it with a single tile size.

    Regards,
    Maya
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. DevCraft banner
  4. Лена
    Лена avatar
    9 posts
    Member since:
    Oct 2015

    Posted 20 Oct 2015 in reply to Maya Link to this post

    And it is not possible to change the column width, is it?

    By the way, the behavior of quadro tiles is exact the same, but their width is same, as the width of double tiles. Why?

  5. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 21 Oct 2015 Link to this post

    Hello Lena,

    The idea of double TIleType ( the default one) is to be twice the size of a single one, the quadruple type is for times bigger than the single. This is by design.
    You can modify the size of a single tile size (its height and width) and double and quadruple respectively by setting TilePlaceholderISide property of RadTileList. It will not change the width of the column, but rather the single side of a tile. However, it might result in a view more close to what you require.

    Regards,
    Maya
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  6. Лена
    Лена avatar
    9 posts
    Member since:
    Oct 2015

    Posted 21 Oct 2015 in reply to Maya Link to this post

    Hello, Maya!

    Looks like it doesn't work, and the column width is changing too, with the width of tile side :(

    Maybe, I did something wrong? I set the RadTileList property TilePlaceholderSide to other value (150, 180). This didn't help

  7. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 21 Oct 2015 Link to this post

    Hi Lena,

    Currently, this is the way to go to control the size of the tiles and respectively, the size of the column.  You cannot specify width of each column, but rather work with the width of a single tile or probably set TIlePlaceholderSide property to a value that might look appropriate for your scenario.

    Regards,
    Maya
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  8. Лена
    Лена avatar
    9 posts
    Member since:
    Oct 2015

    Posted 22 Oct 2015 in reply to Maya Link to this post

    Hi Maya,
    unfortunately, it doesn't change the way tiles are combined. They (single and quadro tiles) still placed two tiles in a row
    Looks like I can't put them vertically in one column

    nevertheless, thank you for your help
