TextTrimming on the property editor

16 posts, 1 answers
  1. HDC
    HDC avatar
    214 posts
    Member since:
    Dec 2010

    Posted 18 Aug 2011 Link to this post

    Hi,

    The property editor is split in 2 columns:

    Label Column
    Editor Column

    I want to create a property editor with following features:

    It must show a readonly textbox that contains the path of a file
    At the right side i must have a button that allows opening a filedialog
    I do not want the property editor to show a horizontal scrollbar

    I have created a readonly textbox that contains the path of the file, it will contain a button with which i can open a filedialog. I have made a template that will show a texttrimmed textblock. So far so good...

    I know the horizontal scrollbar can be turned of in the property editor. But the textbox always resizes so it can show the entire path. This means that if the text in it is to long, i will not see the button on the right.

    I have found there is a property for the Width of the label column but not for the width of the editor column, so how can i set the MaxWidth of my editor match the width of the Editor column?

    What i want to achieve is like the visual studio property editor... that there is no horizontal scrollbar shown at any time... but that the user would have to resize the propertygrid for seeing the entire path of the file.

    Is this possible?


  2. Ivan Ivanov
    Admin
    Ivan Ivanov avatar
    1127 posts

    Posted 19 Aug 2011 Link to this post

    Hello Peter,

    In order to achieve this you have to find the ScrollViewer element in RadPropertyGrid's template, named PART_ItemsScrollViewer and set its HorizontalScrollBarVisibility to Disabled. Then set the TextBox's TextWrapping property to Wrap. Please, test this approach and let us know whether it is applicable in your scenario.

    Greetings,
    Ivan Ivanov
    the Telerik team

    Thank you for being the most amazing .NET community! Your unfailing support is what helps us charge forward! We'd appreciate your vote for Telerik in this year's DevProConnections Awards. We are competing in mind-blowing 20 categories and every vote counts! VOTE for Telerik NOW >>

  3. DevCraft banner
  4. HDC
    HDC avatar
    214 posts
    Member since:
    Dec 2010

    Posted 19 Aug 2011 Link to this post

    Hi Ivan,

    Is there really no other way then to overhaul the entire style?

    I'm suffering the same problem as this guy:

    http://www.telerik.com/community/forums/silverlight/property-grid/exception-when-using-extracted-template.aspx

    I'm also getting ... StyleManager.BasedOn threw an exception, is there any progress on this issue?

    This should be as simple as saying Scrollviewer.HorizontalScrollbar = "Disabled", but that doesn't work either.

    Best Regards,

    Peter
  5. Ivan Ivanov
    Admin
    Ivan Ivanov avatar
    1127 posts

    Posted 22 Aug 2011 Link to this post

    Hello Peter,

    Actually you do not need to modify the template. You may try searching for the ScrollViewer element in the visual tree at runtime instead.

    Regards,
    Ivan Ivanov
    the Telerik team

    Thank you for being the most amazing .NET community! Your unfailing support is what helps us charge forward! We'd appreciate your vote for Telerik in this year's DevProConnections Awards. We are competing in mind-blowing 20 categories and every vote counts! VOTE for Telerik NOW >>

  6. HDC
    HDC avatar
    214 posts
    Member since:
    Dec 2010

    Posted 22 Aug 2011 Link to this post

    Hi Ivan,

    How do i do that?

    When i execute:

    VisualTreeHelper
    .GetParent(SlidePropertyGrid);

    I get null as value?

    Best Regards,

    Peter
  7. Ivan Ivanov
    Admin
    Ivan Ivanov avatar
    1127 posts

    Posted 22 Aug 2011 Link to this post

    Hi Peter,

    Please, try using this extension method instead:

    ScrollViewer sv = radPropertyGrid.ChildrenOfType<ScrollViewer>().FirstOrDefault();


    Kind regards,
    Ivan Ivanov
    the Telerik team

    Thank you for being the most amazing .NET community! Your unfailing support is what helps us charge forward! We'd appreciate your vote for Telerik in this year's DevProConnections Awards. We are competing in mind-blowing 20 categories and every vote counts! VOTE for Telerik NOW >>

  8. HDC
    HDC avatar
    214 posts
    Member since:
    Dec 2010

    Posted 22 Aug 2011 Link to this post

    Sorry Ivan... always returns NULL

    Here is the xaml code where i define the property grid, maybe it is of use to you.

    <telerikDocking:RadDocking Grid.Row="1">
         <telerikDocking:RadSplitContainer InitialPosition="DockedRight" Orientation="Vertical" Width="400">
           <telerikDocking:RadPaneGroup x:Name="PropertiesRadPaneGroup">
             <telerikDocking:RadPane x:Name="Properties" Header="Properties">
               <telerik:RadPropertyGrid x:Name="SlidePropertyGrid"
                                        AutoGeneratePropertyDefinitions="True"
                                        LabelColumnWidth="160"
                                        Item="{Binding PropertyGridItem, Mode=TwoWay}"
                                        HorizontalAlignment="Stretch"
                                        >
               </telerik:RadPropertyGrid>
             </telerikDocking:RadPane>
           </telerikDocking:RadPaneGroup>
         </telerikDocking:RadSplitContainer>

  9. Eric
    Eric  avatar
    7 posts
    Member since:
    Oct 2008

    Posted 08 Mar 2012 Link to this post

    Is there a resolution for this? I am having the same issue. I have a label and button in the property editor and the property grid ignores the TextTrimming property on the textblock allowing the textblock width to grow causing the button to be hidden.
  10. HDC
    HDC avatar
    214 posts
    Member since:
    Dec 2010

    Posted 08 Mar 2012 Link to this post

    Sorry Eric,

    Never did get this to work... seems like a "normal" request for a property editor.

    If you can find a solution, please share.

    Best Regards,

    Peter
  11. Answer
    Eric
    Eric  avatar
    7 posts
    Member since:
    Oct 2008

    Posted 08 Mar 2012 Link to this post

    Peter

    I was able to get the implementation I needed to work. Below is the code:

    XAML:

    <telerik:PropertyDefinition DisplayName="Remote Directory" Description="The base remote path of the directory." GroupName="Mappings" OrderIndex="6">
        <telerik:PropertyDefinition.EditorTemplate>
            <DataTemplate>
                <Grid>
                    <Grid>
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition Width="*"/>
                            <ColumnDefinition Width="Auto"/>
                        </Grid.ColumnDefinitions>
                        <TextBlock Text="{Binding BaseRemoteDirectory, Mode=OneWay}" TextTrimming="WordEllipsis" VerticalAlignment="Center">
                            <ToolTipService.ToolTip>
                                <TextBlock Text="{Binding BaseRemoteDirectory, Mode=OneWay}" TextTrimming="WordEllipsis" TextWrapping="Wrap" MaxHeight="85" MaxWidth="275"/>
                            </ToolTipService.ToolTip>
                        </TextBlock>
                        <telerik:RadButton Content="View" Grid.Column="1" Width="55" Click="OnViewRemoteVirtualDirectory_Click" Margin="1"/>
                    </Grid>
                </Grid>
            </DataTemplate>
        </telerik:PropertyDefinition.EditorTemplate>
    </telerik:PropertyDefinition>


    Code Behind:

    PropertyGridPresenter presenter     = null
    ScrollViewer          scroll_viewer = null;
    void OnPropertyGrid_LayoutUpdated(object sender, EventArgs e)
        try

            if (presenter != null

                // Set the presenters width to the property grids actual width accounting for the width
                // of the verticle scrollbar which may or may not be currently visible.
                presenter.Width = prop_grid.ActualWidth - (prop_grid.ActualWidth - scroll_viewer.ViewportWidth);


        catch (Exception ex)

            ApplicationExceptionManager.Add(new ApplicationException(ApplicationExceptionCodes.Exception, ex));

    void OnPropertyGrid_Loaded(object sender, RoutedEventArgs e)
        try

            // Grab a reference to the property grid presenter.
            presenter = prop_grid.ChildrenOfType<PropertyGridPresenter>().First();
            // Grab a reference to the scrollviewer containing the presenter.
            scroll_viewer = presenter.GetVisualParent<ScrollViewer>();
            // Hide the horizontal scrollbar.
            scroll_viewer.HorizontalScrollBarVisibility = ScrollBarVisibility.Hidden;

        catch (Exception ex)

            ApplicationExceptionManager.Add(new ApplicationException(ApplicationExceptionCodes.Exception, ex));

    }


    You can also used the SizeChanged event on the RadPropertyGrid instead of the LayoutUpdated event. However the SizeChanged event is not triggered when collapsing or expanding property groups so I needed to use LayoutUpdated instead. It is called more often than I like but its not an expensive call.

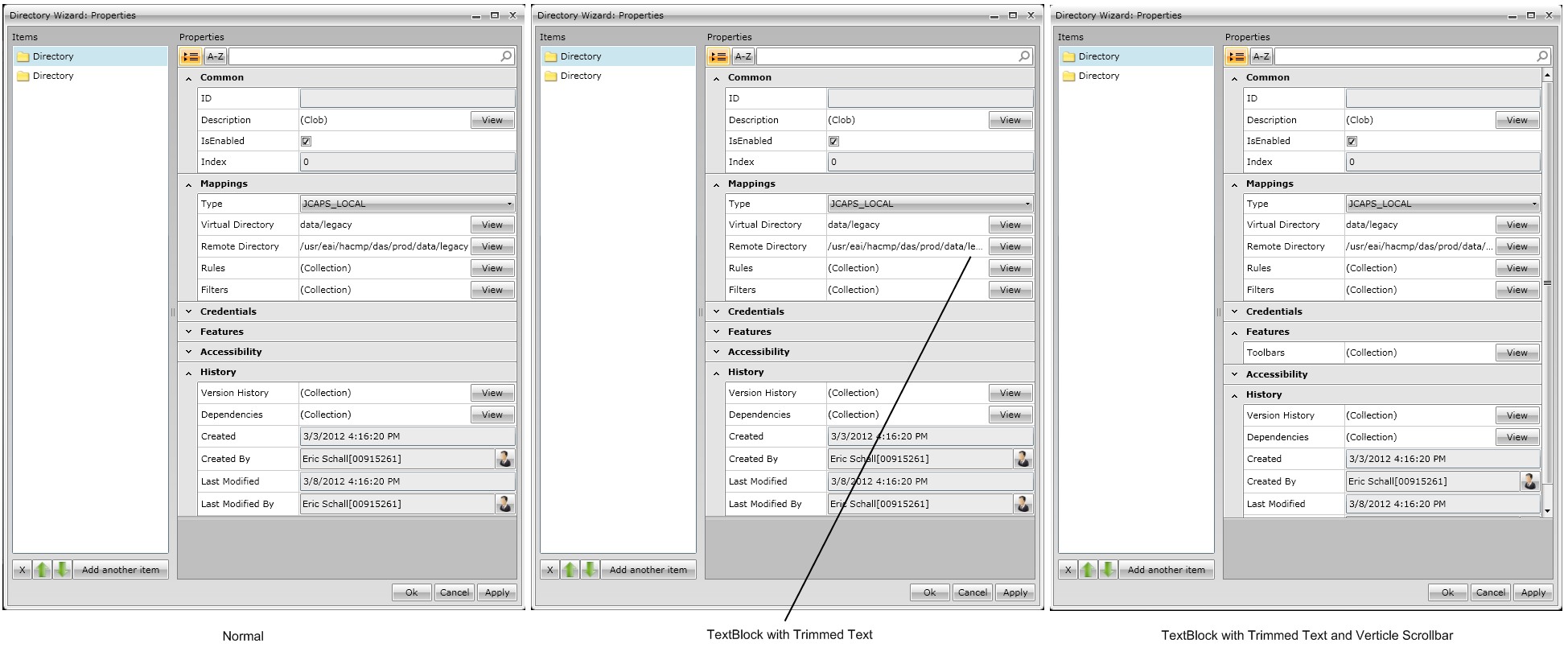

    This give me the functionality I was after which was to have a property editor with a TextBlock with TextTrimming enabled and a button. The TextBlock also shows a tooltip with a larger TextBlock that also has TextTrimming enabled.

    Thanks

    Eric

  12. HDC
    HDC avatar
    214 posts
    Member since:
    Dec 2010

    Posted 09 Mar 2012 Link to this post

    Hi Eric,

    Thanks a lot for sharing that... i will surely give this a spin and see if it is applicable to my situation also.

    Did you do this in the latest release? Because we are running a bit behind schedule on our project and we didn't find the time yet to upgrade to the latest version.

    Best Regards,

    Peter
  13. Ivan Ivanov
    Admin
    Ivan Ivanov avatar
    1127 posts

    Posted 12 Mar 2012 Link to this post

    Hi Peter,

    Please, let me clarify that the mentioned workaround is proposed by another community member and it is not natively supported by any version of RadControls. However, I am very glad to know that you have managed to handle this scenario. As a side note, please let me propose you to send us a runnable project implementing this solution, so that we could test it and inform you of any possible concerns for  its integration with the current latest version of RadControls.

    Regards,
    Ivan Ivanov
    the Telerik team
    Sharpen your .NET Ninja skills! Attend Q1 webinar week and get a chance to win a license! Book your seat now >>
  14. Eric
    Eric  avatar
    7 posts
    Member since:
    Oct 2008

    Posted 12 Mar 2012 Link to this post

    Peter

    We are currently using version 2011.3.1205.1040.
  15. HDC
    HDC avatar
    214 posts
    Member since:
    Dec 2010

    Posted 12 Mar 2012 Link to this post

    Hi Eric,

    I cannot thank you enough for this solution, it works like a charm and it really makes a big difference for our application. Hopefully Telerik sees the necessity of this feature being supported out of the box and tries to work out an easier solution.

    Somebody should give you some points for this Eric, definately a nice job!

    Best Regards,

    Peter
  16. HDC
    HDC avatar
    214 posts
    Member since:
    Dec 2010

    Posted 12 Mar 2012 Link to this post

    Hi Ivan,

    I understand that this solution is not natively supported. Normally speaking we plan to migrate our codebase to the latest telerik version tomorrow. I will verify if this still works with the latest version.

    It is not easy for us to pull this our of our application (and it's a large application) and we have done some heavy integration of the property grids features including dynamically loading custom editors per displayed datatype. But the code submitted by Eric is actually
    quite complete, the only thing i needed to do was implement the two events exactly as Eric has described.

    I think that this is a valid scenario that many people are looking for and that should be supported by Telerik in some future version.

    Best Regards,

    Peter






  17. Ivan Ivanov
    Admin
    Ivan Ivanov avatar
    1127 posts

    Posted 13 Mar 2012 Link to this post

    Hello Peter,

    We have had a few similar layout requirements for client's scenarios, but the most appropriate solution always turns out to require hardcoded measurement values. In order to implement a native behavior that deals with such scenarios, we should not rely on any hardcoded values, as we target a universal solution to the whole class of problems. Currently, I cannot specify any time span for the implementation of such mechanism, so that I will advise you to stick to the custom workarounds. However, I will be glad to help you if you have any specific problems on this, so that do not hesitate to contact us if you have any further inquiries.

    Regards,
    Ivan Ivanov
    the Telerik team
    Sharpen your .NET Ninja skills! Attend Q1 webinar week and get a chance to win a license! Book your seat now >>
