    Hello,

    I created a GridView that shows a List<object>, this "object" could be several types, all these types inherit from a same type. This base type has 3 properties:Key, Value and Icon.

    Now I show my XAML

    <telerik:RadGridView.Columns>
      <telerik:GridViewImageColumn Header="" DataMemberBinding="{Binding Icon,Converter={StaticResource IconaParametroConverter}}"     IsFilterable="False"/>
      <telerik:GridViewDataColumn Header="Parametro" DataMemberBinding="{Binding Caption}" Width="Auto"/>
      <telerik:GridViewDataColumn Header="Valore" DataMemberBinding="{Binding Value,Converter={StaticResource DynamicsParameterConverter}}" Width="*" CellStyle="{StaticResource ValueBoldStyle}" />
    </telerik:RadGridView.Columns>

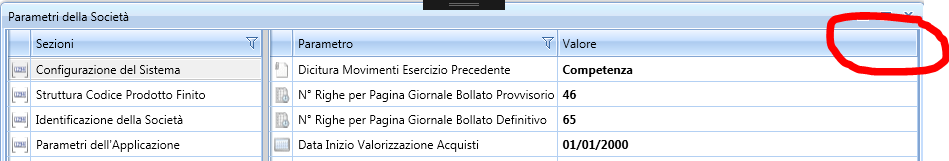

    I attached what it shows at runtime.

    The ValueColumn has not the filter control.

    The only things is that DataMemberBinding has connected with a Converter because Value property should be several type, but this converter return ever string.

    Is it for this reason that not appear a filter control?

    This is a converter code (Column of value is not editable)

    public class DynamicsParameterConverter : IValueConverter
    {
        public object Convert(object value, Type targetType, object parameter,
          System.Globalization.CultureInfo culture)
        {
            if (value == null)
                return "";

            if (value.GetType() == typeof(DateTime))
            {
                var date = (DateTime) value;
                return date.ToShortDateString();
            }
            else if (value.GetType() == typeof(int))
            {
                var number = (int) value;
                return number.ToString();
            }
            else if (value.GetType() == typeof(bool))
            {
                var siNo = (bool) value;
                return siNo ? "Sì" : "No";
            }
            else if (value.GetType() == typeof(double))
            {
                var valore = (double) value;
                return string.Format("{0:N2}", valore);
            }
            else if (value.GetType() ==typeof(CausaleIVA))
            {
                var valore = (CausaleIVA) value;
                return string.Format("{0} ({1})", valore.Codice, valore.Descrizione);
            }
            else
                return value.ToString();
        }
        //....
    }





  2. Dario Concilio
    Dario Concilio avatar
    129 posts
    Member since:
    Apr 2016

    Posted 22 Apr in reply to Dario Concilio Link to this post

    ERRATA CORRIDGE:

    The property Value is not in a base class.



  3. UI for WPF is Visual Studio 2017 Ready
  4. Answer
    Yoan
    Admin
    Yoan avatar
    1070 posts

    Posted 26 Apr Link to this post

    Hi,

    I would suggest you to check the Why doesn’t my column show the filtering funnel icon? help article for a reference. Please keep in mind that our filtering mechanism is working with the underlying data, so you will not be able to filter the converted value.

    Regards,
    Yoan
