SPC Chart

6 posts, 1 answers
  1. Nuno
    Nuno avatar
    53 posts
    Member since:
    Dec 2007

    Posted 15 Aug 2011 Link to this post


    Hi Telerik Team,

    Can we get SPC Charts with Telerik controls?

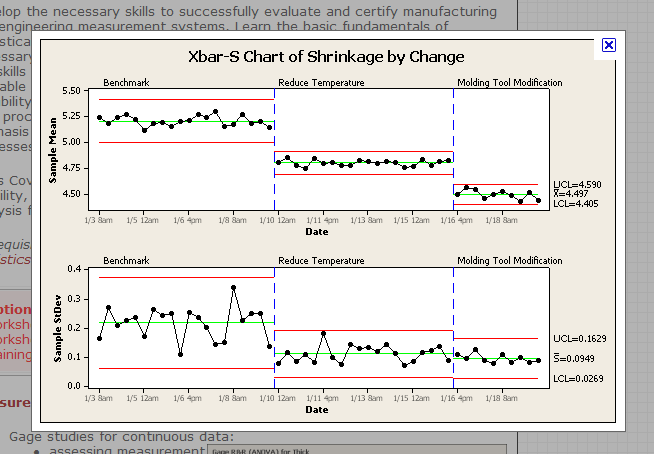

    Please see the attached screenshot...

    Thanks,
    Nuno

  2. Evgenia
    Admin
    Evgenia avatar
    1407 posts

    Posted 17 Aug 2011 Link to this post

    Hi Nuno,

    These charts can be achieved by our Line Chart Series  with Dates on XAxis and Custom GridLines.

    All the best,
    Evgenia
    the Telerik team
    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get now >>
  3. DevCraft banner
  4. Nuno
    Nuno avatar
    53 posts
    Member since:
    Dec 2007

    Posted 17 Aug 2011 Link to this post

    Hi Evgenia,

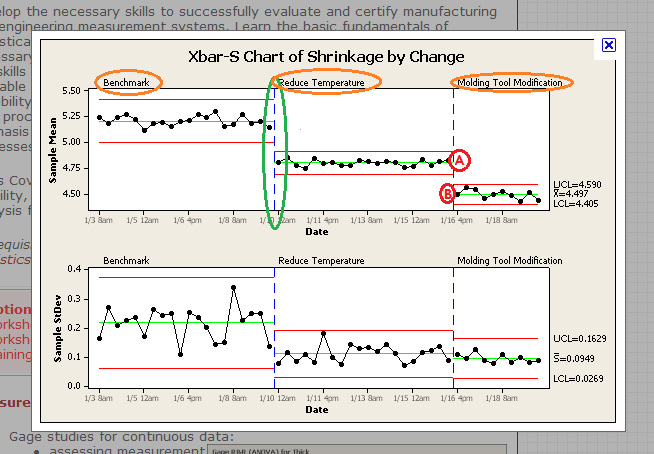

    Please see the attached image again and see the annotations I created using colored circles.

    My questions are:

    Green => Can you achieve vertical grid lines?

    Orange => How can we do that? 3 labels in the same chart area...

    Red => How is it possible to disconnect (not show the connector line) between A and B? (Same as handling empty values but with values in this case...)

    Thanks for your help.

    Regards,
    Nuno
  5. Answer
    Evgenia
    Admin
    Evgenia avatar
    1407 posts

    Posted 18 Aug 2011 Link to this post

    Hello Nuno,

    To your questions:
    Green - Yes, you can have vertical GridLines. Set the XIntercept property for the GridLine which will define at which point the GridLine will Intercept the XAxis.

    Orange - This is not supported out-of-the-box. However I can suggest you two approaches:
     - You can put 3 TextBlocks over the Chart Area to achive this but it's up tp you to set their position on it.
     - You can use the fact that Annotations like GridLines and MarkedZones can have Labels. This means that you can create a Transaprent GridLine for example and set the Label for it in the upper-most border of the Plot Area. However you won't be able to make the Labels appear outside of the PlotArea. For more information on this approah - take a look at our help article.

    Red - To achieve this you'll need two Line Series - one for A and one for B.

    Greetings,
    Evgenia
    the Telerik team
    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get now >>
  6. Nuno
    Nuno avatar
    53 posts
    Member since:
    Dec 2007

    Posted 18 Aug 2011 Link to this post


    Hi Evgenia,

    Thanks for clarifying this for me. It really looks like it's possible to achieve this type of chart using the RadChart control.

    Regards,
    Nuno
  7. นิรวัฒน์
    นิรวัฒน์ avatar
    1 posts
    Member since:
    Dec 2014

    Posted 20 Sep in reply to Nuno Link to this post

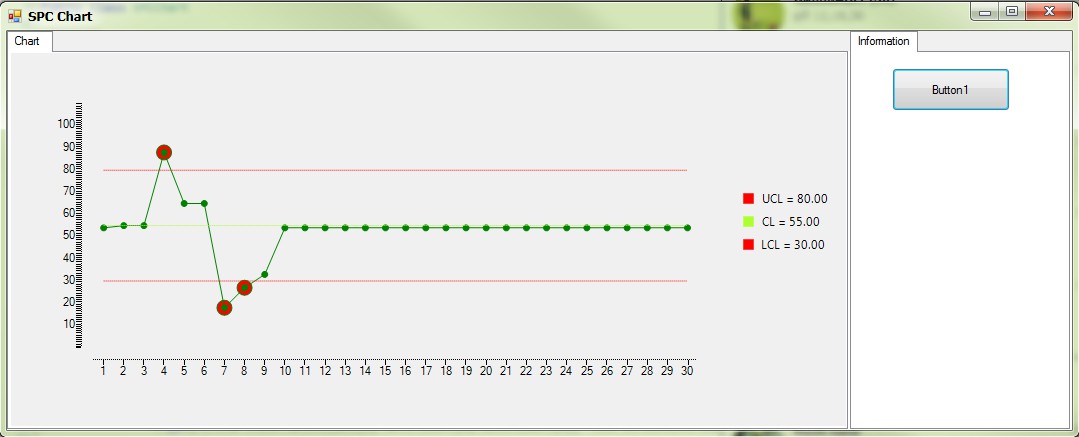

        Private Sub AddLineSPC(ByRef Chart As Telerik.WinControls.UI.RadChartView, ByVal Name As String, ByVal TargetValues As Decimal, ByVal ShowPoint As Boolean, ByVal LineColor As System.Drawing.Color, ByVal BorderStyle As System.Drawing.Drawing2D.DashStyle)
            Try
                Dim LineSeries As New Telerik.WinControls.UI.LineSeries

                LineSeries.Name = Name
                LineSeries.ShowLabels = False
                LineSeries.VerticalAxis = _LinearAxis
                LineSeries.HorizontalAxis = _CateAxis
                LineSeries.BorderColor = LineColor
                LineSeries.BorderWidth = 0.01!
                LineSeries.BorderDashStyle = BorderStyle
                LineSeries.LegendTitle = Name & If(TargetValues > 0, " = " & Format(TargetValues, "#,##0.00"), "")

                If ShowPoint = True Then
                    LineSeries.PointSize = New Size(5, 5)
                    LineSeries.BackColor = Color.Green
                    LineSeries.GradientStyle = Telerik.WinControls.GradientStyles.Solid
                End If

                For ir = RangStart To RangEnd

                    Dim point As Telerik.Charting.CategoricalDataPoint = New Telerik.Charting.CategoricalDataPoint()

                    point.Category = ir.ToString

                    If TargetValues > 0 Then
                        point.Value = TargetValues
                    Else
                        Select Case ir
                            Case 2, 3
                                point.Value = 55
                            Case 4
                                point.Value = 88
                            Case 5, 6
                                point.Value = 65
                            Case 7
                                point.Value = 18
                            Case 8
                                point.Value = 27
                            Case 9
                                point.Value = 33
                            Case Else
                                point.Value = 54
                        End Select
                    End If

                    LineSeries.DataPoints.Add(point)

                Next

                Chart.Series.AddRange(New Telerik.WinControls.UI.ChartSeries() {LineSeries})

            Catch ex As Exception
                Throw ex
            End Try
        End Sub

        Private Sub AddPoint(ByRef Chart As Telerik.WinControls.UI.RadChartView, ByVal Name As String, ByVal LineColor As System.Drawing.Color, ByVal BorderStyle As System.Drawing.Drawing2D.DashStyle)
            Try
                Dim PointSeries As New Telerik.WinControls.UI.LineSeries

                PointSeries.Name = Name
                PointSeries.ShowLabels = False
                PointSeries.VerticalAxis = _LinearAxis
                PointSeries.HorizontalAxis = _CateAxis
                PointSeries.BorderWidth = 0.0!
                PointSeries.BorderColor = LineColor
                PointSeries.PointSize = New Size(11, 11)
                PointSeries.BackColor = LineColor
                PointSeries.GradientStyle = Telerik.WinControls.GradientStyles.Solid

                For ir = RangStart To RangEnd

                    Dim point As Telerik.Charting.CategoricalDataPoint = New Telerik.Charting.CategoricalDataPoint()

                    point.Category = ir.ToString

                    Select Case ir
                        Case 4
                            point.Value = 88
                        Case 7
                            point.Value = 18
                        Case 8
                            point.Value = 27
                        Case Else
                            point.Value = Nothing
                    End Select

                    PointSeries.DataPoints.Add(point)

                Next

                Chart.Series.AddRange(New Telerik.WinControls.UI.ChartSeries() {PointSeries})

            Catch ex As Exception
                Throw ex
            End Try
        End Sub
