    Hi!

    I try to use the ScheduleView control for tasks of my agents.
    Every task has a date, but not a time, therefore I want to hide Time ticks.
    I write this xaml code:

    <telerik:WeekViewDefinition MajorTickLength="1day" MinorTickLength="1day" ShowTimeRuler="False" ShowAllDayArea="False"  />

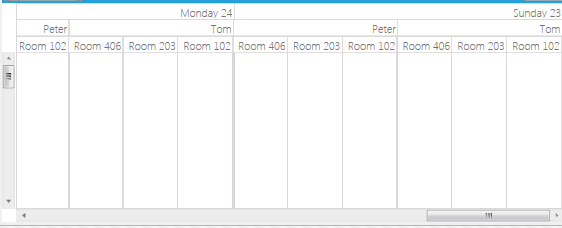

    The result shown in WeekViewDefinition.png attached file.
    My questions are:

    1. why I see a long vertical scrollbar? and how can I fix it?

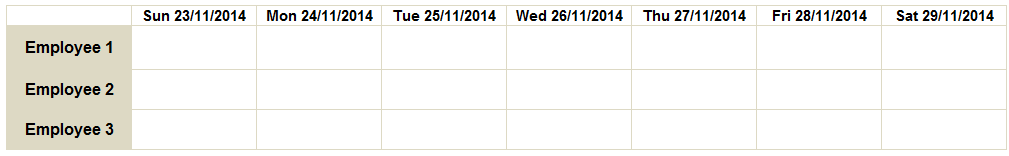

    2. I want show the Appointments in matrix, [like WeekViewMatrixDefinition.png attached file]. how can I do it?

    Thank you for any help.
    yehuda
  2. Yana
    Admin
    Yana avatar
    4554 posts

    Posted 27 Nov 2014 Link to this post

    Hi Yehuda,

    I would suggest that you use TimelineViewDefinition instead as with it you could achieve similar "matrix" view.  You could find more information on the ViewDefinitions of the ScheduleView at the following link:
    http://www.telerik.com/help/wpf/radscheduleview-viewdefinitions-overview.html

    Additionally, you will need to customize the TimeRuler of the TimelineView to show only days as explained in the Configuring the TimeRuler Ticks topic.

    Hope this will help.

    Regards,
    Yana
