Screenshot of HtmlPlaceHolder

4 posts, 0 answers
  1. Haris
    Haris avatar
    7 posts
    Member since:
    Mar 2011

    Posted 05 Apr 2011 Link to this post

    Hi,

    I am struggling with the same old z-index issue of Iframe. I wanted to check the following:

    In short, is it possible to get the screenshot of the whole page that includes a HtmlPlaceHolder?

    Details:
    I am trying to find a work around to fix the z-index issue of HtmlPlaceHolder found at these links:
    http://www.telerik.com/community/forums/silverlight/htmlplaceholder/silverlight-menu-opens-behind-the-htmlcontentplaceholder.aspx
    http://www.telerik.com/community/forums/silverlight/htmlplaceholder/timepicker-is-hiding-because-of-placeholder.aspx

    A solution suggested at this link is feasible for me:
    http://www.telerik.com/community/forums/silverlight/htmlplaceholder/silverlight-menu-opens-behind-the-htmlcontentplaceholder.aspx#1007503

    I am using the following code to get the image:
    System.Windows.Media.Imaging.WriteableBitmap image = new
    WriteableBitmap(Convert.ToInt32(this.uxRadHtmlPlaceHolder.ActualWidth), Convert.ToInt32(this.uxRadHtmlPlaceHolder.ActualHeight));

    image.Render(this.LayoutRoot, new MatrixTransform());
    image.Invalidate();
    this.uxImage.Source = image;

    The area for Iframe of HtmlPlaceHolder always come up blank.

    I've searched for a while on different forums but without any luck.

    Looking forward for your reply.

    Thanks

    - Haris
  2. Petar Mladenov
    Admin
    Petar Mladenov avatar
    2891 posts

    Posted 08 Apr 2011 Link to this post

    Hello Haris,

    Could you please elaborate more on your purpose? Do you really need a snapshot of the browser`s content or you insist on creating an Image? If snapshot, then you can just use a Rectangle with a WebBrowserBrush Fill:
    <Rectangle Width="300" Height="300" x:Name="browserWrapperRectangle">
                   <Rectangle.Fill>
                       <WebBrowserBrush SourceName="browser" x:Name="webbrush"/>
                   </Rectangle.Fill>
               </Rectangle>
    where browser points to a non visible WebBrowser. On the other hand, there are some security limitations when trying to create an Image from WebBrowser or  from Rectangle with WebBrowserBrush.

    Kind regards,
    Petar Mladenov
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. DevCraft banner
  4. Haris
    Haris avatar
    7 posts
    Member since:
    Mar 2011

    Posted 11 Apr 2011 Link to this post

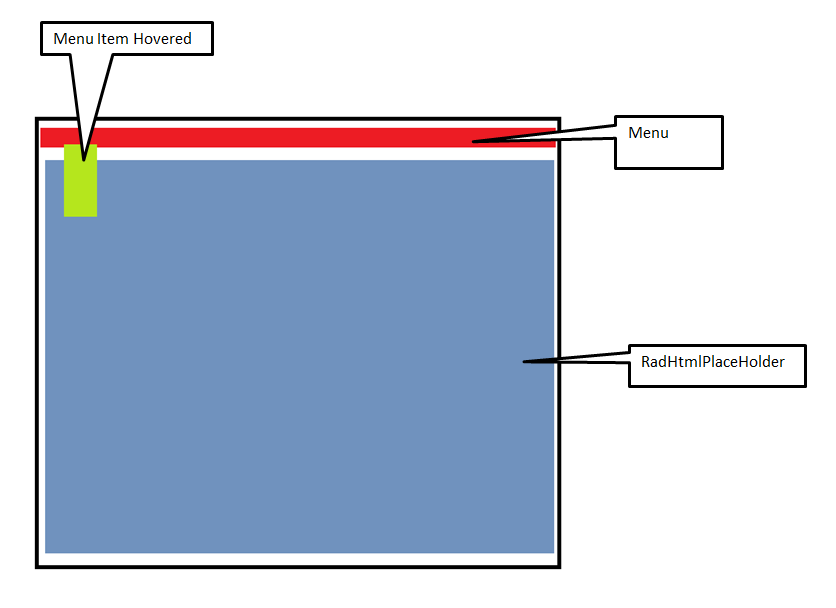

    Please find the attached image as the structure of the page. I know the fact that because of the IFrame used in RadHtmlPlaceHolder, Menu Item (Green) cannot be on top of RadHtmlPlaceHolder.

    So for the work-around I thought of the following situation:

    1. When the mouse is hovered over the Menu (Red):
      1. Set the visibility of the RadHtmlPlaceHolder to Collapsed.
      2. Get the “Screen Shot” of the RadHtmlPlaceHolder
      3. Put it in an Image and display it.
    2. When the mouse goes out of the Menu(Red):
      1. Set the visibility of the RadHtmlPlaceHolder to Visible
      2. Hide the image

    This is a part of requirement I need. The actual requirement is a little different as different modules are loaded. But I believe I can achieve it if I can get the “Screen Shot” of the RadHtmlPlaceHolder.

    Hope this will help you to help me get the solution J

    Thanks in advance.

  5. Kiril Stanoev
    Admin
    Kiril Stanoev avatar
    1512 posts

    Posted 12 Apr 2011 Link to this post

    Hello Haris,

    Thank you very much for elaborating more on your scenario. Unfortunately this is not supported in-browser scenario. It all boils down to the fact that RadHtmlPlaceholder, being an IFrame, is rendered on top of the whole Silverlight plugin. Therefore any attempts to take a screenshot of RadHtmlPlaceholder will fail. The only possible scenario in which you can take a screenshot of RadHtmlPlaceholder is if you application is Out-Of-Browser.

    Best wishes,
    Kiril Stanoev
    the Telerik team
