Reports with Subreports - export to PDF problem

18 posts, 0 answers
  1. Rupali
    Rupali avatar
    3 posts
    Member since:
    Mar 2009

    Posted 09 Mar 2009 Link to this post

    Hi All,

    We are using Telerik reporting control with subreports (master detailed kind of stuff) placed into design section of main report. When we export the report to PDF, we see exactly double the number of pages as displayed in the report.
    Report is exported to pdf in a weired manner. First page displays main report data and next page displays only value from sub report.

    The same problem is happening with the print option also.

    Could you please help me out, digging this problem?

    Thanks in Advance,
    Rupali
  2. Eirik Riise
    Eirik Riise avatar
    1 posts
    Member since:
    Mar 2009

    Posted 10 Mar 2009 Link to this post

    Hi,

    I'm having the same problem and think it has to do with the latest update, since this problems started after updating the Telerik Reporing.
    Haven't found a solution for it jet.

    Still waiting!
  3. DevCraft banner
  4. Steve
    Admin
    Steve avatar
    10941 posts

    Posted 10 Mar 2009 Link to this post

    Hi guys,

    Our online examples are using the latest version (Q3 SP2) and the ProductLineSales catalog report, which consists of master-detail relations works as expected. Also the service pack has been release about a month ago and you are the first one to report such a problem. Please provide more info or best of a runnable report that shows the unexpected behavior.

    Regards,
    Steve
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Check out the tips for optimizing your support resource searches.
  5. Appu
    Appu avatar
    1 posts
    Member since:
    Oct 2014

    Posted 03 Feb in reply to Steve Link to this post

    Hi Steve,,,I cant find the example code page you have mentione a link in this post...could you plz assist me how to resolve the issue discuessed in this thread?
  6. Katia
    Admin
    Katia avatar
    305 posts

    Posted 05 Feb Link to this post

    Hi Appu,

    Telerik Reporting demos can be found locally (default path is C:\Program Files (x86)\Telerik\Reporting XX XXXX\Examples for 64bit machines and C:\Program Files\Telerik\Reporting XX XXXX\Examples for 32bit machines). You can refer to 'Invoice' demo report to see the sample implementation of master-detail relation.

    If you are still experiencing difficulties, please open a support ticket and attach a sample runnable project that reproduces this issue.

    Regards,
    Katia
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  7. doli
    doli avatar
    8 posts
    Member since:
    May 2016

    Posted 21 Nov Link to this post

    Hello All,

    I am also facing same issue "First page displays main report data and next page displays only value from sub report."

    Please, assist me for the same if anybody got this resolved.

    Thanks.
    Doli

  8. Katia
    Admin
    Katia avatar
    305 posts

    Posted 22 Nov Link to this post

    Hello Doli,

    The report is rendered and paged according to the rules described in the following help articles:
    The report is divided into pages based on the report's PageSettings, the size of report items and sections and KeepTogether properties of sections/items.
    Most of the report items are not kept together by default. If you have a Table/CrossTab item in a subreport, set KeepTogether=False for this item as by default it is kept together.

    Also, test resizing the report sections and items of both master report and subreport and check their KeepTogether properties.

    In order to provide you more accurate suggestions, open a support ticket and send us the report definitions so we can check them locally.


    Regards,
    Katia
    Telerik by Progress
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  9. doli
    doli avatar
    8 posts
    Member since:
    May 2016

    Posted 22 Nov in reply to Katia Link to this post

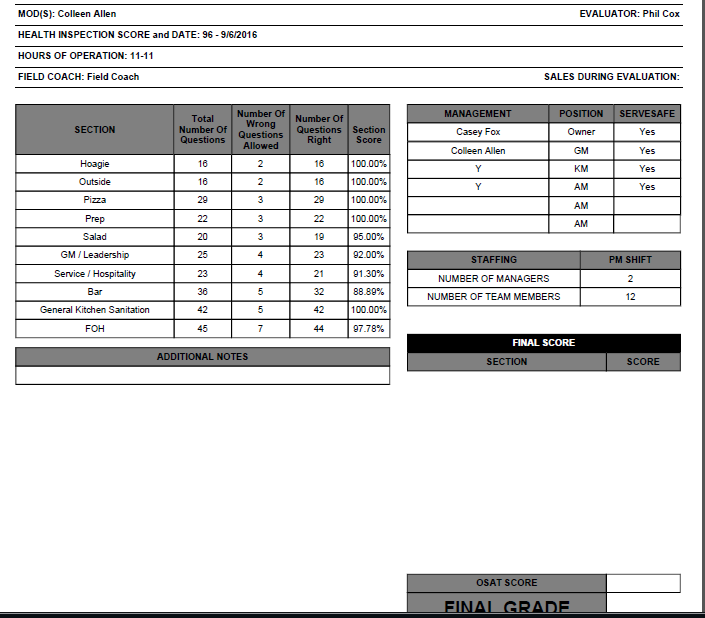

    Hello Katia, Thank you for the reply. I have already set kept together property but it does not work for me. Please find attach the file.I have the problem with subreport. why its display in next page. Please five me proper solution urgently....Thank you in advance.Doli
  10. Katia
    Admin
    Katia avatar
    305 posts

    Posted 22 Nov Link to this post

    Hi Doli,

    Based on the attached screenshot it is not possible to identify the cause of the issue. Send us the problematic reports in a support ticket so we can test them locally.


    Regards,
    Katia
    Telerik by Progress
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  11. doli
    doli avatar
    8 posts
    Member since:
    May 2016

    Posted 22 Nov in reply to Katia Link to this post

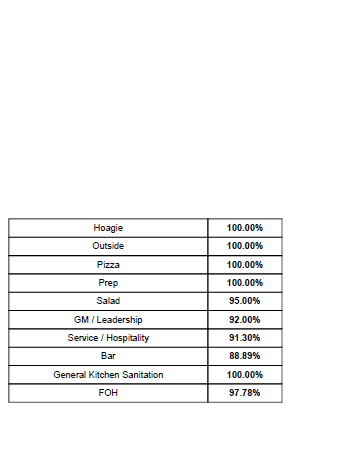

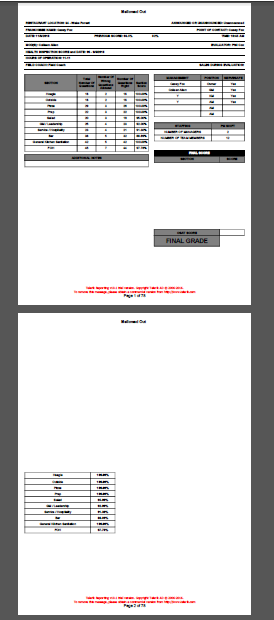

    Hello Katia, I have a problem with the export report to pdf.  I have created sub report and put in my main report. I have set the property which you have suggested but didn't resolved. please help us. you can see in attach my sub report display in next page. please find attach the file.
  12. doli
    doli avatar
    8 posts
    Member since:
    May 2016

    Posted 22 Nov in reply to doli Link to this post

    please provide solutions.
  13. doli
    doli avatar
    8 posts
    Member since:
    May 2016

    Posted 22 Nov Link to this post

    Is there any versioning issue? we are using R2 2016.
  14. Katia
    Admin
    Katia avatar
    305 posts

    Posted 22 Nov Link to this post

    Hello Doli,

    This is not a known issue. Based on the attached screenshots, my suggestion is that the size of the report sections is too big and you might need to reduce it in the designer.

    To provide you further suggestions, we would need to check report definitions (not the rendered reports). You can attach them in the support ticket.


    Regards,
    Katia
    Telerik by Progress
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  15. doli
    doli avatar
    8 posts
    Member since:
    May 2016

    Posted 24 Nov in reply to Katia Link to this post

    Hi, Thank you for a reply. I have multiple reports in the main report but only one report is displayed in next page when I export to pdf. please suggested for how to take support ticket.
  16. Katia
    Admin
    Katia avatar
    305 posts

    Posted 24 Nov Link to this post

    Hello Doli,

    To be able to submit a ticket there are following options. The ticket can be submitted after logging into your Telerik account.


    Regards,
    Katia
    Telerik by Progress
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  17. doli
    doli avatar
    8 posts
    Member since:
    May 2016

    Posted 24 Nov Link to this post

    Hi katia, Thank you for information. I have open my ticket. can you please tell me what we need to next ? ticket ID is 1076124.
  18. Katia
    Admin
    Katia avatar
    305 posts

    Posted 24 Nov Link to this post

    Hello Doli,

    I just posted a reply in the support ticket 1076147:

    "The possible reason for the blank space in the master report is that the report's width becomes larger than the page width. Note that the SubReport item expands both horizontally and vertically to fit its content. Thus, depending on the location of the SubReport item and the page width selected in master report's PageSettings you need to consider the width of the detail section of the subreport - please check this video explaining this scenario.

    More considerations for report layout are described in this help article.

    Also, test applying the troubleshooting approaches suggested in Problem: Telerik Reporting renders blank pages KB article."


    Regards,
    Katia
    Telerik by Progress
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  19. doli
    doli avatar
    8 posts
    Member since:
    May 2016

    Posted 25 Nov Link to this post

    Thank you for the reply. I have resolved that issue but when export to pdf generate the blank page. I have check page width and margin etc..Can you please suggest anything. to resolve the issue.
