Repeating Date on X Axis

7 posts, 1 answers
  1. Richard
    Richard avatar
    72 posts
    Member since:
    Feb 2009

    Posted 18 Oct 2011 Link to this post

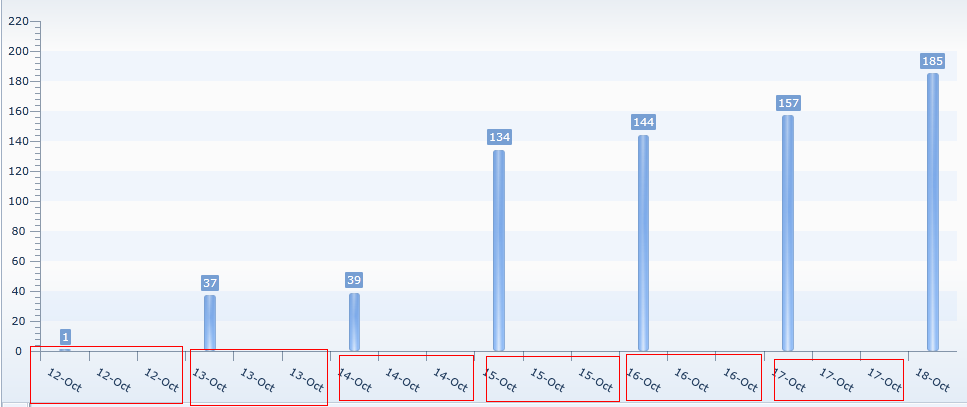

    Hi does anyone know what setting would cause the date to get repeated on the Y Axis? please see the attached screen shot.

    The data definitely only has the 7 data points that are displayed on the chart and there is only one series added.

    Thanks,
    Richard

    ObservableCollection<ReportingDatapointDate> reportData = new ObservableCollection<ReportingDatapointDate>();
    // Vaules taken from Web Service ...

    SeriesMapping seriesMapping = new SeriesMapping
          {
              LegendLabel = "Test Data",
              SeriesDefinition = new BarSeriesDefinition{
                     InteractivitySettings ={
                             SelectionScope =InteractivityScope.Series,
                             HoverScope =InteractivityScope.Series,
                             SelectionMode =ChartSelectionMode.Single
                         }
                 }
          };


    seriesMapping.ItemMappings.Add(new ItemMapping("DateTimeAxisValue", DataPointMember.XValue));
    seriesMapping.ItemMappings.Add(new ItemMapping("NumberAxisValue", DataPointMember.YValue));


    chart.SeriesMappings.Add(seriesMapping);
    chart.ItemsSource = reportData;




    public class ReportingDatapointDate
    {
        public DateTime DateTimeAxisValue { get; set; }
        public double NumberAxisValue { get; set; }
    }


  2. Answer
    Peshito
    Admin
    Peshito avatar
    497 posts

    Posted 21 Oct 2011 Link to this post

    Hello Richard,

    Dates, displayed in your X-axis, are repeated because you are adding your DateTime objects as X values. This causes the axis to go into strict mode in which the items are drawn from Min to Max using a calculated step.

    Try using XCategory as your DataPoint.Member instead of using XValue. More about categorical charts can be found here.

    Regards,
    Peshito
    the Telerik team
    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>
  3. DevCraft banner
  4. Richard
    Richard avatar
    72 posts
    Member since:
    Feb 2009

    Posted 21 Oct 2011 Link to this post

    Peshito you are a genius!

    Thank you so much that's been driving me crazy !

    Richard
  5. Rahul
    Rahul avatar
    10 posts
    Member since:
    Mar 2013

    Posted 25 Mar 2013 Link to this post

    but this does not work for multiple series mapping. it will group the identical dates but what if on particluar day there is not data for one item and has data for another item. As this the scenario for my stuff.



    Thanks
    Rahul
  6. Peshito
    Admin
    Peshito avatar
    497 posts

    Posted 28 Mar 2013 Link to this post

    Hello Rahul,

    Please refer to our online help topic here where you can find more about empty values behavior.

    You can also take a look at our online demo example:
    http://demos.telerik.com/silverlight-old/#Chart/EmptyValues

    Hope this helps.

    All the best,
    Peshito
    the Telerik team

    Explore the entire Telerik portfolio by downloading Telerik DevCraft Ultimate.

  7. Rahul
    Rahul avatar
    10 posts
    Member since:
    Mar 2013

    Posted 28 Mar 2013 Link to this post

    Hi Peshito,

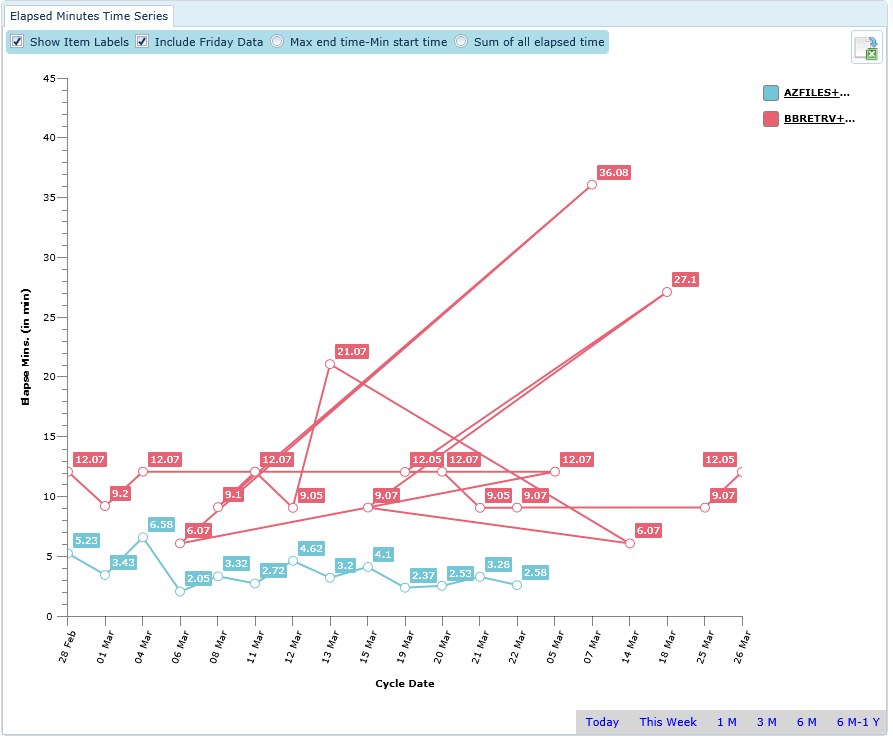

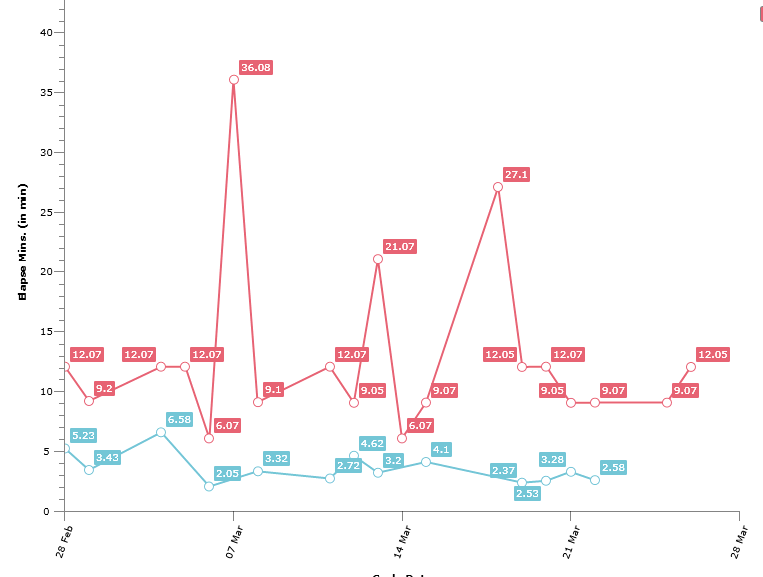

                              Thanks for replying. Any help in solving this  issue asap will be great. I am attaching two images. The one I have used XCategory which groups the dates for 2 items. Suppose if you have to items you want it to draw then it will group 2 items by date and if one of the item does not have value on that day then it puts that items values at the last which I do not want. Please take a look at the images and below code also.

     1> not desired one.
     2> desired result.


    Below is the xaml--



    <





    telerik:RadChart Grid.Row="1" Grid.ColumnSpan="2" x:Name="radTimeGraph" ItemsSource="{Binding Job_TimeSeries,Mode=OneWay}"







    Background="Transparent" BorderBrush="{x:Null}"















    HorizontalAlignment="Left" Margin="0,0,5,0" SeriesMappings="{Binding ChartSeriesMapping}"















    VerticalAlignment="Top"















    Visibility="{Binding ChartVisibility}">












    <





    telerik:RadChart.DefaultView>

















    <telerik:ChartDefaultView ChartLegendPosition="Right">

















    <telerik:ChartDefaultView.ChartLegend>

















    <telerik:ChartLegend x:Name="chartLegend" Header="" UseAutoGeneratedItems="True"







    MouseLeftButtonUp="chartLegend_MouseLeftButtonUp"















    LegendItemStyle="{StaticResource LegendItemStyle}"







    HorizontalAlignment="Center"







    Background="Transparent" BorderBrush="{x:Null}" FontWeight="Bold"







    />

















    </telerik:ChartDefaultView.ChartLegend>

















    <telerik:ChartDefaultView.ChartArea>

















    <telerik:ChartArea LegendName="chartLegend" ItemToolTipOpening="ChartArea_ItemToolTipOpening">

















    <telerik:ChartArea.AxisY>

















    <telerik:AxisY Title="Elapse Mins. (in min)" StripLinesVisibility="Collapsed"/>

















    </telerik:ChartArea.AxisY>

















    <telerik:ChartArea.AxisX>

















    <telerik:AxisX Title="Cycle Date"







    LabelRotationAngle="-70" DefaultLabelFormat="dd MMM" />

















    </telerik:ChartArea.AxisX>

















    </telerik:ChartArea>

















    </telerik:ChartDefaultView.ChartArea>

















    </telerik:ChartDefaultView>

















    </telerik:RadChart.DefaultView>



    </





    telerik:RadChart>












    view model code--



    private





    void AddSeriesMapping()



    {

    ChartSeriesMapping =



    new SeriesMappingCollection();







    if (item_Series != null && item_Series.Count > 0)



    {





    foreach (var series_data in originalData)



    {

    ChartSeriesMapping.Add(GetSeries(series_data ));

    }

    }

    }




    private





    SeriesMapping GetSeries(series_data  jobTS_data)



    {





    SeriesMapping series = new SeriesMapping();



    series.ItemsSource = jobTS_data.TSData;





    int range = (Convert.ToDateTime(EndDate) - Convert.ToDateTime(StartDate)).Days;



    series.LegendLabel = jobTS_data.TSData.FirstOrDefault().UniqueJobIdParentID;

























    SeriesDefinition seriesDef = null;







    switch (SelectedChartType)



    {





    case "Bar":



    seriesDef =



    new BarSeriesDefinition() { ShowItemLabels = Util.SHOW_ITEM_LABEL };







    break;







    case "Line":



    seriesDef =



    new LineSeriesDefinition()



    {

    ShowItemLabels =



    Util.SHOW_ITEM_LABEL,



    EmptyPointBehavior =



    EmptyPointBehavior.Drop,





    };





    break;







    case "Scatter":



    seriesDef =



    new ScatterSeriesDefinition()



    {

    ShowItemLabels =



    Util.SHOW_ITEM_LABEL



    };





    break;



    }

    seriesDef.ShowItemToolTips =



    true;



    series.SeriesDefinition = seriesDef;

    series.ItemMappings.Add(



    new ItemMapping() { DataPointMember = DataPointMember.YValue, FieldName = "Minutes" });



    series.ItemMappings.Add(



    new ItemMapping() { DataPointMember = DataPointMember.XValue, FieldName = "Date"});



    IsStatsExpanded =



    false;







    return series;



    }
