reorderbehavior and extended selection

4 posts, 0 answers
  1. David Ocasio
    David Ocasio avatar
    147 posts
    Member since:
    Nov 2009

    Posted 19 Nov 2010 Link to this post

    I took the row reordering behavior class you guys wrote from your demo (gridview row redordering)) and i am actually using it to move rows from one grid to another. In doing so i came accross some aberent behavior. I simplified what  i was doing by only using one grid and the behavior still exists.

    specifically If:
    • the grid is set to extended selection
    • drag and drop a row from the near the top to near the bottom
    • quickly move the mouse after the drop

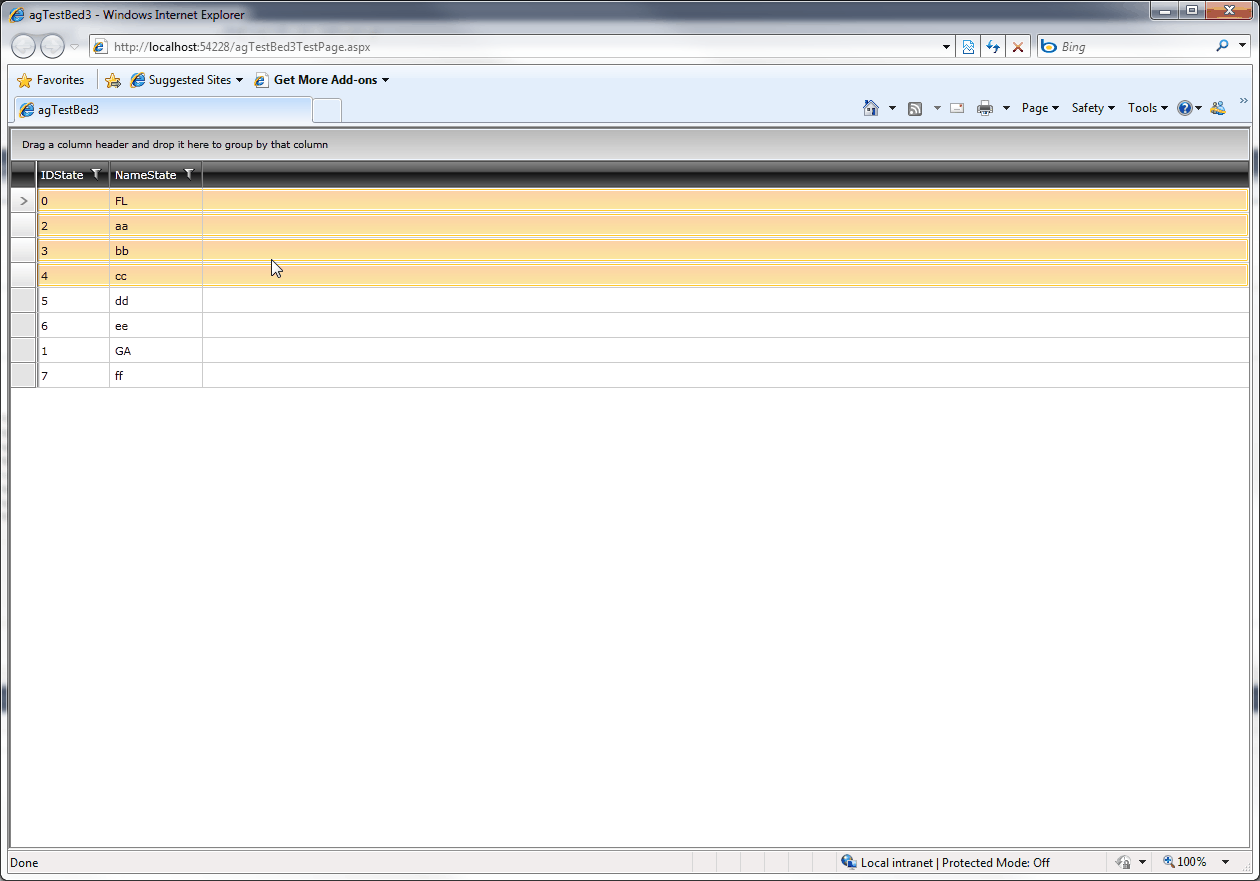

    a number of rows become selected even though you have released the left hand mouse button.
    in fact the grid thinks the mouse button is still down and as you move the mouse up and down selects and unselects

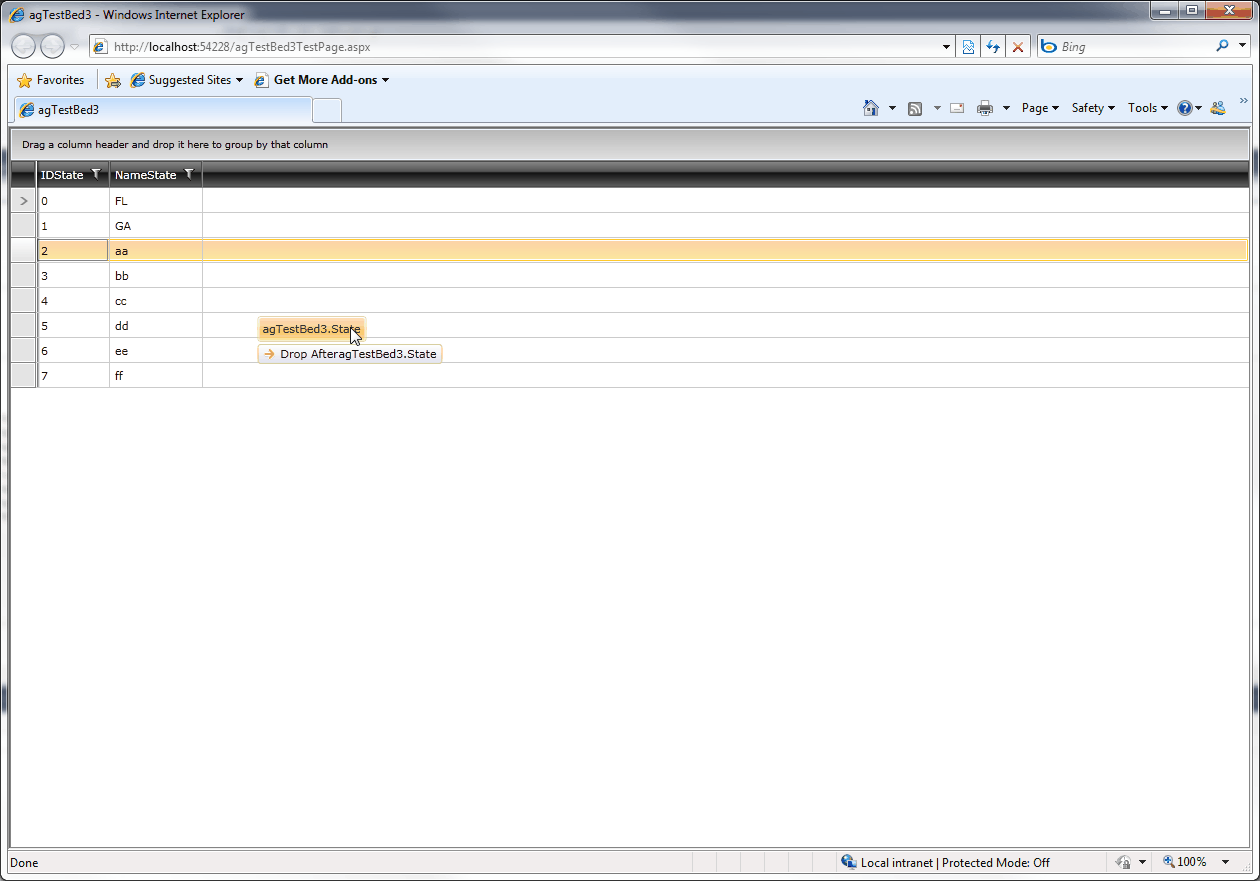

    I am incuding a sample page i made to demonstrate as well as snapshots of the behavior.
    I can send the test project if you need.

    i used

    • BeginingDragEventArgs.vb
    • DragStartedEventArgs.vb
    • RowReorderBehavior.stylingproperties.vb
    • RowReorderBehavior.vb

    from the demo

    <UserControl x:Class="agTestBed3.MainPage"

       xmlns:dragAndDrop="clr-namespace:Telerik.Windows.Controls.DragDrop;assembly=Telerik.Windows.Controls"

        mc:Ignorable="d" d:DesignWidth="640" d:DesignHeight="480" xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation">
      <Grid x:Name="LayoutRoot" >
            <telerik:RadGridView  Name="RadGridView1" SelectionMode="Extended" dragAndDrop:RadDragAndDropManager.AllowDrop="True" />
        </Grid>
    </UserControl>

    Imports System.Windows.Data
    Imports Telerik.Windows.Controls
    Imports Telerik.Windows.Data
    Imports System.ComponentModel
    Imports System.Collections.ObjectModel
    Imports System.Runtime.CompilerServices

    Partial Public Class MainPage
        Inherits UserControl

        Public collStates As New ObservableCollection(Of State)

        Public Sub New()
            InitializeComponent()

            collStates.Add(New State With {.IDState = "0", .NameState = "FL"})
            collStates.Add(New State With {.IDState = "1", .NameState = "GA"})
            collStates.Add(New State With {.IDState = "2", .NameState = "aa"})
            collStates.Add(New State With {.IDState = "3", .NameState = "bb"})
            collStates.Add(New State With {.IDState = "4", .NameState = "cc"})
            collStates.Add(New State With {.IDState = "5", .NameState = "dd"})
            collStates.Add(New State With {.IDState = "6", .NameState = "ee"})
            collStates.Add(New State With {.IDState = "7", .NameState = "ff"})

            RowReorderBehavior.SetIsEnabled(RadGridView1, True)

            RadGridView1.ItemsSource = collStates
        End Sub

    End Class

    Public Class State
        Implements INotifyPropertyChanged

        Public Event PropertyChanged(ByVal sender As Object, ByVal e As System.ComponentModel.PropertyChangedEventArgs) Implements System.ComponentModel.INotifyPropertyChanged.PropertyChanged
        Private Sub FirePropertyChanged(ByVal [property] As String)
            If Not String.IsNullOrEmpty([property]) Then
                RaiseEvent PropertyChanged(Me, New PropertyChangedEventArgs([property]))
            End If
        End Sub

        Public Property IDState() As String
            Get
                Return _IDState
            End Get
            Set(ByVal value As String)
                _IDState = value
                FirePropertyChanged("IDState")
            End Set
        End Property
        Protected _IDState As String

        Public Property NameState() As String
            Get
                Return _NameState
            End Get
            Set(ByVal value As String)
                _NameState = value
                FirePropertyChanged("NameState")
            End Set
        End Property
        Protected _NameState As String

    End Class
  2. Tsvyatko
    Admin
    Tsvyatko avatar
    832 posts

    Posted 25 Nov 2010 Link to this post

    Hello David Ocasio,

    In order to avoid such undesired behavior I can suggest set DragElementAction="None" on DragStarted and on DragEnded DragElementAction="Select".

    Let me know if experience any other issues regarding this scenario

    Kind regards,
    Tsvyatko
    the Telerik team
    Browse the videos here>> to help you get started with RadControls for Silverlight
  3. DevCraft banner
  4. David Ocasio
    David Ocasio avatar
    147 posts
    Member since:
    Nov 2009

    Posted 28 Nov 2010 Link to this post

    Thanks Tsvyatko ,

    Simply putting
    DragElementAction="None" on the grid xaml itself in fact did work.

    Can you explain to me what is occuring.
    Is it expected behavior or just a aberration

    thanks
    dco
  5. Tsvyatko
    Admin
    Tsvyatko avatar
    832 posts

    Posted 01 Dec 2010 Link to this post

    Hello David Ocasio,

    We have considered this behavior as an issue and I have logged it in our PITS system - http://www.telerik.com/support/pits.aspx#/public/silverlight/4205.

    I have also updated you telerik point for reporting it.

    Greetings,
    Tsvyatko
    the Telerik team
