radhtmlplaceholder adding "extra height" to html page

7 posts, 0 answers
  1. Joel Kane
    Joel Kane avatar
    1 posts
    Member since:
    Dec 2009

    Posted 14 Dec 2009 Link to this post

    I've created a Silverlight application with a RadHtmlPlaceHolder and a button which toggles the visibility of the RadHtmlPlaceHolder. When the RadHtmlPlaceHolder is visible, the whole html page seems to increase its height and a vertical scroll bar appears on the browser window, even though all the html content (and silverlight content) fits within the browser window. When the RadHtmlPlaceHolder is invisible, the scroll bar goes away. This issue occurs with IE7 but doesn't occur with Firefox 3.

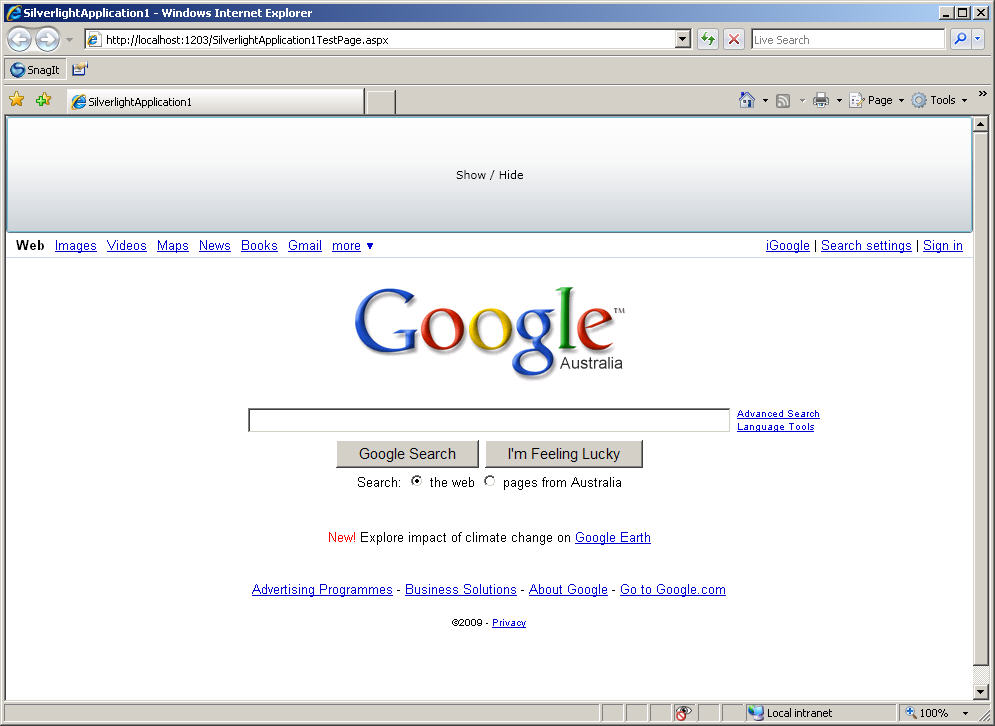

    The code I used is shown below. I've also attached a screenshot of the issue.

    <UserControl x:Class="SilverlightApplication1.MainPage"
                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:telerik="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls"
    <
    Grid x:Name="LayoutRoot">
        <Grid.RowDefinitions>

            <
    RowDefinition Height="2*" />
            <RowDefinition Height="8*"/>
        <
    /Grid.RowDefinitions>
        <
    Button Grid.Row="0" Content="Show / Hide" Click="Button_Click" />
        <telerik:RadHtmlPlaceholder x:Name="RadHtmlPlaceholder1" Grid.Row="1" Visibility="Collapsed" />
    <
    /Grid>
    <
    /UserControl>;

    using System;
    using System.Windows;
    using System.Windows.Controls;

    namespace SilverlightApplication1
    {
        public partial class MainPage : UserControl
        {
            public MainPage()
            {
                InitializeComponent();
                RadHtmlPlaceholder1.SourceUrl =
    new Uri("http://www.google.com");
            }

            private void Button_Click(object sender, RoutedEventArgs e)
            {
                if (RadHtmlPlaceholder1.Visibility == Visibility.Collapsed)
                {
                    RadHtmlPlaceholder1.Visibility = Visibility.Visible;
                }
                else
                {
                    RadHtmlPlaceholder1.Visibility = Visibility.Collapsed;
                }
            }
        }

    Any help would be appreciated.
  2. Bobi
    Admin
    Bobi avatar
    513 posts

    Posted 16 Dec 2009 Link to this post

    Hi Joel Kane,

    Thanks for your report - we managed to reproduce the problem. We apologize for the caused inconvenience.
    This issue will be added in our todo list and will be fixed as soon as possible. Your Telerik points are updated.


    All the best,
    Boryana
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
  3. DevCraft banner
  4. Valentin.Stoychev
    Admin
    Valentin.Stoychev avatar
    2198 posts

    Posted 27 Jan 2010 Link to this post

    Hello Joel Kane,

    After research it turned out that this is an issue with the default SL html page template you need to replace the style that is on top of the page:

    OLD
    ==============

    <style type="text/css">

    html, body {

    height: 100%;

    overflow:auto;

    }

    body {

    padding: 0;

    margin: 0;

    }

    #silverlightControlHost {

    height: 100%;

    text-align:center;

    }

    </style>

    ===================



    NEW

    ===================



    <style type="text/css">

    html, body {

    height: 100%;

    }

    body {

    overflow:auto;

    padding: 0;

    margin: 0;

    }

    #silverlightControlHost {

    height: 100%;

    text-align:center;

    }

    </style>

    ====================


    Please let us know how it goes!



    Regards,
    Valentin.Stoychev
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
  5. Phillip Hamlyn
    Phillip Hamlyn avatar
    26 posts
    Member since:
    Jul 2009

    Posted 15 Sep 2010 Link to this post

    Hi
    I have JUST encountered the same Issue with the added height (whitespace) and scrollbar to an existing "perfect Fit" Screen with a RadHTMLPlaceHolder on it. I have ONLY encountered this since applying the AUG 2010 SP1 for 2010 Q2 release. I applied this to overcome the JScript Error with the RadHTMLPlaceHolder.

    I have tried the suggestion above to modify the SL HTML page, however this just gives me YET ANOTHER Permanent (yes now I have two) unwanted scrollbar albeit disabled.

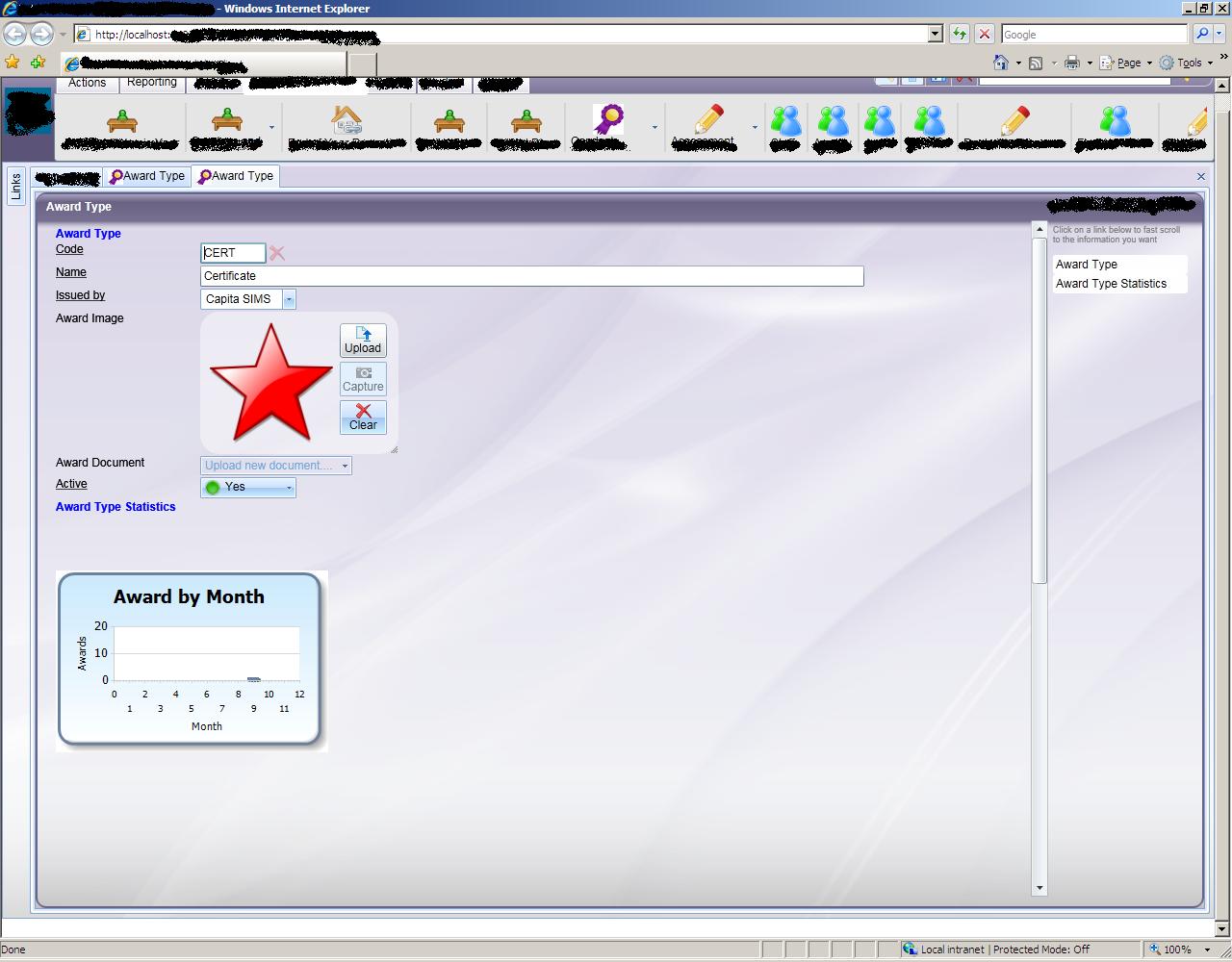

    attached redacted sampleScreen with additional added whitespace and single unwanted scrollbar

    Any suggestions much appreciated
  6. Kiril Stanoev
    Admin
    Kiril Stanoev avatar
    1512 posts

    Posted 16 Sep 2010 Link to this post

    Hello Phillip,

    Instead of just deleting the overflow attribute, try setting it to hidden:

    <style type="text/css">
        html, body
        {
            height: 100%;
            overflow: hidden;
        }
        body
        {
            padding: 0;
            margin: 0;
        }
        #silverlightControlHost
        {
            height: 100%;
            text-align: center;
        }
    </style>

    I'm attaching my sample project. Have a look at it and let me know if it helps.

    All the best,
    Kiril Stanoev
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  7. Phillip Hamlyn
    Phillip Hamlyn avatar
    26 posts
    Member since:
    Jul 2009

    Posted 16 Sep 2010 Link to this post

    Thanks that did the trick, and will suffice as a workaround for now.
    ultimately we have turned off the Browser scrollbar forever, which is acceptable in my current circumstances. As the "issue" only ocurrs since SP1 for 2010 Q2  is there a chance of identification and permanent resolution ?

    Thanks once again for the excellent response !
  8. Miro Miroslavov
    Admin
    Miro Miroslavov avatar
    588 posts

    Posted 20 Sep 2010 Link to this post

    Hello Phillip Hamlyn,

     We did a little change in the HtmlPlaceHolder regarding RightToLeft support, but this shouldn't affect the Browser's scrollbar. We will investigate it, but I think the problem could be more in the Browser, Html, Silverlight bridge and the way they report and handle sizing.

    Sincerely yours,
    Miro Miroslavov
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
