RadDiagram load error

2 posts, 0 answers
  1. Mehmet
    Mehmet avatar
    33 posts
    Member since:
    Jul 2010

    Posted 30 Jan 2013 Link to this post

    Hi,
    I wanted to save the diagram my data file.
    I'm using RadDiagrams/Design ToolBox Q2-2012.
    When I download the file again, I received many error message.

    what should I do?

    Best regards
    Mehmet,

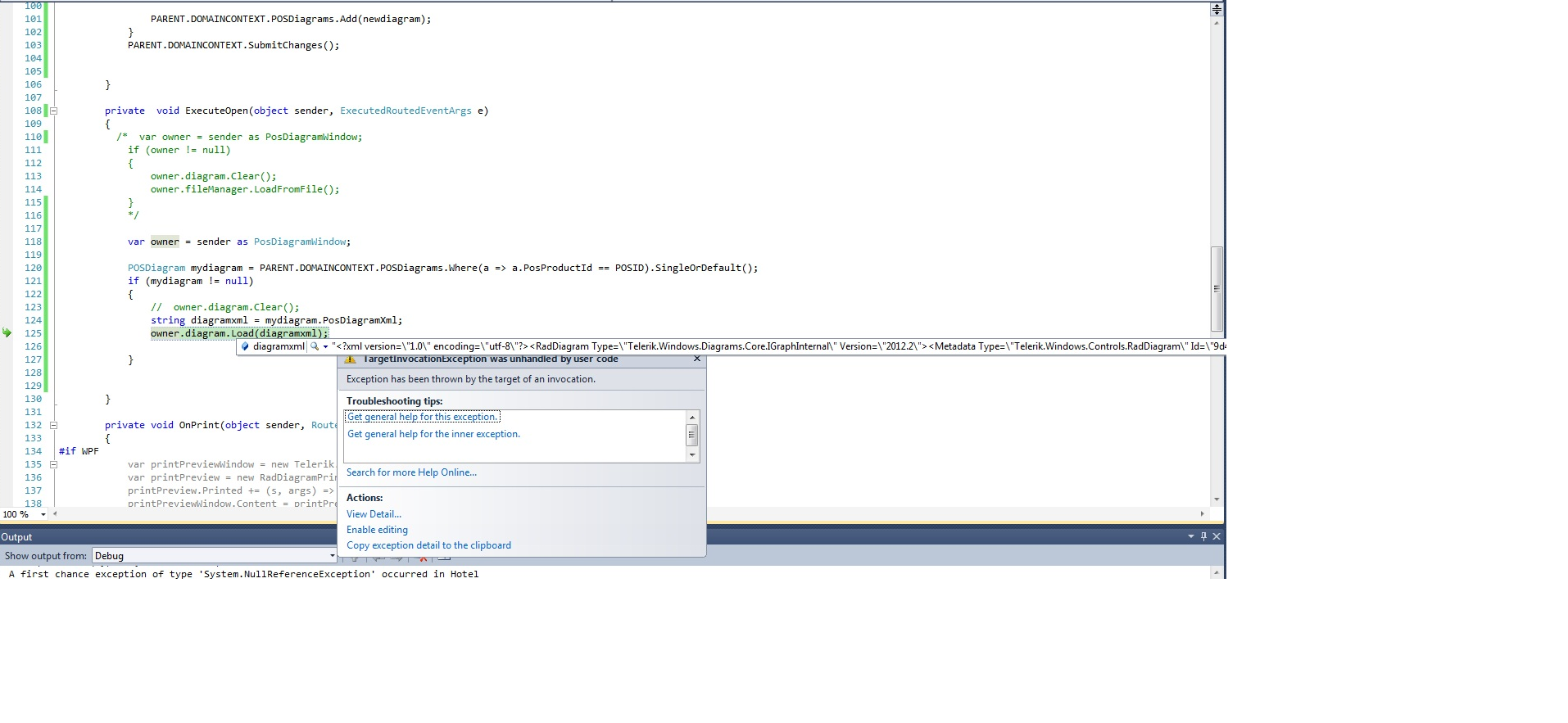

    Raddiagram.Load() method problem: Save is working, Load throws following exception:

    Error Details :

    System.Reflection.TargetInvocationException was unhandled by user code
      Message=Exception has been thrown by the target of an invocation.
      StackTrace:
           at System.RuntimeMethodHandle.InvokeMethod(Object target, Object[] arguments, Signature sig, Boolean constructor)
           at System.Reflection.RuntimeMethodInfo.Invoke(Object obj, BindingFlags invokeAttr, Binder binder, Object[] parameters, CultureInfo culture, Boolean skipVisibilityChecks)
           at System.Delegate.DynamicInvokeImpl(Object[] args)
           at System.Delegate.DynamicInvoke(Object[] args)
           at PosDiagramWindowxaml.BindingOperation(Object BindingState, Int32 , Action )
      InnerException: System.NotImplementedException
           Message=The method or operation is not implemented.
           StackTrace:
                at Telerik.Windows.Controls.ColorToBrushConverter.ConvertBack(Object value, Type targetType, Object parameter, CultureInfo culture)
                at System.Windows.Data.BindingExpression.UpdateValue()
                at System.Windows.Data.Debugging.BindingBreakPoint.<>c__DisplayClass4.<BreakOnSharedType>b__3()
           InnerException:

    Code :
      private  void ExecuteSave(object sender, ExecutedRoutedEventArgs e)
            {

                var owner = sender as PosDiagramWindow;
                string serializationString = owner.diagram.Save();

                POSDiagram diagram = PARENT.DOMAINCONTEXT.POSDiagrams.Where(a => a.PosProductId == POSID).SingleOrDefault();
                if (diagram != null)
                    diagram.PosDiagramXml = serializationString;
                else
                {
                    POSDiagram newdiagram = new POSDiagram
                    {
                        PosProductId = POSID,
                        PosDiagramXml = serializationString,
                    };

                    PARENT.DOMAINCONTEXT.POSDiagrams.Add(newdiagram);
                }
                PARENT.DOMAINCONTEXT.SubmitChanges();


            }

            private  void ExecuteOpen(object sender, ExecutedRoutedEventArgs e)
            {


                var owner = sender as PosDiagramWindow;

                POSDiagram mydiagram = PARENT.DOMAINCONTEXT.POSDiagrams.Where(a => a.PosProductId == POSID).SingleOrDefault();
                if (mydiagram != null)
                {

                    string diagramxml = mydiagram.PosDiagramXml;
                    owner.diagram.Load(diagramxml);

                }


            }



    diagramxml variable's value :

    "<?xml version=\"1.0\" encoding=\"utf-8\"?><RadDiagram Type=\"Telerik.Windows.Diagrams.Core.IGraphInternal\" Version=\"2012.2\"><Metadata Type=\"Telerik.Windows.Controls.RadDiagram\" Id=\"9d4a67b4-053c-4cec-a7dd-a5959a44c2de\" Zoom=\"1\" Position=\"0;0\" IsRotationEnabled=\"true\" IsResizingEnabled=\"true\" IsManipulationAdornerVisible=\"true\" SelectionMode=\"Extended\" IsSnapEnabled=\"true\" SnapX=\"20\" SnapY=\"20\" IsBackgroundSurfaceVisible=\"true\" IsEditable=\"true\" IsDraggingEnabled=\"true\" IsPanEnabled=\"true\" IsZoomEnabled=\"true\" IsConnectorsManipulationEnabled=\"true\" AllowDelete=\"true\" AllowCut=\"true\" AllowCopy=\"true\" AllowPaste=\"true\"><Title>Diagram [1/30/2013 7:57:42 PM]</Title><Description></Description><Background><SolidColorBrush Color=\"#FFFFFFFF\" /></Background></Metadata><Groups /><Shapes QNs=\"Telerik.Windows.Controls.Diagrams, Version=2012.2.607.1050, Culture=neutral, PublicKeyToken=5803cfa389c90ce7;\"><RadDiagramShape Type=\"Telerik.Windows.Controls.RadDiagramShape\" Id=\"f3504803-a527-45a8-b596-4ba48b150360\" ZIndex=\"1\" Position=\"240;60\" Size=\"Auto;Auto\" RotationAngle=\"0\" Connectors=\"Auto:0.5;0.5,Left:0;0.5,Top:0.5;0,Right:1;0.5,Bottom:0.5;1,\" Geometry=\"M111.5,37.5C111.5,57.91 86.67,74.5 56,74.5C25.33,74.5 0.5,57.91 0.5,37.5C0.5,17.09 25.33,0.5 56,0.5C86.67,0.5 111.5,17.09 111.5,37.5z\" QN=\"0\" /><RadDiagramShape Type=\"Telerik.Windows.Controls.RadDiagramShape\" Id=\"f78db07a-ac35-43a8-8385-b5d9f0692c5d\" ZIndex=\"1\" Position=\"460;40\" Size=\"Auto;Auto\" RotationAngle=\"0\" Connectors=\"Auto:0.5;0.5,Left:0;0.5,Top:0.5;0,Right:1;0.5,Bottom:0.5;1,\" Geometry=\"M0.5,48.01L7.78,15.18L37.38,0.5L67.1,15.18L74.5,47.88L54,74.5L21.12,74.5z\" QN=\"0\" /><RadDiagramShape Type=\"Telerik.Windows.Controls.RadDiagramShape\" Id=\"105c8bdc-093c-4a61-a434-5f67805a63cc\" ZIndex=\"1\" Position=\"560;100\" Size=\"Auto;Auto\" RotationAngle=\"0\" Connectors=\"Auto:0.5;0.5,Left:0;0.5,Top:0.5;0,Right:1;0.5,Bottom:0.5;1,\" Geometry=\"M21.56,0.5L63.56,0.5L84.5,37.5L63.56,74.5L21.56,74.5L0.5,37.5z\" QN=\"0\" /></Shapes><Connections /></RadDiagram>"

    xml in database :

    <?xml version="1.0" encoding="utf-8"?><RadDiagram Type="Telerik.Windows.Diagrams.Core.IGraphInternal" Version="2012.2"><Metadata Type="Telerik.Windows.Controls.RadDiagram" Id="83481e28-f8f6-4f28-8caf-29f3af858509" Zoom="1" Position="0;0" IsRotationEnabled="true" IsResizingEnabled="true" IsManipulationAdornerVisible="true" SelectionMode="Extended" IsSnapEnabled="true" SnapX="20" SnapY="20" IsBackgroundSurfaceVisible="true" IsEditable="true" IsDraggingEnabled="true" IsPanEnabled="true" IsZoomEnabled="true" IsConnectorsManipulationEnabled="true" AllowDelete="true" AllowCut="true" AllowCopy="true" AllowPaste="true"><Title>Diagram [1/30/2013 6:53:34 PM]</Title><Description></Description><Background><SolidColorBrush Color="#FFFFFFFF" /></Background></Metadata><Groups /><Shapes QNs="Telerik.Windows.Controls.Diagrams, Version=2012.2.607.1050, Culture=neutral, PublicKeyToken=5803cfa389c90ce7;"><RadDiagramShape Type="Telerik.Windows.Controls.RadDiagramShape" Id="5c0c0d44-e7a6-4d09-9915-9fc188ca30a9" ZIndex="1" Position="80;60" Size="Auto;Auto" RotationAngle="0" Connectors="Auto:0.5;0.5,Left:0;0.5,Top:0.5;0,Right:1;0.5,Bottom:0.5;1," Geometry="M0,9C0,4.02944 4.02944,0 9,0L103,0C107.971,0 112,4.02944 112,9L112,66C112,70.9706 107.971,75 103,75L9,75C4.02944,75 0,70.9706 0,66z" QN="0" /><RadDiagramShape Type="Telerik.Windows.Controls.RadDiagramShape" Id="a1defca7-4ae2-472d-a48a-84e281669021" ZIndex="1" Position="240;60" Size="Auto;Auto" RotationAngle="0" Connectors="Auto:0.5;0.5,Left:0;0.5,Top:0.5;0,Right:1;0.5,Bottom:0.5;1," Geometry="M0.5,0.5L111.5,0.5L111.5,74.5L0.5,74.5z" QN="0" /><RadDiagramShape Type="Telerik.Windows.Controls.RadDiagramShape" Id="5b3a50f1-676e-4a5c-9cc8-19748097fb5e" ZIndex="1" Position="440;60" Size="Auto;Auto" RotationAngle="0" Connectors="Auto:0.5;0.5,Left:0;0.5,Top:0.5;0,Right:1;0.5,Bottom:0.5;1," Geometry="M0.5,48.01L7.78,15.18L37.38,0.5L67.1,15.18L74.5,47.88L54,74.5L21.12,74.5z" QN="0" /></Shapes><Connections /></RadDiagram>



  2. Miro Miroslavov
    Admin
    Miro Miroslavov avatar
    588 posts

    Posted 04 Feb 2013 Link to this post

    Hi Mehmet,

     I tried to Load your Diagram with our online demo and all seems to work. Can you take a look where and how are you using the ColorToBrushConverter? You shouldn't have TwoWay binding with that converter.
    Can you send us the original or modified version of the example you have? So that we can reproduce it on our side.
    Thank you for your cooperation.

    All the best,
    Miro Miroslavov
    the Telerik team
