Problem with RadSlider and negative values...

2 posts, 1 answers
  1. Rob
    Rob avatar
    238 posts
    Member since:
    Jan 2009

    Posted 24 Nov 2010 Link to this post

    Hello,

    In my app, I attempt to create a RadSlider with the following attributes:
       IsSelectionRangeEnabled="True"
       Minimum="-100"
       Maximum="100"
       SelectionStart="-38"
       SelectionEnd="71"


    I have come across some strange behaviour...

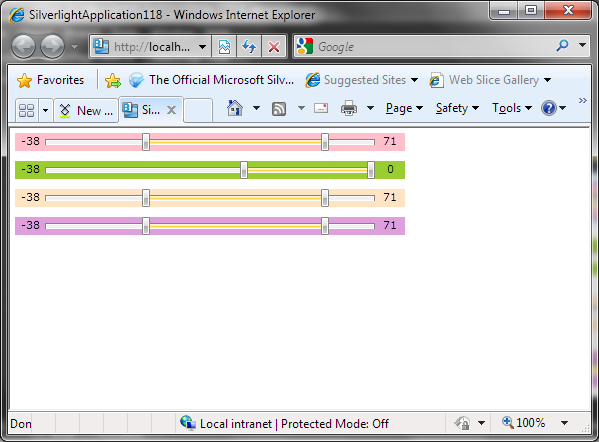

    If I set the values explicitly, it seems to work fine.  If I set the values through binding, it doesn't work properly unless i have a particular order in my xaml, or specify a fallback value.  Below you'll find sample code which displays four sliders.  The first, third and fourth seem to work properly.  The second does not - it seems to lose the positive values.  I have also attached a picture of what I see when I execute this code.  The only difference between the second and third sliders is the ordering of the xaml...

    <UserControl    x:Class="SilverlightApplication118.MainPage"
                    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
                    Width="400"
    >

        <StackPanel Orientation="Vertical" Background="White">

            <Grid Background="Pink" Margin="5">

                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>

                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="30" />
                    <ColumnDefinition Width="1*" />
                    <ColumnDefinition Width="30" />
                </Grid.ColumnDefinitions>

                <telerik:RadSlider x:Name="sldr1" Grid.Row="0" Grid.Column="1" IsSelectionRangeEnabled="True" Minimum="-100" Maximum="100" SelectionStart="-38" SelectionEnd="71" />
                <TextBlock Grid.Row="0" Grid.Column="0" Text="{Binding SelectionStart, ElementName=sldr1, StringFormat='\{0:n0\}'}" HorizontalAlignment="Center"/>
                <TextBlock Grid.Row="0" Grid.Column="2" Text="{Binding SelectionEnd, ElementName=sldr1, StringFormat='\{0:n0\}'}" HorizontalAlignment="Center" />

            </Grid>

            <Grid Background="YellowGreen" Margin="5">

                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>

                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="30" />
                    <ColumnDefinition Width="1*" />
                    <ColumnDefinition Width="30" />
                </Grid.ColumnDefinitions>

                <telerik:RadSlider x:Name="sldr2" Grid.Row="0" Grid.Column="1" IsSelectionRangeEnabled="True" Minimum="{Binding Minimum}" Maximum="{Binding Maximum}" SelectionStart="{Binding SelectionStart, Mode=TwoWay}" SelectionEnd="{Binding SelectionEnd, Mode=TwoWay}" />
                <TextBlock Grid.Row="0" Grid.Column="0" Text="{Binding SelectionStart, ElementName=sldr2, StringFormat='\{0:n0\}'}" HorizontalAlignment="Center"/>
                <TextBlock Grid.Row="0" Grid.Column="2" Text="{Binding SelectionEnd, ElementName=sldr2, StringFormat='\{0:n0\}'}" HorizontalAlignment="Center" />

            </Grid

            <Grid Background="Bisque" Margin="5">

                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>

                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="30" />
                    <ColumnDefinition Width="1*" />
                    <ColumnDefinition Width="30" />
                </Grid.ColumnDefinitions>

                <telerik:RadSlider x:Name="sldr3" Grid.Row="0" Grid.Column="1" IsSelectionRangeEnabled="True" Maximum="{Binding Maximum}" Minimum="{Binding Minimum}" SelectionStart="{Binding SelectionStart, Mode=TwoWay}" SelectionEnd="{Binding SelectionEnd, Mode=TwoWay}" />
                <TextBlock Grid.Row="0" Grid.Column="0" Text="{Binding SelectionStart, ElementName=sldr3, StringFormat='\{0:n0\}'}" HorizontalAlignment="Center"/>
                <TextBlock Grid.Row="0" Grid.Column="2" Text="{Binding SelectionEnd, ElementName=sldr3, StringFormat='\{0:n0\}'}" HorizontalAlignment="Center" />

            </Grid

            <Grid Background="Plum" Margin="5">

                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>

                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="30" />
                    <ColumnDefinition Width="1*" />
                    <ColumnDefinition Width="30" />
                </Grid.ColumnDefinitions>

                <telerik:RadSlider x:Name="sldr4" Grid.Row="0" Grid.Column="1" IsSelectionRangeEnabled="True" Minimum="{Binding Minimum, FallbackValue=0}" Maximum="{Binding Maximum, FallbackValue=10}" SelectionStart="{Binding SelectionStart, Mode=TwoWay, FallbackValue=3}" SelectionEnd="{Binding SelectionEnd, Mode=TwoWay, FallbackValue=7}" />
                <TextBlock Grid.Row="0" Grid.Column="0" Text="{Binding SelectionStart, ElementName=sldr4, StringFormat='\{0:n0\}'}" HorizontalAlignment="Center"/>
                <TextBlock Grid.Row="0" Grid.Column="2" Text="{Binding SelectionEnd, ElementName=sldr4, StringFormat='\{0:n0\}'}" HorizontalAlignment="Center" />

            </Grid

        </StackPanel>

    </UserControl>
    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Net;
    using System.Windows;
    using System.Windows.Controls;
    using System.Windows.Documents;
    using System.Windows.Input;
    using System.Windows.Media;
    using System.Windows.Media.Animation;
    using System.Windows.Shapes;
    using System.ComponentModel;

    namespace SilverlightApplication118
    {
        public partial class MainPage : UserControl
        {
            public MainPage()
            {
                // Required to initialize variables
                InitializeComponent();

                this.sldr2.DataContext = new ToleranceDataObject() { Minimum = -100, Maximum = 100, SelectionStart = -38, SelectionEnd = 71 };

                this.sldr3.DataContext = new ToleranceDataObject() { Minimum = -100, Maximum = 100, SelectionStart = -38, SelectionEnd = 71 };

                this.sldr4.DataContext = new ToleranceDataObject() { Minimum = -100, Maximum = 100, SelectionStart = -38, SelectionEnd = 71 };

            }
        }



        public class ToleranceDataObject : INotifyPropertyChanged
        {

            private double _Minimum = 0;
            public double Minimum
            {
                get
                {
                    return _Minimum;
                }
                set
                {
                    this._Minimum = value;
                    RaisePropertyChanged("Minimum");
                }
            }

            private double _Maximum = 100;
            public double Maximum
            {
                get
                {
                    return _Maximum;
                }
                set
                {
                    this._Maximum = value;
                    RaisePropertyChanged("Maximum");
                }
            }

            private double _SelectionStart = 33;
            public double SelectionStart
            {
                get
                {
                    return _SelectionStart;
                }
                set
                {
                    this._SelectionStart = value;
                    RaisePropertyChanged("SelectionStart");
                }
            }

            private double _SelectionEnd = 66;
            public double SelectionEnd
            {
                get
                {
                    return _SelectionEnd;
                }
                set
                {
                    this._SelectionEnd = value;
                    RaisePropertyChanged("SelectionEnd");
                }
            }

            public event PropertyChangedEventHandler PropertyChanged;
            public void RaisePropertyChanged(string propertyName)

                PropertyChangedEventHandler pChanged = PropertyChanged;
                if (pChanged != null

                    PropertyChanged(this, new PropertyChangedEventArgs(propertyName));




        }

    }


  2. Answer
    Kiril Stanoev
    Admin
    Kiril Stanoev avatar
    1511 posts

    Posted 26 Nov 2010 Link to this post

    Hi Rob,

    Just set BindingMode=TwoWay to the Minimum and Maximum bindings.

    <Grid Background="YellowGreen" Margin="5">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto" />
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="30" />
            <ColumnDefinition Width="1*" />
            <ColumnDefinition Width="30" />
        </Grid.ColumnDefinitions>
        <telerik:RadSlider x:Name="sldr2" Grid.Row="0" Grid.Column="1"
                IsSelectionRangeEnabled="True" Minimum="{Binding Minimum, Mode=TwoWay}"
                Maximum="{Binding Maximum, Mode=TwoWay}"
                SelectionStart="{Binding SelectionStart, Mode=TwoWay}"
                SelectionEnd="{Binding SelectionEnd, Mode=TwoWay}" />
        <TextBlock Grid.Row="0" Grid.Column="0"
                Text="{Binding SelectionStart, ElementName=sldr2, StringFormat='\{0:n0\}'}"
                HorizontalAlignment="Center" />
        <TextBlock Grid.Row="0" Grid.Column="2"
                Text="{Binding SelectionEnd, ElementName=sldr2, StringFormat='\{0:n0\}'}"
                HorizontalAlignment="Center" />
    </Grid>

    The output should be the same in all of the sliders. Let me know if this helps.

    Greetings,
    Kiril Stanoev
    the Telerik team
