Pragmatically TileType problem, and Tile Reorder problem.

5 posts, 0 answers
  1. Sam
    Sam avatar
    8 posts
    Member since:
    Nov 2014

    Posted 13 Nov 2014 Link to this post

    I'm facing problems with TileList, I want to allow the user to change the tile size at runtime. When you change the tile size (tiletype) pragmatically, in a random manner the tile size and UI got corrupted.

    To reproduce the problem:

    XAML CODE:


    <Window x:Class="MainWindow"
            Title="MainWindow" Height="625" Width="1300" WindowState="Maximized">
        <Grid>
            <Grid.Resources>
                <Style TargetType="TextBlock" x:Key="TileLabelStyle">
                    <Setter Property="FontSize" Value="14" />
                    <Setter Property="FontFamily" Value="Segoe UI" />
                    <Setter Property="Margin" Value="0" />
                    <Setter Property="VerticalAlignment" Value="Top"/>
                </Style>
            </Grid.Resources>
            <Grid.RowDefinitions>
                <RowDefinition Height="35"/>
                <RowDefinition Height="*"/>
            </Grid.RowDefinitions>
            <Button Content="All Small" Grid.Row="0" Click="Button_Click" HorizontalAlignment="Left" Width="96" />
            <Button Content="All Double" Grid.Row="0" Margin="101,0,0,0" Click="Button_Click_1" HorizontalAlignment="Left" Width="96" />
            <Button Content="All Quadruple" Grid.Row="0" Margin="202,0,0,0" Click="Button_Click_2" HorizontalAlignment="Left" Width="96" />
            <telerik:RadTileList IsManipulationEnabled="True" TilePlaceHolderSide="150" ScrollViewer.HorizontalScrollBarVisibility="Visible" CanUserSelect="False" x:Name="MainTileList" Grid.Row ="1">
                <telerik:Tile TileType="Single" Background="Bisque">
                    <Grid >
                        <TextBlock Text="Single" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Single">
                    <Grid >
                        <TextBlock Text="Single" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Single">
                    <Grid >
                        <TextBlock Text="Single" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Double"  Background="DarkRed">
                    <Grid >
                        <TextBlock Text="Double" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Double">
                    <Grid >
                        <TextBlock Text="Double" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Quadruple">
                    <Grid >
                        <TextBlock Text="Quadruple" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Double"  Background="Coral">
                    <Grid >
                        <TextBlock Text="Double" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Double">
                    <Grid >
                        <TextBlock Text="Double" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Single">
                    <Grid >
                        <TextBlock Text="Single" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Double"  Background="DeepPink">
                    <Grid >
                        <TextBlock Text="Double" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Double">
                    <Grid >
                        <TextBlock Text="Double" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Single"  Background="DarkViolet">
                    <Grid >
                        <TextBlock Text="Single" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Quadruple" Background="Green">
                    <Grid >
                        <TextBlock Text="Quadruple" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Single"   Background="DarkSalmon">
                    <Grid >
                        <TextBlock Text="Single" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>

                <telerik:Tile TileType="Quadruple"  Background="MidnightBlue">
                    <Grid >
                        <TextBlock Text="Quadruple" Style="{StaticResource TileLabelStyle}"/>
                    </Grid>
                </telerik:Tile>
            </telerik:RadTileList>
        </Grid>
    </Window>

    VB Code:

    Imports Telerik.Windows.Controls

    Class MainWindow

        Private Sub MainWindow_Loaded(sender As Object, e As RoutedEventArgs) Handles Me.Loaded

            Dim MainContextMenu As New ContextMenu

            Dim smallMenuItem As New MenuItem With {.Header = "Small"}
            Dim wideMenuItem As New MenuItem With {.Header = "Wide"}
            Dim largeMenuItem As New MenuItem With {.Header = "Large"}

            MainContextMenu.Items.Add(smallMenuItem)
            MainContextMenu.Items.Add(wideMenuItem)
            MainContextMenu.Items.Add(largeMenuItem)

            AddHandler smallMenuItem.Click, AddressOf SmallSizeClick
            AddHandler wideMenuItem.Click, AddressOf WideSizeClick
            AddHandler largeMenuItem.Click, AddressOf LargeSizeClick

            For Each c As Tile In MainTileList.Items
                c.ContextMenu = MainContextMenu
            Next
        End Sub

        Private Sub SmallSizeClick(sender As Object, e As RoutedEventArgs)
            Dim tile = DirectCast(DirectCast(DirectCast(sender, MenuItem).Parent, ContextMenu).PlacementTarget, Tile)
            tile.TileType = TileType.Single
        End Sub

        Private Sub WideSizeClick(sender As Object, e As RoutedEventArgs)
            Dim tile = DirectCast(DirectCast(DirectCast(sender, MenuItem).Parent, ContextMenu).PlacementTarget, Tile)
            tile.TileType = TileType.Double
        End Sub

        Private Sub LargeSizeClick(sender As Object, e As RoutedEventArgs)
            Dim tile = DirectCast(DirectCast(DirectCast(sender, MenuItem).Parent, ContextMenu).PlacementTarget, Tile)
            tile.TileType = TileType.Quadruple
        End Sub

        Private Sub Button_Click(sender As Object, e As RoutedEventArgs)
            For Each t As Tile In MainTileList.Items
                t.TileType = TileType.Single
            Next
        End Sub

        Private Sub Button_Click_1(sender As Object, e As RoutedEventArgs)
            For Each t As Tile In MainTileList.Items
                t.TileType = TileType.Double
            Next
        End Sub

        Private Sub Button_Click_2(sender As Object, e As RoutedEventArgs)
            For Each t As Tile In MainTileList.Items
                t.TileType = TileType.Quadruple
            Next
        End Sub
    End Class

    Run the application:

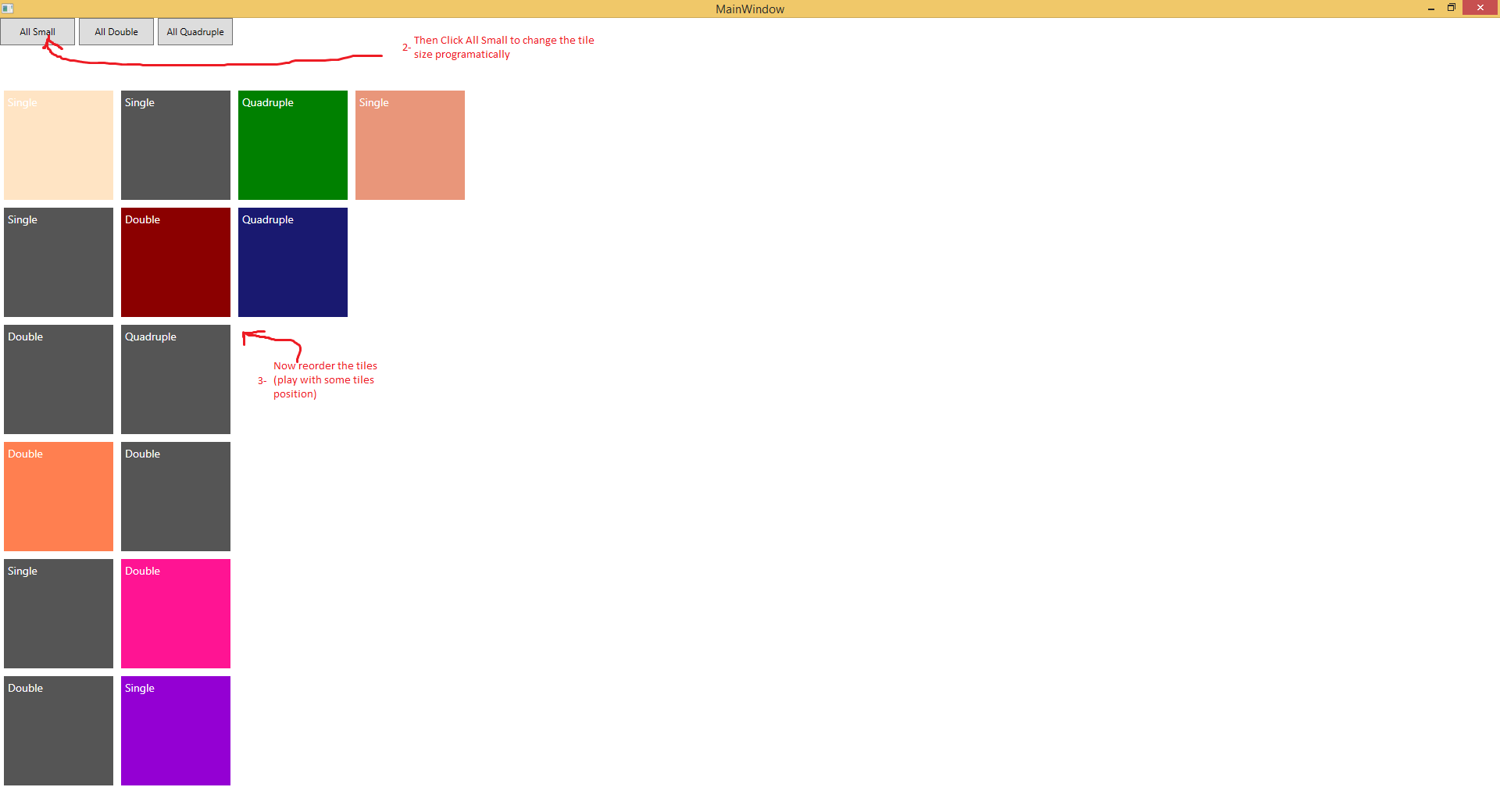

    1- Click on "All SMALL" button to set all tile to single
    2- Try to reorder some tiles

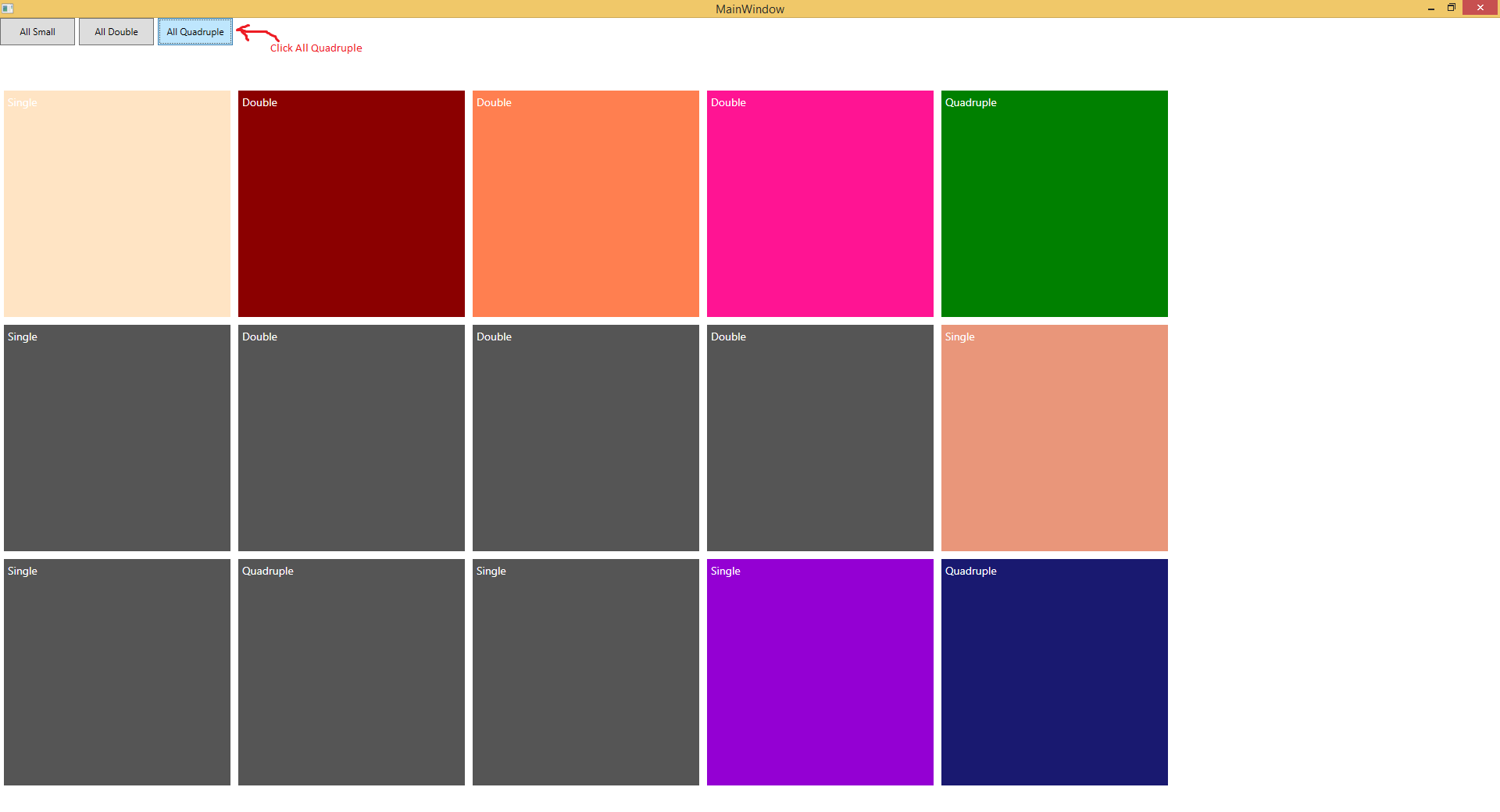

    3- Click on "All Quadruple"

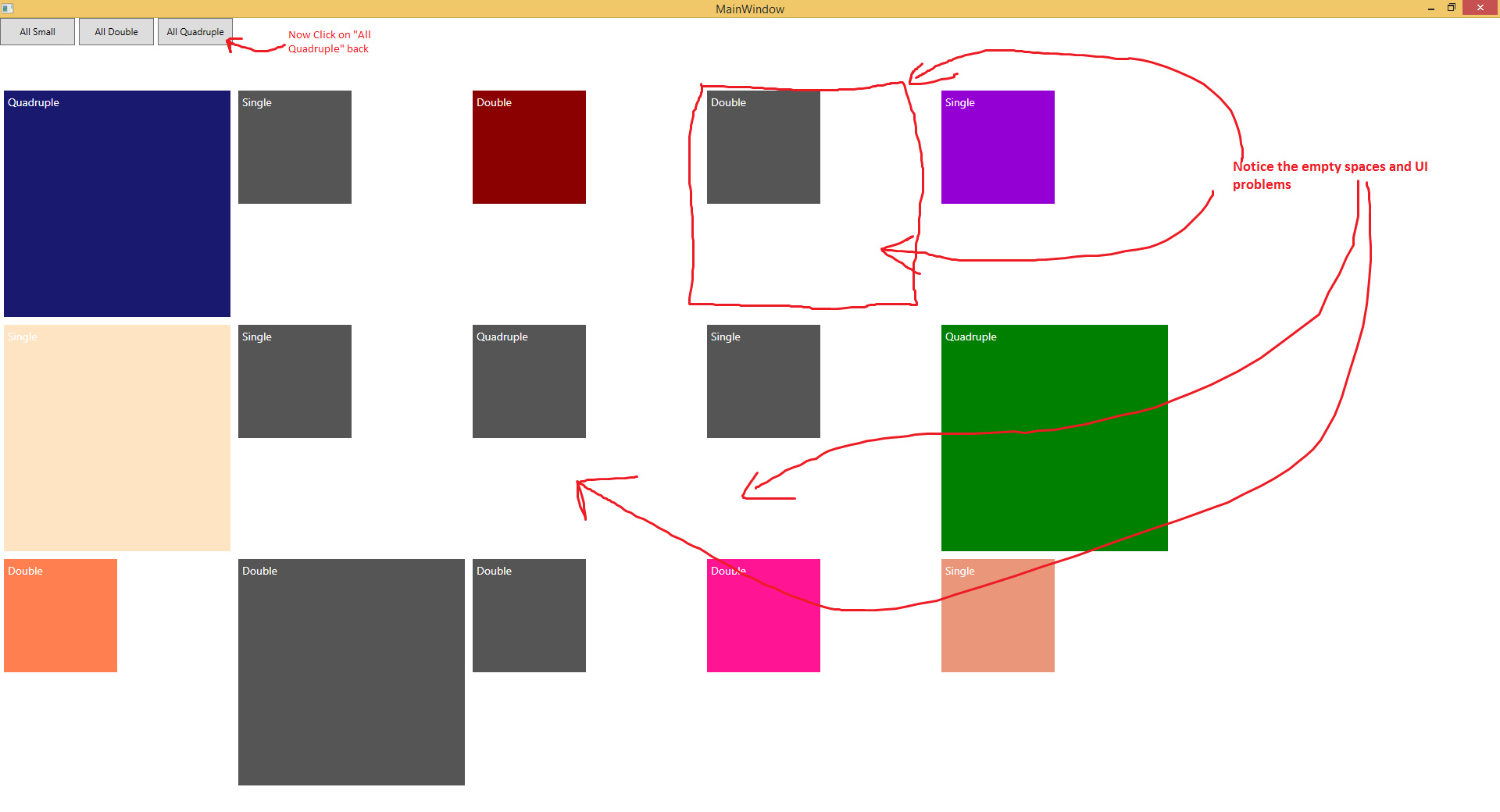

    You may notice that some tiles size looks like single while it is Quadruple. (see the attached images)

    Also another problem, I'm not able to figure out how the tile reorder is working, sometime I drag drop a tile it does not move, sometime it works! if I drag over another tile sometimes work some time not, Very inconsistent not similar to the windows 8 tiles, I don't think I can use it with production environment. Please advise.

  2. Sam
    Sam avatar
    8 posts
    Member since:
    Nov 2014

    Posted 14 Nov 2014 Link to this post

    Day 2
  3. UI for WPF is Visual Studio 2017 Ready
  4. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 14 Nov 2014 Link to this post

    Hello Sam,

    Thanks for reporting the issue. I logged it in our system and you can track its progress here
    I also updated your Telerik points.
    Considering the reordering, tiles are moved once a certain point on the underlying tile is passed.


    Regards,
    Maya
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  5. Sam
    Sam avatar
    8 posts
    Member since:
    Nov 2014

    Posted 18 Nov 2014 Link to this post

    I didn't find any solution to solve TileList bugs in WPF or WinForms, TileList for WPF and Panorama for WinForms are not ready for production! contains major issues and can't be used in production system, actually we purchased Telerik for TileList controls or panorama, unfortunately I can't use them in my application.
    (Panorama Question: http://www.telerik.com/forums/tile-reposition-and-resizing-(rearrange-needed) )
  6. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 20 Nov 2014 Link to this post

    Hello Sam,

    I resolved the issue with RadTileList for WPF and the fix will be available with the internal build coming next Monday. Please give a try then and let me know if you have any feedback on it.

    Regards,
    Maya
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.
