Off screen

15 posts, 0 answers
  1. Jon
    Jon avatar
    813 posts
    Member since:
    Oct 2008

    Posted 21 Jan Link to this post

    Hi,

    I've noticed that on my site some of the rightmost drop down elements on a Navigation menu open partially off screen.  In the demo I have seen that they seem to work better.  Is there some css based mechanism on the parent div that will force menus to open on screen.  I saw the menus open to the left on the demo here (http://demos.telerik.com/aspnet-ajax/navigation/overview/defaultvb.aspx?show-source=true), on my bar the last element would open displaying the menu off screen...

     Regards

    Jon

  2. Ivan Danchev
    Admin
    Ivan Danchev avatar
    829 posts

    Posted 26 Jan Link to this post

    Hello Jon,

    In the linked demo the last element on the Navigation bar is the sandwich button. Its not a standard navigation node but acts as a container for nodes that cannot be shown on the navigation when there is not enough space to display them. You will notice in the demo that the Navigation is placed in a div, which limits its width and some of the nodes are hidden under the button.
    The sandwich button's dropdown automatically expands to the left unlike the Navigation nodes' dropdowns. Currently the Navigation control does not support setting the expand direction of its nodes.

    Regards,
    Ivan Danchev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Jon
    Jon avatar
    813 posts
    Member since:
    Oct 2008

    Posted 26 Jan in reply to Ivan Danchev Link to this post

    Hi Ivan,

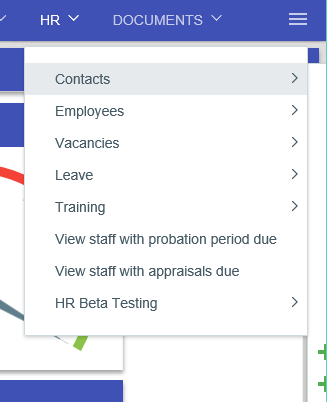

     Yes sorry it's the normal drop downs that cause the issue.  With some of them being nested they open off screen - see the attached image.  The parent divs are set to be 100% width.  Do I need to force an explicit width?

    Regards

    Jon

  5. Ivan Danchev
    Admin
    Ivan Danchev avatar
    829 posts

    Posted 28 Jan Link to this post

    Hello Jon,

    Since the Nodes expand direction cannot be set and boundary detection is not supported we can suggest setting margins (left and right) to the Navigation's container div so that the control does not occupy 100% of the screen width. This way the nodes will be rendered farther from the right side of the window leaving more room for the child nodes to expand.
    You can also vote for adding screen boundary detection to the Navigation in this feature request in our Feedback Portal.

    Regards,
    Ivan Danchev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  6. Jon
    Jon avatar
    813 posts
    Member since:
    Oct 2008

    Posted 28 Jan in reply to Ivan Danchev Link to this post

    Hi Ivan,

    I think that the width will always have issues when using the margin work around.

    In theory would a custom mechanism using the OnClientNodeExpanding event  be able to detect if the new child menu will go off screen and adjust accordingly?  If it would work I'll whip one together.

    Regards

    Jon

  7. Ivan Danchev
    Admin
    Ivan Danchev avatar
    829 posts

    Posted 29 Jan Link to this post

    Hello Jon,

    We were not able to come up with a workaround other than keeping the control occupy less than 100% of the window's width. Here's a short video showing how leaving an extra space to the right of the control will allow to expand the nodes within the boundaries of the window and on resize the items are be collapsed under the sandwich button.
    Implementing the boundary detection would not be a trivial task and we are considering adding this feature in one of our future releases.

    Regards,
    Ivan Danchev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  8. Jon
    Jon avatar
    813 posts
    Member since:
    Oct 2008

    Posted 29 Jan in reply to Ivan Danchev Link to this post

    Hi Ivan,

    Given that I have a limited set of situations I now have it kind of working (see js below).  The issues that I have with the below are:

    1)I need to work out if the expanding node is under the more menu and do nothing if that is the case - I may need to detect the css class as there seems to be no flag for this?

    2) The sub menus on normal nodes go to the left if they'd go off screen BUT they still open left to right.  Small issue but being able to get them to open opposite the normal way would be a nice to have.

    Have a good weekend

    Regards

    Jon

    Code so far is as follows:

    function uxRadNavigationMainPage_OnClientNodeExpanded(sender, args) {
        var node = args.get_node();
        var nodePanelRect = node.get_element().getBoundingClientRect();
        var childPanelRect = node.get_nodes()._data[0]._element.parentElement.getBoundingClientRect();
        if (node.get_level()===0){
            if (childPanelRect.right > (getClientWidth() - 10)) {
                node.get_nodes()._data[0]._element.parentElement.parentElement.parentElement.style.left = (getClientWidth() - 10 - childPanelRect.width) + 'px';
            }
        } else {
            var parentNodeRight = nodePanelRect.left + nodePanelRect.right;
            if ((parentNodeRight + childPanelRect.width) > (getClientWidth() - 10)) {
                node.get_nodes()._data[0]._element.parentElement.parentElement.parentElement.style.left = (nodePanelRect.left - 10 - childPanelRect.width) + 'px';
            }
        }
    }

  9. Jon
    Jon avatar
    813 posts
    Member since:
    Oct 2008

    Posted 29 Jan in reply to Jon Link to this post

    Well the following works although if there is a more elegant way to detect the more menu then this would be a lot shorter.  And I'd still like to resolve the issue with the menu opening from left to right when its been moved.  Butter than falling off the page though.

     Please still look at an integrated detection mechanism though as the control seems broken without an integral self check.

    function uxRadNavigationMainPage_OnClientNodeExpanded(sender, args) {
        var node = args.get_node();
        var parentNode = node;
        while (parentNode.get_level() !== 0) {
            // While below is true the element is a node
            if(typeof parentNode.get_parent().get_level === 'function'){
                parentNode = parentNode.get_parent();
            }
        }
        var parentNodePanelRect = parentNode.get_element().getBoundingClientRect();
        var uxRadNavigationMainPageRect = $find('uxRadNavigationMainPage').get_element().getBoundingClientRect();
        var inMoreDropDown = false;

        // If the top level isn't at the same height as teh menu it must be in the more column
        if (parentNodePanelRect.top - 10 > uxRadNavigationMainPageRect.top) { inMoreDropDown = true }
        if (!inMoreDropDown) {
            var nodePanelRect = node.get_element().getBoundingClientRect();
            var childPanelRect = node.get_nodes()._data[0]._element.parentElement.getBoundingClientRect();

            if (node.get_level()===0){
                if (childPanelRect.right > (getClientWidth() - 10)) {
                    node.get_nodes()._data[0]._element.parentElement.parentElement.parentElement.style.left = (getClientWidth() - 10 - childPanelRect.width) + 'px';
                }
            } else {
                var parentNodeRight = nodePanelRect.left + nodePanelRect.width;
                if ((parentNodeRight + childPanelRect.width) > (getClientWidth() - 10)) {
                    node.get_nodes()._data[0]._element.parentElement.parentElement.parentElement.style.left = (nodePanelRect.left - 10 - childPanelRect.width) + 'px';
                }
            }
        }
    }

  10. Ivan Danchev
    Admin
    Ivan Danchev avatar
    829 posts

    Posted 01 Feb Link to this post

    Hello Jon,

    I am glad you have come up with a workaround, even though I was not able to fully test it at my end, because I am not sure what value do you return with the getClientWidth() function.
    As for another way to detect when a node is collapsed under the sandwich button, you can do so by checking the wrapping div's class:
    var nodeElement = node.get_element();
    if (nodeElement.parentNode.parentNode.className !== "rnvRootGroupWrapper") {
        inMoreDropDown = true;
    }

    We will look into implementing the boundary detection that's missing in the Navigation control, as this is a useful feature that is already present for other controls (the Menu for example).

    Regards,
    Ivan Danchev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  11. Jon
    Jon avatar
    813 posts
    Member since:
    Oct 2008

    Posted 02 Feb in reply to Ivan Danchev Link to this post

    Hi Ivan

    Thanks for the code although it would only work on a fixed level wouldn't it ?

    The getClientWidth just gets the width of the client window.  It all seems to work well.

    Is there any way of changing the opening direction of the child menu items?  That would be the final component to my collision detection.

    Regards

    Jon

  12. Plamen
    Admin
    Plamen avatar
    2729 posts

    Posted 04 Feb Link to this post

    Hi Jon,

    One way to change the direction of the nodes dropdown is to use the code below for example that will make the node expand to the top:
    var nav = $find("<%=RadNavigation1.ClientID%>");

                  nav.get_nodes().getNode(0)._dropDown.set_direction(1);

    Regards,
    Plamen
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  13. Jon
    Jon avatar
    813 posts
    Member since:
    Oct 2008

    Posted 08 Feb Link to this post

    Thanks for that Plamen, I'll give it a shot.  I changed the type to OutBack so it isn't as noticeable now but this should help finish it off :)
  14. Keith
    Keith avatar
    102 posts
    Member since:
    Mar 2015

    Posted 17 Aug in reply to Ivan Danchev Link to this post

    Hi Ivan,

        In the video, I like how the menu shows some extra space and makes use of it when needed.  Can you post the code on how to do that?

    Sincerely,

    Keith Jackson

  15. Ivan Danchev
    Admin
    Ivan Danchev avatar
    829 posts

    Posted 22 Aug Link to this post

    Hello Keith,

    This is done by adding right and left margin to the div that contains the Navigation:

    .container {
        margin: 0 100px 0 100px;
    }

    <div class="container">
        <telerik:RadNavigation ID="RadNavigation1" runat="server" RenderMode="Lightweight">
        </telerik:RadNavigation>
    </div>


    Regards,
    Ivan Danchev
    Telerik by Progress
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  16. Keith
    Keith avatar
    102 posts
    Member since:
    Mar 2015

    Posted 26 Aug in reply to Ivan Danchev Link to this post

    Thanks Ivan!

    Sincerely,

    Keith Jackson
