new heatmap feature

3 posts, 0 answers
  1. Tamas
    Tamas avatar
    33 posts
    Member since:
    Jun 2010

    Posted 24 Sep 2010 Link to this post

    Hi,

    I have seen the "Legend and heatmap" feature in the roadmap of the map control. Can you please explain this in a few sentences? I would not start playing around with coloring my shapefiles on the map if a native heatmap will be supported next month.

    Many thanks and best regards,
    Tamás
  2. Andrey
    Admin
    Andrey avatar
    1681 posts

    Posted 29 Sep 2010 Link to this post

    Hi Tamas,

    These features will be available in the Q3 version of the map control.

    The "heatmap" feature will be implemented with new ColorMeasureScale class.
    It will allow calculating the range collection with brushes according to specified Min, Max, Ticks and brushes collection. It will allow selecting the brush according to the double value. Also it will contain the functionality to color map shapes which are read from KML or ESRI shape-file according to the property from extended data. The extended data is created from KML ExtendedData tag or from a record of database which relates to the shape-file.

    Also the ColorMeasureScale class instance will be used to show map legend.
    The map legend displays brushes and values according to it.

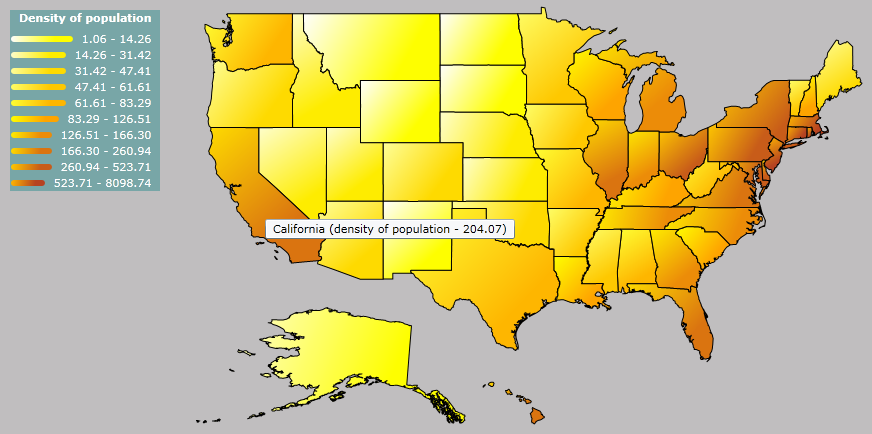

    I have attached a screenshot which demonstrates these features.


    Sincerely yours,
    Andrey Murzov
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. DevCraft banner
  4. Tamas
    Tamas avatar
    33 posts
    Member since:
    Jun 2010

    Posted 29 Sep 2010 Link to this post

    Hi Andrey,

    Thanks for the detailed information! This looks really great!

    Best regards,
    Tamás
