My First Grid

4 posts, 0 answers
  1. Vincent
    Vincent avatar
    6 posts
    Member since:
    Feb 2016

    Posted 01 Apr Link to this post

    Hi from France,

    I came from old Infragistics software version (7x) and now i'm the last in my society to work on new project with telerik software.

    recently i use, splitter,dock and tiles with no problem.

    But now I'm using for the first time a grid, a hierachical grid.

    before use my sql table (idRubrique,libelle,iOrdre,idRubriqueParent,...)

    i prefert test how it's work with simulate datatable, because when i was getting sql table i need to modify data before bind it.

    This is my sample to create grid hierarchical content, and i don't know why i don't see my last child (t3) on grid.

    If someone can open my eyes ? Thanks ! (excuse me for my bad english)

    The code behind:

    Dim t1 As New System.Data.DataTable
            t1.Columns.Add("idRubrique")
            t1.Columns.Add("idRubriqueParent")
            t1.Columns.Add("DEPENSES")
            t1.Columns.Add("BilanAcquisition")
            t1.Columns.Add("ESTIMEES")

            Dim r As Data.DataRow

            r = t1.NewRow
            r.ItemArray = {1, 0, "FONCIER", "TEST", Nothing}
            t1.Rows.Add(r)

            r = t1.NewRow
            r.ItemArray = {2, 0, "VRD", Nothing, Nothing}
            t1.Rows.Add(r)

            Dim t2 As New System.Data.DataTable
            t2.Columns.Add("idRubrique")
            t2.Columns.Add("idRubriqueParent")
            t2.Columns.Add("DEPENSES")
            t2.Columns.Add("BILANACQUISITION")
            t2.Columns.Add("ESTIMEES")

            r = t2.NewRow
            r.ItemArray = {1, 1, "Acquisition", Nothing, Nothing}
            t2.Rows.Add(r)

            r = t2.NewRow
            r.ItemArray = {2, 1, "Frais de Notaire", Nothing, Nothing}
            t2.Rows.Add(r)

            r = t2.NewRow
            r.ItemArray = {3, 1, "Archeologie", Nothing, Nothing}
            t2.Rows.Add(r)

            Dim t3 As New System.Data.DataTable
            t3.Columns.Add("idRubrique")
            t3.Columns.Add("idRubriqueParent")
            t3.Columns.Add("DEPENSES")
            t3.Columns.Add("BILANACQUISITION")
            t3.Columns.Add("ESTIMEES")

            r = t3.NewRow
            r.ItemArray = {1, 1, "Frais liés à la négociation foncière", Nothing, Nothing}
            t3.Rows.Add(r)

            r = t3.NewRow
            r.ItemArray = {2, 1, "Aquisition Terrain", Nothing, Nothing}
            t3.Rows.Add(r)

            r = t3.NewRow
            r.ItemArray = {3, 1, "Commission d'acquisition", Nothing, Nothing}
            t3.Rows.Add(r)

            RadGrid1.MasterTableView.DataSource = t1
            RadGrid1.MasterTableView.DataKeyNames = New String() {"idRubrique"}

            'LV2
            Dim tableViewOrders As New Telerik.Web.UI.GridTableView(RadGrid1)
            tableViewOrders.DataSource = t2
            tableViewOrders.DataKeyNames = New String() {"idRubrique"}

            Dim relationFields As Telerik.Web.UI.GridRelationFields = New Telerik.Web.UI.GridRelationFields()
            relationFields.MasterKeyField = "idRubrique"
            relationFields.DetailKeyField = "idRubriqueParent"
            tableViewOrders.ParentTableRelation.Add(relationFields)
            RadGrid1.MasterTableView.DetailTables.Add(tableViewOrders)

            'LV3
            Dim tableViewOrders2 As New Telerik.Web.UI.GridTableView(RadGrid1)
            tableViewOrders2.DataSource = t3
            tableViewOrders2.DataKeyNames = New String() {"idRubrique"}

            Dim relationFields2 As Telerik.Web.UI.GridRelationFields = New Telerik.Web.UI.GridRelationFields()
            relationFields2.MasterKeyField = "idRubrique"
            relationFields2.DetailKeyField = "idRubriqueParent"
            tableViewOrders2.ParentTableRelation.Add(relationFields2)
            tableViewOrders.DetailTables.Add(tableViewOrders2)





  2. Eyup
    Admin
    Eyup avatar
    3015 posts

    Posted 06 Apr Link to this post

    Hello Vincent,

    Please make sure that you are not using DataBind() to bind the grid. Performing complex grid operations such as Inserting, Deleting, Updating, Hierarchy relations, Grouping, Exporting, Paging, Sorting, Filtering, etc. require accommodating appropriate database operations.  Therefore, we suggest you to avoid Simple Databinding and strongly recommend the use of more advanced databinding methods, which automatically handle the aforementioned functions:
    Declarative DataSource
    Programmatic Data Binding
    (NeedDataSource and DetailTableDataBind event)


    You should set the DataSource property only within these event handlers.

    Regards,
    Eyup
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Vincent
    Vincent avatar
    6 posts
    Member since:
    Feb 2016

    Posted 08 Apr in reply to Eyup Link to this post

    Thanks for your, help.

    After my first test, now it's very difficult to released wanted project result ...

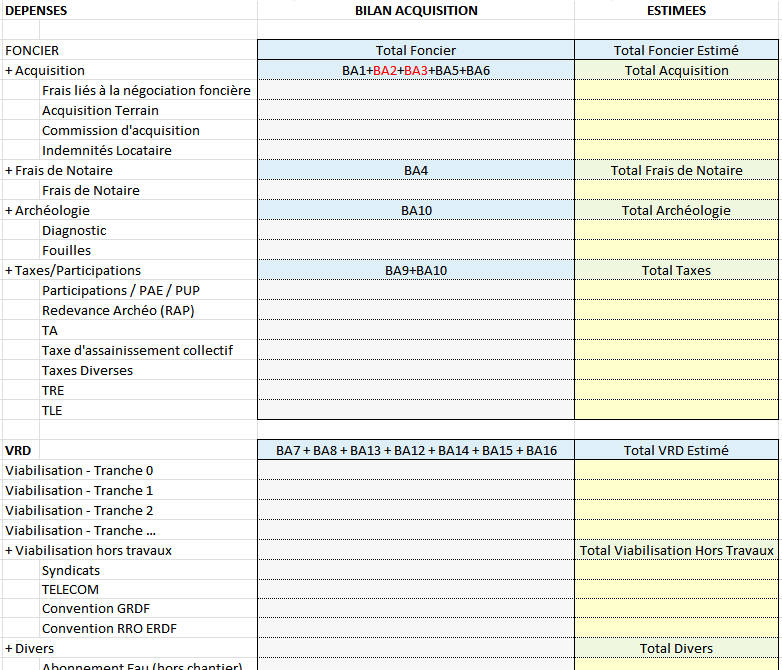

    I'm made screen to explain "simply" because since many days i'm stuck.

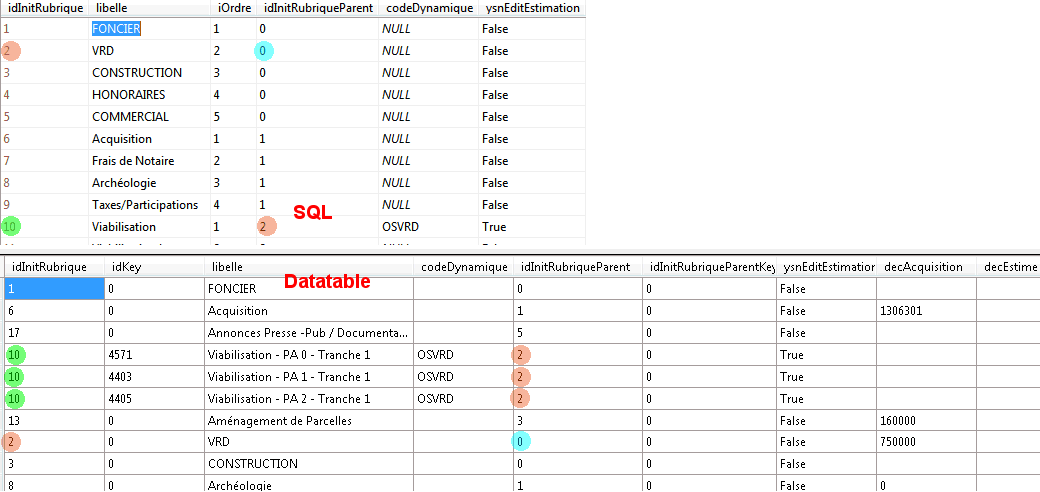

    I get data from SQL BDD and i transforme it in vb.net to generate a datatable.

    SQL Keys Parent/Child :

    Primary Key : idInitRubrique
    Child Key : idInitRubriqueParent

    During my treatment, if i see a "codeDynamique" (example here "OSVRD"), I complete the "libelle" column, and their the "idKey" column.
    I generate and complete datatable with other columns.

    Now i've got :
     a composed primary key : idInitRubrique / idKey
     Child Composed Key : idInitRubriqueParent / idInitRubriqueParentKey

    And i'm doing a Self Hierachical grid, from my code behind (just added RadGrid to aspx file)
    with yellow editable zone directly in grid (in place)
    All parents in "Estimees" column must have sum of children

    Please help me :-(

  5. Eyup
    Admin
    Eyup avatar
    3015 posts

    Posted 13 Apr Link to this post

    Hi Vincent,

    I am afraid self-hierarchy is not supported with RadGrid. You can check the RadTreeList control instead:
    http://demos.telerik.com/aspnet-ajax/treelist/examples/overview/defaultcs.aspx

    Regards,
    Eyup
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
