Item Height Issue

16 posts, 2 answers
  1. Artem
    Artem avatar
    16 posts
    Member since:
    May 2013

    Posted 13 May 2012 Link to this post

    Hi Telerik team.
    I am using Telerik's RadListView in ListView mode. (latest library)
    I am implementing some log window and visually It looks like some chat window, each new log entry is new ListViewDataItem and the window itself is a RadListView.
    I do ask it to wrap text in visual item formatting event handler by :
      private void OnTextAreaVisualItemFormatting(object sender, ListViewVisualItemEventArgs e)
            {
                e.VisualItem.TextWrap = true;
            }

    And I also allow arbitrary item height, since I should be able to display in each list item text of any length.
    There is something I have to take care about and  I can't figure out how to do it. ListView leaves too much space around text in every visual item. I mean it wraps text fine, but leaves spare 15 pixels on top and at the bottom of each visual item.
    I tried to add line
     e.VisualItem.Padding = new Padding(0);
    to formatting even handler, but it didn't helped.

    Do I have any control on VisualItem size, padding while text wrap is enabled? Am I clear?
    Regards, Artem
  2. Ivan Todorov
    Admin
    Ivan Todorov avatar
    688 posts

    Posted 14 May 2012 Link to this post

    Hello Artem,

    Thank you for writing.

    I have tried replicating your scenario locally, but I was not able to observe the behavior you described. Please check the attachment to find the sample project I used for testing.

    What you have described makes me think that you have set the ItemSpacing property to a value larger than zero. Please try setting the following property:
    this.radListView1.ItemSpacing = 0;

    If this still does not help, please send me some code snippets which I can use to reproduce the behavior locally. This will help me investigate the case and provide you with proper support.

    In case you have any further questions, do not hesitate to write back.

    Kind regards,
    Ivan Todorov
    the Telerik team
    RadControls for WinForms Q1'12 release is now live! Check out what's new or download a free trial >>
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Artem
    Artem avatar
    16 posts
    Member since:
    May 2013

    Posted 14 May 2012 Link to this post

    Thanks for your reply, Ivan.
    Take your application, that you have sent to me, and set ListView's Dock property to Fill. That is what I have in my application. And then try to resize the form. This is absolutely normal user's action in my application, I allow user to change the layout of tools in my form. After resize you will see the issue described in my first post. Items being stretched get spare space at the top and bottom. I need them to take exactly text's height always.
    By the way, ItemSpacing is set to zero, didn't miss it from the beginning. Still need your help :(
    Regards, Artem.
  5. Artem
    Artem avatar
    16 posts
    Member since:
    May 2013

    Posted 14 May 2012 Link to this post

    I will give you some more details.
    Generally each log message should be presented with time stamp and message text, coloured according to message type. Message text can have any length and therefore have to be wrapped to as many lines as needed. I don't want to see horizontal scroll bar on my list no matter how I will resize the tab, containing my list.

    here is a class for my visual item:
    class TracerListElement : IconListViewVisualItem
        {
            private Color _warningColor = Color.Blue;
            private Color _errorColor = Color.Red;
            private Color _regularColor = Color.Black;
            private Color _timeStampColor = Color.Black;
            private readonly Font _warningFont = new Font("Tahoma", 9, FontStyle.Bold, GraphicsUnit.Point);
            private readonly Font _errorFont = new Font("Tahoma", 9, FontStyle.Bold, GraphicsUnit.Point);
            private readonly Font _regularFont = new Font("Tahoma", 9, FontStyle.Bold, GraphicsUnit.Point);
            private LightVisualElement _timeStamp;
            private LightVisualElement _messageText;
            private StackLayoutPanel _stackLayout;

            protected override void CreateChildElements()
            {
                base.CreateChildElements();

                _stackLayout = new StackLayoutPanel { Orientation = Orientation.Horizontal };
                _timeStamp = new LightVisualElement();
                _messageText = new LightVisualElement();

                _stackLayout.Children.Add(_timeStamp);
                _stackLayout.Children.Add(_messageText);

                Children.Add(_stackLayout);

                BorderBoxStyle = BorderBoxStyle.FourBorders;
                BorderBottomWidth = 1;
                BorderLeftWidth = BorderRightWidth = BorderTopWidth = 0;
                BorderColor = Color.Blue;
                BorderGradientStyle = GradientStyles.Solid;
                DrawBorder = true;
                GradientStyle = GradientStyles.Solid;
            }

            protected override void SynchronizeProperties()
            {
                var msg = (TraceMessage) Data.DataBoundItem;

                _timeStamp.Text = msg.TimeStamp;
                _timeStamp.ForeColor = _timeStampColor;

                _stackLayout.AutoSize = true;
                _stackLayout.AutoSizeMode = RadAutoSizeMode.Auto;
                _messageText.AutoSize = true;
                _messageText.AutoSizeMode = RadAutoSizeMode.Auto;

                switch (msg.Type)
                {
                    case MessageTypes.Information:
                        _messageText.ForeColor = _regularColor;
                        _messageText.Font = _regularFont;
                        break;
                    case MessageTypes.Warning:
                        _messageText.ForeColor = _warningColor;
                        _messageText.Font = _warningFont;
                        break;
                    case MessageTypes.Error:
                        _messageText.ForeColor = _errorColor;
                        _messageText.Font = _errorFont;
                        break;
                }
                _messageText.Text = msg.MessageText;
                _messageText.TextWrap = true;
            }
        }

    And here are few functions connected to RadListView in my user control class:
      private RadListView _textArea;
      private List<ListViewDataItem> _messages;



      private void InitializeListView()
      {
          _textArea = new RadListView
          {
              AllowEdit = false,
              AllowRemove = false,
              AutoScroll = false,
              AutoSize = false,
              BackColor = _backgroundColor,
              ShowCheckBoxes = false,
              ShowGroups = false,
              ShowItemToolTips = false,
              Dock = DockStyle.Fill,
              ViewType = ListViewType.ListView,
              AllowArbitraryItemHeight = true,
              AllowArbitraryItemWidth = false,
              HotTracking = true,
              ItemSpacing = 0
          };

          _textArea.VisualItemFormatting += OnTextAreaVisualItemFormatting;
          _textArea.VisualItemCreating += OnTextAreaVisualItemCreating;

          pnlPlaceholder.Controls.Add(_textArea);
      }

    private void OnTextAreaVisualItemFormatting(object sender, ListViewVisualItemEventArgs e)
      {
          e.VisualItem.TextWrap = true;
      }

      void OnTextAreaVisualItemCreating(object sender, ListViewVisualItemCreatingEventArgs e)
      {
          e.VisualItem = new TracerListElement();
      }

    And finally here is my message class:
    public enum MessageTypes { Warning, Error, Information }

    public class TraceMessage
    {
        public MessageTypes Type { get; set; }
        public string MessageText { get; set; }
        public string TimeStamp { get; set; }
    }

    Don't hesitate to ask me more details if you need.
    Thanks in advance!
    Artem
  6. Answer
    Ivan Todorov
    Admin
    Ivan Todorov avatar
    688 posts

    Posted 17 May 2012 Link to this post

    Hello Artem,

    I was able to observe this behavior when I set the Dock to Fill. In this case you need to change the Width of the ItemSize dynamically when the size of the list view changes. Please refer to the attached project for additional information.

    I have also incorporated your custom visual item in the sample project. There are a few things I have modified. First, I have changed the StackLayoutPanel you used in the custom visual items with a WrapLayoutPanel since the StackLayoutPanel cannot wrap its elements. I have also moved all the property settings to the visual item's constructor because all values that are set inside CreateChildElements are considered as default ones and can be overridden by the theme settings.

    I hope this will help you. Please let me know if you need further assistance or if you have any additional questions.

    Regards,
    Ivan Todorov
    the Telerik team
    RadControls for WinForms Q1'12 release is now live! Check out what's new or download a free trial >>
  7. Artem
    Artem avatar
    16 posts
    Member since:
    May 2013

    Posted 17 May 2012 Link to this post

    Ivan, and Telerik in general, thank you very much! Now it looks exactly as I wanted.
  8. Artem
    Artem avatar
    16 posts
    Member since:
    May 2013

    Posted 23 Aug 2012 Link to this post

    Guys, I need your help again. Strange, but the issue returned back after I have modified few thing that has no relation to item height from the first sight at list.

    I have two issues, both are observable when you have more list items than can be visible in listview, in other words you have to have many items and vertical scroll bar.

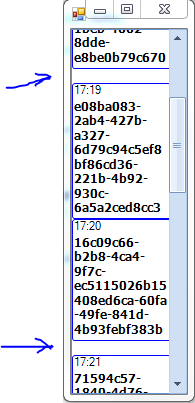

    1) Just add items to list view so that the scroll bar starts to be visible, and you can see, that the last item is only partially visible. If you try to drag the scroll bar down, you will notice, that it is already in the lowest position, and you still can't see the lowest item.

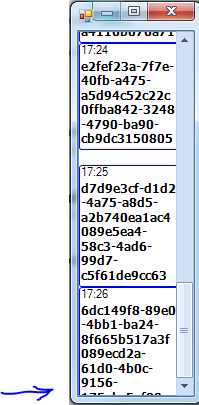

    2) This makes me worry even more, try to create many items, so that their summary height will be at list 3 times the height of the list view.
    Now drag the scroll bar up and down many times. First of all I notice that the scroll bar itself changes it's size. And what is even worse - after 2-3 drags you will notice that the lowest items are not visible at all now, and the more times you will drag the scroll bar more items will go below visible lower bound of the list view.

    The code below is the code of my user control, that contains the list view:

    public partial class TracerOutput : UserControl
       {
           public TracerOutput()
           {
               InitializeComponent();
               _messages = new List<ListViewDataItem>();
               _visibleMessages = new List<ListViewDataItem>();
               InitializeListView();
               _isErrorsVisible = _isRegularsVisible = _isWarningsVisible = true;
           }

           #region Members
           private string _defaultSaveLogPath = "C:\\";
           private Color _warningColor = Color.Blue;
           private Color _errorColor = Color.Red;
           private Color _informationColor = Color.Black;
           private Color _timeStampColor = Color.Green;
           private Font _warningFont = new Font("Tahoma", 9, FontStyle.Bold, GraphicsUnit.Point);
           private Font _errorFont = new Font("Tahoma", 9, FontStyle.Bold, GraphicsUnit.Point);
           private Font _informationFont = new Font("Tahoma", 9, FontStyle.Bold, GraphicsUnit.Point);
           private Font _timeStampFont = new Font("Tahoma", 9, FontStyle.Bold, GraphicsUnit.Point);

           public Action ErrorMessageDisplayed;
           private Color _backgroundColor = Color.White;
           private bool _isErrorsVisible, _isWarningsVisible, _isRegularsVisible;
           private RadListView _textArea;
           private List<ListViewDataItem> _messages; // All messages that tracer have from logger
           private List<ListViewDataItem> _visibleMessages; // Messages that should be displayed according to user's filtering
           private bool _scrollToLast = true;
           #endregion

           #region Properties
           private List<TraceMessage.MessageTypes> VisibleMessageTypes
           {
               get
               {
                   var visibleTypes = new List<TraceMessage.MessageTypes>();
                   if (_isErrorsVisible)
                       visibleTypes.Add(TraceMessage.MessageTypes.Error);
                   if (_isWarningsVisible)
                       visibleTypes.Add(TraceMessage.MessageTypes.Warning);
                   if (_isRegularsVisible)
                       visibleTypes.Add(TraceMessage.MessageTypes.Information);

                   return visibleTypes;
               }
           }

           /// <summary>
           /// Get/Set the default folder path for saving log to textual file
           /// </summary>
           [Browsable(true),
            Category("SpecialProperties"),
            Description("Default folder for saving log files"),
            DefaultValue("C:\\")]
           public string SaveLogDefaultPath
           {
               get { return _defaultSaveLogPath; }
               set
               {
                   _defaultSaveLogPath = value;
                   Invalidate();
               }
           }

           /// <summary>
           /// Get/Set tracer background color
           /// </summary>
           [Browsable(true),
            Category("SpecialProperties"),
            Description("Tracer background color"),
            DefaultValue(typeof(Color), "White")]
           public Color BackgroundColor
           {
               get { return _backgroundColor; }
               set
               {
                   _backgroundColor = value;
                   Invalidate();
               }
           }

           /// <summary>
           /// Get/Set warning message text color
           /// </summary>
           [Browsable(true),
            Category("SpecialProperties"),
            Description("Warning messages text color"),
            DefaultValue(typeof(Color), "Blue")]
           public Color WarningColor
           {
               get { return _warningColor; }
               set
               {
                   _warningColor = value;
                   Invalidate();
               }
           }

           /// <summary>
           /// Get/Set error message text color
           /// </summary>
           [Browsable(true),
            Category("SpecialProperties"),
            Description("Error messages text color"),
            DefaultValue(typeof(Color), "Red")]
           public Color ErrorColor
           {
               get { return _errorColor; }
               set
               {
                   _errorColor = value;
                   Invalidate();
               }
           }

           /// <summary>
           /// Get/Set information message text color
           /// </summary>
           [Browsable(true),
            Category("SpecialProperties"),
            Description("Information messages text color"),
            DefaultValue(typeof(Color), "Black")]
           public Color InfoColor
           {
               get { return _informationColor; }
               set
               {
                   _informationColor = value;
                   Invalidate();
               }
           }

           /// <summary>
           /// Get/Set time stamp font color
           /// </summary>
           [Browsable(true),
            Category("SpecialProperties"),
            Description("Time stamp font color"),
            DefaultValue(typeof(Color), "Green")]
           public Color TimeStampColor
           {
               get { return _timeStampColor; }
               set
               {
                   _timeStampColor = value;
                   Invalidate();
               }
           }

           /// <summary>
           /// Get/Set warning message text font
           /// </summary>
           [Browsable(true),
            Category("SpecialProperties"),
            Description("Warning messages text font"),
            DefaultValue(typeof(Font), "Tahoma, 9pt,style=Bold")]
           public Font WarningFont
           {
               get { return _warningFont; }
               set
               {
                   _warningFont = value;
                   Invalidate();
               }
           }

           /// <summary>
           /// Get/Set error message text font
           /// </summary>
           [Browsable(true),
            Category("SpecialProperties"),
            Description("Error messages text font"),
            DefaultValue(typeof(Font), "Tahoma, 9pt,style=Bold")]
           public Font ErrorFont
           {
               get { return _errorFont; }
               set
               {
                   _errorFont = value;
                   Invalidate();
               }
           }

           /// <summary>
           /// Get/Set information message text font
           /// </summary>
           [Browsable(true),
            Category("SpecialProperties"),
            Description("Information messages text font"),
            DefaultValue(typeof(Font), "Tahoma, 9pt,style=Bold")]
           public Font InfoFont
           {
               get { return _informationFont; }
               set
               {
                   _informationFont = value;
                   Invalidate();
               }
           }

           /// <summary>
           /// Get/Set time stamp font
           /// </summary>
           [Browsable(true),
            Category("SpecialProperties"),
            Description("Time stamp font"),
            DefaultValue(typeof(Font), "Tahoma, 9pt,style=Bold")]
           public Font TimeStampFont
           {
               get { return _timeStampFont; }
               set
               {
                   _timeStampFont = value;
                   Invalidate();
               }
           }
           #endregion

           #region Methods
           private void InitializeListView()
           {
               _textArea = new RadListView
               {
                   AllowEdit = false,
                   AllowRemove = false,
                   AutoScroll = true,
                   AutoSize = false,
                   BackColor = BackgroundColor,
                   ShowCheckBoxes = false,
                   ShowGroups = false,
                   ShowItemToolTips = false,
                   Dock = DockStyle.Fill,
                   ViewType = ListViewType.ListView,
                   AllowArbitraryItemHeight = true,
                   AllowArbitraryItemWidth = false,
                   HotTracking = true,
                   ItemSpacing = 0,
                   HorizontalScrollState = ScrollState.AlwaysHide,
                   VerticalScrollState = ScrollState.AutoHide
               };

               _textArea.VisualItemFormatting += OnTextAreaVisualItemFormatting;
               _textArea.VisualItemCreating += OnTextAreaVisualItemCreating;
               _textArea.SizeChanged += OnTextAreaSizeChanged;

               pnlPlaceholder.Controls.Add(_textArea);
           }

           private List<ListViewDataItem> GetVisibleItems()
           {
               return _messages.FindAll(m => (((TraceMessage)m.Tag).Type == TraceMessage.MessageTypes.Warning && _isWarningsVisible) ||
                                             (((TraceMessage)m.Tag).Type == TraceMessage.MessageTypes.Error && _isErrorsVisible) ||
                                             (((TraceMessage)m.Tag).Type == TraceMessage.MessageTypes.Information && _isRegularsVisible));
           }

           private void RedrawMessages()
           {
               _textArea.Items.Clear();
               _visibleMessages = GetVisibleItems();


               _textArea.BeginUpdate();
               _textArea.Items.AddRange(_visibleMessages.ToArray());
               _textArea.EndUpdate();
           }

           public void SaveLogToFile(bool isOnlyVisible)
           {
               const string logFilter = "Log files (*.txt)|*.txt";
               const string logFileExt = "txt";
               const string dialogTitle = "Export program log to file ...";

               var saveLogDialog = GetSaveFileDialog(dialogTitle, logFilter, logFileExt);

               if (DialogResult.OK == saveLogDialog.ShowDialog())
               {
                   var visibleTypes = isOnlyVisible
                                          ? VisibleMessageTypes
                                          : Enum.GetValues(typeof(TraceMessage.MessageTypes)).Cast<TraceMessage.MessageTypes>().ToList();

                   if (SaveToFileRequested != null)
                       SaveToFileRequested(saveLogDialog.FileName, visibleTypes);
               }
           }

           private SaveFileDialog GetSaveFileDialog(string title, string filter, string defaultExtension)
           {
               var saveFileDialog = new SaveFileDialog
               {
                   InitialDirectory = SaveLogDefaultPath,
                   Title = title,
                   Filter = filter,
                   CreatePrompt = false,
                   CheckFileExists = false,
                   CheckPathExists = false,
                   AutoUpgradeEnabled = true,
                   SupportMultiDottedExtensions = false,
                   OverwritePrompt = true,
                   DefaultExt = defaultExtension,
                   AddExtension = true
               };

               return saveFileDialog;
           }
           #endregion

           #region Event Handlers

           #region Context menu
           private void OnToggleErrorMessagesClick(object sender, EventArgs e)
           {
               _isErrorsVisible = !_isErrorsVisible;
               RedrawMessages();
           }

           private void OnToggleWarningMessagesClick(object sender, EventArgs e)
           {
               _isWarningsVisible = !_isWarningsVisible;
               RedrawMessages();
           }

           private void OnToggleRegularMessagesClick(object sender, EventArgs e)
           {
               _isRegularsVisible = !_isRegularsVisible;
               RedrawMessages();
           }

           private void OnContextMenuOpenning(object sender, CancelEventArgs e)
           {
               warningsVisibleToolStripMenuItem.Checked = _isWarningsVisible;
               errorsVisibleToolStripMenuItem.Checked = _isErrorsVisible;
               messagesVisibleToolStripMenuItem.Checked = _isRegularsVisible;
               scrollToLastToolStripMenuItem.Checked = _scrollToLast;

               copyThisMessageToolStripMenuItem.Visible = (_textArea.SelectedItem != null);
           }

           private void OnClearLogClick(object sender, EventArgs e)
           {
               if (ClearRequested != null)
                   ClearRequested();
           }

           private void OnSaveAllToFileClick(object sender, EventArgs e)
           {
               SaveLogToFile(false);
           }

           private void OnSaveToClipboardClick(object sender, EventArgs e)
           {
               if (SaveToClipboardRequested != null)
                   SaveToClipboardRequested(VisibleMessageTypes);
           }

           private void OnSaveVisibleOnlyToFileClick(object sender, EventArgs e)
           {
               SaveLogToFile(true);
           }

           private void OnScrollToLastClick(object sender, EventArgs e)
           {
               _scrollToLast = !_scrollToLast;
           }

           private void OnCopySelectedMessageClick(object sender, EventArgs e)
           {
               var temp = _textArea.SelectedItem;
               if (temp != null)
               {
                   var text = ((TraceMessage)temp.Tag).MessageText;
                   Clipboard.SetText(text);
               }
           }
           #endregion

           #region ListView
           void OnTextAreaSizeChanged(object sender, EventArgs e)
           {
               _textArea.ItemSize = new Size(_textArea.Width - _textArea.ListViewElement.ViewElement.VScrollBar.Size.Width, 0);

           }


           private void OnTextAreaVisualItemFormatting(object sender, ListViewVisualItemEventArgs e)
           {
               e.VisualItem.TextWrap = true;
           }

           void OnTextAreaVisualItemCreating(object sender, ListViewVisualItemCreatingEventArgs e)
           {
               e.VisualItem = new TracerListElement(WarningColor, ErrorColor, InfoColor, TimeStampColor, WarningFont, ErrorFont, InfoFont, TimeStampFont);
           }
           #endregion

           protected override void OnPaint(PaintEventArgs e)
           {
               base.OnPaint(e);
               _textArea.ItemSize = new Size(_textArea.Width - _textArea.ListViewElement.ViewElement.VScrollBar.Size.Width, 0);
           }

           #endregion

           #region ITracerUIControl Implementation
           public event Action ClearRequested;
           public event Action<List<TraceMessage.MessageTypes>> SaveToClipboardRequested;
           public event Action<string, List<TraceMessage.MessageTypes>> SaveToFileRequested;

           public void AppendMessages(TraceMessage[] messages)
           {
               if (InvokeRequired)
               {
                   BeginInvoke(new Action<TraceMessage[]>(AppendMessages), new object[] { messages });
                   return;
               }


               var messagesNumber = messages.Length;
               var newMessages = new List<ListViewDataItem>(messagesNumber);
               var newVisibleMessages = new List<ListViewDataItem>();

               for (int i = 0; i < messagesNumber; i++)
               {
                   var msg = messages[i].Copy();
                   var temp = new ListViewDataItem();
                   temp.Tag = msg;
                   temp.DataBoundItem = msg;

                   switch (msg.Type)
                   {
                       case TraceMessage.MessageTypes.Information:
                           temp.ForeColor = InfoColor;
                           temp.Font = InfoFont;
                           break;
                       case TraceMessage.MessageTypes.Warning:
                           temp.ForeColor = WarningColor;
                           temp.Font = WarningFont;
                           break;
                       case TraceMessage.MessageTypes.Error:
                           temp.ForeColor = ErrorColor;
                           temp.Font = ErrorFont;
                           break;
                   }

                   newMessages.Add(temp);

                   if (VisibleMessageTypes.Contains(msg.Type))
                       newVisibleMessages.Add(temp);
               }

               _messages.AddRange(newMessages);
               _visibleMessages.AddRange(newVisibleMessages);
               if (_visibleMessages.Count > 0)
               {
                   _textArea.BeginUpdate();
                   _textArea.Items.AddRange(newVisibleMessages.ToArray());

                   var lastIndex = _textArea.Items.Count - 1;
                   if (_scrollToLast)
                       _textArea.SelectedItem = _textArea.Items[lastIndex];

                   _textArea.EndUpdate();
               }

           }
           public void ClearLog()
           {
               _isErrorsVisible = _isRegularsVisible = _isWarningsVisible = true;
               _messages.Clear();
               _textArea.Items.Clear();
           }
           #endregion

           class TracerListElement : IconListViewVisualItem
           {
               public TracerListElement(Color warningColor, Color errorColor, Color infoColor, Color timeMarkColor, Font warningFont, Font errorFont, Font infoFont, Font timeMarkFont)
               {
                   _warningColor = warningColor;
                   _errorColor = errorColor;
                   _infoColor = infoColor;
                   _timeStampColor = timeMarkColor;
                   _warningFont = warningFont;
                   _errorFont = errorFont;
                   _infoFont = infoFont;
                   _timeMarkFont = timeMarkFont;

                   DrawBorder = false;
                   GradientStyle = GradientStyles.Solid;
               }

               #region Members
               private Color _warningColor;
               private Color _errorColor;
               private Color _infoColor;
               private Color _timeStampColor;
               private readonly Font _warningFont;
               private readonly Font _errorFont;
               private readonly Font _infoFont;
               private readonly Font _timeMarkFont;
               private LightVisualElement _timeStamp;
               private LightVisualElement _messageText;
               private LightVisualElement _link;
               private WrapLayoutPanel _stackLayout;
               private WrapLayoutPanel _linkStackLayout;
               #endregion

               protected override void CreateChildElements()
               {
                   base.CreateChildElements();

                   _stackLayout = new WrapLayoutPanel { Orientation = Orientation.Horizontal, AutoSize = true, AutoSizeMode = RadAutoSizeMode.Auto };

                   _linkStackLayout = new WrapLayoutPanel { Orientation = Orientation.Vertical, AutoSize = true, AutoSizeMode = RadAutoSizeMode.Auto };

                   _timeStamp = new LightVisualElement { TextAlignment = ContentAlignment.TopLeft };

                   _messageText = new LightVisualElement { TextWrap = true, TextAlignment = ContentAlignment.TopLeft, AutoSize = true, AutoSizeMode = RadAutoSizeMode.Auto };

                   _link = new LightVisualElement { TextWrap = true, TextAlignment = ContentAlignment.TopLeft, ClickMode = ClickMode.Press };

                   _linkStackLayout.Children.Add(_messageText);
                   _linkStackLayout.Children.Add(_link);
                   _stackLayout.Children.Add(_timeStamp);
                   _stackLayout.Children.Add(_linkStackLayout);


                   Children.Add(_stackLayout);
               }

               //We override this property to erase unnecessary text that is displayed on custom item
               public override string Text
               {
                   get
                   {
                       return null;
                   }
                   set
                   {
                       base.Text = value;
                   }
               }

               protected override void SynchronizeProperties()
               {
                   base.SynchronizeProperties();// Let the base handle all hover/enter/selected events and efects

                   #region Forward child-element's mouse events to custom list item object
                   _timeStamp.ShouldHandleMouseInput = false;
                   _timeStamp.NotifyParentOnMouseInput = true;

                   _messageText.ShouldHandleMouseInput = false;
                   _messageText.NotifyParentOnMouseInput = true;

                   _link.ShouldHandleMouseInput = true;
                   _link.NotifyParentOnMouseInput = true;

                   _stackLayout.ShouldHandleMouseInput = false;
                   _stackLayout.NotifyParentOnMouseInput = true;

                   _linkStackLayout.ShouldHandleMouseInput = false;
                   _linkStackLayout.NotifyParentOnMouseInput = true;

                   NotifyParentOnMouseInput = true;
                   ShouldHandleMouseInput = true;
                   #endregion


                   var msg = (TraceMessage)Data.DataBoundItem;

                   _timeStamp.Text = msg.TimeStamp.ToString("HH:mm:ss");
                   _timeStamp.ForeColor = _timeStampColor;
                   _timeStamp.Font = _timeMarkFont;


                   switch (msg.Type)
                   {
                       case TraceMessage.MessageTypes.Information:
                           _messageText.ForeColor = _infoColor;
                           _messageText.Font = _infoFont;
                           break;
                       case TraceMessage.MessageTypes.Warning:
                           _messageText.ForeColor = _warningColor;
                           _messageText.Font = _warningFont;
                           break;
                       case TraceMessage.MessageTypes.Error:
                           _messageText.ForeColor = _errorColor;
                           _messageText.Font = _errorFont;
                           break;
                   }
                   _messageText.Text = msg.MessageText;
                   _messageText.TextWrap = true;


                   _link.MouseDown -= OnLinkClick;
                   _link.Text = msg.Link;
                   _link.Font = _infoFont;
                   _link.ForeColor = Color.Blue;

                   if (!string.IsNullOrEmpty(msg.Link))
                       _link.MouseDown += OnLinkClick;
               }

               void OnLinkClick(object sender, EventArgs e)
               {
                   Process.Start(((RadItem)sender).AccessibleName);
                   ((RadItem)sender).ForeColor = Color.BlueViolet;
               }

               protected override Type ThemeEffectiveType
               {
                   get
                   {
                       // What you return here is actually says how will your custom item behave.
                       // It will react to selection, hover and so on as Telerik's object of returned type.
                       return typeof(IconListViewVisualItem);
                   }
               }
           }
       }


    The code below is the class that is used as data item for list view visual item:
    public class TraceMessage
    {
        public enum MessageTypes { Warning, Error, Information }


        private bool _isTypeSet;
        private MessageTypes _type;


        /// <summary>
        /// Message type.
        /// </summary>
        public MessageTypes Type
        {
            get { return _isTypeSet ? _type : MessageTypes.Information; }
            set
            {
                _type = value;
                _isTypeSet = true;
            }
        }

        /// <summary>
        /// Message text.
        /// </summary>
        public string MessageText { get; set; }

        /// <summary>
        /// Link path.
        /// </summary>
        public string Link { get; set; }

        /// <summary>
        /// Time when the tracer got this message.
        /// Used by ILoggerManager, no need for explicit value signing.
        /// </summary>
        public DateTime TimeStamp { get; set; }

        public TraceMessage Copy()
        {
            var msg = new TraceMessage { Type = Type, TimeStamp = TimeStamp, Link = Link, MessageText = MessageText };
            return msg;
        }
    }

  9. Answer
    Ivan Todorov
    Admin
    Ivan Todorov avatar
    688 posts

    Posted 27 Aug 2012 Link to this post

    Hi Artem,

    I was able to observe the described issues. The reason they are occurring is that you are deriving from the IconListViewVisualItem class and you are using this with the SimpleList view. The IconListViewVisualItem class represents the visual items in IconView mode and has specific measuring logic valid only for the IconView. I am not sure why you have changed this, but in SimpleList mode you should derive from the SimpleListViewVisualItem class:
    class TracerListElement : SimpleListViewVisualItem
    {
    //...
        protected override Type ThemeEffectiveType
        {
            get
            {
                return typeof(SimpleListViewVisualItem);
            }
        }
    }

    I hope this will help you. Feel free to ask if you have any additional questions.

    Kind regards,
    Ivan Todorov
    the Telerik team
    RadControls for WinForms Q2'12 release is now live! Check out what's new or download a free trial >>
  10. Artem
    Artem avatar
    16 posts
    Member since:
    May 2013

    Posted 28 Aug 2012 Link to this post

    Hi
    Thanks, it helped.

    So, let me know If I understood you correct. What you say is that for every ListView mode (e.g. Simple, Icons, Details) I have to use corresponding visual item class? Even if my item looks as some simple text in both icons and details view mode?

    If in future my list view control will allow to change its mode I have to do something like below?
    void OnTextAreaVisualItemCreating(object sender, ListViewVisualItemCreatingEventArgs e)
    {
       switch (_textArea.ViewType)
       {
                    case ListViewType.ListView:
                        e.VisualItem = new MyListViewVisualItem();
                        break;
                    case ListViewType.IconsView:
                        e.VisualItem = new MyIconViewVisualItem();
                        break;
                    case ListViewType.DetailsView:
                        e.VisualItem = new MyDetailsViewVisualItem();
                        break;
       }
    }
  11. Ivan Todorov
    Admin
    Ivan Todorov avatar
    688 posts

    Posted 30 Aug 2012 Link to this post

    Hello Artem,

    Yes, the approach you have proposed is correct. Even if the items look similar in the different modes, each item type defines different logic for calculating its size according to the type and the properties of the particular view. As you can see, in SimpleView the items can only be vertically stacked, in IconView the items are arranged continuously in rows and in DetailView each item has a cells container which hold the detail cells.

    I hope you find this information useful. Feel free to ask if you have any future questions.

    Kind regards,
    Ivan Todorov
    the Telerik team
    RadControls for WinForms Q2'12 release is now live! Check out what's new or download a free trial >>
  12. Igor
    Igor avatar
    145 posts
    Member since:
    Jan 2011

    Posted 25 Apr 2015 Link to this post

    Hi guys,

     this issue seems to be reproduced again, when changed to IconListViewVisualItem and  ListViewType.IconsView

    I able to see unexpected spacing between items, which is randomly appear, when minimizing the container (form) to its minimal width.

    attached are some screenshots of my problem and here is the reviewed code of the main form:

    public partial class Form1 : Form
        {
            private BindingList<TraceMessage> _messages;

            public Form1()
            {
                InitializeComponent();
                this.radListView1.Dock = DockStyle.Fill;
                radListView1.ViewType = ListViewType.IconsView;//TODO: was ListViewType.ListView
                this.radListView1.AllowArbitraryItemHeight = true;

                _messages = new BindingList<TraceMessage>();

                for (int i = 0; i < 10; i++)
                {
                    _messages.Add(new TraceMessage()
                    {
                        MessageText = Guid.NewGuid().ToString() + " " + Guid.NewGuid().ToString(),
                        Type = MessageTypes.Information,
                        TimeStamp = DateTime.Now.AddMinutes(i).ToShortTimeString()
                    });
                }

                radListView1.DataSource = _messages;
                radListView1.DisplayMember = "MessageText";
                radListView1.SizeChanged += new EventHandler(radListView1_SizeChanged);
                radListView1.HorizontalScrollState = ScrollState.AlwaysHide;
                radListView1.VisualItemCreating += new ListViewVisualItemCreatingEventHandler(radListView1_VisualItemCreating);
            }

            void radListView1_VisualItemCreating(object sender, ListViewVisualItemCreatingEventArgs e)
            {
                e.VisualItem = new TracerListElement();
            }

            protected override void OnShown(EventArgs e)
            {
                base.OnShown(e);
                radListView1.ItemSize = new Size(this.radListView1.Width - this.radListView1.ListViewElement.ViewElement.VScrollBar.Size.Width, 0);
            }

            void radListView1_SizeChanged(object sender, EventArgs e)
            {
                radListView1.ItemSize = new Size(this.radListView1.Width - this.radListView1.ListViewElement.ViewElement.VScrollBar.Size.Width, 0);
            }

            private void radListView1_VisualItemFormatting(object sender, Telerik.WinControls.UI.ListViewVisualItemEventArgs e)
            {
                e.VisualItem.TextWrap = true;
            }
        }

        public enum MessageTypes { Warning, Error, Information }

        public class TraceMessage
        {
            public MessageTypes Type { get; set; }
            public string MessageText { get; set; }
            public string TimeStamp { get; set; }
        }

        class TracerListElement : IconListViewVisualItem//TODO: was SimpleListViewVisualItem
        {
            private Color _warningColor = Color.Blue;
            private Color _errorColor = Color.Red;
            private Color _regularColor = Color.Black;
            private Color _timeStampColor = Color.Black;
            private readonly Font _warningFont = new Font("Tahoma", 9, FontStyle.Bold, GraphicsUnit.Point);
            private readonly Font _errorFont = new Font("Tahoma", 9, FontStyle.Bold, GraphicsUnit.Point);
            private readonly Font _regularFont = new Font("Tahoma", 9, FontStyle.Bold, GraphicsUnit.Point);
            private LightVisualElement _timeStamp;
            private LightVisualElement _messageText;
            private WrapLayoutPanel _stackLayout;

            public TracerListElement()
            {
                BorderBoxStyle = BorderBoxStyle.FourBorders;
                BorderBottomWidth = 1;
                BorderLeftWidth = BorderRightWidth = BorderTopWidth = 0;
                BorderColor = Color.Blue;
                BorderGradientStyle = GradientStyles.Solid;
                DrawBorder = true;
                GradientStyle = GradientStyles.Solid;
            }

            protected override void CreateChildElements()
            {
                base.CreateChildElements();

                _stackLayout = new WrapLayoutPanel { Orientation = Orientation.Horizontal };

                _timeStamp = new LightVisualElement();
                _timeStamp.TextAlignment = ContentAlignment.TopLeft;

                _messageText = new LightVisualElement();
                _messageText.TextWrap = true;
                _messageText.TextAlignment = ContentAlignment.TopLeft;

                _stackLayout.Children.Add(_timeStamp);
                _stackLayout.Children.Add(_messageText);

                Children.Add(_stackLayout);
            }

            protected override void SynchronizeProperties()
            {
                var msg = (TraceMessage)Data.DataBoundItem;

                _timeStamp.Text = msg.TimeStamp;
                _timeStamp.ForeColor = _timeStampColor;

                _stackLayout.AutoSize = true;
                _stackLayout.AutoSizeMode = RadAutoSizeMode.Auto;
                _messageText.AutoSize = true;
                _messageText.AutoSizeMode = RadAutoSizeMode.Auto;

                switch (msg.Type)
                {
                    case MessageTypes.Information:
                        _messageText.ForeColor = _regularColor;
                        _messageText.Font = _regularFont;
                        break;
                    case MessageTypes.Warning:
                        _messageText.ForeColor = _warningColor;
                        _messageText.Font = _warningFont;
                        break;
                    case MessageTypes.Error:
                        _messageText.ForeColor = _errorColor;
                        _messageText.Font = _errorFont;
                        break;
                }
                _messageText.Text = msg.MessageText;
                _messageText.TextWrap = true;
            }

            protected override Type ThemeEffectiveType
            {
                get
                {
                    return typeof(IconListViewVisualItem);//TODO: was SimpleListViewVisualItem
                }
            }
        }

  13. Igor
    Igor avatar
    145 posts
    Member since:
    Jan 2011

    Posted 25 Apr 2015 in reply to Igor Link to this post

    Just to clarify my post - I got similar issue to what Artem has described previously, I took the example, mentioned here and reviewed it a bit.

    so right now, when changing the container size (and Dock property is set to Fill for the RadListView), I can see that some spacing appears between items, therefore the lowest item might become partially visible. I also noticed that more items you add - more spacing you get, which is making the number of items totally invisible.

     Any ideas? thanks!

  14. Dimitar
    Admin
    Dimitar avatar
    1415 posts

    Posted 29 Apr 2015 Link to this post

    Hi Igor,

    Thank you for writing.

    I was not able to reproduce the observed behavior on my end. I have recorded I small video which shows how this works on my side. Could you please check it and let me know what else I need to do in order to reproduce this?

    In addition could you specify which the exact version of the suite that you use?

    I am looking forward to your reply.

    Regards,
    Dimitar
    Telerik


    See What's Next in App Development. Register for TelerikNEXT.


  15. Igor
    Igor avatar
    145 posts
    Member since:
    Jan 2011

    Posted 30 Apr 2015 in reply to Dimitar Link to this post

    Hi Dimitar,

    thank you for prompt response

    Telerik version used: 2013.3.1016.20

    video with my issue is posted here: https://www.dropbox.com/s/czkoyz9t23aofue/NewFilm_150429193553.avi

  16. Dimitar
    Admin
    Dimitar avatar
    1415 posts

    Posted 05 May 2015 Link to this post

    Hi Igor,

    Thank you for writing back.

    I was able to reproduce the observed issue with the specified suite version. It is connected to an issue that is already resolved and if you upgrade it will not occur.

    The workaround I can suggest (for the version that you are using) is to change the ViewType to ListView and inherit SimpleListViewVisualItem instead of IconListViewVisualItem. I have tested this on my side and I cannot see a significant change when this workaround is used.

    I hope this helps.

    Regards,
    Dimitar
    Telerik


    See What's Next in App Development. Register for TelerikNEXT.


  17. Igor
    Igor avatar
    145 posts
    Member since:
    Jan 2011

    Posted 06 May 2015 in reply to Dimitar Link to this post

    Thank you Dimitar, your approach works just perfectly!
Back to Top
UI for WinForms is Visual Studio 2017 Ready
