InvalidOperationException when using Caliburn.Micro conductors

6 posts, 1 answers
  1. StepTNT
    StepTNT avatar
    18 posts
    Member since:
    Mar 2013

    Posted 02 Dec 2013 Link to this post

    I'm moving my first steps into Caliburn.Micro and I'm working with a Pivot control.

    I created the conductors and the view models for each pivot page, and everything goes fine until i replace my ListBox with the RadDataBoundListBox.

    Here's the exception that I got:

    First-chance exception 'System.InvalidOperationException' in System.Windows.ni.dll
    Can't convert type Caliburn.Micro.BindableCollection`1[System.String] to type System.Windows.Visibility.


    and here's the full stack trace :

    System.Windows.ni.dll!MS.Internal.Data.DefaultValueConverter.Create(System.Type sourceType, System.Type targetType, bool targetToSource)    Unknown
    System.Windows.ni.dll!MS.Internal.Data.DynamicValueConverter.EnsureConverter(System.Type sourceType = {System.RuntimeType}, System.Type targetType = {System.RuntimeType})    Unknown
    System.Windows.ni.dll!MS.Internal.Data.DynamicValueConverter.Convert(object value = Count = 4, System.Type targetType = {System.RuntimeType}, object parameter = null, System.Globalization.CultureInfo culture = {System.Globalization.CultureInfo})    Unknown
    System.Windows.ni.dll!System.Windows.Data.BindingExpression.ConvertToTarget(object value = Count = 4)    Unknown
    System.Windows.ni.dll!System.Windows.Data.BindingExpression.GetValue(System.Windows.DependencyObject d, System.Windows.DependencyProperty dp)    Unknown
    System.Windows.ni.dll!System.Windows.DependencyObject.SetValueInternal(System.Windows.DependencyProperty dp = {System.Windows.CoreDependencyProperty}, object value, bool allowReadOnlySet)    Unknown
    System.Windows.ni.dll!System.Windows.Data.BindingOperations.SetBinding(System.Windows.DependencyObject target, System.Windows.DependencyProperty dp, System.Windows.Data.BindingBase binding)    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.ConventionManager..cctor.AnonymousMethod__3(System.Type viewModelType = {System.RuntimeType}, string path = "Items", System.Reflection.PropertyInfo property = {System.Reflection.RuntimePropertyInfo}, System.Windows.FrameworkElement element = {Telerik.Windows.Controls.RadDataBoundListBox}, Caliburn.Micro.ElementConvention convention = {Caliburn.Micro.ElementConvention}, System.Windows.DependencyProperty bindableProperty = {System.Windows.CoreDependencyProperty})    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.ConventionManager.SetBindingWithoutBindingOverwrite(System.Type viewModelType = {System.RuntimeType}, string path = "Items", System.Reflection.PropertyInfo property = {System.Reflection.RuntimePropertyInfo}, System.Windows.FrameworkElement element = {Telerik.Windows.Controls.RadDataBoundListBox}, Caliburn.Micro.ElementConvention convention = {Caliburn.Micro.ElementConvention}, System.Windows.DependencyProperty bindableProperty = {System.Windows.CoreDependencyProperty})    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.ElementConvention..ctor.AnonymousMethod__0(System.Type viewModelType = {System.RuntimeType}, string path = "Items", System.Reflection.PropertyInfo property = {System.Reflection.RuntimePropertyInfo}, System.Windows.FrameworkElement element = {Telerik.Windows.Controls.RadDataBoundListBox}, Caliburn.Micro.ElementConvention convention = {Caliburn.Micro.ElementConvention})    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.ViewModelBinder..cctor.AnonymousMethod__6(System.Collections.Generic.IEnumerable<System.Windows.FrameworkElement> namedElements = Count = 3, System.Type viewModelType = {System.RuntimeType})    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.ViewModelBinder..cctor.AnonymousMethod__9(object viewModel = {MyNamespace.ViewModels.SearchByGenreViewModel}, System.Windows.DependencyObject view = {MyNamespace.Views.SearchByGenreView}, object context = null)    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.View.OnModelChanged(System.Windows.DependencyObject targetLocation = {System.Windows.Controls.ContentControl}, System.Windows.DependencyPropertyChangedEventArgs args = {System.Windows.DependencyPropertyChangedEventArgs})    Unknown
    System.Windows.ni.dll!System.Windows.DependencyObject.RaisePropertyChangeNotifications(System.Windows.DependencyProperty dp = {System.Windows.CustomAttachedDependencyProperty}, object oldValue, object newValue)    Unknown
    System.Windows.ni.dll!System.Windows.DependencyObject.UpdateEffectiveValue(System.Windows.DependencyProperty property, System.Windows.EffectiveValueEntry oldEntry, ref System.Windows.EffectiveValueEntry newEntry, System.Windows.DependencyObject.ValueOperation operation)    Unknown
    System.Windows.ni.dll!System.Windows.DependencyObject.RefreshExpression(System.Windows.DependencyProperty dp)    Unknown
    System.Windows.ni.dll!System.Windows.Data.BindingExpression.SendDataToTarget()    Unknown
    System.Windows.ni.dll!System.Windows.Data.BindingExpression.SourceAcquired()    Unknown
    System.Windows.ni.dll!System.Windows.Data.BindingExpression.System.Windows.IDataContextChangedListener.OnDataContextChanged(object sender, System.Windows.DataContextChangedEventArgs e)    Unknown
    System.Windows.ni.dll!System.Windows.Data.BindingExpression.DataContextChanged(object sender, System.Windows.DataContextChangedEventArgs e)    Unknown
    System.Windows.ni.dll!System.Windows.FrameworkElement.OnDataContextChanged(System.Windows.DataContextChangedEventArgs e)    Unknown
    System.Windows.ni.dll!System.Windows.FrameworkElement.OnTreeParentUpdated(System.Windows.DependencyObject newParent, bool bIsNewParentAlive)    Unknown
    System.Windows.ni.dll!System.Windows.DependencyObject.UpdateTreeParent(MS.Internal.IManagedPeer oldParent = null, MS.Internal.IManagedPeer newParent = {System.Windows.Controls.ContentPresenter}, bool bIsNewParentAlive, bool keepReferenceToParent = true)    Unknown
    System.Windows.ni.dll!MS.Internal.FrameworkCallbacks.ManagedPeerTreeUpdate(System.IntPtr oldParentElement, System.IntPtr parentElement, System.IntPtr childElement, byte bIsParentAlive, byte bKeepReferenceToParent, byte bCanCreateParent)    Unknown
    [From native to managed]
    [From managed to native]
    System.Windows.ni.dll!MS.Internal.XcpImports.FrameworkElement_MeasureOverride(System.Windows.FrameworkElement element = {Microsoft.Phone.Controls.PivotItem}, System.Windows.Size availableSize)    Unknown
    Microsoft.Phone.ni.dll!Microsoft.Phone.Controls.PivotItem.MeasureOverride(System.Windows.Size availableSize)    Unknown
    System.Windows.ni.dll!System.Windows.FrameworkElement.MeasureOverride(System.IntPtr nativeTarget, double inWidth, double inHeight, [From native to managed]
    [From managed to native]
    System.Windows.ni.dll!MS.Internal.XcpImports.UIElement_UpdateLayout(System.Windows.UIElement element = {Microsoft.Phone.Controls.Pivot}) Unknown
    Microsoft.Phone.ni.dll!Microsoft.Phone.Controls.Pivot.OnItemsChanged(System.Collections.Specialized.NotifyCollectionChangedEventArgs e)    Unknown
    System.Windows.ni.dll!System.Windows.Controls.ItemsControl.OnItemCollectionChanged(object sender, System.Collections.Specialized.NotifyCollectionChangedEventArgs e)    Unknown
    System.Windows.ni.dll!System.Windows.Controls.ItemCollection.NotifyCollectionChanged(System.Collections.Specialized.NotifyCollectionChangedEventArgs e)    Unknown
    System.Windows.ni.dll!System.Windows.Controls.ItemCollection.System.Windows.Controls.ICollectionChangedListener.OnCollectionChanged(object sender, System.Collections.Specialized.NotifyCollectionChangedEventArgs e)    Unknown
    System.Windows.ni.dll!System.Windows.Controls.WeakCollectionChangedListener.SourceCollectionChanged(object sender, System.Collections.Specialized.NotifyCollectionChangedEventArgs e)    Unknown
    System.ni.dll!System.Collections.ObjectModel.ObservableCollection<Caliburn.Micro.IScreen>.OnCollectionChanged(System.Collections.Specialized.NotifyCollectionChangedEventArgs e)    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.BindableCollection<Caliburn.Micro.IScreen>.OnCollectionChanged(System.Collections.Specialized.NotifyCollectionChangedEventArgs e = {System.Collections.Specialized.NotifyCollectionChangedEventArgs})    Unknown
    System.ni.dll!System.Collections.ObjectModel.ObservableCollection<System.__Canon>.InsertItem(int index, System.__Canon item)    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.BindableCollection<Caliburn.Micro.IScreen>.InsertItemBase(int index = 3, Caliburn.Micro.IScreen item = {MyNamespace.ViewModels.SearchByGenreViewModel})    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.BindableCollection<Caliburn.Micro.IScreen>.InsertItem.AnonymousMethod__4()    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.Execute.OnUIThread(System.Action action = {System.Action})    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.BindableCollection<Caliburn.Micro.IScreen>.InsertItem(int index = 3, Caliburn.Micro.IScreen item = {MyNamespace.ViewModels.SearchByGenreViewModel})    Unknown
    mscorlib.ni.dll!System.Collections.ObjectModel.Collection<Caliburn.Micro.IScreen>.Add(Caliburn.Micro.IScreen item)    Unknown
    MyProjectDLL!MyNamespace.ViewModels.SearchViewModel.OnInitialize() Riga 26    C#
    Caliburn.Micro.DLL!Caliburn.Micro.Screen.Caliburn.Micro.IActivate.Activate()    Unknown
    Caliburn.Micro.DLL!Caliburn.Micro.FrameAdapter.OnNavigated(object sender = {System.Windows.Navigation.NavigationService}, System.Windows.Navigation.NavigationEventArgs e = {System.Windows.Navigation.NavigationEventArgs})    Unknown
    Microsoft.Phone.ni.dll!System.Windows.Navigation.NavigationService.RaiseNavigated(object content = {MyNamespace.Views.SearchView}, System.Uri uri = {System.Uri}, System.Windows.Navigation.NavigationMode mode = New, bool isNavigationInitiator = true, Microsoft.Phone.Controls.IPhoneApplicationPage existingContentPage = {MyNamespace.Views.MainPage}, Microsoft.Phone.Controls.IPhoneApplicationPage newContentPage = {MyNamespace.Views.SearchView})    Unknown
    Microsoft.Phone.ni.dll!System.Windows.Navigation.NavigationService.CompleteNavigation(System.Windows.DependencyObject content, System.Windows.Navigation.NavigationMode mode = New)    Unknown
    Microsoft.Phone.ni.dll!System.Windows.Navigation.NavigationService.ContentLoader_BeginLoad_Callback(System.IAsyncResult result)    Unknown
    Microsoft.Phone.ni.dll!System.Windows.Navigation.PageResourceContentLoader.BeginLoad_OnUIThread(System.AsyncCallback userCallback = {System.AsyncCallback}, System.Windows.Navigation.PageResourceContentLoader.PageResourceContentLoaderAsyncResult result = {System.Windows.Navigation.PageResourceContentLoader.PageResourceContentLoaderAsyncResult})    Unknown
    Microsoft.Phone.ni.dll!System.Windows.Navigation.PageResourceContentLoader.BeginLoad.AnonymousMethod__0(object args)    Unknown
    [From native to managed]
    mscorlib.ni.dll!System.Delegate.DynamicInvokeImpl(object[] args)    Unknown
    System.Windows.ni.dll!System.Windows.Threading.DispatcherOperation.Invoke()    Unknown
    System.Windows.ni.dll!System.Windows.Threading.Dispatcher.Dispatch(System.Windows.Threading.DispatcherPriority priority)    Unknown
    System.Windows.ni.dll!System.Windows.Threading.Dispatcher.OnInvoke(object context)    Unknown
    System.Windows.ni.dll!System.Windows.Hosting.CallbackCookie.Invoke(object[] args)    Unknown
    System.Windows.RuntimeHost.ni.dll!System.Windows.RuntimeHost.ManagedHost.InvokeDelegate(System.IntPtr pHandle, int nParamCount, System.Windows.Hosting.NativeMethods.ScriptParam* pParams, System.Windows.Hosting.NativeMethods.ScriptParam* pResult = 0x0055fab4)    Unknown


    Now let's get to the code.

    This is the OnInitialize method of the conductor:
    protected override void OnInitialize()
    {
        base.OnInitialize();
        Items.Add(_byGenre);
        ActivateItem(_byGenre);
    }
    where _byGenre is an instance of:
    public class SearchByGenreViewModel : Screen
    {
        private ObservableCollection<string> _items;

        public ObservableCollection<string> Items
        {
            get { return _items; }
            set
            {
                _items = value;
                NotifyOfPropertyChange(() => Items);
            }
         }

        public SearchByGenreViewModel()
        {
            Items = new BindableCollection<string>
            {
                "action",
                "adventure",
                "animation",
                "comedy"
            };
            DisplayName = "by genre";
        }
    }
    Finally, here's the XAML (SearchByGenreView.xaml):

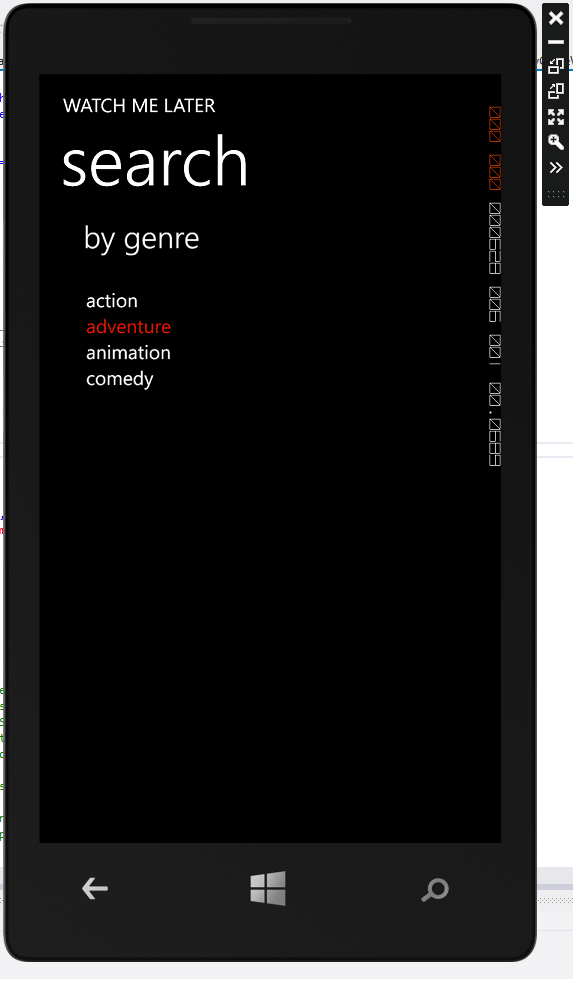

    (this one is the one that works fine)
    <ListBox x:Name="Items">
        <ListBox.ItemTemplate>
            <DataTemplate>
                <StackPanel>
                    <TextBlock Text="{Binding}" />
                </StackPanel>
            </DataTemplate>
        </ListBox.ItemTemplate>
    </ListBox>
    (this is the one who gives the exception)
    <telerikPrimitives:RadDataBoundListBox x:Name="Items" Margin="12,3,12,0" Visibility="Visible">
        <telerikPrimitives:RadDataBoundListBox.ItemTemplate>
            <DataTemplate>
                <StackPanel>
                    <TextBlock Text="{Binding}" />
                </StackPanel>
            </DataTemplate>
        </telerikPrimitives:RadDataBoundListBox.ItemTemplate>
    </telerikPrimitives:RadDataBoundListBox>
    as you can see, all that I've changed is the ListBox, which I replaced with the RadDataBoundListBox.

    What am I doing wrong?
  2. Valentin.Stoychev
    Admin
    Valentin.Stoychev avatar
    2198 posts

    Posted 06 Dec 2013 Link to this post

    Hi,

    There should not be any problem with this approach. Maybe there is something else in your project that cause the problem with the Telerik listbox. We tried your scenario but could not reproduce it. Is it possible for you to isolate a small project where we can investigate what is the reason for the exception.

    Thanks!

    Regards,
    Valentin.Stoychev
    Telerik
    Have a suggestion or face a problem - you can use the Ideas & Feedback portal to submit ideas, feedback and vote for them.
  3. DevCraft banner
  4. StepTNT
    StepTNT avatar
    18 posts
    Member since:
    Mar 2013

    Posted 11 Dec 2013 Link to this post

    I'm sorry for the delay.

    Here's an stripped down version of my project. This should be enough to reproduce the issue.

    https://www.dropbox.com/s/q5dikr5rh8n5dja/Repro%20WML.rar
  5. Victor
    Admin
    Victor avatar
    1351 posts

    Posted 16 Dec 2013 Link to this post

    Hi Stefano,

    Thanks for the project. I am afraid that no exception is being thrown on my side. Please have a look at the screenshots. After I press the search button, the new page is empty and nothing happens. If I bind the list box to the Items property of the data context, the list box binds successfully without exceptions.

    Am I missing something?

    Regards,
    Victor
    Telerik
    Have a suggestion or face a problem - you can use the Ideas & Feedback portal to submit ideas, feedback and vote for them.
  6. StepTNT
    StepTNT avatar
    18 posts
    Member since:
    Mar 2013

    Posted 16 Dec 2013 Link to this post

    Actually, I think that the exception thrown but your IDE is not set to catch it.

    If I set mine to continue when the exception occurs, this message is printed on the output:

    System.Windows.Data Error: 'MS.Internal.Data.DynamicValueConverter' converter failed to convert value 'Caliburn.Micro.BindableCollection`1[System.String]' (type 'Caliburn.Micro.BindableCollection`1[System.String]'); BindingExpression: Path='Items' DataItem='WatchMeLater2.ViewModels.SearchByGenreViewModel' (HashCode=9289124); target element is 'Telerik.Windows.Controls.RadDataBoundListBox' (Name='Items'); target property is 'Visibility' (type 'System.Windows.Visibility').. System.InvalidOperationException: Can't convert type Caliburn.Micro.BindableCollection`1[System.String] to type System.Windows.Visibility.
       at MS.Internal.Data.DefaultValueConverter.Create(Type sourceType, Type targetType, Boolean targetToSource)
       at MS.Internal.Data.DynamicValueConverter.EnsureConverter(Type sourceType, Type targetType)
       at MS.Internal.Data.DynamicValueConverter.Convert(Object value, Type targetType, Object parameter, CultureInfo culture)
       at System.Windows.Data.BindingExpression.ConvertToTarget(Object value).

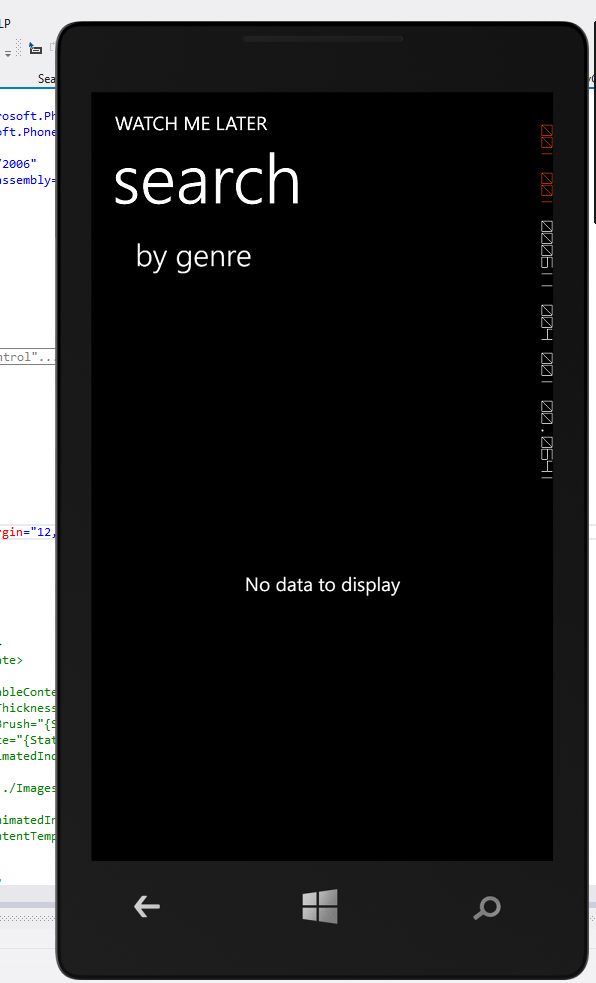

    and this causes my list to show as empty, because binding looks fine as the logger also prints
    [2013-12-16T19:25:22.9161710+01:00] Binding Convention Applied: Element Items.

    I'm starting to think that this is somehow related to xaml and caliburn micro's naming convention because it's weird that it tries to convert a List<string> to a List<Visibility> :\

    Can you please upload the files that you changed so that I can try them too?
  7. Answer
    Victor
    Admin
    Victor avatar
    1351 posts

    Posted 18 Dec 2013 Link to this post

    Hi Stefano,

    Since RadDataboundListBox inherits from Control and not ItemsControl or Selector, Caliburn Micro does not have any meaningful default conventions set up. You just have to add an element convention in the bootstrapper like this:
    ConventionManager.AddElementConvention<RadDataBoundListBox>(
        RadDataBoundListBox.ItemsSourceProperty, "Items", "Loaded");
    Please write again if you need further assistance.
