Import Html, Export Docx highlighting color

4 posts, 1 answers
  1. Casablanca Hotelsoftware
    Casablanca Hotelsoftware avatar
    3 posts
    Member since:
    Jan 2014

    Posted 08 Sep Link to this post

    Hello!

    We try to import HTML Source Code, and export it to OpenXml.

    The problem is, that the highlighting - color of the Runs (RunProperties) does not match with the HTML-highlighting-colors.

    The HTML string is for example:

    <p style="margin-top: 0px;margin-bottom: 0px;line-height: 1.15;"><span style="font-family: 'Verdana';font-size: 16px;background-color: #F79646;">Test</span><span style="font-family: 'Verdana';font-size: 16px;"></span></p>

    The WordProcessing - Code:

    HtmlFormatProvider cHtmlFormatProvider = new HtmlFormatProvider();
    RadDocument cDocument = cHtmlFormatProvider.Import(sHtmlString);

    DocxFormatProvider cDocxFormatProvider = new DocxFormatProvider();
    using (var fileStream = new MemoryStream())
    {
        cProvider.Export(cDocument, fileStream);
        using (WordprocessingDocument wp = WordprocessingDocument.Open(fileStream, true))
        {
             //Paragraphs and runs etc...
        }
    }



    But if i check the RunProperties of the Run (of the Paragraph), i see that the highlighting color is 'yellow' but it should be #F79646 (Orange).

    There is no other possibility for us, we have to export it to HTML.

    The Html Source Code was produced by RadRichTextBox.

    Please help us.

    Thank you.



  2. Tanya
    Admin
    Tanya avatar
    402 posts

    Posted 12 Sep Link to this post

    Hi Alexander,

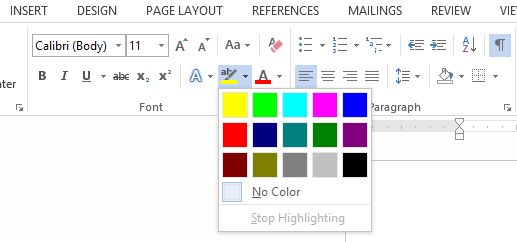

    In MS Word, the highlight color has a limited set of colors that could be used. You can check the attached screenshot that shows the palette.

    When DocxFormatProvider exports highlight color that is not on this limited set of colors, it tries to export the nearest color it finds. This is the reason for the mismatch. Here is the list of the available colors:
    {Colors.Transparent, "none"},
    {Colors.Black, "black"},
    {Colors.Blue, "blue"},
    {Colors.Cyan, "cyan"},
    {Color.FromArgb(255, 0, 0, 128), "darkBlue"},
    {Color.FromArgb(255, 0, 128, 128), "darkCyan"},
    {Color.FromArgb(255, 128, 128, 128), "darkGray"},
    {Color.FromArgb(255, 0, 128, 0), "darkGreen"},
    {Color.FromArgb(255, 128, 0, 128), "darkMagenta"},
    {Color.FromArgb(255, 128, 0, 0), "darkRed"},
    {Color.FromArgb(255, 128, 128, 0), "darkYellow"},
    {Color.FromArgb(255, 0, 255, 0), "green"},
    {Color.FromArgb(255, 192, 192, 192), "lightGray"},
    {Color.FromArgb(255, 255, 0, 255), "magenta"},
    {Colors.Red, "red"},
    {Colors.White, "white"},
    {Colors.Yellow, "yellow"}

    Hope this information is useful.

    Regards,
    Tanya
    Telerik by Progress

  3. Casablanca Hotelsoftware
    Casablanca Hotelsoftware avatar
    3 posts
    Member since:
    Jan 2014

    Posted 20 Sep in reply to Tanya Link to this post

    Hi!

    Thank you for your reply.

    In that case, we have a table with a cell-background and a Text (without highlighting) made in RadRichTextBox.

    But the Telerik library does it set as a highlighting, which does not support all colors and so are the background colors of the text wrong.

    I have the examples in the attachment, first the original of the RadRichTextBox and the converted one, that you can see it.

    Html Code of the example (produced by RadRichTextBox):

    <table style="border-left: 1px solid #000000;border-top: 1px solid #000000;border-right: 1px solid #000000;border-bottom: 1px solid #000000;border-collapse: collapse;table-layout: auto;width: 626px;"><tr><td style="border-left: 1px solid #000000;border-top: 1px solid #000000;border-right: 1px solid #000000;border-bottom: 1px solid #000000;padding: 0px 5px 0px 5px;background-color: #F79646;vertical-align: top;" align="left" valign="top"><p style="margin-top: 0px;margin-bottom: 0px;line-height: 1;text-align: center;"><span style="font-family: 'Verdana';font-size: 16px;color: #FFFFFF;"><b><i><u>Test - Header</u></i></b></span><span style="font-family: 'Verdana';font-size: 16px;"></span></p></td></tr><tr><td style="border-left: 1px solid #000000;border-top: 1px solid #000000;border-right: 1px solid #000000;border-bottom: 1px solid #000000;padding: 0px 5px 0px 5px;background-color: #FCD5B5;vertical-align: top;" align="left" valign="top"><p style="margin-top: 0px;margin-bottom: 0px;line-height: 1;text-align: center;"><span style="font-family: 'Verdana';font-size: 13.34px;">Test - Body</span><span style="font-family: 'Verdana';font-size: 16px;"></span></p></td></tr></table><p style="margin-top: 0px;margin-bottom: 12px;line-height: 1.15;"><span style="font-family: 'Verdana';font-size: 16px;"> </span></p>

    Regards,

    Casablanca Hotelsoftware

  4. Answer
    Tanya
    Admin
    Tanya avatar
    402 posts

    Posted 22 Sep Link to this post

    Hi,

    The run doesn't have any highlight color set, but it is inherited from its parent. Thus, the mismatch in the colors. In order to avoid this difference in the exported document, you could set the HighlightColor of the spans to Transparent either in the HTML document or after importing it to RadFlowDocument. The following snippet shows how you can set the highlight of all the Run elements in a RadFlowDocument instance:
    IEnumerable<Run> runs = this.document.EnumerateChildrenOfType<Run>();
    foreach (var run in runs)
    {
        run.Properties.HighlightColor.LocalValue = Colors.Transparent;
    }

    I hope this is helpful.

    Regards,
    Tanya
    Telerik by Progress
