how to get group footer section to bottom

2 posts, 0 answers
  1. LittleDragon
    LittleDragon avatar
    18 posts
    Member since:
    Apr 2013

    Posted 26 Jul 2013 Link to this post


    I have attached screen shots of my reports below.

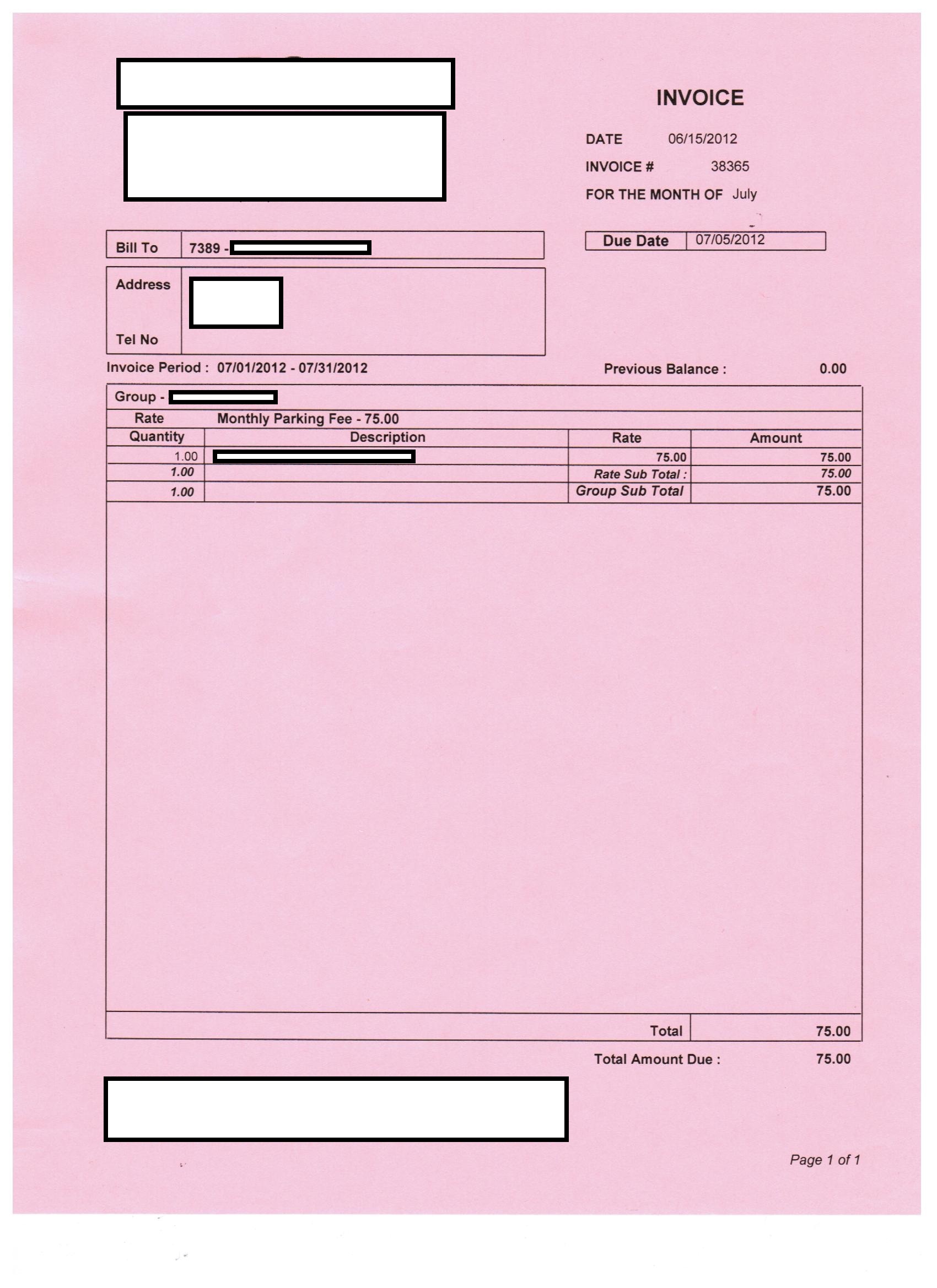

    First screen shot is our existing report that have been created using crystal report
    Now we want to recreate this report using telerik reports.

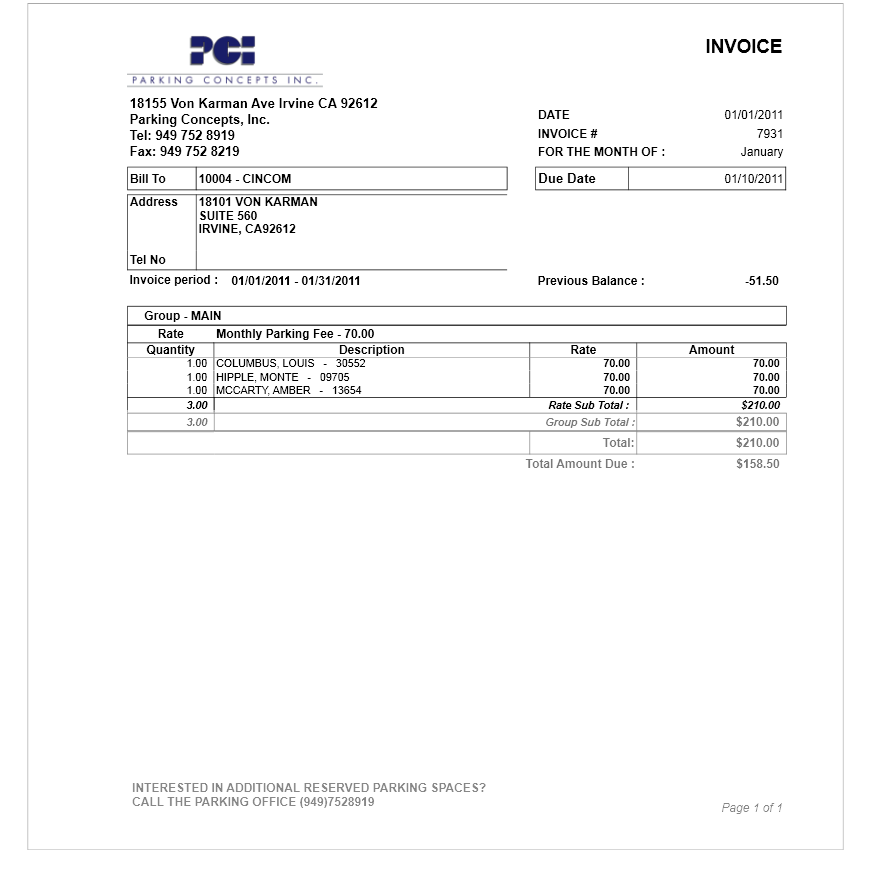

    second image is new telarik report
    I was able to create the report using textbox to make it look like old one, but I cannot continue the boarders in white space between the group footer section and report footer where I display the total values.

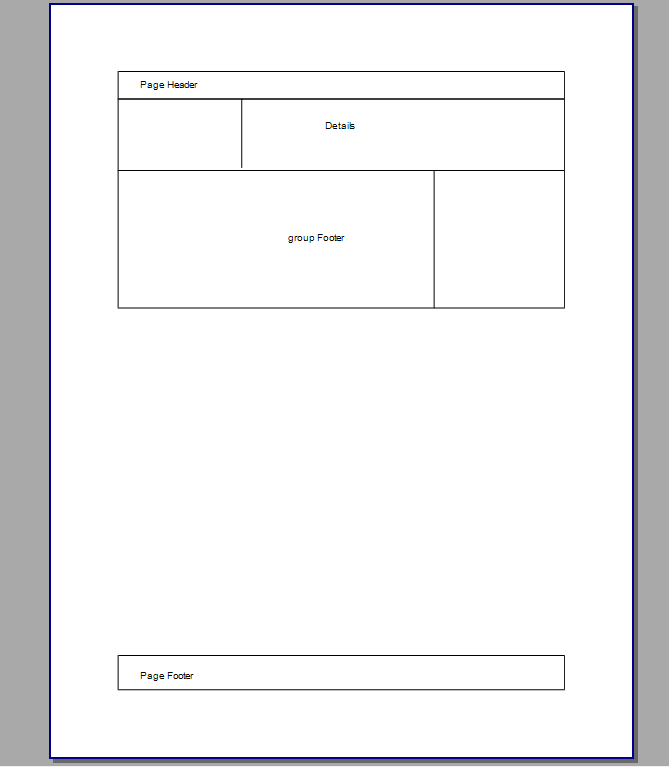

    I have attached screen shots of sample project I created.

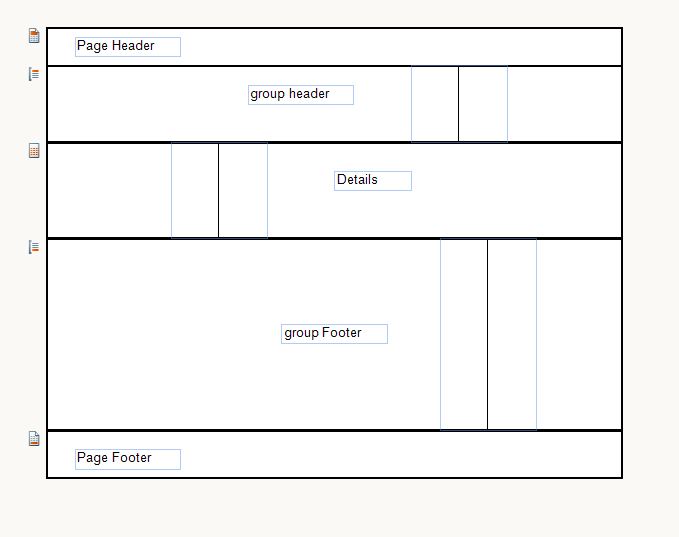

    In 3rd image design view I placed group footer and page footer together but when rendering white space is created between group footer and page footer
    How can I remove the white space between group footer and page footer?, or  move the group footer to the end of the report.
  2. Stef
    Stef avatar
    2933 posts

    Posted 29 Jul 2013 Link to this post


    Please take a look at the provided example and the answer in your support ticket on the same question. This is a quote from it:

    "Knowing the sizes of the PageSettings.PaperSize, PageSettings.Margins, PageHeader and PageFooter sections, GroupHeader/FooterSection and how many Detail sections will be rendered you can resize the GroupFooterSection Height using binding."

    I hope this helps.


    Have you tried the new visualization options in Telerik Reporting Q2 2013? You can get them from your account.
