How to display TilePeekTemplate on page load

6 posts, 0 answers
  1. Sanjay
    Sanjay avatar
    5 posts
    Member since:
    Jun 2014

    Posted 25 Jun 2014 Link to this post

    Hi I am using RadTileList control with DataBinding. It's working fine as long as the TilePeekTemplate item displayed on mouse over. But I need it to display on page load. How can I make this happen?




  2. Marin Bratanov
    Admin
    Marin Bratanov avatar
    3596 posts

    Posted 26 Jun 2014 Link to this post

    Hello Sanjay,

    If the peek templates are that important you can consider putting the data you have for the peek template in a content template of a tile so it is the first thing shown by the tile: http://www.telerik.com/help/aspnet-ajax/tilelist-tiles-contenttemplatetile.html.

    Otherwise, you can

    1. use the OnClientLoad event of the tile list (http://www.telerik.com/help/aspnet-ajax/tilelist-client-side-events-onclientload.html)
    2. traverse the tiles (http://www.telerik.com/help/aspnet-ajax/tilelist-client-side-tilelist-api.html - see the get_allTiles() method)
    3. show their peek templates via their API (http://www.telerik.com/help/aspnet-ajax/tilelist-client-side-tile-api.html - see the showPeekTemplate() method).

    I hope this helps you choose the best course of action for your setup.

    Regards,

    Marin Bratanov
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Sanjay
    Sanjay avatar
    5 posts
    Member since:
    Jun 2014

    Posted 26 Jun 2014 in reply to Marin Bratanov Link to this post

    Thanks Marin. But here I am not using peektemplate. it's TitlePeakTemplate as I am binding my datasSourse to it. The <DataBindings> has only one child element <TilePeekTemplate> that allows may server side '<%#databinder'. Here is the complete code. I need to remove the mouse over event & display the whole content on page load. Does any other template provide data_binding?

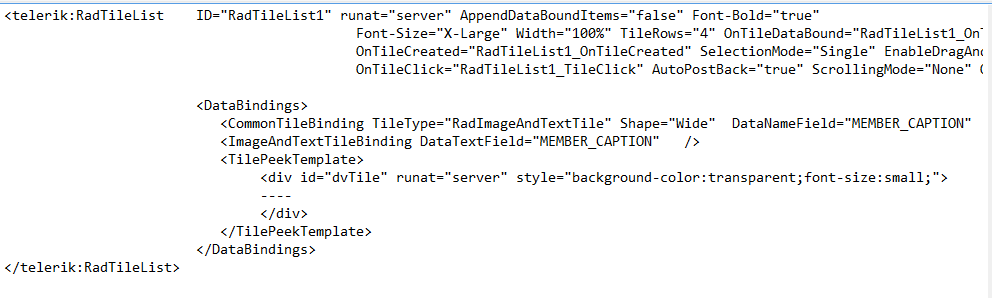

    ​<telerik:RadTileList ID="RadTileList1" runat="server" AppendDataBoundItems="false" Font-Bold="true"
    Font-Size="X-Large" Width="100%" TileRows="4" OnTileDataBound="RadTileList1_OnTileDataBound"
    OnTileCreated="RadTileList1_OnTileCreated" SelectionMode="Single" EnableDragAndDrop="false"
    OnTileClick="RadTileList1_TileClick" AutoPostBack="true" ScrollingMode="None" >
    <DataBindings>
    <CommonTileBinding TileType="RadImageAndTextTile" Shape="Wide" DataNameField="MEMBER_CAPTION"/>
    <ImageAndTextTileBinding DataTextField="MEMBER_CAPTION" />
    <TilePeekTemplate>
    <div id="dvTile" runat="server" style="background-color:transparent;font-size:small;" >
    <h3 style="text-align:center;"><%#DataBinder.Eval(Container.DataItem, "MEMBER_CAPTION")%></h3>
    <strong>Clicks:</strong>
    <%#DataBinder.Eval(Container.DataItem, "Clicks")%>
    <br />
    <strong>Impressions:</strong>
    <%#DataBinder.Eval(Container.DataItem, "Impressions")%>
    <br />
    <strong>Click Thru Rate:</strong>
    <%#String.Format("{0:P2}.", DataBinder.Eval(Container.DataItem, "Click_Thru_Rate"))%>
    <br />
    <strong>Conversions:</strong>
    <%#DataBinder.Eval(Container.DataItem, "Conversions")%>
    </div>
    </TilePeekTemplate>
    </DataBindings>
    </telerik:RadTileList>
  5. Sanjay
    Sanjay avatar
    5 posts
    Member since:
    Jun 2014

    Posted 26 Jun 2014 in reply to Sanjay Link to this post

    *TilePeekTemplate
  6. Marin Bratanov
    Admin
    Marin Bratanov avatar
    3596 posts

    Posted 27 Jun 2014 Link to this post

    Hi Sanjay,

    The ContentTemplateTile I offered in my previous post lets you define the desired layout that will be shown in the initial load: http://www.telerik.com/help/aspnet-ajax/tilelist-tiles-contenttemplatetile.html.

    You can see how to use data binding with it here: http://www.telerik.com/help/aspnet-ajax/tilelist-databinding-basics.html - see the last section in the article at the end.

    If this is not what you need, you can use the JavaScript approach I offered in my previous post.


    Regards,

    Marin Bratanov
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  7. Sanjay
    Sanjay avatar
    5 posts
    Member since:
    Jun 2014

    Posted 27 Jun 2014 in reply to Marin Bratanov Link to this post

    Thanks once again Marin for trying to help me out. I tried to use <ContentTemplateTileBinding> & some how the Tile was generating, but no data displaying. Those where blank screen. I used the same <ContentTemplateTileBinding> with <TilePeekTemplate> both with same data binding contains, but only <TilePeekTemplate> was showing information & not <ContentTemplateTileBinding>          <ContentTemplate>. I am sure I am missing some thing. same data, same binding but TilePeekTemplate showing the data but not ContentTemplateTileBinding. Anyway, I got one more alternative way to handle. Now using <TilePeekTemplate> but set the e.Tile.PeekTemplateSettings.ShowInterval = 1; in OnTileCreated event. Also made sure to set e.Tile.PeekTemplateSettings.HidePeekTemplateOnMouseOut = false;. This may not be the clean way, but works.

    Thanks,
    Sanjay.
