How to create a new Aggregate Function PivotGrid - WPF

[Diego]

I was wondering how I can create a new Aggregation Function and add it to this list of existing Functions in "More Aggregation Options"
In this article I see that they managed to create the 'Sqrt Of Sum' function in WinForms

-> https://docs.telerik.com/devtools/winforms/controls/pivotgrid/custom-aggregation

I would like to know how I can be doing the same to add an Aggregation Function in Options in PivotGrid WPF:

Explanatory Image below:



Thank you!

[Dilyan Traykov]

Hello Diego,

To add a new function to the list of available functions, you need to create a custom PropertyAggregateDescriptionBase and override its SupportedAggregateFunctions property:

        protected override IEnumerable<object> SupportedAggregateFunctions
        {
            get
            {
                return base.SupportedAggregateFunctions.Concat(this.AdditionalAggregateFunctions);
            }
        }

        private static SqrtSumAggregateFunction SqrtSum
        {
            get { return new SqrtSumAggregateFunction(); }
        }

        private IEnumerable<object> AdditionalAggregateFunctions
        {
            get { yield return SqrtSum; }
        }

Here I've used the SqrtSumAggregateFunction from the WinForms article you shared.

For your convenience, I've prepared a small sample project to demonstrate this in action. Please have a look and let me know if you find this useful.

Regards,
Dilyan Traykov
Progress Telerik

[Diego]

On the telerik's main page I saw that there's something about weighted average, and that's exactly what I need to do instead in the Sqrt of Sum, the real problems is that same I take the examples in the doc and redo the codes perfectly, I don't I can make this work, are there any questions resolved here about weighted average?

[Dilyan Traykov]

Hello Diego,

I came across the following resources available regarding the creation of a weighted average function:

• How to Add Weighted Average in RadPivotGrid
• Weighted Average
• Create a Calculated Field in RadPivotGrid - WPF

If you have not come across them already, can you please have a look and let me know if you find them helpful?

If you're still not able to achieve the desired result, please share a small sample project which demonstrates your current setup and the expected outcome and I will gladly try to suggest a viable solution.

[Diego]

Hi! Your answers helped me find a way to the solution. Thanks! However, I see that there is a problem, I am using the Sqrt Of Sum that you gave me as an example and what I want to do is:

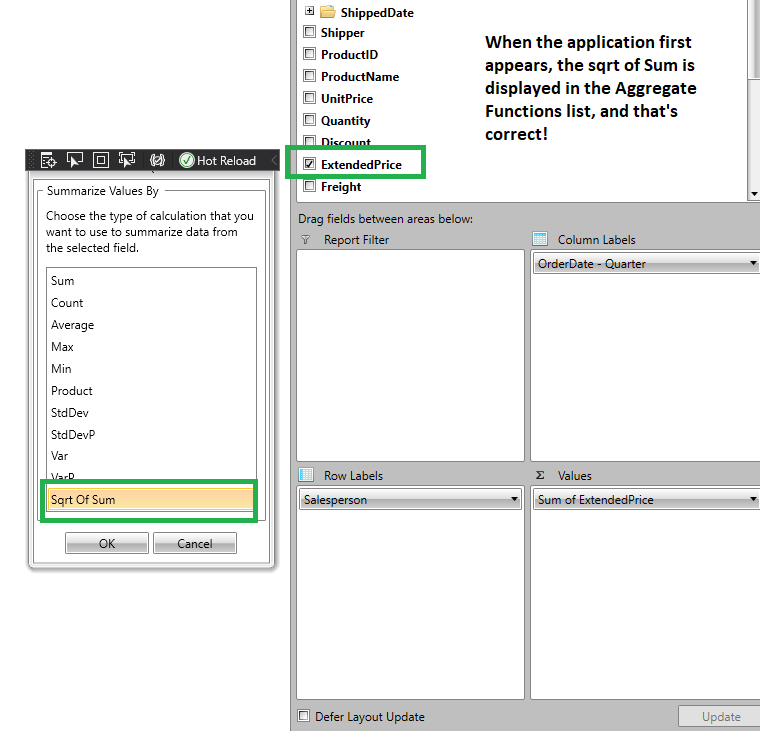

In your example, it works perfectly and so far OK!

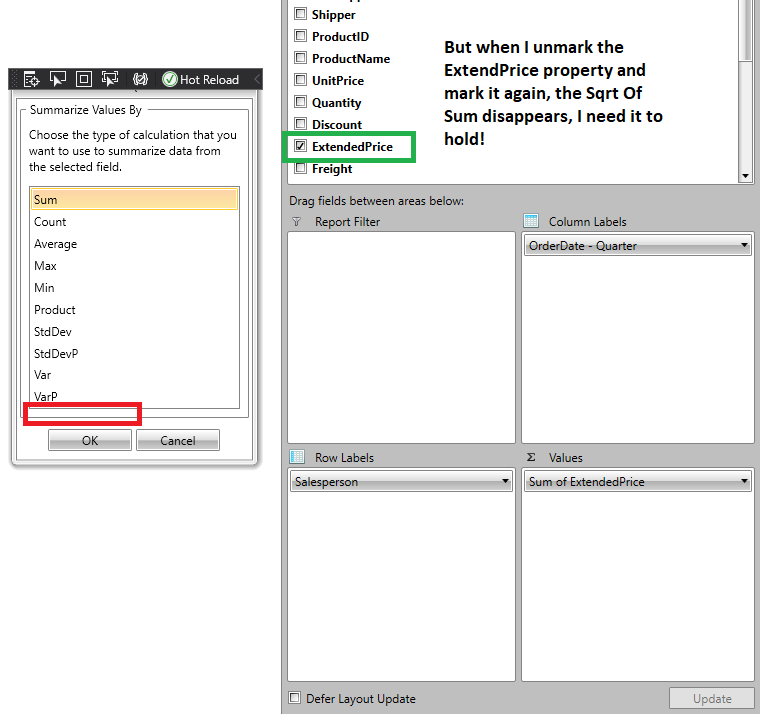

But when I remove the ExtendedPrice property and add it again, the aggregate function Sqrt Of Sum just disappears from the More Aggregation Options list and I need it always present!
I'll show you with images:



[Dilyan Traykov]

Hi Diego,

Thank you for the provided images.

The reason for this behavior is that when you manually add the new field via the checkbox, a new PropertyAggregateDescription is added by default instead of a CustomPropertyAggregateDescription which brings the custom functions. To resolve this, you can handle the PrepareDescriptionForField event of the DataProvider in the following manner

        private void LocalDataSourceProvider_PrepareDescriptionForField(object sender, Telerik.Pivot.Core.PrepareDescriptionForFieldEventArgs e)
        {
            if (e.FieldInfo.Name == "ExtendedPrice")
            {
                e.Description = new CustomPropertyAggregateDescription() { PropertyName = "ExtendedPrice", AggregateFunction = AggregateFunctions.Sum };
            }
        }

Please give this a try and let me know if this approach provides the desired result.

[Gabriel]

Hi good morning!

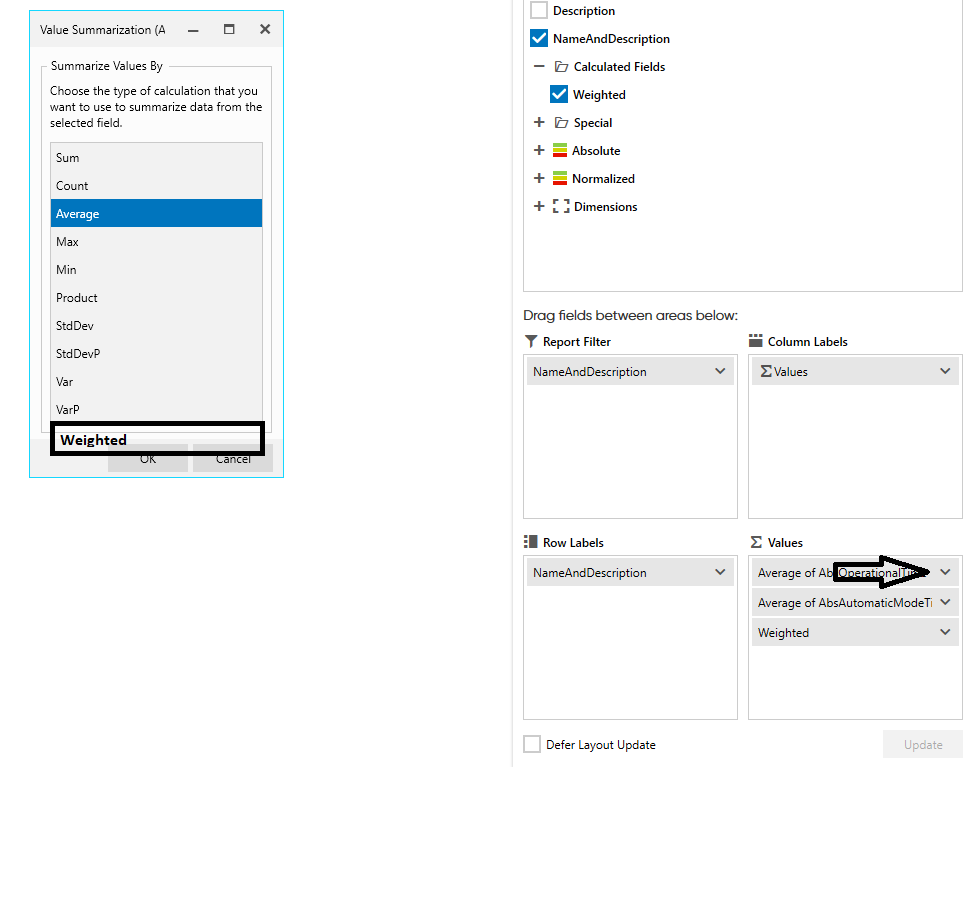

What I'm trying in my Custom Aggregation is the following: My DataSource is a List of this object: ViewCpaKpi.

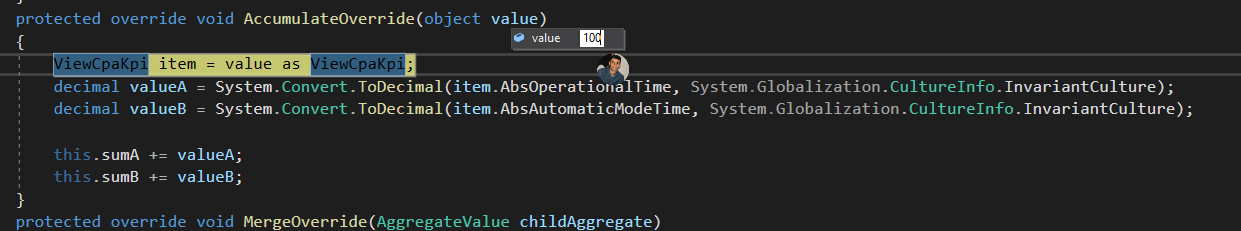

In this override method AcumulateOverride() I wanted to know if there is a way this parameter object is the object of the line, the ViewCpaKpi, as shown in the image, because I need two columns in this context.

Currently it is receiving only the value of the cell, and I need the whole object to come.

[Dilyan Traykov]

Hi Gabriel,
As the name of the AggregateValue class (which provides the AccumulateOverride method) implies, it is only used to aggregate the values of the pivot control during grouping - it cannot hold a reference of the actual items the provider is bound to.
Instead, I believe you can use a calculated field and pass the AbsOperationalTime and AbsAutomaticModeTime fields to the RequiredFields collection.
