How to configure FontSize on GridViewFooterCell and GridViewGroupFooterCell

2 posts, 0 answers
  1. Carles
    Carles avatar
    1 posts
    Member since:
    Jul 2012

    Posted 07 Feb 2014 Link to this post

    Hi Team,

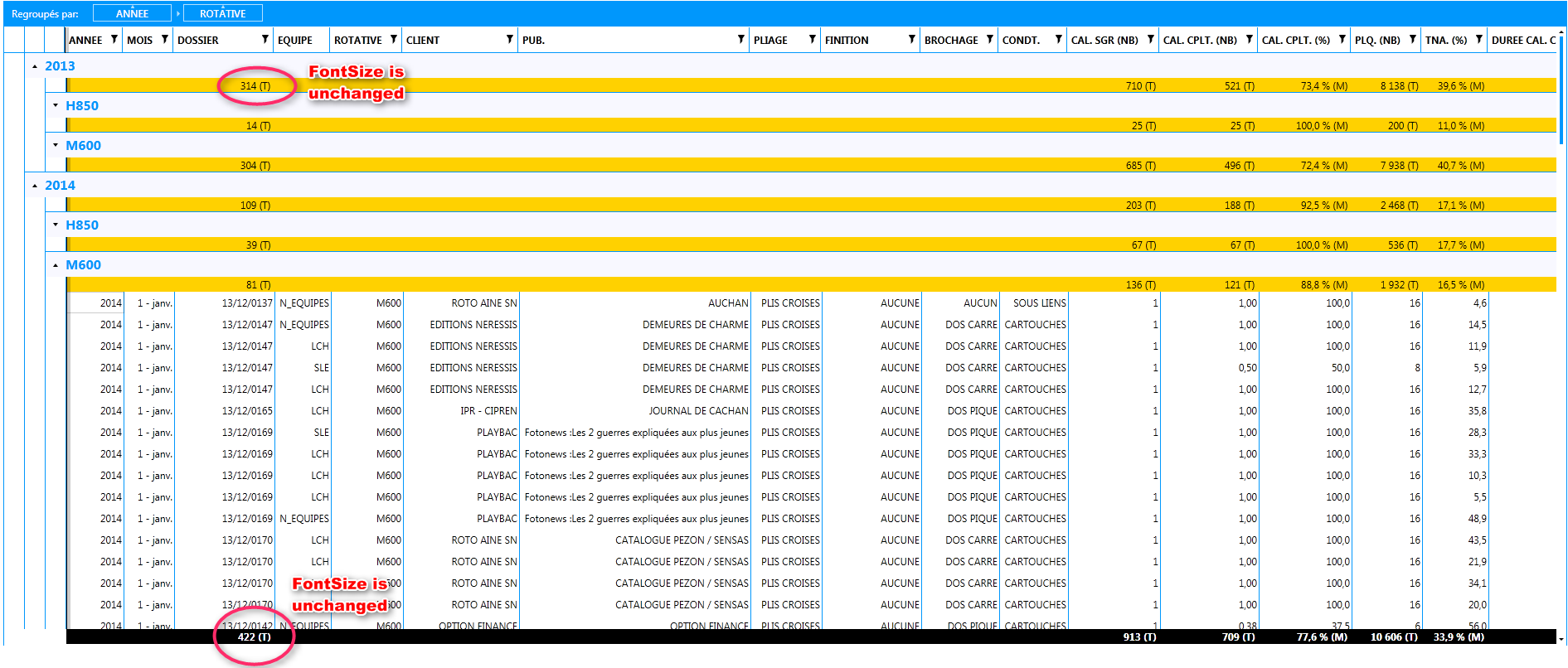

    I would like to configure the FontSize on the both elements  GridViewFooterCell and GridViewGroupFooterCell.
    I defined a style for each in the UserControl.Resources. All the properties work well except the FontStyle which reminds unchanged.
    Could you help me. Thanks.

    Regards

    Eric.

    <UserControl.Resources>
    <System:String x:Key="FormatNbMoyenHeader">{0:N0} (M)</System:String>
    <System:String x:Key="FormatNbTotalHeader">{0:N0} (T)</System:String>
    <Style TargetType="telerik:GridViewGroupFooterRow">
    <Setter Property="Background" Value="{StaticResource Yellow}"/>
    <Setter Property="VerticalContentAlignment" Value="Center"/>
    </Style>
    <Style  TargetType="telerik:GroupHeaderRow">
    <Setter Property="Background" Value="GhostWhite"/>
    <Setter Property="ShowGroupHeaderColumnAggregates" Value="True" />
    <Setter Property="ShowHeaderAggregates" Value="False"/>
    <Setter Property="Padding" Value="5,1"/>
    <Setter Property="FontSize" Value="16"/>
    <Setter Property="FontWeight" Value="normal"/>
    </Style>
    <Style TargetType="telerik:GridViewFooterCell">
    <Setter Property="Background" Value="Black" />
    <Setter Property="Foreground" Value="White" />
    <Setter Property="HorizontalContentAlignment" Value="Right"/>
    <Setter Property="VerticalContentAlignment" Value="Center"/>
    <Setter Property="TextAlignment" Value="Right"/>
    <Setter Property="Padding" Value="5,1"/>
    <Setter Property="FontSize" Value="20"/>
    </Style>
    <Style  TargetType="telerik:GridViewGroupFooterCell">
    <Setter Property="HorizontalContentAlignment" Value="Right"/>
    <Setter Property="VerticalContentAlignment" Value="Center"/>
    <Setter Property="Padding" Value="5,1"/>
    <Setter Property="FontSize" Value="16"/>
    <Setter Property="FontWeight" Value="normal"/>
    </Style>
    <DataTemplate x:Key="NbTrsPerfTemplateOK">
    <Border Background="Green">
    <TextBlock Foreground="White"
      Text="{Binding UnitPrice, StringFormat=c}" />
    </Border>
    </DataTemplate>
    <DataTemplate x:Key="NbTrsPerfTemplateKO">
    <Border Background="Red">
    <TextBlock Foreground="White"
      Text="{Binding UnitPrice, StringFormat=c}" />
    </Border>
    </DataTemplate>
        </UserControl.Resources>

        <Grid x:Name="LayoutRoot" Background="White">
    <Grid.ColumnDefinitions>
    <ColumnDefinition/>
    </Grid.ColumnDefinitions>
    <Grid.RowDefinitions>
    <RowDefinition Height="Auto"/>
    <RowDefinition Height="20"/>
    <RowDefinition Height="*"/>
    </Grid.RowDefinitions>

    <!-- DataGrid affichage des résultats -->
    <telerik:RadGridView
    Grid.Row="4"
    Name="RadGridViewAnalyseDetailleeProduction"
    ScrollMode="RealTime"
    AutoGenerateColumns="False"
    ItemsSource="{Binding CollectionCalagesStatsProdPourAnalyse}"
    GroupRenderMode="Flat"
    ShowColumnFooters="True"
    GridLinesVisibility="Vertical"
    IsReadOnly="True"
    FontSize="12">
    .......






  2. Yoan
    Admin
    Yoan avatar
    1066 posts

    Posted 12 Feb 2014 Link to this post

    Hello Carles,

    You can try to define the GridViewDataColumn's Footer like so:
    <telerik:GridViewDataColumn DataMemberBinding="{Binding Name}" >
                        <telerik:GridViewDataColumn.AggregateFunctions>
                            <telerik:CountFunction Caption="Count: " />
                        </telerik:GridViewDataColumn.AggregateFunctions>
                        <telerik:GridViewDataColumn.Footer>
                            <StackPanel Orientation="Vertical"
                                        Margin="0,10">

                                <telerik:AggregateResultsList ItemsSource="{Binding}"
                                                              VerticalAlignment="Center"
                                                              Grid.Column="4">
                                    <ItemsControl.ItemTemplate>
                                        <DataTemplate>
                                            <StackPanel Orientation="Horizontal"
                                                        VerticalAlignment="Center">
                                                <TextBlock VerticalAlignment="Center"
                                                           Text="{Binding Caption}" />
                                                <TextBlock VerticalAlignment="Center"
                                                           Text="{Binding FormattedValue}" />
                                            </StackPanel>
                                        </DataTemplate>
                                    </ItemsControl.ItemTemplate>
                                    <ItemsControl.ItemsPanel>
                                        <ItemsPanelTemplate>
                                            <StackPanel Orientation="Vertical" />
                                        </ItemsPanelTemplate>
                                    </ItemsControl.ItemsPanel>
                                </telerik:AggregateResultsList>
                            </StackPanel>
                        </telerik:GridViewDataColumn.Footer>
                    </telerik:GridViewDataColumn>

    You can check our online demo for a reference. Please give it a try and let me know how it works for you.


    Regards,
    Yoan
