How export a grid to pdf with "ClientFooterTemplate" but without "tool bar"

2 posts, 0 answers
  1. Luis
    Luis avatar
    4 posts
    Member since:
    Dec 2015

    Posted 15 Apr Link to this post

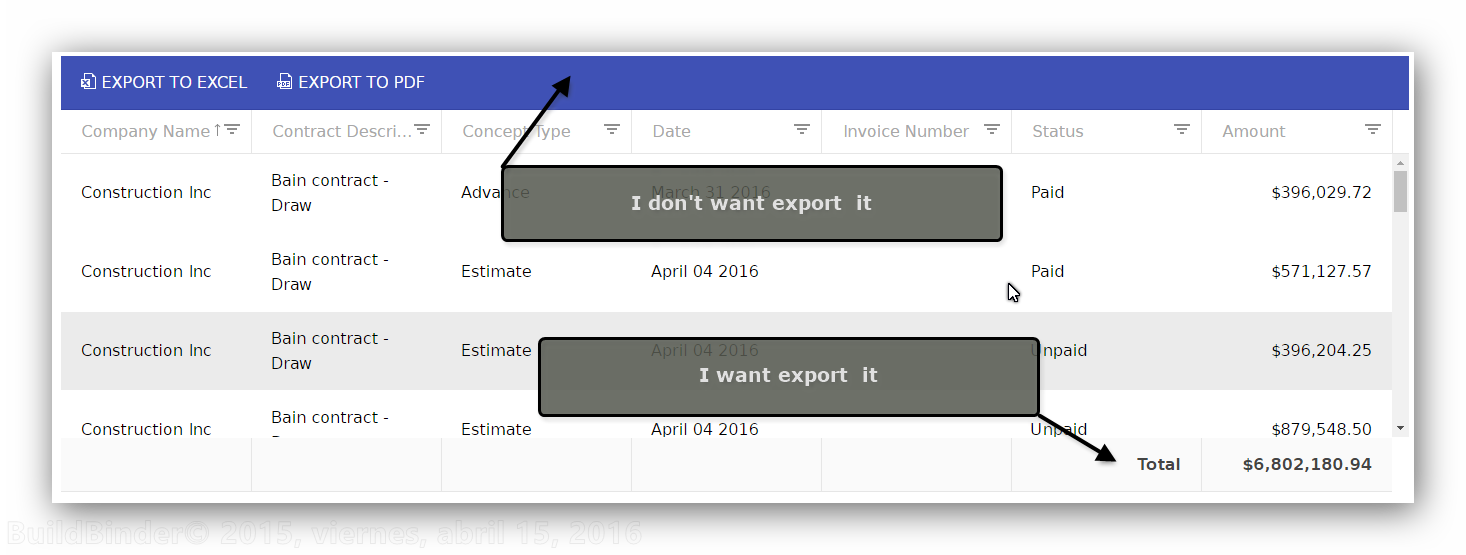

    I want export information from a Grid mvc to PDF without the tool bar but with the Client FooterTemplate, because, I  have the total amount about all rows  here

    this is mi full code



    <link href="~/Content/kendo/2016.1.112/kendo.common-material.min.css" rel="stylesheet" />
    <link href="~/Content/kendo/2016.1.112/kendo.material.min.css" rel="stylesheet" />
    <script src="//cdnjs.cloudflare.com/ajax/libs/jszip/2.4.0/jszip.min.js"></script>
    <script src="~/Scripts/kendo/2016.1.112/jquery.min.js"></script>
    <script src="~/Scripts/kendo/2016.1.112/kendo.all.min.js"></script>
    <script src="~/Scripts/kendo/2016.1.112/kendo.aspnetmvc.min.js"></script>

    <style>
        #grid .k-grid-content {
            height: 283px !important;
        }

        #grid > div.k-grid-footer > div > table > tbody > tr > td:nth-child(6) {
            text-align: right;
        }

        #grid > div.k-grid-footer > div > table > tbody > tr > td:nth-child(7) {
            text-align: right;
        }

        /*
            Use the DejaVu Sans font for display and embedding in the PDF file.
            The standard PDF fonts have no support for Unicode characters.
        */
        .k-grid {
            font-family: "DejaVu Sans", "Arial", sans-serif;
        }

        /* Hide the Grid header during export */
        /*.k-pdf-export .k-grid-toolbar,
        .k-pdf-export .k-pager-wrap*/
        .k-pdf-export .k-grid-toolbar
        {
            display: none;
        }

    </style>
    @{
        Layout = null;
    }

    <div id="transactions">
        @(Html.Kendo().Grid<Account.ViewModels.AccountManagement.AccountingViewModel>()
        .Name("grid")
        .Columns(columns =>
        {
            columns.Bound(p => p.CompanyName);
            columns.Bound(p => p.ContractDescription);
            columns.Bound(p => p.ConceptType);
            columns.Bound(p => p.MovementDate).Title("Date").Format("{0:MMMM dd yyyy}");
            columns.Bound(p => p.Billing).Title("Invoice Number");
            columns.Bound(p => p.PaidFlag).Title("Status").ClientFooterTemplate("Total");
            columns.Bound(p => p.Paid).Title("Amount").Format("{0:c}").HtmlAttributes(new { style = "text-align:right" })
            .ClientFooterTemplate("#= kendo.format('{0:c}', sum) #");
        })
        .ToolBar(tools =>
        {
            tools.Excel();
            tools.Pdf();
        })
        .Excel(excel => excel.FileName("Transaction.xlsx").Filterable(true).ProxyURL(Url.Action("ExcelExportTransactions", "Accounting")))
        .Pdf(pdf=>pdf.AllPages()
        .FileName("Transactions.pdf")
        .Margin(0,1,100,1)
        .ProxyURL(Url.Action("PdfExportTransactions", "Accounting")))
        .Sortable()
        .Scrollable()
        .Filterable()
        .DataSource(dataSource => dataSource
            .Ajax()
            .Sort(sort => sort.Add("CompanyName").Ascending())
            .ServerOperation(true)
            .Model(model => model.Id(p => p.MovementID))
                    .Read(read => read.Action("ReadTransactions", "Accounting"))
            .Aggregates(a => { a.Add(p => p.Paid).Sum(); })


         )
        )
    </div>

  2. Radoslav
    Admin
    Radoslav avatar
    1564 posts

    Posted 19 Apr Link to this post

    Hello Luis,

    Thank you for contacting us.

    To achieve the desired functionality you need to use following css styles:
    /* Hide the Grid header during export */
        /*.k-pdf-export .k-grid-toolbar,
        .k-pdf-export .k-pager-wrap*/
        .k-pdf-export .k-grid-toolbar {
            display: none;
        }
        .k-pdf-export #grid .k-grid-content {
            height: 100% !important;
        }

    The second one:
    .k-pdf-export #grid .k-grid-content {
            height: 100% !important;
        }
    will override the custom style which you use:
    #grid .k-grid-content {
            height: 283px !important;
        }
    which is the reason footer template to not be shown.

    Please give it try and let me know if it helps you.

    Looking forward for your reply.

    Regards,
    Radoslav
    Telerik
