How does one turnoff highlight on RadMenu?

4 posts, 0 answers
  1. John
    John avatar
    18 posts
    Member since:
    Mar 2013

    Posted 15 Aug 2013 Link to this post

    This may be a backwards inquiry, but how do I remove the highlight from a MenuItem?

    I'm using RadMenu to create a dropdown for a global search field.  The parent level displays a vector-path icon, clicking it drops down the menu with a RadWatermarkTextBox and RadButton on one line and a Checkbox/TextBlock on the next.  Works great (attached-Search1.png)!  The only thing is the undesirable highlight on the mouseover (attached-Search2.png).  Is there a XAML attribute I can apply?

    Below is the current XAML code I'm using:


    <telerik:RadMenu HorizontalAlignment="Left"
    Background="{StaticResource MainBrush}"
    Orientation="Horizontal"
    Padding="0"
    Height="33"
    Margin="0 0 0 0"
    VerticalAlignment="Top"
    ClickToOpen="True"
    IconColumnWidth="0">
    <telerik:RadMenuItem StaysOpenOnClick="True"
    Foreground="{StaticResource MarkerBrush}">
    <telerik:RadMenuItem.Icon>
    <CustomShape:CustomShape Style="{StaticResource GlobalSearch}"
    Margin="0 0 0 0" />
    </telerik:RadMenuItem.Icon>

    <Grid>
    <Grid.RowDefinitions>
    <RowDefinition Height="Auto" />
    <RowDefinition Height="Auto" />
    </Grid.RowDefinitions>
    <Grid.ColumnDefinitions>
    <ColumnDefinition Width="Auto" />
    <ColumnDefinition Width="Auto" />
    </Grid.ColumnDefinitions>
    <StackPanel Orientation="Horizontal">
    <telerik:RadWatermarkTextBox Grid.Row="0"
    Grid.Column="0"
    Height="24"
    Margin="-2 2 0 2"
    VerticalAlignment="Center"
    SelectionOnFocus="SelectAll"
    WatermarkContent="{Binding Labels[GlobalSearch]}"
    Text="{Binding GlobalSearchString, Mode=TwoWay, UpdateSourceTrigger=PropertyChanged}"
    Events:EventToCommandBehavior.Command="{Binding GlobalSearchTextKeyDown}"
    Events:EventToCommandBehavior.Event="KeyDown"
    Width="130" />
    <telerik:RadButton Grid.Row="0"
      Grid.Column="1"
      VerticalAlignment="Center"
      Margin="4 0 -2 0"
      Height="24"
      Command="{Binding GlobalSearchCommand}"
      IsEnabled="{Binding SearchButtonEnabled, Mode=TwoWay}"
      Style="{StaticResource SearchButton}" />
    </StackPanel>
    <CheckBox Grid.Row="1"
     Grid.Column="0"
     Grid.ColumnSpan="2"
     Margin="-3,4,0,0"
     VerticalAlignment="Center"
     IsChecked="{Binding WholeWordsOnly, Mode=TwoWay}">
    <TextBlock TextWrapping="Wrap"
      Text="{Binding Labels[WholeWordsOnly]}"
      FontSize="9.333"
      VerticalAlignment="Center"
      HorizontalAlignment="Center"
      Margin="0,2,0,0" />
    </CheckBox>
    </Grid>
    </telerik:RadMenuItem>
    </telerik:RadMenu>


    Thank you much,
    John
  2. Polya
    Admin
    Polya avatar
    199 posts

    Posted 16 Aug 2013 Link to this post

    Hello John,

    Since Q2 2013 we released the new RadMenuGroupItem that plays the role of a container item inside a RadMenu or RadContextMenu. RadMenuGroupItem handles focus, navigation, key and mouse events differently than RadMenuItem and we can put multiple controls in the RadMenuGroupItem and achieve the desired effect. I've attached a sample project that demonstrates that.

    You can find another example that demonstrates RadMenuGroupItem here.

    Hopefully this helps. Feel free to contact us in case you have any problems or concerns.

    Regards,
    Polya
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for SILVERLIGHT.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  3. DevCraft banner
  4. John
    John avatar
    18 posts
    Member since:
    Mar 2013

    Posted 16 Aug 2013 Link to this post

    Hi Polya,

    Thanks for the expedient reply, but I'm still at a loss.  I anxiously tried your suggestion but I'm getting the reply, "The name 'RadMenuGroupItem' does not exist in the namespace 'http://schemas.telerik.com/2008/xaml/presentation'."

    This was the case with both Visual Studio and Expression Blend.  With both the sample you sent, as well as pulling sample code from the online "DropdownButton Integration" reference you cited.  I didn't see anything within the code that would allude to controlling the highlight, or am I to assume it automatically built into the RadMenuGroupItem container?

    Thanks,
    John
  5. Rosen Vladimirov
    Admin
    Rosen Vladimirov avatar
    640 posts

    Posted 20 Aug 2013 Link to this post

    Hi John,

    RadMenuGroupItem is available since our 2013 Q2 release. May I ask you which version of RadControls are you using?

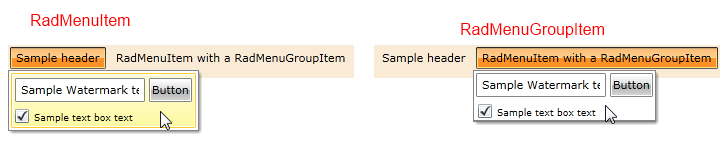

    As for the mentioned highlighting, as my colleague Polya described, when you put UI elements inside RadMenuItem, they are wrapped in another RadMenuItem container. So the whole Grid, that you are using, is used as a Header of a RadMenuItem and that's why when you mouse over it, all of it is highlighted. In order to prevent this generation of RadMenuItem's container, we have introduced RadMenuGroupItem. UI elements inside RadMenuGroupItem are not changed and wrapped inside another container, so you will not see the highlighted state. I'm sending you an image demonstrating the difference between the usage of RadMenuItem and RadMenuGroupItem. I'm also sending you the test project again. You should be able to run it, as I've included needed dlls in the archive.

    Hopefully this helps. Feel free to contact us in case you have any problems or concerns.

    Regards,
    Rosen Vladimirov
