Dynamic read only column format

8 posts, 0 answers
  1. David
    David avatar
    159 posts
    Member since:
    Mar 2014

    Posted 06 Jul Link to this post

    I am creating dynamic column the following way:

                    Dim TotalColumn As New GridNumericColumn()
                    grdContingentDevelopment.MasterTableView.Columns.Add(TotalColumn)
                    TotalColumn.DataField = "Total"
                    TotalColumn.HeaderText = "Total"
                    TotalColumn.SortExpression = "Total"
                    TotalColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Left
                    TotalColumn.ItemStyle.HorizontalAlign = HorizontalAlign.Left
                    TotalColumn.DataFormatString = "{0:N2}"
                    TotalColumn.HeaderStyle.Width = 90
                    TotalColumn.ItemStyle.Width = 90
                    TotalColumn.ItemStyle.Font.Bold = True

    That works fine, however if i add: TotalColumn.ReadOnly = True, most of formats such as DataFormatString or HorizontalAlign stop working

    Any ideas?

  2. Eyup
    Admin
    Eyup avatar
    3009 posts

    Posted 11 Jul Link to this post

    Hi David,

    Please create the grid structure during Page_Init event handler and add the properties before the grdContingentDevelopment.MasterTableView.Columns.Add(TotalColumn) line:
    http://docs.telerik.com/devtools/aspnet-ajax/controls/grid/defining-structure/creating-a-radgrid-programmatically#creating-a-radgrid-on-page_init

    I hope this will prove helpful.

    Regards,
    Eyup
    Telerik by Progress
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. David
    David avatar
    159 posts
    Member since:
    Mar 2014

    Posted 11 Jul in reply to Eyup Link to this post

    Eyup,

      Unfortunately it made no difference

      Can you please send me working example with ReadOnly setup as "true"?

  5. Eyup
    Admin
    Eyup avatar
    3009 posts

    Posted 14 Jul Link to this post

    Hello David,

    I am sending a sample RadGrid web site with programmatic creation. Please run the attached web site sample and verify that the properties of the numeric column are properly working even with ReadOnly set to true.

    Regards,
    Eyup
    Telerik by Progress
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  6. David
    David avatar
    159 posts
    Member since:
    Mar 2014

    Posted 14 Jul Link to this post

    Hi Eyup,

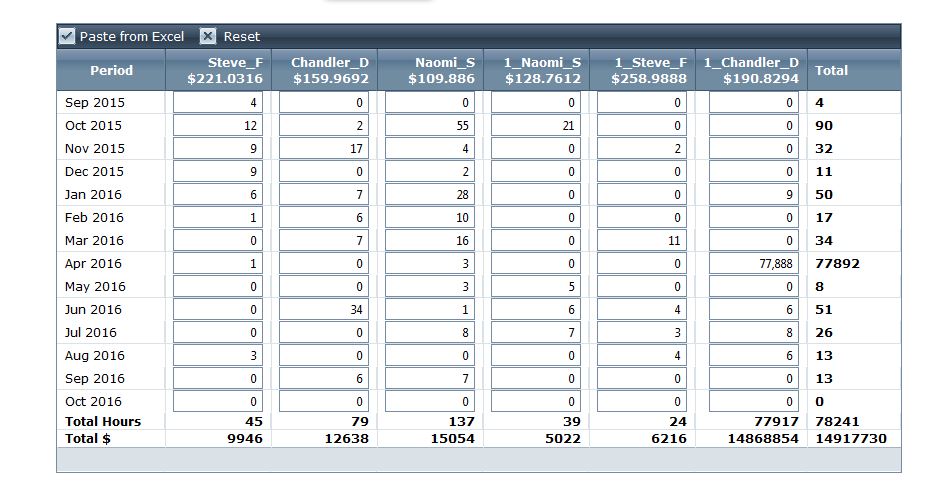

        Thank you for example, unfortunately i didn't provide you enough details to create the most suitable code. In this particular case i implemented "paste from excel" ability, because of that i had to keep all records in "edit" state. I attached picture and code.



        <telerik:RadGrid ID="grdContingentDevelopment" runat="server"
                                AllowMultiRowEdit="true"  AllowAutomaticUpdates="true"
                                OnItemUpdated="grdContingentDevelopment_ItemUpdated"
                                OnUpdateCommand="grdContingentDevelopment_UpdateCommand"
                                OnItemDataBound="grdContingentDevelopment_ItemDataBound"
                                OnNeedDataSource="OnNeedDataSource"
                                onclick="gridFocus(event)"
                                style="margin-top:0px;" Width="1px"
                                ShowFooter="True"
                                Skin="WebBlue" ShowGroupPanel="false" ShowStatusBar="True" GroupsDefaultExpanded="False"
                                AllowSorting="false" AllowPaging="false" AllowFilteringByColumn="false"
                                GridLines="None" AutoGenerateColumns="False">
                    <GroupingSettings CaseSensitive="false"  />
                    <HeaderStyle HorizontalAlign="Center" />
                    <PagerStyle Position="Bottom" AlwaysVisible="true"
                                Mode="NextPrevNumericAndAdvanced"/>
                    <ClientSettings>
                        <ClientEvents OnKeyPress="grdContingentDevelopment_OnKeyPress">
                        </ClientEvents>
                    </ClientSettings>
                    <MasterTableView DataKeyNames="Period"
                                     EditMode="InPlace" CommandItemDisplay="Top"
                                     GroupLoadMode="Client"  GroupsDefaultExpanded="False"
                                     AutoGenerateColumns="False" PageSize="15">
                        <HeaderStyle HorizontalAlign="Center" />
                        <CommandItemTemplate>
                            <div style="float: left">

                                <div style="float: right; margin-top:1px; margin-bottom:3px; margin-right:5px;">
                                    <asp:Button ID="Button2"
                                                OnClientClick="clearCellsCED()"
                                                runat="server" class="rgCancel" />
                                    <a id="A4" onmouseover="this.style.cursor='pointer'"
                                          onclick="clearCellsCED()">
                                       Reset
                                   </a>
                                </div>

                                <div style="float: right; margin-top:1px; margin-bottom:3px; margin-right:5px;">
                                    <asp:Button ID="Button1"
                                                OnClientClick="pasteFromExcel()"
                                                runat="server" class="rgUpdate" />
                                    <a id="A2" onmouseover="this.style.cursor='pointer'"
                                          onclick="pasteFromExcel()">
                                       Paste from Excel
                                   </a>
                               </div>

                            </div>
                            <div style="float: right; margin-top:1px; margin-right:5px; display:none;" >
                                <asp:Button ID="btnCEDUpdateEditedButton"
                                            CommandName="UpdateEdited"
                                            runat="server" class="rgSave"/>
                                <a id="A1" onmouseover="this.style.cursor='pointer'"
                                      onclick="btnCEDUpdateEditedButton_Click();">
                                   Update
                               </a>
                            </div>
                        </CommandItemTemplate>
                        <HeaderStyle Height="30px" Font-Bold="true" />
                        <Columns>
                            <telerik:GridBoundColumn Visible="false"
                                          DataField="PeriodID" HeaderText="PeriodID"/>
                            <telerik:GridBoundColumn ReadOnly="true"
                                          DataField="Period" HeaderText="Period"
                                          HeaderStyle-Width="200px"
                                          ItemStyle-Width="200px" ItemStyle-HorizontalAlign="left" />
                        </Columns>
                        <NoRecordsTemplate>
                            <div style="padding: 5px">
                                No records available.
                            </div>
                        </NoRecordsTemplate>

                    </MasterTableView>
                    <FilterMenu EnableTheming="True">
                        <CollapseAnimation Duration="200" Type="OutQuint" />
                    </FilterMenu>
                    <ClientSettings ReorderColumnsOnClient="True" AllowDragToGroup="false" EnableRowHoverStyle="true">
                    </ClientSettings>
                </telerik:RadGrid>

    Private Sub Page_PreRender(sender As Object, e As System.EventArgs) Handles Me.PreRender

            '--------------------------------------------------------------------------------------------
            '              grdContingentDevelopment
            '--------------------------------------------------------------------------------------------

            Dim totalCount As Integer = grdContingentDevelopment.MasterTableView.Items.Count - 2
            Dim currentCount As Integer = 0
            For Each item As GridItem In grdContingentDevelopment.MasterTableView.Items

                If currentCount < totalCount Then
                    If item.GetType().ToString() = "Telerik.Web.UI.GridDataItem" Then
                        Dim editableItem As GridEditableItem = DirectCast(item, GridDataItem)
                        editableItem.Edit = True
                    End If
                End If

                currentCount = currentCount + 1
            Next

            grdContingentDevelopment.Rebind()

            Dim rowIndex As Integer = 0
            For Each item As GridDataItem In grdContingentDevelopment.Items
                item.CssClass = If(System.Math.Max(System.Threading.Interlocked.Increment(rowIndex), rowIndex - 1) Mod 2 = 0, "rgRow customEditRow", "rgAltRow customAltEditRow")
            Next

        End Sub

  7. Konstantin Dikov
    Admin
    Konstantin Dikov avatar
    1796 posts

    Posted 19 Jul Link to this post

    Hello David,

    First, let me start by saying that mixing declarative with programmatically created columns is not supported scenario and you will have to create the entire columns structure in the code-behind.

    Furthermore, could you please elaborate which version of the controls you are using, because setting the DataFormatString on ReadOnly column displays the formatted values correctly with our latest versions.


    Regards,
    Konstantin Dikov
    Telerik by Progress
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  8. David
    David avatar
    159 posts
    Member since:
    Mar 2014

    Posted 19 Jul in reply to Konstantin Dikov Link to this post

    Version is 2016.1.225.40
  9. David
    David avatar
    159 posts
    Member since:
    Mar 2014

    Posted 29 Jul Link to this post

    Any recommendations?
