Chart, dynamically loading the series

2 posts, 0 answers
  1. Victor
    Victor avatar
    1 posts
    Member since:
    Oct 2013

    Posted 18 Dec 2015 Link to this post

    Hi,

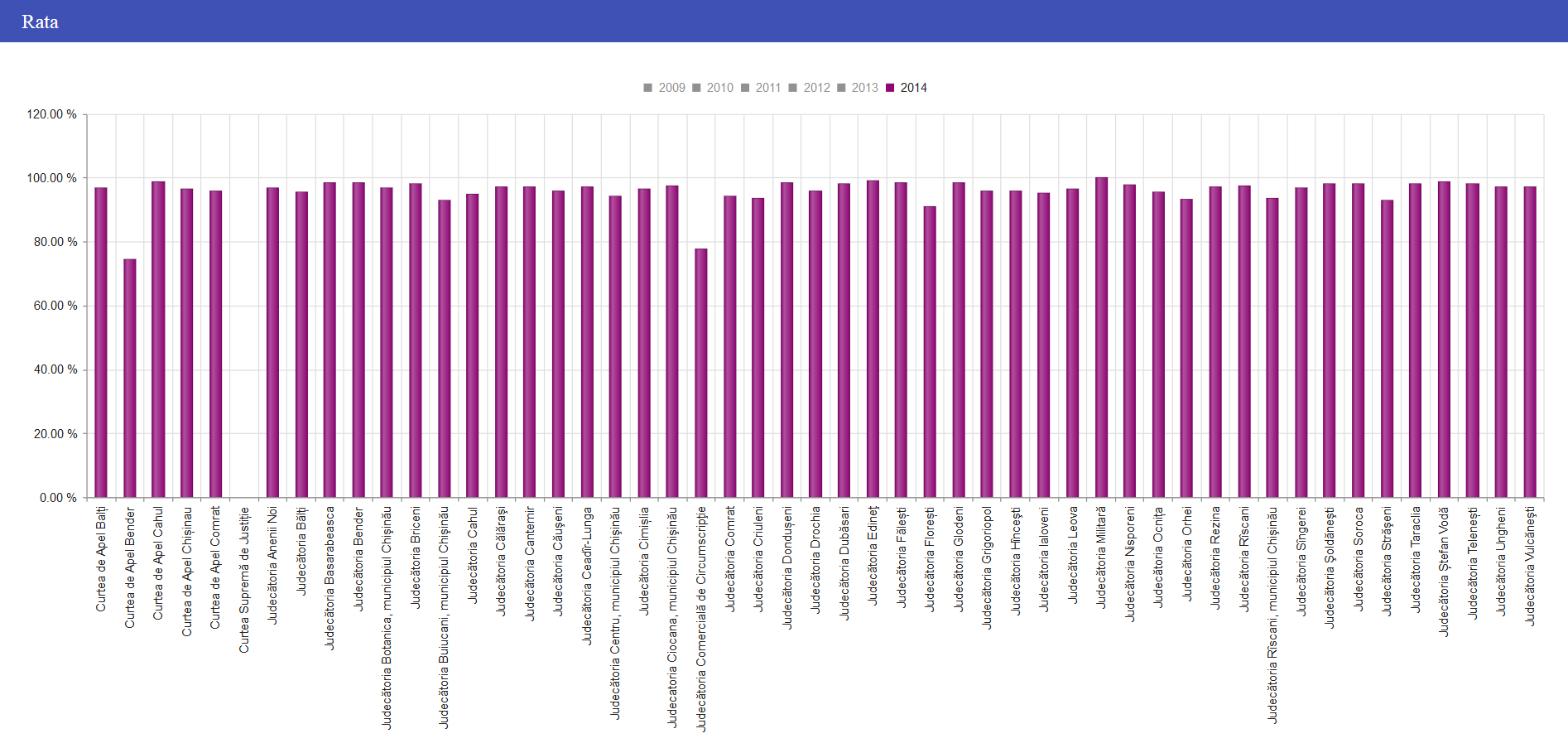

    I want to see only one series visible on page load. I have dynamically loading the series:

    .Series(series =>
        {
           foreach (var def in Model.Series)
           {
                 series.Column(def.Value).Name(def.Years);

                  //.Visible(just year "2014")
           }
         })

    Thanks,

    Victor

  2. Iliana Nikolova
    Admin
    Iliana Nikolova avatar
    2595 posts

    Posted 22 Dec 2015 Link to this post

    Hi Victor,

    For this scenario I would suggest the following approach:
    - Define only one series initially by specifying series.field. For working example check this online demo;
    - Dynamically add series via the chart.options.
    // get a reference to the chart widget
    var chart = $("#chart").data("kendoChart");
    // add series
    chartOptions.series.push({});
    //....
    // set field to a particular series
    chart.options.series[1].field = "value"
    //refresh the chart
    chart.refresh();


    Regards,
    Iliana Nikolova
    Telerik
