ASP.NET Guage with Two SemiCircular Guages on left and right and one circular guage at the center ?

3 posts, 0 answers
  1. bharathi
    bharathi avatar
    2 posts
    Member since:
    Aug 2015

    Posted 16 Sep Link to this post

    Hi Sir / Madam,

    Thanks in Advance

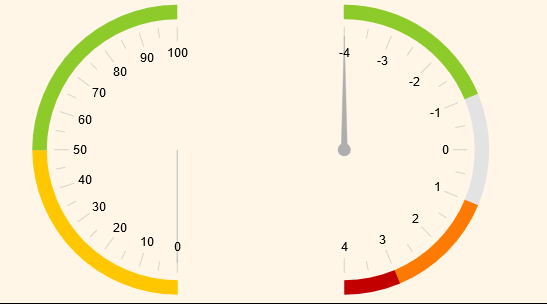

    I have a challenging task to do i need to do a guage like Ship_trim.png and using west east orientation i got two guages in west and east . width of the guages are

    too lengthy how can i make aguage like Ship_trim.png . Please Help me .
  2. bharathi
    bharathi avatar
    2 posts
    Member since:
    Aug 2015

    Posted 16 Sep in reply to bharathi Link to this post

    I have Uploaded Wrongly Here is the Correct One .

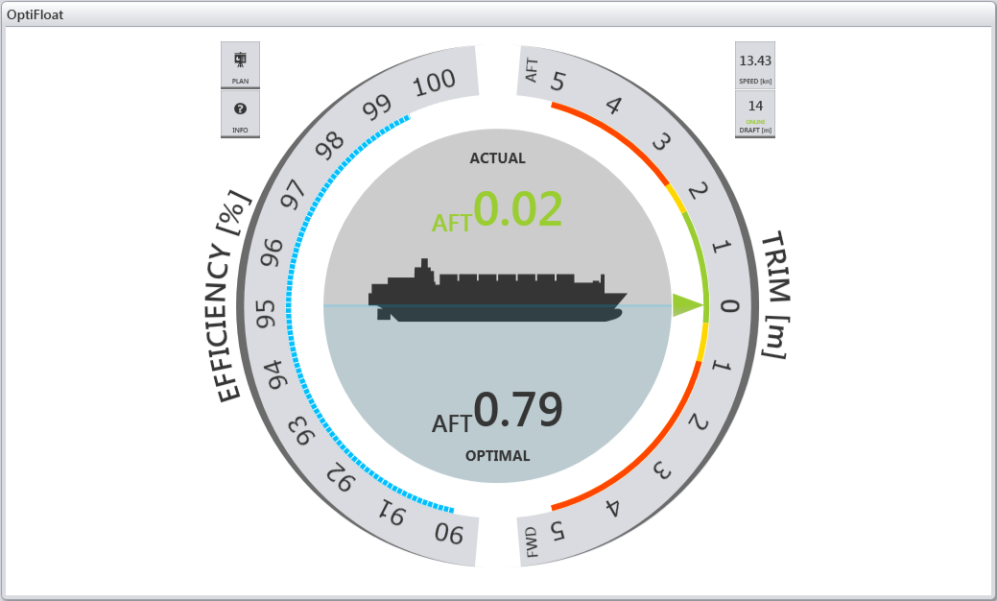

    Attachment File of Original Guage is Here Like this Guage I need To Do it in ASP.Net Telerik Is it Possible to do it in Telerik without using Kendo UI,SilverLight,WPF

  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Marin Bratanov
    Admin
    Marin Bratanov avatar
    3602 posts

    Posted 21 Sep Link to this post

    Hibharathi,

    You can place the gauges in a <div> with the desired positioning and use their StartAngle and EndAngle properties. For example:

    <telerik:RadRadialGauge runat="server" ID="rrg1">
        <Scale StartAngle="-90" EndAngle="90"></Scale>
    </telerik:RadRadialGauge>
    <telerik:RadRadialGauge runat="server" ID="rrg2">
        <Scale StartAngle="90" EndAngle="270"></Scale>
    </telerik:RadRadialGauge>

    You can read more about the available configuration options in the following article so you can use them to get the desired scenario: http://docs.telerik.com/devtools/aspnet-ajax/controls/gauge/server-side-programming/overview

    The labels are horizontal and cannot be rotated to face the dial and there is no provision for such a curved label, so you will need to either have it done as an image, or otherwise implement and position it outside of the gauge.

    Regards,

    Marin Bratanov
    Telerik by Progress
