Hi Steve,
I faced a problem in telrik silverlight viewer. The problem is when I host my application on production server the images are not showing in report viewer. But it is working fine in my 2 development machine.
I unable to figure out what is the problem endpoint in my reportservice app.config. Please look into it.

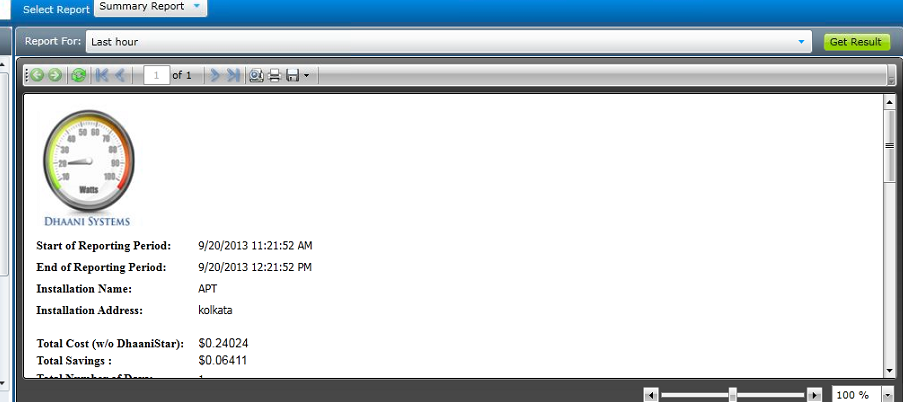

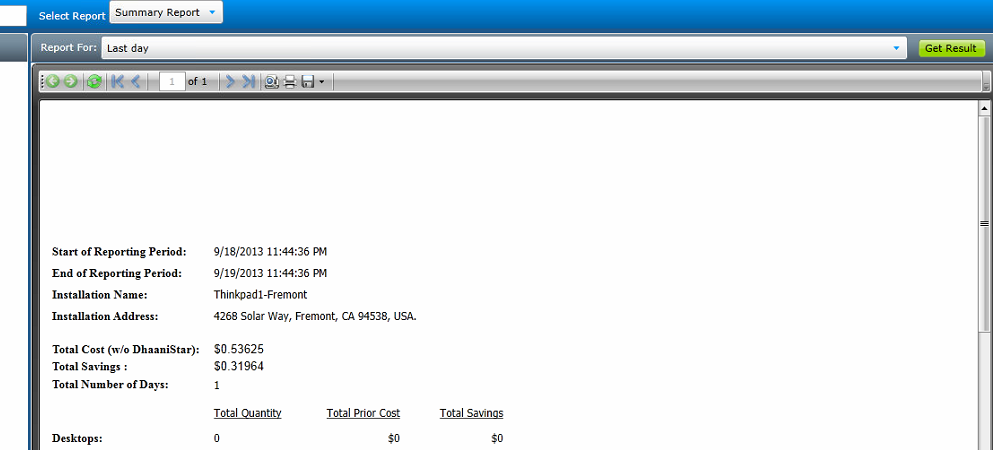

This is my app.config file of ReportWCFService and the screen shot the 2 images:
<?xml version="1.0"?>
<configuration>
<system.diagnostics>
<sources>
<source name="System.ServiceModel.MessageLogging" switchValue="Warning, ActivityTracing">
<listeners>
<add type="System.Diagnostics.DefaultTraceListener" name="Default">
<filter type="" />
</add>
<add name="ServiceModelMessageLoggingListener">
<filter type="" />
</add>
</listeners>
</source>
<source name="System.ServiceModel" switchValue="Warning, ActivityTracing" propagateActivity="true">
<listeners>
<add type="System.Diagnostics.DefaultTraceListener" name="Default">
<filter type="" />
</add>
<add name="ServiceModelTraceListener">
<filter type="" />
</add>
</listeners>
</source>
</sources>
<sharedListeners>
<add initializeData="C:\Telerik_messages.svclog" type="System.Diagnostics.XmlWriterTraceListener, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" name="ServiceModelMessageLoggingListener" traceOutputOptions="Timestamp">
<filter type="" />
</add>
<add initializeData="C:\Telerik_tracelog.svclog" type="System.Diagnostics.XmlWriterTraceListener, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" name="ServiceModelTraceListener" traceOutputOptions="Timestamp">
<filter type="" />
</add>
</sharedListeners>
</system.diagnostics>
<appSettings>
<add key="DhaaniReportURL" value="http://localhost:8080/reportservice" />
<add key="ClientSettingsProvider.ServiceUri" value="" />
<add key="ReportTestConnStr" value="uid=root;password=;host=.;database=ReportTest;protocol=pipe;pipename=mysql;pooling='True';Min Pool Size=10;Max Pool Size=500" />
</appSettings>
<system.serviceModel>
<bindings>
<basicHttpBinding>
<binding name="BasicHttpsBindingConfig" maxReceivedMessageSize="2147483647" maxBufferSize="2147483647" receiveTimeout="00:30:00" sendTimeout="00:30:00">
<readerQuotas maxArrayLength="2147483647" maxStringContentLength="2147483647" />
</binding>
</basicHttpBinding>
</bindings>
<serviceHostingEnvironment aspNetCompatibilityEnabled="true" />
<services>
<service name="ReportingWCFWindowsService.ReportService" behaviorConfiguration="ReportServiceBehavior">
<host>
<baseAddresses>
<add baseAddress="http://localhost:8080" />
</baseAddresses>
</host>
<endpoint address="" binding="basicHttpBinding" contract="Telerik.Reporting.Service.IReportService">
</endpoint>
<endpoint address="resources" binding="webHttpBinding" behaviorConfiguration="WebBehavior" contract="Telerik.Reporting.Service.IResourceService" />
<endpoint address="" binding="webHttpBinding" behaviorConfiguration="WebBehavior" contract="ReportingWCFWindowsService.IClientAccessPolicy" />
<endpoint address="mex" binding="mexHttpBinding" contract="IMetadataExchange" />
</service>
</services>
<behaviors>
<serviceBehaviors>
<behavior name="ReportServiceBehavior">
<serviceMetadata httpGetEnabled="true" />
<serviceDebug includeExceptionDetailInFaults="false" />
</behavior>
</serviceBehaviors>
<endpointBehaviors>
<behavior name="WebBehavior">
<webHttp />
</behavior>
</endpointBehaviors>
</behaviors>
</system.serviceModel>
<startup>
<supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.0" />
</startup>
<system.web>
<membership defaultProvider="ClientAuthenticationMembershipProvider">
<providers>
<add name="ClientAuthenticationMembershipProvider" type="System.Web.ClientServices.Providers.ClientFormsAuthenticationMembershipProvider, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" serviceUri="" />
</providers>
</membership>
<roleManager defaultProvider="ClientRoleProvider" enabled="true">
<providers>
<add name="ClientRoleProvider" type="System.Web.ClientServices.Providers.ClientRoleProvider, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" serviceUri="" cacheTimeout="86400" />
</providers>
</roleManager>
</system.web>
</configuration>
I faced a problem in telrik silverlight viewer. The problem is when I host my application on production server the images are not showing in report viewer. But it is working fine in my 2 development machine.
I unable to figure out what is the problem endpoint in my reportservice app.config. Please look into it.
This is my app.config file of ReportWCFService and the screen shot the 2 images:
<?xml version="1.0"?>
<configuration>
<system.diagnostics>
<sources>
<source name="System.ServiceModel.MessageLogging" switchValue="Warning, ActivityTracing">
<listeners>
<add type="System.Diagnostics.DefaultTraceListener" name="Default">
<filter type="" />
</add>
<add name="ServiceModelMessageLoggingListener">
<filter type="" />
</add>
</listeners>
</source>
<source name="System.ServiceModel" switchValue="Warning, ActivityTracing" propagateActivity="true">
<listeners>
<add type="System.Diagnostics.DefaultTraceListener" name="Default">
<filter type="" />
</add>
<add name="ServiceModelTraceListener">
<filter type="" />
</add>
</listeners>
</source>
</sources>
<sharedListeners>
<add initializeData="C:\Telerik_messages.svclog" type="System.Diagnostics.XmlWriterTraceListener, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" name="ServiceModelMessageLoggingListener" traceOutputOptions="Timestamp">
<filter type="" />
</add>
<add initializeData="C:\Telerik_tracelog.svclog" type="System.Diagnostics.XmlWriterTraceListener, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" name="ServiceModelTraceListener" traceOutputOptions="Timestamp">
<filter type="" />
</add>
</sharedListeners>
</system.diagnostics>
<appSettings>
<add key="DhaaniReportURL" value="http://localhost:8080/reportservice" />
<add key="ClientSettingsProvider.ServiceUri" value="" />
<add key="ReportTestConnStr" value="uid=root;password=;host=.;database=ReportTest;protocol=pipe;pipename=mysql;pooling='True';Min Pool Size=10;Max Pool Size=500" />
</appSettings>
<system.serviceModel>
<bindings>
<basicHttpBinding>
<binding name="BasicHttpsBindingConfig" maxReceivedMessageSize="2147483647" maxBufferSize="2147483647" receiveTimeout="00:30:00" sendTimeout="00:30:00">
<readerQuotas maxArrayLength="2147483647" maxStringContentLength="2147483647" />
</binding>
</basicHttpBinding>
</bindings>
<serviceHostingEnvironment aspNetCompatibilityEnabled="true" />
<services>
<service name="ReportingWCFWindowsService.ReportService" behaviorConfiguration="ReportServiceBehavior">
<host>
<baseAddresses>
<add baseAddress="http://localhost:8080" />
</baseAddresses>
</host>
<endpoint address="" binding="basicHttpBinding" contract="Telerik.Reporting.Service.IReportService">
</endpoint>
<endpoint address="resources" binding="webHttpBinding" behaviorConfiguration="WebBehavior" contract="Telerik.Reporting.Service.IResourceService" />
<endpoint address="" binding="webHttpBinding" behaviorConfiguration="WebBehavior" contract="ReportingWCFWindowsService.IClientAccessPolicy" />
<endpoint address="mex" binding="mexHttpBinding" contract="IMetadataExchange" />
</service>
</services>
<behaviors>
<serviceBehaviors>
<behavior name="ReportServiceBehavior">
<serviceMetadata httpGetEnabled="true" />
<serviceDebug includeExceptionDetailInFaults="false" />
</behavior>
</serviceBehaviors>
<endpointBehaviors>
<behavior name="WebBehavior">
<webHttp />
</behavior>
</endpointBehaviors>
</behaviors>
</system.serviceModel>
<startup>
<supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.0" />
</startup>
<system.web>
<membership defaultProvider="ClientAuthenticationMembershipProvider">
<providers>
<add name="ClientAuthenticationMembershipProvider" type="System.Web.ClientServices.Providers.ClientFormsAuthenticationMembershipProvider, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" serviceUri="" />
</providers>
</membership>
<roleManager defaultProvider="ClientRoleProvider" enabled="true">
<providers>
<add name="ClientRoleProvider" type="System.Web.ClientServices.Providers.ClientRoleProvider, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" serviceUri="" cacheTimeout="86400" />
</providers>
</roleManager>
</system.web>
</configuration>
