Zoom in Chart View not working as per selection

2 posts, 0 answers
  1. Saurabh
    Saurabh avatar
    1 posts
    Member since:
    Jul 2012

    Posted 04 Jul 2012 Link to this post

    Telerik team,

    I am facing problem in zooming functionality of Telerik Silverlight RadChart control, when I select area for zoom in CharArea, it is not showing me the area that I select for zoom. It changes the whole range that I have set for Line Series.

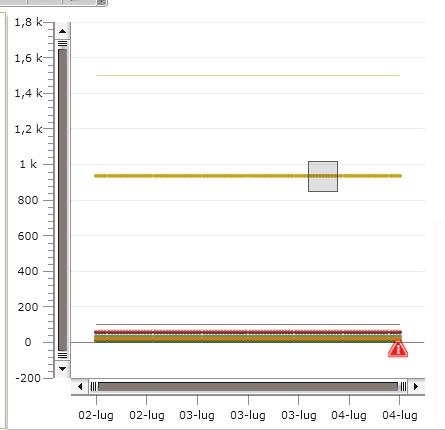

    I have attached the screen shot of while zoom onto the chart area and result after zoom.

    I am using 2011 licensed version of the controls

    Kind Regards,
    Saurabh Kumar.
  2. Petar Marchev
    Petar Marchev avatar
    968 posts

    Posted 04 Jul 2012 Link to this post

    Hello Saurabh,

    This is a known limitation of the RadChart - zooming the vertical axis does not work very well with AutoRange set to true (it is true by default). So a work-around would be to use the axis in manual mode:
    <telerik:AxisY AutoRange="False" MinValue="0" MaxValue="2000" Step="200" />

    Petar Marchev
    the Telerik team
