x-axis label on stacked bar chart

Thread is closed for posting
7 posts, 0 answers
  1. David Penny
    David Penny avatar
    174 posts
    Member since:
    Jun 2006

    Posted 13 Jul 2009 Link to this post

    Hi,

    I am creating a stacked bar chart programatically with one or several series across the x-axis.  The chart is being created and displays fine, except I cannot work out how to change the x-axis labels to a variable text item - everything I have tried so far just results in the x-axis being labelled as 1, 2, 3 etc...

    The code being used (and working at present) is:

     Dim cs_hours As New ChartSeries
                        cs_hours.Name = "Hours Recorded"
                        Dim cs_under As New ChartSeries
                        cs_under.Name = "Hours Deficit"
                        Dim cs_over As New ChartSeries
                        cs_over.Name = "Hours Over"

                        cs_hours.Type = ChartSeriesType.StackedBar
                        cs_under.Type = ChartSeriesType.StackedBar
                        cs_over.Type = ChartSeriesType.StackedBar

                        cs_hours.Appearance.FillStyle.FillType = Styles.FillType.Solid
                        cs_hours.Appearance.FillStyle.MainColor = Drawing.Color.Green

                        cs_under.Appearance.FillStyle.FillType = Styles.FillType.Solid
                        cs_under.Appearance.FillStyle.MainColor = Drawing.Color.Blue

                        cs_over.Appearance.FillStyle.FillType = Styles.FillType.Solid
                        cs_over.Appearance.FillStyle.MainColor = Drawing.Color.Red

                        cs_hours.Appearance.LabelAppearance.Visible = False
                        cs_under.Appearance.LabelAppearance.Visible = False
                        cs_over.Appearance.LabelAppearance.Visible = False

                        Chart.Series.Add(cs_hours)
                        Chart.Series.Add(cs_under)
                        Chart.Series.Add(cs_over)

                        While dr.Read
                            Dim tm As String = dr.Item(0)
                            Dim hrs As Decimal = dr.Item(1)
                            Dim ehrs As Decimal = dr.Item(2)
                            Dim ah, vh, rh As Decimal
    ...
                            cs_hours.AddItem(ah, tm, Drawing.Color.Green)
                            cs_under.AddItem(vh, "", Drawing.Color.Blue)
                            cs_over.AddItem(rh, "", Drawing.Color.Red)

                        End While

    What I want to do is display the text in the tm field as the label on the x-axis underneath each series of stacked bars.  I really want to display this at an angle, but I think I can work out how this is done, not just how to get the label text to show something other than the number.

    David Penny
  2. David Penny
    David Penny avatar
    174 posts
    Member since:
    Jun 2006

    Posted 14 Jul 2009 Link to this post

    Ok - just another RTFM moment - I found the answer in the Help files under How Do I?
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Vladimir Milev
    Admin
    Vladimir Milev avatar
    1061 posts

    Posted 15 Jul 2009 Link to this post

    Hello David Penny,

    Glad to hear you sorted this out.

    Best wishes,
    Vladimir Milev
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Check out the tips for optimizing your support resource searches.
  5. Yeroon
    Yeroon avatar
    87 posts
    Member since:
    Oct 2012

    Posted 16 Apr 2010 Link to this post

    Any chance you would share what you have found? I am facing the same problem and the How-to doesnt help me.

    Imagine this code. I would like the Terms: 'PAV2010', 'STAGES08' and 'SR2010' to show as YAxis labels:

    <telerik:RadChart ID="rchartGlobalStacked" runat="server" DefaultType="StackedBar100"
                                SeriesOrientation="Horizontal" Skin="Office2007" Width="600px" IntelligentLabelsEnabled="true"
                                <PlotArea>
                                    <EmptySeriesMessage Visible="True"
                                        <Appearance Visible="True"
                                        </Appearance>
                                    </EmptySeriesMessage>
                                    <XAxis>
                                        <Appearance Color="134, 134, 134" MajorTick-Color="134, 134, 134"
                                            <MajorGridLines Color="134, 134, 134" Width="0" />
                                            <TextAppearance TextProperties-Color="Black"
                                            </TextAppearance>
                                        </Appearance>
                                        <AxisLabel>
                                            <Appearance RotationAngle="270"
                                            </Appearance>
                                            <TextBlock>
                                                <Appearance TextProperties-Color="Black"
                                                </Appearance>
                                            </TextBlock>
                                        </AxisLabel>
                                    </XAxis>
                                    <YAxis>
                                        <Appearance Color="134, 134, 134" MajorTick-Color="134, 134, 134" MinorTick-Color="134, 134, 134"
                                            <MajorGridLines Color="134, 134, 134" />
                                            <MinorGridLines Color="134, 134, 134" />
                                            <TextAppearance TextProperties-Color="Black"
                                            </TextAppearance>
                                        </Appearance>
                                        <AxisLabel>
                                            <Appearance RotationAngle="0"
                                            </Appearance>
                                            <TextBlock>
                                                <Appearance TextProperties-Color="Black"
                                                </Appearance>
                                            </TextBlock>
                                        </AxisLabel>
                                    </YAxis>
                                    <YAxis2>
                                        <AxisLabel>
                                            <Appearance RotationAngle="0"
                                            </Appearance>
                                        </AxisLabel>
                                    </YAxis2>
                                    <Appearance>
                                        <FillStyle FillType="Solid" MainColor=""
                                        </FillStyle>
                                    </Appearance>
                                </PlotArea>
                                <Series>
                                    <telerik:ChartSeries Name="Ingediend" Type="StackedBar100"
                                        <Appearance>
                                            <FillStyle MainColor="LightYellow"
                                            </FillStyle>
                                            <TextAppearance TextProperties-Color="Black"
                                            </TextAppearance>
                                            <Border Color="69, 115, 167" />
                                            <LabelAppearance LabelLocation="Inside"></LabelAppearance>
                                        </Appearance>
                                        <Items>
                                            <telerik:ChartSeriesItem YValue="3" Name="PAV2010">
                                            </telerik:ChartSeriesItem>
                                            <telerik:ChartSeriesItem YValue="31" Name="STAGES08"
                                            </telerik:ChartSeriesItem>
                                            <telerik:ChartSeriesItem YValue="33" Name="SR2010"
                                            </telerik:ChartSeriesItem>

                                        </Items>
                                    </telerik:ChartSeries>
                                    <telerik:ChartSeries Name="VB" Type="StackedBar100"
                                        <Appearance>
                                            <FillStyle MainColor="#bfdbff"
                                            </FillStyle>
                                            <TextAppearance TextProperties-Color="Black"
                                            </TextAppearance>
                                            <Border Color="107, 70, 68" />
                                            <LabelAppearance LabelLocation="Inside"></LabelAppearance>
                                        </Appearance>
                                        <Items>
                                            <telerik:ChartSeriesItem YValue="13" Name="PAV2010"
                                            </telerik:ChartSeriesItem>
                                            <telerik:ChartSeriesItem YValue="21" Name="STAGES08"
                                            </telerik:ChartSeriesItem>
                                            <telerik:ChartSeriesItem YValue="23" Name="SR2010"
                                            </telerik:ChartSeriesItem>

                                        </Items>
                                    </telerik:ChartSeries>
                                    <telerik:ChartSeries Name="DB" Type="StackedBar100"
                                        <Appearance>
                                            <FillStyle MainColor="#f7941e"
                                            </FillStyle>
                                            <TextAppearance TextProperties-Color="Black"
                                            </TextAppearance>
                                            <Border Color="136, 166, 78" />
                                            <LabelAppearance LabelLocation="Inside"></LabelAppearance>
                                        </Appearance>
                                        <Items>
                                            <telerik:ChartSeriesItem YValue="23" Name="PAV2010"
                                            </telerik:ChartSeriesItem>
                                            <telerik:ChartSeriesItem YValue="11" Name="STAGES08"
                                            </telerik:ChartSeriesItem>
                                            <telerik:ChartSeriesItem YValue="13" Name="SR2010"
                                            </telerik:ChartSeriesItem>

                                        </Items>
                                    </telerik:ChartSeries>
                                    <telerik:ChartSeries Name="Budget" Type="StackedBar100"
                                        <Appearance>
                                            <FillStyle MainColor="#8cc63f"
                                            </FillStyle>
                                            <TextAppearance TextProperties-Color="Black"
                                            </TextAppearance>
                                            <Border Color="113, 88, 143" />
                                            <LabelAppearance LabelLocation="Inside"></LabelAppearance>
                                        </Appearance>
                                        <Items>
                                            <telerik:ChartSeriesItem YValue="15" Name="PAV2010"
                                            </telerik:ChartSeriesItem>
                                            <telerik:ChartSeriesItem YValue="12" Name="STAGES08"
                                            </telerik:ChartSeriesItem>
                                            <telerik:ChartSeriesItem YValue="18" Name="SR2010"
                                            </telerik:ChartSeriesItem>

                                        </Items>
                                    </telerik:ChartSeries>
                                </Series>
                                <Appearance>
                                    <Border Color="134, 134, 134" />
                                </Appearance>
                                <ChartTitle>
                                    <Appearance>
                                        <FillStyle MainColor=""
                                        </FillStyle>
                                    </Appearance>
                                    <TextBlock Text="Budgetoverzicht per regeling"
                                        <Appearance TextProperties-Color="Black" TextProperties-Font="Arial, 18px"
                                        </Appearance>
                                    </TextBlock>
                                </ChartTitle>
                                <Legend>
                                    <Appearance Dimensions-Margins="15%, 2%, 1px, 1px" Dimensions-Paddings="2px, 8px, 6px, 3px"
                                        <ItemTextAppearance TextProperties-Color="Black"
                                        </ItemTextAppearance>
                                        <ItemMarkerAppearance Figure="Square"
                                        </ItemMarkerAppearance>
                                    </Appearance>
                                </Legend>
                            </telerik:RadChart>

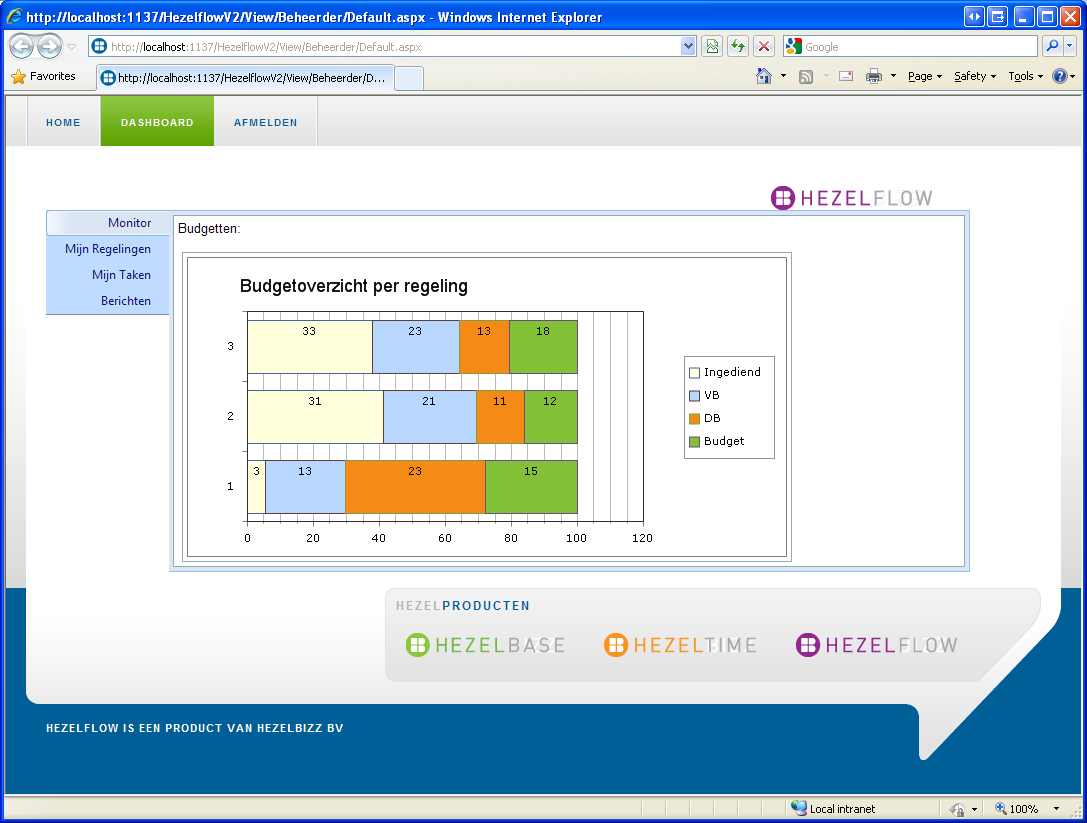

    It will now show as 1,2 and 3 labels. See attachmed image
  6. Ves
    Admin
    Ves avatar
    2879 posts

    Posted 21 Apr 2010 Link to this post

    Hi Yeroon,

    I believe David meant this article. Did you have any specific issues implementing that approach?

    Greetings,
    Ves
    the Telerik team

    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
  7. Samuel Santiago
    Samuel Santiago avatar
    3 posts
    Member since:
    May 2009

    Posted 21 Apr 2010 Link to this post

    I am seeing the same  behavior with a Chart using Data Binding.  The article referenced above seems to be more related to when you hard code the X-axis.  I want the X-axis to be data driven.  I set the DataLabelsColumn to be one of my column Names, but I still only see numbers across the X-axis.  I am executing code such as this in the NeedDataSource handler:

     chart.Series[0].DataYColumn = "Count";
      chart.PlotArea.XAxis.DataLabelsColumn = "State";


    Thanks,

    Sam
    Any help greatly appreciated.

  8. Ves
    Admin
    Ves avatar
    2879 posts

    Posted 27 Apr 2010 Link to this post

    Hello Samuel Santiago,

    Setting the XAxis.DataLabelsColumn property should suffice. Please, make sure there is actually a column names "State" in the datasource. If the issue remains, please send us a small example, reproducing it, so we can investigate it locally. Thanks.

    Regards,
    Ves
    the Telerik team
