X-Axis label not displaying

Thread is closed for posting
2 posts, 0 answers
  1. safeer
    safeer avatar
    14 posts
    Member since:
    Nov 2006

    Posted 01 Sep 2013 Link to this post

    Hi,

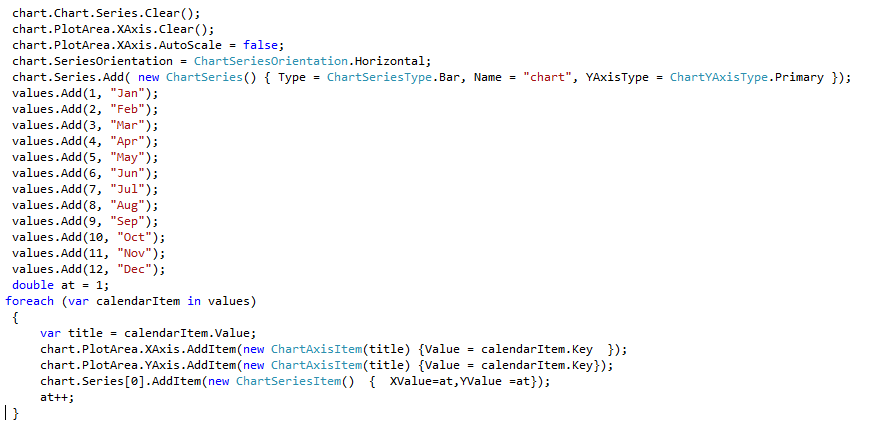

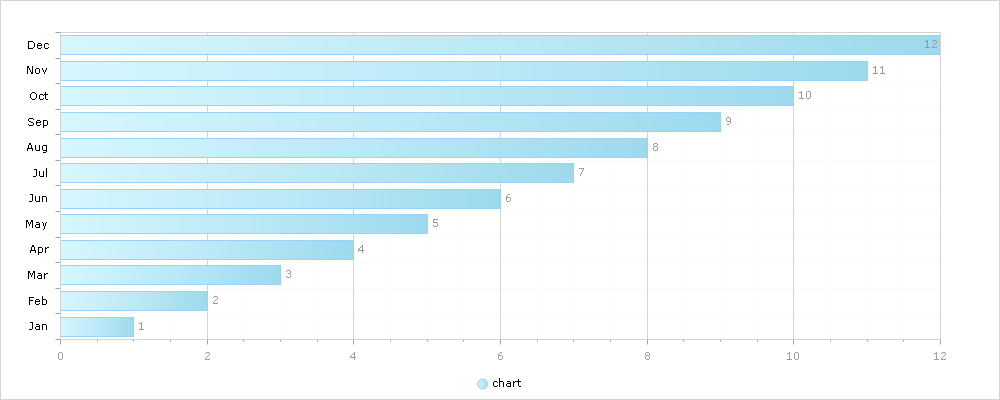

    I want to show months on both Axis and display bar data by setting month's range. I'm working to create a event calendar which will display data at monthly level, events will range from months to months but I'm unable to set X-Axis labels. Please see attached picture.


  2. Evgenia
    Admin
    Evgenia avatar
    1407 posts

    Posted 04 Sep 2013 Link to this post

    Hi Safeer,

     Having DateTime values or categories on YAxis is not supported out-of-the-box with RadChart by design. However there are ways you can workaround this like setting custom labels programmatically for the YAxis (as demonstrated here) and DateTime on the XAxis (DateTime values should be converted to their OLE Automation equivalents using ToOADate() framework method as demonstrated here).

    Regards,
    Evgenia
    Telerik
