White space above scrollbar on radgrid

6 posts, 0 answers
  1. Tony Upchurch
    Tony Upchurch avatar
    7 posts
    Member since:
    Jun 2012

    Posted 03 May 2010 Link to this post

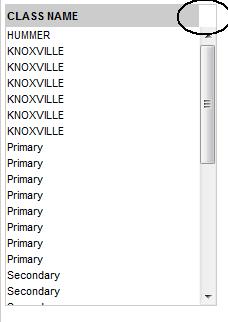

    I have set my radgrid header color to gray and I am not using a skin.  The problem is that I have a white box in the upper right corner of the grid above the scrollbar.  If I increase the width of my header to fill the space then I get a scroll bar at the bottom of the grid and the white box just gets pushed to the right.  How can i color this space without coloring the entire grid?  I have attached a file showing the area I am trying color.



  2. robertw102
    robertw102 avatar
    265 posts
    Member since:
    Jul 2007

    Posted 03 May 2010 Link to this post

    The fill that space when using a custom skin you need to set the css class .rgHeaderDiv used by the RadGrid header row to the same gray colour as your header.

    I hope that helps.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Tony Upchurch
    Tony Upchurch avatar
    7 posts
    Member since:
    Jun 2012

    Posted 03 May 2010 Link to this post

    I am not using a custom skin.

    <telerik:RadGrid ID="rgWarehouseList" DataSourceID="dsWarehouseList" ShowHeader="true"
                            Width="210px" AutoGenerateColumns="false" GridLines="None" AllowPaging="True"
                            Skin="" EnableEmbeddedSkins="False" ImagesPath="~\Images\Grid\" CssClass="grid"
                            PageSize="300000" runat="server" AllowSorting="true" Height="400px"  >
                        <PagerStyle Position="Bottom" Mode="NextPrevAndNumeric" PagerTextFormat="{4} Showing {2}-{3} of {5}"
                            CssClass="gridpager" />
                        <MasterTableView AllowPaging="true" DataKeyNames="" AllowSorting="true"  HeaderStyle-CssClass="gridheaderstyle" >
                            <Columns>


    .grid
    {
        border:1px solid #CCCCCC;
    }
    .gridheaderstyle
    {
        color:#000000 !important;
        font-size: 11px !important;
        font-weight: bold !important;
        background-color: #CCCCCC !important;
        border: 0px solid black;
        width:100% !important;
        height:20px !important;
        text-align:left;
    }
    .gridheaderstyle a
    {
        color:Black !important;
        text-decoration:none;
    }
  5. Tony Upchurch
    Tony Upchurch avatar
    7 posts
    Member since:
    Jun 2012

    Posted 04 May 2010 Link to this post

    I found two solutions to this problem.  I did not have to create a custom skin.  Create a style anywhere on your page with the name format like...

    #MyRadGridName_GridHeader
    #MyRadGridName_GridHeader table
       OR  (to hide the scroll bars)
    #MyRadGridName_GridData


    For Example, this works in IE...

    #ctl00_mainContent_rgWarehouseClass_GridHeader
    {
      padding-right:0px !important;
      width:100% !important;
      border:0px solid black;
    }

    #ctl00_mainContent_rgWarehouseClass_GridHeader table
    {
      border:0px solid red;
      width:100% !important;
    }


    OR
    We can hide the scroll bar...

    #ctl00_mainContent_rgWarehouseClass_GridData
    {
        overflow-x:hidden !important;
        overflow-y:auto !important;
    }
  6. Hans
    Hans avatar
    10 posts
    Member since:
    May 2009

    Posted 06 May 2010 Link to this post

    I had a similar issue. For me adding the following CSS did the trick:

    .RadGrid {
    background-color: #eee; /* same color as scrollbar in my case */
    }

    .rgDataDiv {
    background-color: #fff;
    }

  7. Pavlina
    Admin
    Pavlina avatar
    6084 posts

    Posted 07 May 2010 Link to this post

    Hello,

    Thank you for sharing your findings with us - thus you can help other community members who stumble upon similar issue.

    Sincerely yours,
    Pavlina
    the Telerik team
