Visual clue not shown on day view of radsceduler

3 posts, 0 answers
  1. Nehal
    Nehal avatar
    14 posts
    Member since:
    Nov 2011

    Posted 16 Apr 2013 Link to this post

    Hi,

    I am not getting visual clue for non-visible appointment of scheduler.

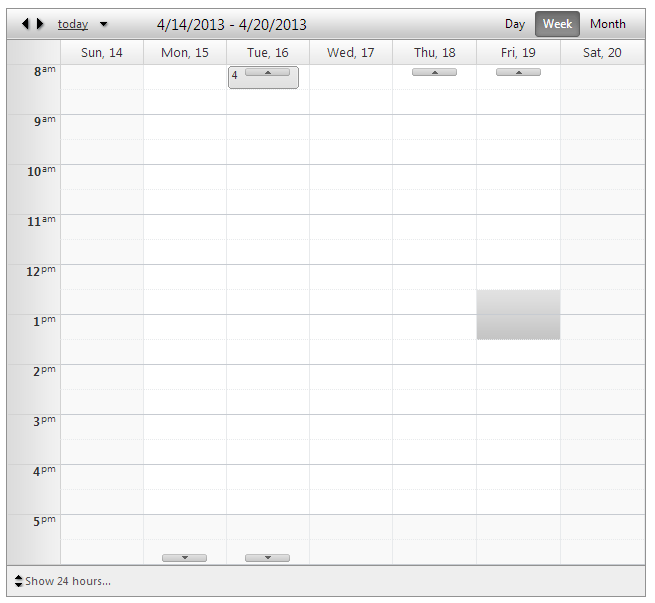

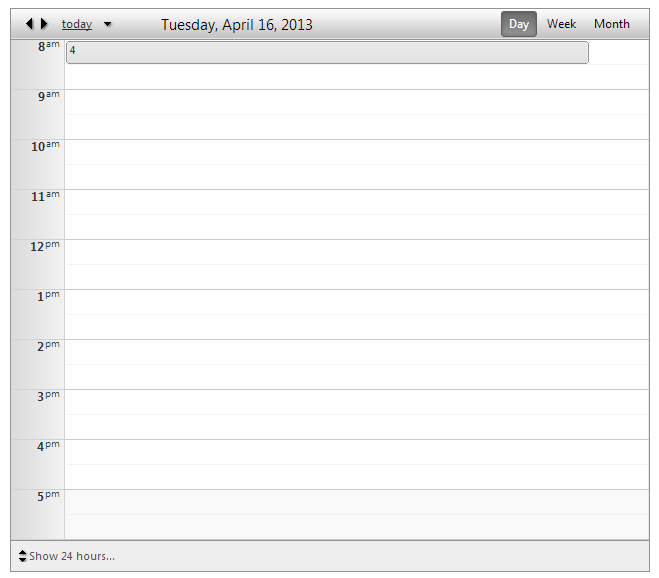

    As shown in attachment "dayView.png", i can not get visual clue while for weekview as shown in "weekView.png" i can get visual clue.

    What properties do i need to set for dayview to show visual clue?

    Regards,
    Nehal
  2. Kate
    Admin
    Kate avatar
    1898 posts

    Posted 22 May 2013 Link to this post

    Hello Nehal,

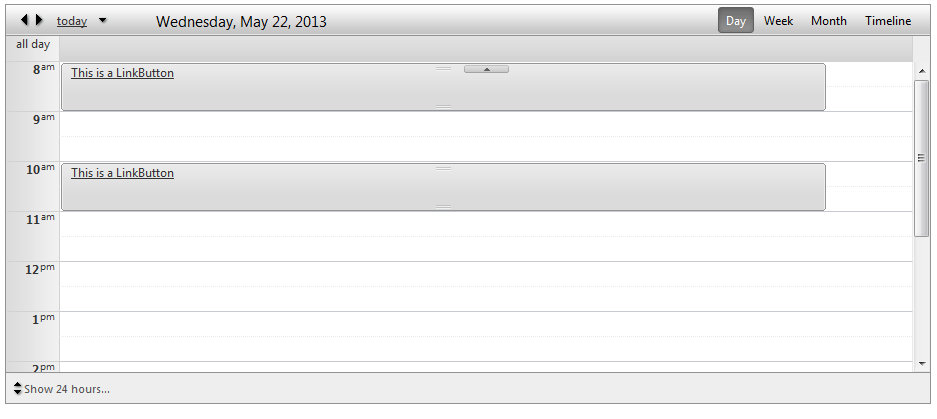

    I tested the issue that you describe with this demo but I was not able to replicate the problematic appearance. Once I set the Time Mode to Business Hours I get the OvertimeArrow at the very bottom and top of the Timeslot (as demonstrated on the attached image).

    Regards,
    Kate
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Nehal
    Nehal avatar
    14 posts
    Member since:
    Nov 2011

    Posted 10 Jun 2013 Link to this post

    Hi Kate,

    I found the cause of this issue. I had set "RadScheduler1.ShowAllDayRow = false;" from code behind because I don't want to show AllDayRow.

    When I changed "RadScheduler1.ShowAllDayRow = true;" in code behind and set css of AllDayRow as

    .rsHorizontalHeaderWrapper
    {
    display: none !important;
    }

    then I can see visual clue on right position and in all view of RadScheduler control.

    Thanking you,
    Nehal
