Value under 0 when AxisY.Minimum is positive

2 posts, 0 answers
  1. Julien
    Julien avatar
    24 posts
    Member since:
    Nov 2008

    Posted 14 Mar 2012 Link to this post

    Was working with some data and I noticed some bug when the YValue of a point is negative while the minimum of an axis is positive.

    I made a demo to reproduce the bug

    xaml:
    <Grid>
            <Grid.RowDefinitions>
                <RowDefinition />
                <RowDefinition Height="Auto"/>
            </Grid.RowDefinitions>

            <telerik:RadChart ItemsSource="{Binding Points}" >
                <telerik:RadChart.DefaultView>
                    <telerik:ChartDefaultView>
                        <telerik:ChartDefaultView.ChartLegend>
                            <telerik:ChartLegend Visibility="Collapsed"/>
                        </telerik:ChartDefaultView.ChartLegend>
                        <telerik:ChartDefaultView.ChartArea>
                            <telerik:ChartArea >
                                <telerik:ChartArea.AxisX>
                                    <telerik:AxisX MinValue="{Binding MinX}" MaxValue="{Binding MaxX}" AutoRange="False" Step="{Binding StepX}" />
                                </telerik:ChartArea.AxisX>
                                <telerik:ChartArea.AxisY>
                                    <telerik:AxisY MinValue="{Binding MinY}" MaxValue="{Binding MaxY}" AutoRange="False" Step="{Binding StepY}" StripLinesVisibility="Collapsed"/>
                                </telerik:ChartArea.AxisY>
                            </telerik:ChartArea>
                        </telerik:ChartDefaultView.ChartArea>
                    </telerik:ChartDefaultView>
                </telerik:RadChart.DefaultView>
                <telerik:RadChart.SeriesMappings>
                    <telerik:SeriesMapping LegendLabel="Line">
                        <telerik:SeriesMapping.SeriesDefinition>
                            <telerik:LineSeriesDefinition ShowItemLabels="False">
                                <telerik:LineSeriesDefinition.Appearance>
                                    <telerik:SeriesAppearanceSettings>
                                        <telerik:SeriesAppearanceSettings.PointMark>
                                            <telerik:PointMarkAppearanceSettings Shape="Diamond" />
                                        </telerik:SeriesAppearanceSettings.PointMark>
                                    </telerik:SeriesAppearanceSettings>
                                </telerik:LineSeriesDefinition.Appearance>
                            </telerik:LineSeriesDefinition>
                        </telerik:SeriesMapping.SeriesDefinition>
                        <telerik:SeriesMapping.ItemMappings>
                            <telerik:ItemMapping FieldName="Item1" DataPointMember="XValue"/>
                            <telerik:ItemMapping FieldName="Item2" DataPointMember="YValue"/>
                        </telerik:SeriesMapping.ItemMappings>
                    </telerik:SeriesMapping>
                    <telerik:SeriesMapping LegendLabel="Line">
                        <telerik:SeriesMapping.SeriesDefinition>
                            <telerik:LineSeriesDefinition ShowItemLabels="False">
                                <telerik:LineSeriesDefinition.Appearance>
                                    <telerik:SeriesAppearanceSettings>
                                        <telerik:SeriesAppearanceSettings.PointMark>
                                            <telerik:PointMarkAppearanceSettings Shape="Diamond" />
                                        </telerik:SeriesAppearanceSettings.PointMark>
                                    </telerik:SeriesAppearanceSettings>
                                </telerik:LineSeriesDefinition.Appearance>
                            </telerik:LineSeriesDefinition>
                        </telerik:SeriesMapping.SeriesDefinition>
                        <telerik:SeriesMapping.ItemMappings>
                            <telerik:ItemMapping FieldName="Item1" DataPointMember="XValue"/>
                            <telerik:ItemMapping FieldName="Item4" DataPointMember="YValue"/>
                        </telerik:SeriesMapping.ItemMappings>
                    </telerik:SeriesMapping>
                </telerik:RadChart.SeriesMappings>
            </telerik:RadChart>

            <Slider Grid.Row="1" Value="{Binding MinY, Mode=TwoWay}" Minimum="-10" Maximum="10" SmallChange=".5" LargeChange="5"/>
        </Grid>

    ViewModel:
    public class ViewModel : INotifyPropertyChanged
        {

            private double _minY = -10;
            private double _maxY = 50;
            private double _stepY = 10;

            private double _minX = 0;
            private double _maxX = 50;
            private double _stepX = 10;

            public ViewModel()
            {
                MaxY = 50;
                StepY = 10;
                MinX = 0;
                MaxX = 50;
                StepX = 10;

                Points = new ObservableCollection<Tuple<double, double, double, double>>();

                Random r = new Random();

                Points.Add(Tuple.Create(.1, -8d, 1d, 5d));

                for (double i = 20; i < 50; i += 4)
                {
                    Points.Add(Tuple.Create(i, i - 8, (i - 5) + (r.NextDouble() * 9 - 4.5), i - 25));
                }
            }

            public ObservableCollection<Tuple<double, double, double, double>> Points { get; private set; }

            public double MinX { get; private set; }

            public double MaxX { get; private set; }

            public double StepX { get; private set; }

            public double MinY
            {
                get
                {
                    return _minY;
                }
                set
                {
                    _minY = value;
                    OnPropertyChanged("MinY");
                }
            }

            public double MaxY { get; private set; }

            public double StepY { get; private set; }

            protected void OnPropertyChanged(string propertyName)
            {
                if (PropertyChanged != null)
                {
                    PropertyChanged.Invoke(this, new PropertyChangedEventArgs(propertyName));
                }
            }

            public event PropertyChangedEventHandler PropertyChanged;
        }

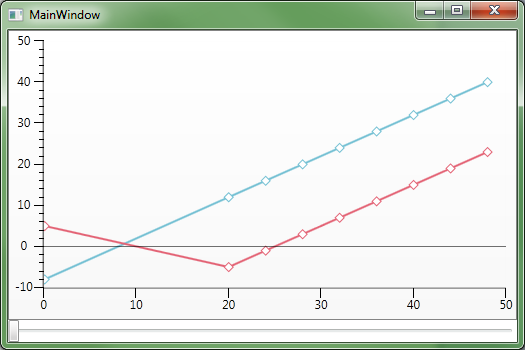

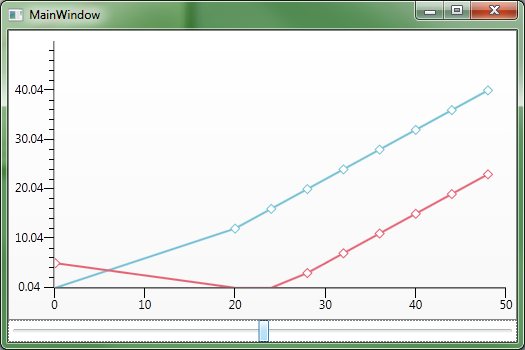

    The slider bar changes the Minimum of the AxisY and as soon as the minimum hit 0, you can see that the line are now rendered as if the YValue of the point was 0.
  2. Nikolay
    Admin
    Nikolay avatar
    385 posts

    Posted 19 Mar 2012 Link to this post

    Hello Julien,

    Thank you for the provided demo example, we have been able to reproduce this behavior, the issue has been logged and our developers have been notified.

    I have also updated your Telerik points for the feedback.

    Greetings,
    Nikolay
    the Telerik team
