Using Range Bar Graph as Gantt view

[Simon]

Hi,
I want to graphically show a simple project schedule on a report (i.e simple Gantt). I think the Range Bar graph may be suitable but can't get it to work and can't find any examples or documentation, is there anything available?
I want to list each job on the Y axis with dates on the X axis. with a Bar between start and end dates for each job.
Here is an example of the object data-source I'm using:

public class ProjectSchedule
{
    public ProjectSchedule() { }
    public string JobName { get; set; }
    public DateTime Start { get; set; }
    public DateTime End { get; set; }
    public static List<ProjectSchedule> GetSchedule()
    {
        return new List<ProjectSchedule>(){
            new ProjectSchedule(){ JobName="JOB1", Start=DateTime.Now.AddDays(5), End=DateTime.Now.AddDays(10)},
            new ProjectSchedule(){ JobName="JOB2", Start=DateTime.Now.AddDays(5), End=DateTime.Now.AddDays(15)},
            new ProjectSchedule(){ JobName="JOB3", Start=DateTime.Now.AddDays(3), End=DateTime.Now.AddDays(7)},
            new ProjectSchedule(){ JobName="JOB3", Start=DateTime.Now.AddDays(10), End=DateTime.Now.AddDays(18)}
        };
    }
}

Any help greatly appreciated.

[Stef]

Hi Simon,

The attached sample report definition is created based on the one provided in your support ticket on the same question. The change is we have set the BarSeries.DataPointStyle.Visible to true. If you want a single bar to take the whole space, remove the grouping from the SeriesGroups and use the DataPointConditionalFormatting option to color the data points.

Let us know if you need any further help.

Regards,
Stef
Telerik

[Marius]

Hi,

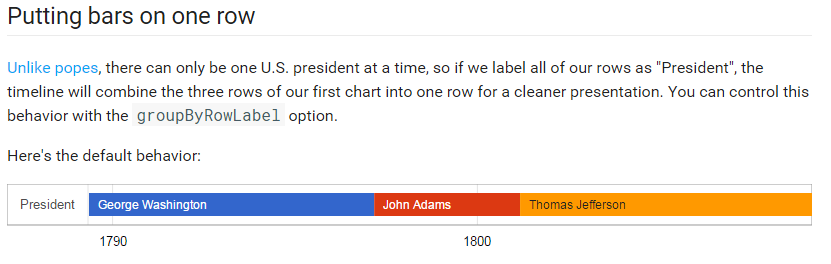

Do you have a range chart similar to the one attached (google timeline) wherein the bars are side by side?



Thanks.

[Stef]

Hi Marius,

Please test if using a Stacked Bar chart suits your requirements - How to: Create Bar Chart.

Regards,
Stef
Telerik
