UseRangeColor="True" works for first range only?

2 posts, 0 answers
  1. Zero Gravity Chimp
    Zero Gravity Chimp avatar
    40 posts
    Member since:
    Dec 2009

    Posted 16 Dec 2009 Link to this post

    Hello,

    I'm currently implementing a radGauge using Telerik's internal build version (2009_3_1211_Dev). I needed to use this version because of the chart performance issues.

    Now I am trying to set the "UseRangeColor" as follows:

            <control:RadGauge x:Name="radGauge" Width="300" Height="300"
                <gauge:RadialGauge>
                    <gauge:RadialScale Min="0" Max="1000" Radius="0.9" StartWidth="0.1" EndWidth="0.15" Background="#44DDCCFF"

                        <gauge:IndicatorList>
                            <gauge:Needle x:Name="needle" />
                        </gauge:IndicatorList>
                        <gauge:RangeList>
                            <gauge:RadialRange
                              Name="Green"
                              Min="0"
                              Max="333"
                              StartWidth="0.025"
                              EndWidth="0.03"
                              Location="Inside"
                              Background="CadetBlue"
                              BorderBrush="CadetBlue"
                              LabelForeground="MediumSpringGreen"/>
                        </gauge:RangeList>
                        <gauge:RangeList>
                            <gauge:RadialRange
                              Name="Yellow"
                              Min="333"
                              Max="666"
                              StartWidth="0.03"
                              EndWidth="0.03"
                              Location="Inside"
                              Background="PeachPuff"
                              BorderBrush="PeachPuff"
                              LabelForeground="YellowGreen"/>
                        </gauge:RangeList>
                        <gauge:RangeList>
                            <gauge:RadialRange
                              Name="Red"
                              Min="666"
                              Max="1000"
                              StartWidth="0.03"
                              EndWidth="0.035"
                              Location="Inside"
                              Background="Tomato"
                              BorderBrush="Tomato"
                              LabelForeground="Crimson"/>
                        </gauge:RangeList>
                        <gauge:RadialScale.Label>
                            <gauge:LabelProperties Location="Inside" UseRangeColor="True"/>
                        </gauge:RadialScale.Label>
                    </gauge:RadialScale>

                </gauge:RadialGauge>
            </control:RadGauge>

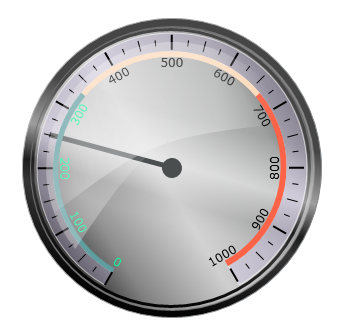

    This all works great except I can't understand from the help how the UseRangeColor should be better implemented? This sets the first range's colour automatically. placing the radialscale.label part before the rangelists part,  or pasting it 3 times, do not make a difference. I am attaching a screenshot of my result.



    Please advise!

    Regards,

    Paul
  2. Zero Gravity Chimp
    Zero Gravity Chimp avatar
    40 posts
    Member since:
    Dec 2009

    Posted 20 Dec 2009 Link to this post

    I have found the answer to this question,

    You have to place all the RadialRanges in one RangeList for it to work!
