Unselected row when focus is lost

2 posts, 0 answers
  1. ADM-IT Denis Pujdak
    ADM-IT Denis Pujdak avatar
    34 posts
    Member since:
    Sep 2011

    Posted 19 Jun 2012 Link to this post

    Telerik Silverlight version: 2012.2.607.1050

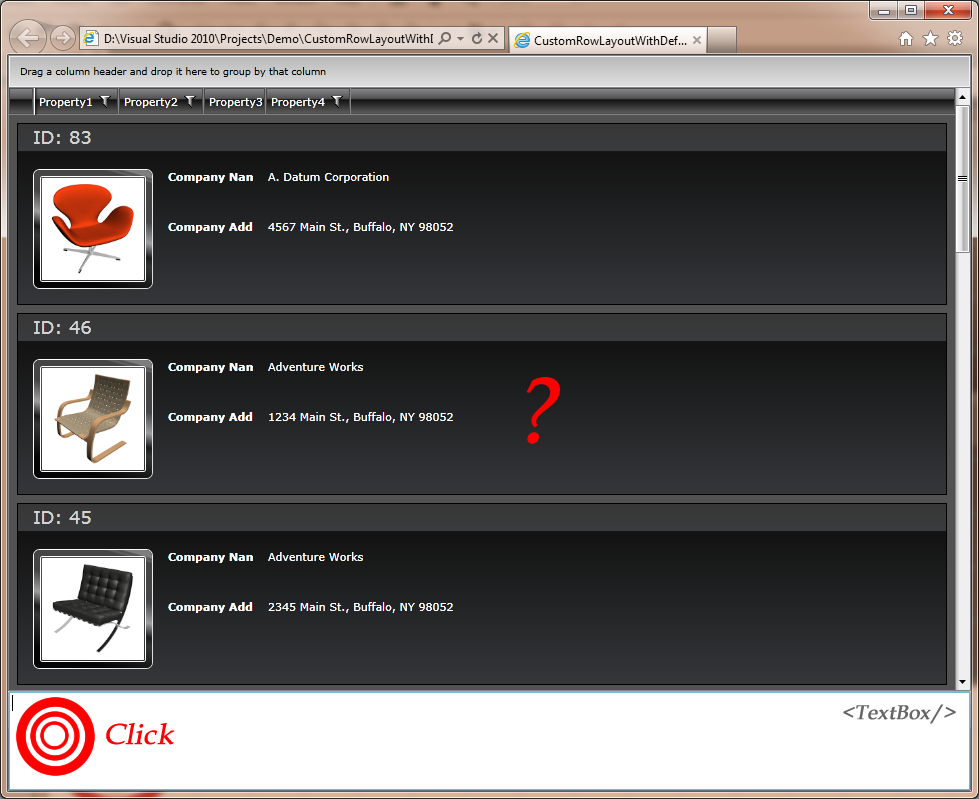

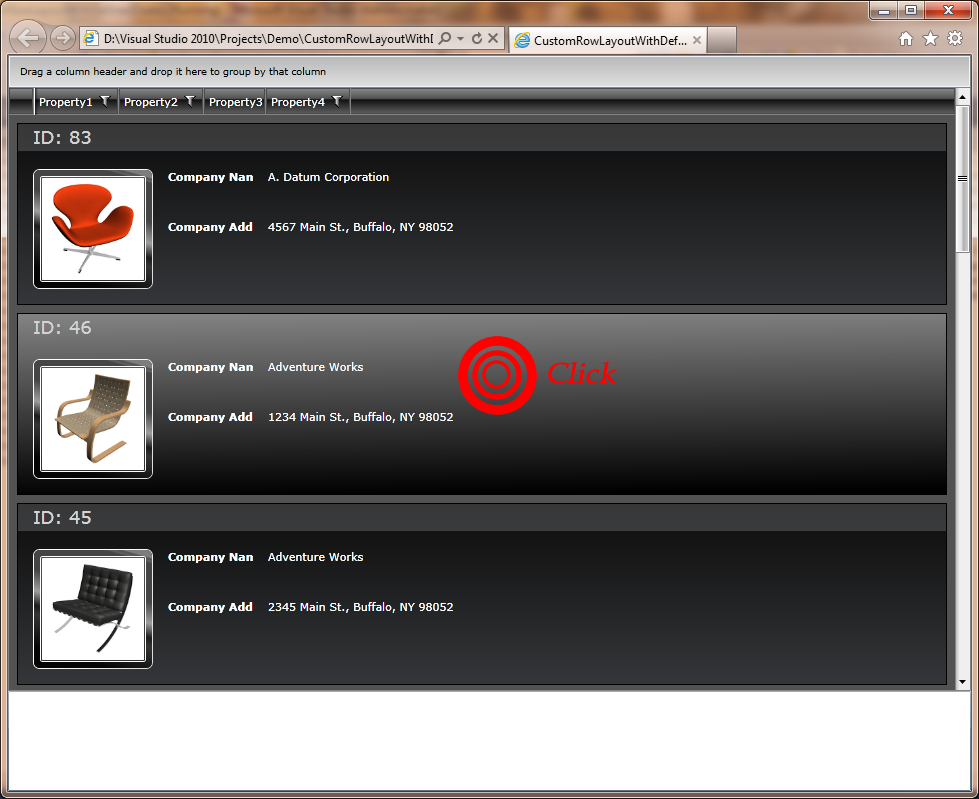

    Please see attachments
  2. ADM-IT Denis Pujdak
    ADM-IT Denis Pujdak avatar
    34 posts
    Member since:
    Sep 2011

    Posted 07 Jul 2012 Link to this post

    I'm Sorry. I thought it an error.

    I found the solution of this problem (VisualState x:Name="SelectedUnfocused"):

    <Style x:Key="AttachmentsGridTemplateStyle" TargetType="telerik:GridViewRow">
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="telerik:GridViewRow">
                    <Border BorderBrush="Silver" BorderThickness="1" Padding="3">
                        <VisualStateManager.VisualStateGroups>
                            <VisualStateGroup x:Name="CommonStates">
                                <VisualState x:Name="Normal"/>
                            </VisualStateGroup>
                            <VisualStateGroup x:Name="SelectionStates">
                                <VisualState x:Name="Unselected"/>
                                <VisualState x:Name="Selected">
                                    <Storyboard>
                                        <ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetProperty="(UIElement.Background)" Storyboard.TargetName="Grid1">
                                            <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource ListView_GridViewRow_Background_Selected}"/>
                                        </ObjectAnimationUsingKeyFrames>
                                    </Storyboard>
                                </VisualState>
                                <VisualState x:Name="SelectedUnfocused">
                                    <Storyboard>
                                        <ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetProperty="(UIElement.Background)" Storyboard.TargetName="Grid1">
                                            <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource ListView_GridViewRow_Background_SelectedUnfocused}"/>
                                        </ObjectAnimationUsingKeyFrames>
                                    </Storyboard>
                                </VisualState>
                            </VisualStateGroup>
                        </VisualStateManager.VisualStateGroups>
                        <Grid Background="{StaticResource ListView_GridViewRow_Background}" x:Name="Grid1" Height="64">
                            <i:Interaction.Behaviors>
                                <addons:DoubleClickBehavior DoubleClickCommand="{Binding EditItemCommand.Command}"/>
                            </i:Interaction.Behaviors>
                            <Grid.ColumnDefinitions>
                                <ColumnDefinition Width="Auto"/>
                                <ColumnDefinition/>
                                <ColumnDefinition Width="Auto"/>
                            </Grid.ColumnDefinitions>
                            <Grid.RowDefinitions>
                                <RowDefinition />
                                <RowDefinition Height="Auto" />
                            </Grid.RowDefinitions>

                            <telerik:DataCellsPresenter x:Name="PART_DataCellsPresenter" Grid.ColumnSpan="3" Canvas.ZIndex="-999" Opacity="0"/>

                            <StackPanel Grid.Column="0" Grid.RowSpan="2" Grid.Row="0" Orientation="Horizontal" VerticalAlignment="Center" HorizontalAlignment="Center" Margin="0,0,5,0">
                                <Image Width="64" Height="64" Source="{Binding ImageThumbnail}" Stretch="Uniform" />
                            </StackPanel>

                            <TextBlock Grid.Column="1" Grid.Row="0" Text="{Binding attName}" FontSize="11" FontWeight="Bold" Margin="3" VerticalAlignment="Center" HorizontalAlignment="Stretch" TextWrapping="Wrap"/>

                            <Image Grid.Column="2" Grid.Row="0" Width="24" Height="24" Source="/ReState.Res;component/Images/button_ok_24x24.png" Visibility="{Binding IsRelated, Converter={StaticResource VisibilityConverter}}" VerticalAlignment="Top" HorizontalAlignment="Right" Margin="3"/>

                            <TextBlock Grid.Column="1" Grid.Row="1" Text="{Binding attFileName}" FontSize="10" Margin="3" />

                            <TextBlock Grid.Column="2" Grid.Row="1" Text="{Binding attSize, Converter={StaticResource FileSizeConverter}}" FontSize="10" Margin="3" HorizontalAlignment="Right" />

                        </Grid>
                    </Border>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    This post can be closed.
    Good luck!!!
