Timeline Group Height

3 posts, 0 answers
  1. ilusha
    ilusha avatar
    13 posts
    Member since:
    Mar 2013

    Posted 06 Jun 2014 Link to this post

    I've started a new thread becouse that question can be interested to others members of the comunity. The exThread is:
    http://www.telerik.com/forums/timeline-group-sorting
    Now my question about group height of groups in timeline control.

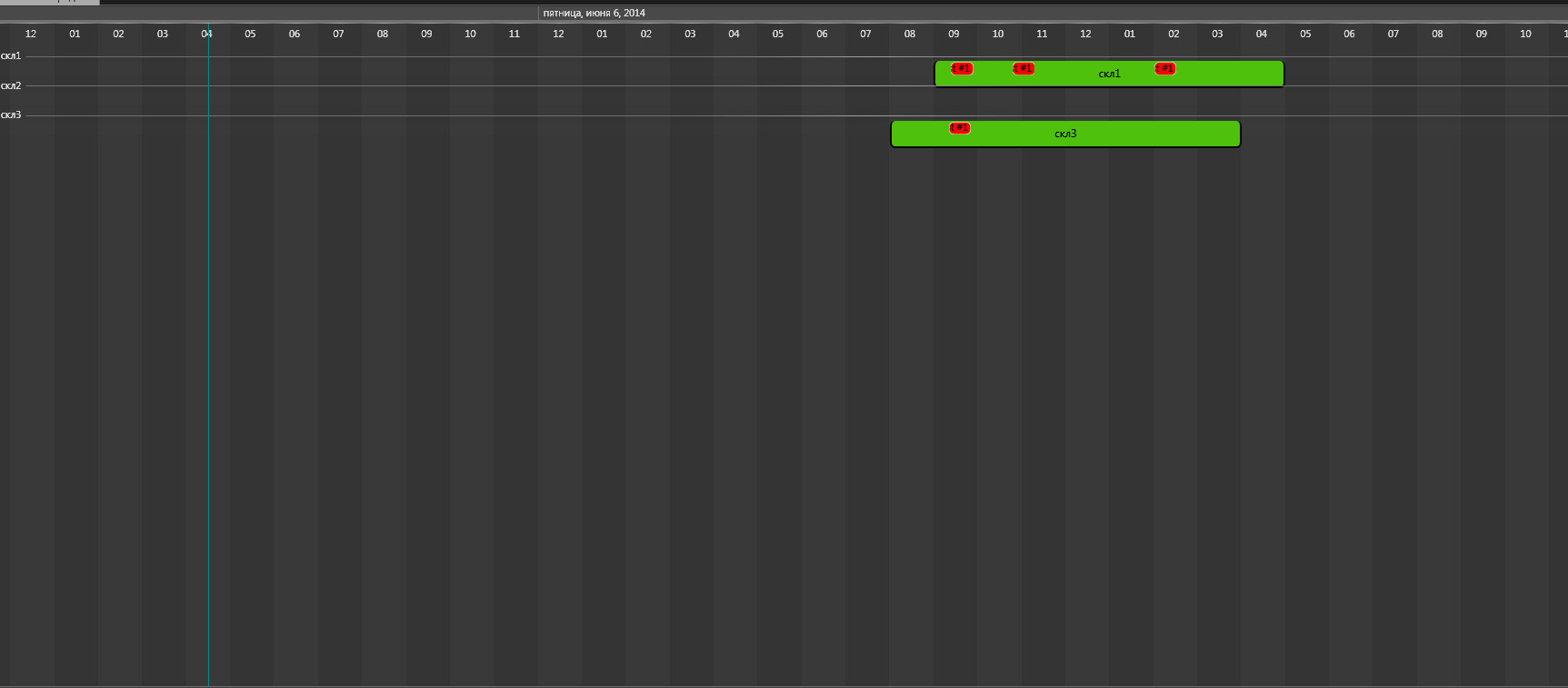

    I have 3 groups (pic1) and i've got TimelineGroupPeriodControl instances (MainTimeline is my instance of radtimeline):

                    var e = MainTimeline.ChildrenOfType<TimelineGroupPeriodControl>().ToList();
                    e.ForEach(control =>
                    {
                        var str = control.ActualHeight.ToString(CultureInfo.InvariantCulture);
                        builder.AppendLine(str);
                    });
                    MessageBox.Show(builder.ToString());

    When the control is in state such as pic1 this code returns me result: 15, 15, 15;

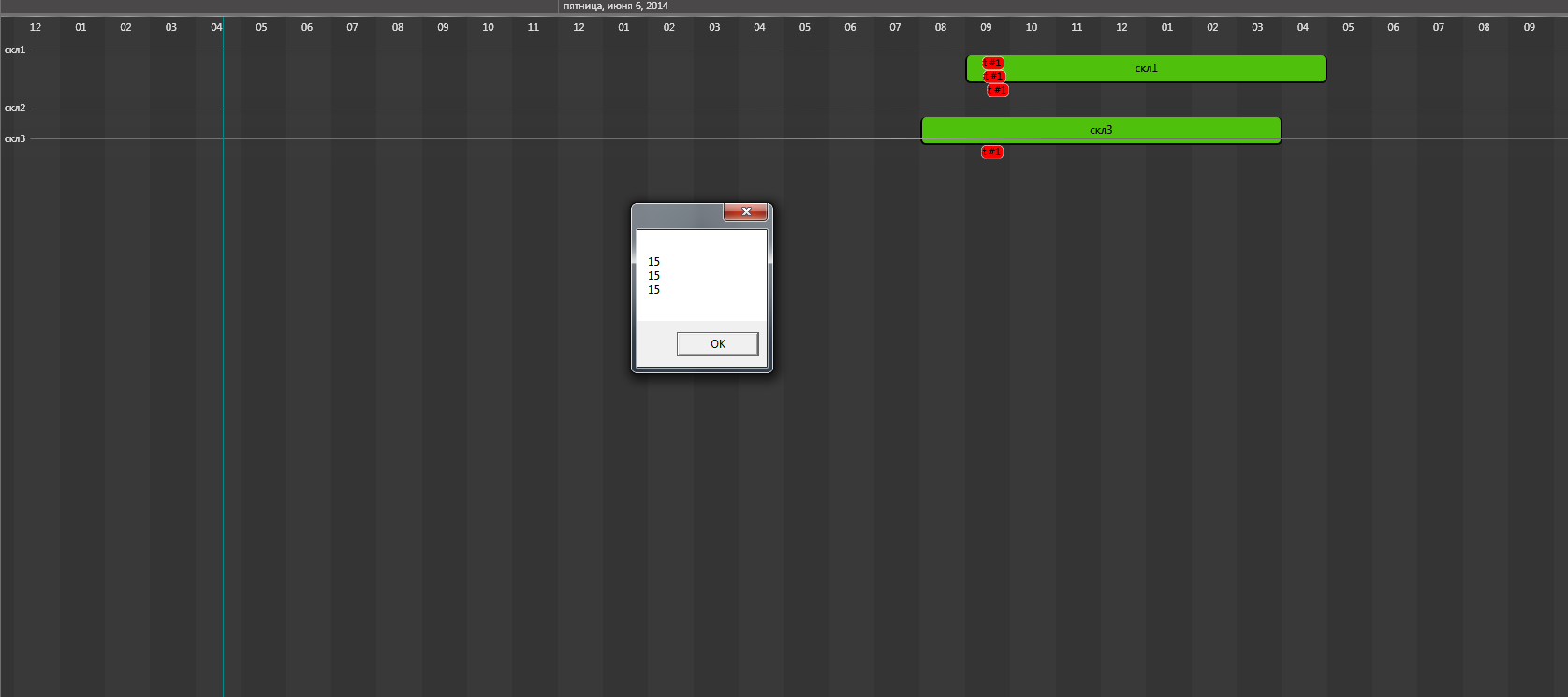

    When the items intersecs such as pic2 this code return me 15, 15, 15 too.
    But the actual height of period groups is differnt in this 2 cases. How can I get the actualHeight of group. And groupName (скл... in my case) too.
    Thanks!
    nd one more qustion. With the new version of teleik wpf cotrols (2014) the radtimeline throws an exception in XAML visual designer. The stack trace is:

    XamlParseException: TargetType "RadSlider" is not match the type of element "TimelineScrollBar".

     в System.Windows.FrameworkTemplate.LoadTemplateXaml(XamlReader templateReader, XamlObjectWriter currentWriter)
       в System.Windows.FrameworkTemplate.LoadTemplateXaml(XamlObjectWriter objectWriter)
       в System.Windows.FrameworkTemplate.LoadOptimizedTemplateContent(DependencyObject container, IComponentConnector componentConnector, IStyleConnector styleConnector, List`1 affectedChildren, UncommonField`1 templatedNonFeChildrenField)
       в System.Windows.FrameworkTemplate.LoadContent(DependencyObject container, List`1 affectedChildren)
       в System.Windows.StyleHelper.ApplyTemplateContent(UncommonField`1 dataField, DependencyObject container, FrameworkElementFactory templateRoot, Int32 lastChildIndex, HybridDictionary childIndexFromChildID, FrameworkTemplate frameworkTemplate)
       в System.Windows.FrameworkTemplate.ApplyTemplateContent(UncommonField`1 templateDataField, FrameworkElement container)
       в System.Windows.FrameworkElement.ApplyTemplate()
       в System.Windows.FrameworkElement.MeasureCore(Size availableSize)
       в System.Windows.UIElement.Measure(Size availableSize)
       в System.Windows.Controls.Grid.MeasureCell(Int32 cell, Boolean forceInfinityV)
       в System.Windows.Controls.Grid.MeasureCellsGroup(Int32 cellsHead, Size referenceSize, Boolean ignoreDesiredSizeU, Boolean forceInfinityV, Boolean& hasDesiredSizeUChanged)
       в System.Windows.Controls.Grid.MeasureCellsGroup(Int32 cellsHead, Size referenceSize, Boolean ignoreDesiredSizeU, Boolean forceInfinityV)
       в System.Windows.Controls.Grid.MeasureOverride(Size constraint)
       в System.Windows.FrameworkElement.MeasureCore(Size availableSize)
       в System.Windows.UIElement.Measure(Size availableSize)
       в MS.Internal.Helper.MeasureElementWithSingleChild(UIElement element, Size constraint)
       в System.Windows.Controls.ContentPresenter.MeasureOverride(Size constraint)
       в System.Windows.FrameworkElement.MeasureCore(Size availableSize)
       в System.Windows.UIElement.Measure(Size availableSize)
       в System.Windows.Controls.Border.MeasureOverride(Size constraint)
       в System.Windows.FrameworkElement.MeasureCore(Size availableSize)
       в System.Windows.UIElement.Measure(Size availableSize)
       в System.Windows.Controls.Control.MeasureOverride(Size constraint)
       в System.Windows.FrameworkElement.MeasureCore(Size availableSize)
       в System.Windows.UIElement.Measure(Size availableSize)


  2. Tsvetie
    Admin
    Tsvetie avatar
    1517 posts

    Posted 09 Jun 2014 Link to this post

    Hello,

    I am afraid I have misled you. The name of the class that represents the groups of items is TimelineItemGroupControl. That is why, your code should look like the following code snippet:
    var groups = this.RadTimeline1.ChildrenOfType<TimelineItemGroupControl>().ToList();

    StringBuilder builder = new StringBuilder();

    foreach (var group in groups)
    {
        var str = group.ActualHeight.ToString(CultureInfo.InvariantCulture);
        builder.AppendLine(str);
    }

    MessageBox.Show(builder.ToString());

    Regarding the design-time exception - unfortunately, I was not able to reproduce it. In case the problem persists, please open a new support ticket and send me a simple running project, demonstrating the problem.

    Regards,
    Tsvetie
    Telerik

    Check out Telerik Analytics, the service which allows developers to discover app usage patterns, analyze user data, log exceptions, solve problems and profile application performance at run time. Watch the videos and start improving your app based on facts, not hunches.





    Regards,
    Tsvetie
    Telerik

    Check out Telerik Analytics, the service which allows developers to discover app usage patterns, analyze user data, log exceptions, solve problems and profile application performance at run time. Watch the videos and start improving your app based on facts, not hunches.

  3. UI for WPF is Visual Studio 2017 Ready
  4. ilusha
    ilusha avatar
    13 posts
    Member since:
    Mar 2013

    Posted 10 Jun 2014 in reply to Tsvetie Link to this post

    Great Thanks! This is great solution of my problem!
