There's no image in RadSplitBar ?!?

2 posts, 1 answers
  1. Marja
    Marja avatar
    70 posts
    Member since:
    Nov 2013

    Posted 29 Nov 2013 Link to this post

    We're evaluating the trial version of the controls, but we're not getting a splitbar image, no matter which skin we select or which browser we use.
    The test project is referencing runtime version v4.0.30319 of both Telerik.Web.UI.dll  and Telerik.Web.UI.Skins.dll.

    The ultra simple code of our testpage:
    <%@ Page Language="vb" AutoEventWireup="false" CodeBehind="TestRadSplitter.aspx.vb"
        Inherits="WebwareNET.TestRadSplitter" %>

    <%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    <head runat="server">
        <title></title>
    </head>
    <body>
        <form id="form1" runat="server">
        <telerik:RadScriptManager ID="RadScriptManager1" runat="server">
        </telerik:RadScriptManager>
        <div>
            <telerik:RadSplitter ID="RadSplitter1" Width="100%" Height="100%" Orientation="Vertical"
                LiveResize="True" runat="server" Skin="MetroTouch">
                <telerik:RadPane ID="LeftPane" MinWidth="200" Width="200"
                    Scrolling="None" runat="server">
                    Inside left pane
                </telerik:RadPane>
                <telerik:RadSplitBar ID="RadSplitBar1" runat="server">
                </telerik:RadSplitBar>
                <telerik:RadPane ID="RightPane" Scrolling="Both" runat="server">
                    Inside right pane
                </telerik:RadPane>
            </telerik:RadSplitter>
        </div>
        </form>
    </body>
    </html>

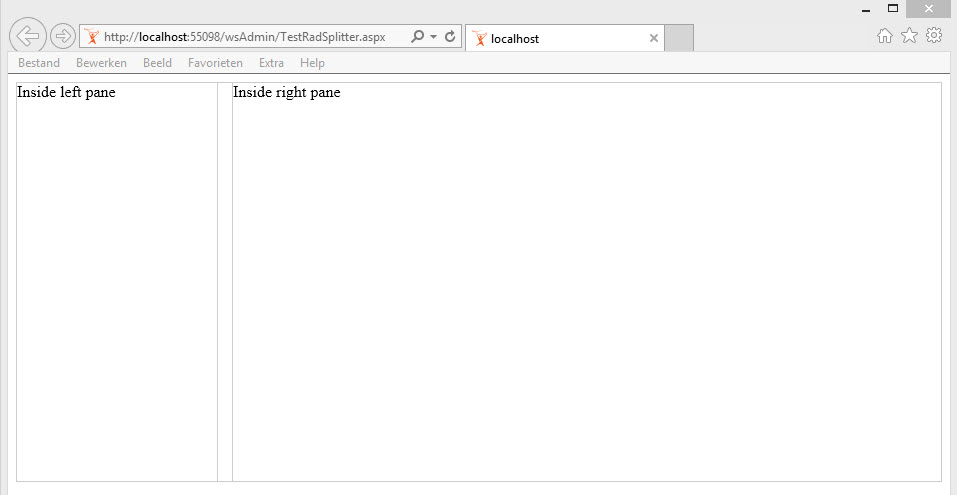

    And what we see in the browser can be seen in the attached screenshot.

    What do we need to do to get the splitbar image in the RadSplitBar?
  2. Answer
    Vessy
    Admin
    Vessy avatar
    1389 posts

    Posted 02 Dec 2013 Link to this post

    Hello Marja,

    You can enable to collapse/expand buttons of the Splitbar by configuring its CollapseMode property:
    <telerik:RadSplitBar ID="RadSplitBar1" runat="server" CollapseMode="Both">
    </telerik:RadSplitBar>

    You can find useful information on the subject in the following help article: Collapsing Panes

    Regards,
    Veselina Raykova
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to the blog feed now.
