Telerik WPF Windows 8 Theme modification...

3 posts, 0 answers
  1. Craig
    Craig avatar
    3 posts
    Member since:
    Jan 2015

    Posted 04 Jan Link to this post

    I am using the Telerik Windows 8 theme in my WPF application.  However, I do not like the way the checkbox checked state is indicated using a colored square rather than an actual check mark as in the Windows 7 theme.  It was very simple to copy the checkbox template and modify it to use the checkbox check mark from the Windows 7 theme checkbox template.  However, I am having trouble finding a way to add this modified template to my Application.Resources in such a way as to apply it to all checkboxes in my application.  For some reason, the template in the Telerik Windows 8 theme continues to override my new checkbox style and I am not sure why.



    I have tried a few different approaches, yet nothing seems to work.  My latest approach is to add the following style to my Application.Resources resource dictionary:



    <Style BasedOn="{StaticResource {telerik:ThemeResourceKey ThemeType=telerik:Windows8Theme, ElementType=CheckBox}}" TargetType="CheckBox" >

        <Setter Property="Template">

        ....

        </Setter>

    </Style>



    I would really appreciate any input.  How can I apply a checkbox template modification to all of the checkboxes in my application??



    Thanks!

    Craig

  2. Lance | Tech Support Engineer, Sr.
    Admin
    Lance | Tech Support Engineer, Sr. avatar
    283 posts

    Posted 05 Jan Link to this post

    Hello Craig,

    In order for you to accomplish what you need, you must use the Implicit Styling approach. Please read that article for a full explanation and steps to implement (there are also a few tutorials on how to style controls and custom controls).

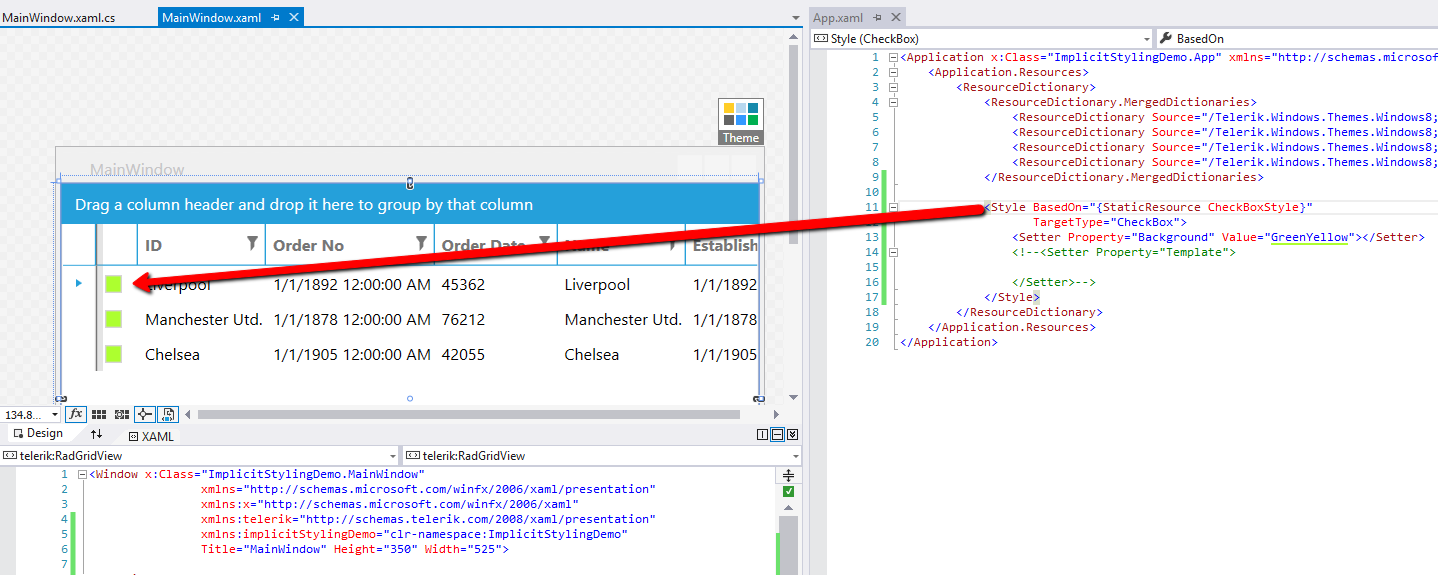

    To help get you up and running quickly, I've attached a demo to demonstrate Implicit Styling. Even when a Checkbox is within a custom template in a GridView, you'll see the style applied. (see attached screenshot).

    Here's the style you see in the screenshot:
    <Style BasedOn="{StaticResource CheckBoxStyle}" TargetType="CheckBox">
        <Setter Property="Background" Value="GreenYellow"/>
    </Style>


    Switching your app to leverage Implicit Styling


    Please review the full documentation, but here are the mainsteps to switch to Implicit Styling:

    1 - Reference the NoXaml DLLs (in C:\Program Files (x86)\Telerik\UI for WPF R3 2016\Binaries.NoXaml)

    2 - Either reference the Theme's DLL (most common approach) or copy the XAML files of the controls into the app. In my demo, I use the Theme's DLL.

    3 - Merge the controls' ResourceDictionaries in App.xaml (make sure you merge the ones you need, see here)

    <ResourceDictionary.MergedDictionaries>
                    <ResourceDictionary Source="/Telerik.Windows.Themes.Windows8;component/Themes/System.Windows.xaml" />
                    <ResourceDictionary Source="/Telerik.Windows.Themes.Windows8;component/Themes/Telerik.Windows.Controls.xaml" />
                    <ResourceDictionary Source="/Telerik.Windows.Themes.Windows8;component/Themes/Telerik.Windows.Controls.Input.xaml" />
                    <ResourceDictionary Source="/Telerik.Windows.Themes.Windows8;component/Themes/Telerik.Windows.Controls.GridView.xaml" />
    </ResourceDictionary.MergedDictionaries>

    Now, you can override any style or template for the UI for WPF controls.

    Please let us know if you have any further trouble.

    Regards,
    Lance | Tech Support Engineer, Sr.
    Telerik by Progress
    Want to extend the target reach of your WPF applications, leveraging iOS, Android, and UWP? Try UI for Xamarin, a suite of polished and feature-rich components for the Xamarin framework, which allow you to write beautiful native mobile apps using a single shared C# codebase.
  3. Craig
    Craig avatar
    3 posts
    Member since:
    Jan 2015

    Posted 05 Jan Link to this post

    This appears to be exactly what I needed to know, Lance.

    Much appreciated,

    Craig
