Telerik.Windows.Controls.Diagrams Error

6 posts, 2 answers
  1. John
    John avatar
    11 posts
    Member since:
    Sep 2010

    Posted 25 Feb 2012 Link to this post

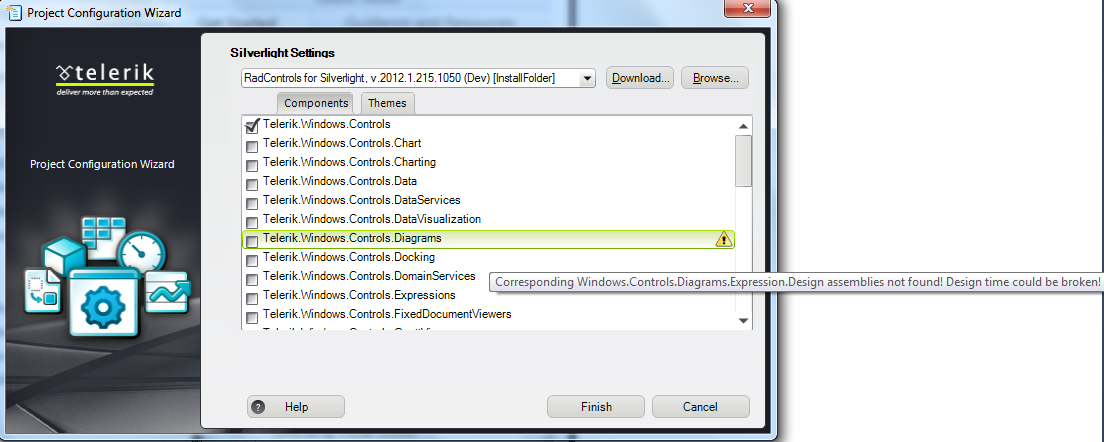

    I have attached a screen shot showing the error but it is esentially saying I am missing an assembly.
    "Corresponding Windows.Controls.Diagrams.Expression.Design assemblies not found! Design time could be broken!"

    I've tried looking around for dependencies on the Telerik Silverlight controls and I think I have things installed properly any suggestions are appreciated.
  2. Answer
    TMatt
    TMatt avatar
    46 posts
    Member since:
    Feb 2011

    Posted 26 Feb 2012 Link to this post

    We have the same here.

    But you can use the Diagrams Tools. I think.
    The Assambly is inside the Binary Folder.

    Jens
  3. DevCraft banner
  4. Answer
    Miro Miroslavov
    Admin
    Miro Miroslavov avatar
    588 posts

    Posted 27 Feb 2012 Link to this post

    Hi John, Tobias,

    We're aware of this issue. It is a problem in the Extension itself. The Diagrams assemblies are there and design time should be working. However the issue is addressed and will be fixed with the upcoming Service Pack releases.
    We have planned much more sophisticated design-time for Q2, so please stay tuned. Also you give us your valuable feedback about what you'll expect from a design-time and what you need most.
    Thank you.

    Regards,
    Miro Miroslavov
    the Telerik team
    Sharpen your .NET Ninja skills! Attend Q1 webinar week and get a chance to win a license! Book your seat now >>
  5. John
    John avatar
    11 posts
    Member since:
    Sep 2010

    Posted 27 Feb 2012 Link to this post

    Thanks all I tried searching the site in regards to this issue before posting, but I couldn't find any hits.
  6. Ravi
    Ravi avatar
    1 posts
    Member since:
    Aug 2013

    Posted 26 Aug 2013 Link to this post

    Hi, Eventhough i reference the Telerik.Windows.Controls.Diagrams, it is not getting referenced and i am not able to use it in the code. I am using Silverlight 4. Please help me.
  7. Tina Stancheva
    Admin
    Tina Stancheva avatar
    3298 posts

    Posted 26 Aug 2013 Link to this post

    Hello Ravi,

    From your account I noticed that you've downloaded the latest RadControls for Silverlight version. However, please have in mind that this version targets Silverlight 5. We have discontinued our support for Silverlight 4 with Q3 2012 which means that you can use the latest version of our Silverlight controls only in a Silverlight 5 solution.

    Also, please note that Silverlight RadDiagrams are designed to work only in a Silverlight 5 application.

    This is why it might be best to try to change the targeted platform of your solution to Silverlight 5 and let us know if you still experience issues using our controls.

    Regards,
    Tina Stancheva
    Telerik
