Summary record - display custom values instead of progress bar

4 posts, 0 answers
  1. Piotr
    Piotr avatar
    14 posts
    Member since:
    Jul 2014

    Posted 01 Sep 2014 Link to this post

    Hi

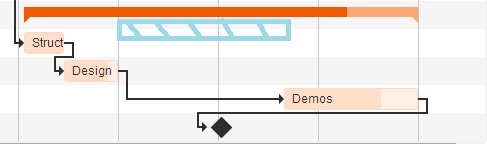

    I’m looking for a specific functionality in gantt chart control. For example: i
    have a record where <Summary> property has a "true" value and
    it’s a parent container for three particular child operations. By default this
    record that i've mentioned above is displaying as  a status progressbar
    (percent). But despite / instead of that i’d like to see additional blank
    spaces, it means a time periods where is a gap between start/end values.
  2. Bozhidar
    Admin
    Bozhidar avatar
    1101 posts

    Posted 02 Sep 2014 Link to this post

    Hi,

    The desired look is not supported by the Gantt widget, since by specification the Summary task has to be displayed as a progress bar, showing the combined status of its child tasks, and this is tightly integrated into the logic as well (for instance dragging the summary task will drag all the children).

    If you've seen a gantt implementation with the aforementioned feature, could you share a link so that we can inspect it?

    Regards,
    Bozhidar
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  3. Kendo UI is VS 2017 Ready
  4. Piotr
    Piotr avatar
    14 posts
    Member since:
    Jul 2014

    Posted 05 Sep 2014 in reply to Bozhidar Link to this post

    Hi,

    In project planning, gantt chart show start and finish dates, critical and non-critical activities, slack time, and predecessor-successor relationships. And slack (float) time is exactly this point that i'd like to achieve. Slack time defined by the soft is the slack time for
    entire path – not for any one specific task. The software doesn’t allocate the extra time across multiple tasks, and if one task on a path uses all the slack time, ther is no slack time for the others along the path.

    But meanwhile i've found something what could be solution (dataBound: function()). Below a piece of code responsible for coloring  progressbar  depending on its current value:

    dataBound: function() {
    var gantt = this;

    gantt.element.find(".k-task").each(function(e) {
    var dataItem = gantt.dataSource.getByUid($(this).attr("data-uid"));

    // colorize task per business requirements
    if (dataItem.percentComplete < .5) {
    this.style.backgroundColor = "#f99";
    } else {
    this.style.backgroundColor = "#9f9";
    }
    });



    Perhaps it will be substitute for my issue, generally i'd like to colour places on a chart where a gaps appears. But i have no idea how to iterate through entire tasks collection and found and very next mark these places directly on a control. I'll be grateful for any useful clue or a piece of code.

    Best regards

    Luke




  5. Bozhidar
    Admin
    Bozhidar avatar
    1101 posts

    Posted 08 Sep 2014 Link to this post

    Hello,

    The GanttDataSource offers a rich API which gives you several functions to traverse the tasks with. You can find every function and what it does in our API Reference:
    http://docs.telerik.com/kendo-ui/api/framework/ganttdatasource#methods

    Hope this is helpful.

    Regards,
    Bozhidar
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
