Showing and hiding filters on button press from programmatically created RadGrid

5 posts, 0 answers
  1. Douglas
    Douglas avatar
    6 posts
    Member since:
    Jan 2011

    Posted 29 Jul 2014 Link to this post

    I am creating a RadGrid programmatically in VB.Net and have set the AllowFilteringByColumn  = True and setup a CommandItemTemplate that contains a RadButton.

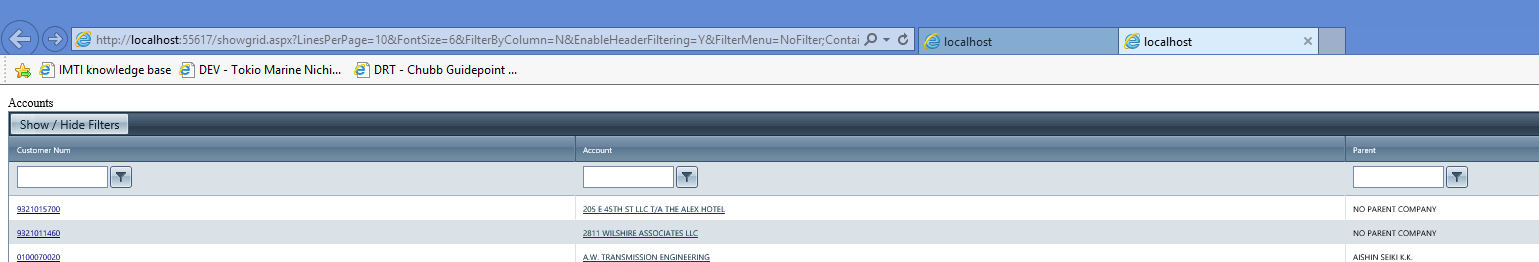

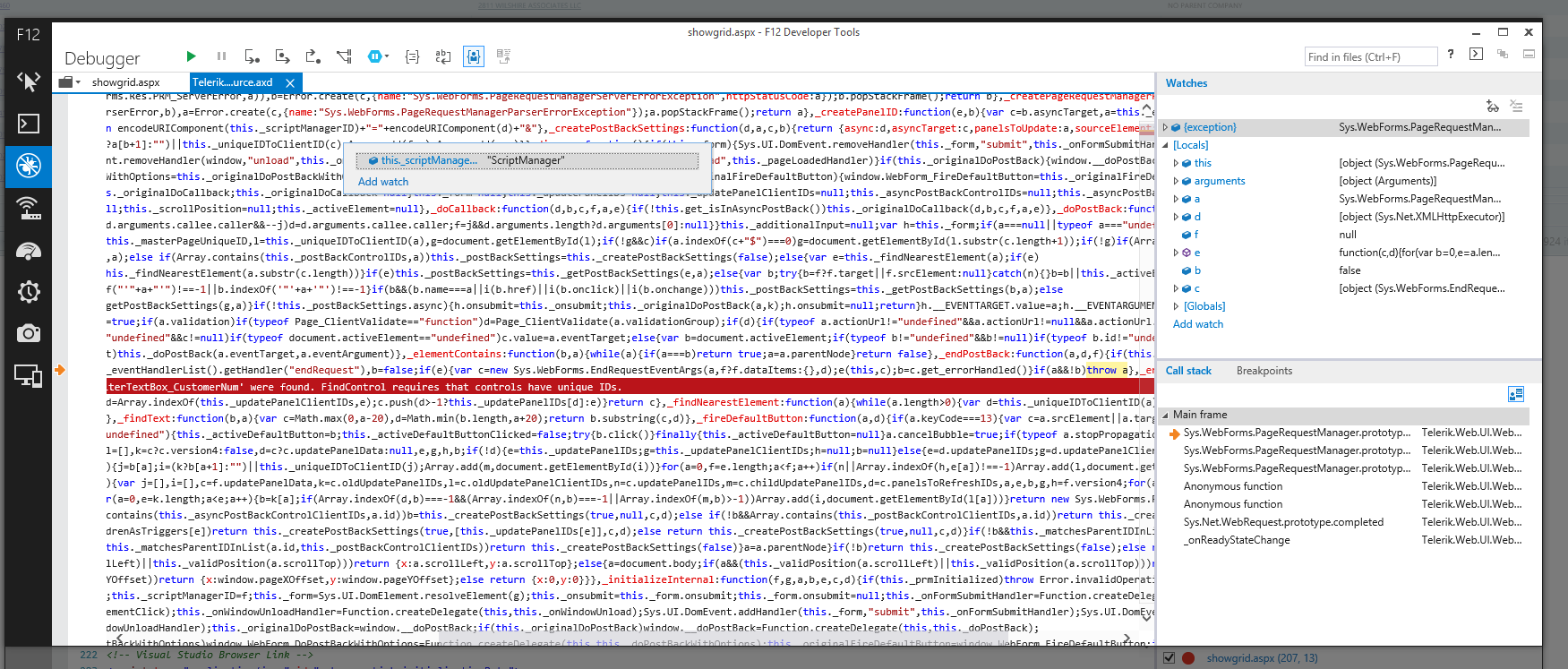

    You can see the rendered grid in the attached Grid.png and the error I am getting in the Telerik.Web.UI.WebResource.axd. It looks like a problem with creating multiple filter items. Error description - "description "Sys.WebForms.PageRequestManagerServerErrorException: Multiple controls with the same ID 'FilterTextBox_CustomerNum' were found. FindControl requires that controls have unique IDs.""

    CustomerNum is the first column in the grid

    Building the grid
    Private Sub SetFilters(ByVal grid As RadGrid)

        grid.MasterTableView.AllowFilteringByColumn = gridConfiguration.EnableHeaderFiltering
        If gridConfiguration.EnableHeaderFiltering Then
            grid.MasterTableView.CommandItemTemplate = New RadGridCommandItemFilterTemplate
        End If

    End Sub

    CommandItemTemplate
    Friend Class RadGridCommandItemFilterTemplate
        Implements ITemplate

        Public showHideFilter As RadButton

        Public Sub New()
            MyBase.New()
        End Sub

        Public Sub InstantiateIn(ByVal container As Control) Implements ITemplate.InstantiateIn

            showHideFilter = New RadButton With {.ID = "showHideFilter", .Text = "Show / Hide Filters",
                                                 .CommandName = "ShowHideFilters", .OnClientCheckedChanged = "showHideFilters()"}
            container.Controls.Add(showHideFilter)

        End Sub

    End Class

    Aspx

        <telerik:RadScriptManager ID="ScriptManager" runat="server">
        </telerik:RadScriptManager>

        <telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">
            <AjaxSettings>
                <telerik:AjaxSetting AjaxControlID="ConfigureGrid">
                    <UpdatedControls>
                        <telerik:AjaxUpdatedControl ControlID="ConfigureGrid" LoadingPanelID="AjaxLoadingPanel" />
                    </UpdatedControls>
                </telerik:AjaxSetting>
            </AjaxSettings>
        </telerik:RadAjaxManager>

        <telerik:RadGrid runat="server" ID ="ConfigureGrid" GridLines="None" AutoGenerateColumns="false" Skin="WebBlue"/>

        <telerik:RadAjaxLoadingPanel ID="AjaxLoadingPanel" runat="server"/>

        <asp:SqlDataSource ID="PrimaryDataSource" runat="server"/>
    </form>

    <script type="text/javascript">

        function showFilterItem() {
            var grid = $find("<%=ConfigureGrid.ClientID%>");
            if (grid) {
                grid.get_masterTableView().showFilterItem();
            }
        }

        function hideFilterItem() {
            var grid = $find("<%=ConfigureGrid.ClientID%>");
            if (grid) {
                grid.get_masterTableView().hideFilterItem();
            }
        }

        function showHideFilters() {
            var radButton = document.getElementById("showHideFilter");
            if (radButton) {
                if (radButton.checked) {
                    showFilterItem();
                }
                else {
                    hideFilterItem();
                }
            }
        }
    </script>



  2. Princy
    Princy avatar
    17421 posts
    Member since:
    Mar 2007

    Posted 29 Jul 2014 in reply to Douglas Link to this post

    Hi Douglas,

    Such an error comes when you are trying to assign same ID for different controls. Please double check your columns declarations and see whether you are defining same IDs to some controls. Check if you are creating filter controls with same ID ( as the error indicates ). Provide your full code snippet if this doesn't help.

    Thanks,
    Princy
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Douglas
    Douglas avatar
    6 posts
    Member since:
    Jan 2011

    Posted 29 Jul 2014 in reply to Princy Link to this post

    Hi Princy,

    The underlying query is returning 3 columns (Customer Num, Account & Parent) and I am creating columns on those names, with any spaces removed.

    When I click the button the error occurrs as below
    Error: Sys.WebForms.PageRequestManagerServerErrorException: Multiple controls with the same ID 'FilterTextBox_CustomerNum' were found. FindControl requires that controls have unique IDs.

    I am not specifically creating the filter columns but using the grid.MasterTableView.AllowFilteringByColumn property.
  5. Douglas
    Douglas avatar
    6 posts
    Member since:
    Jan 2011

    Posted 29 Jul 2014 Link to this post

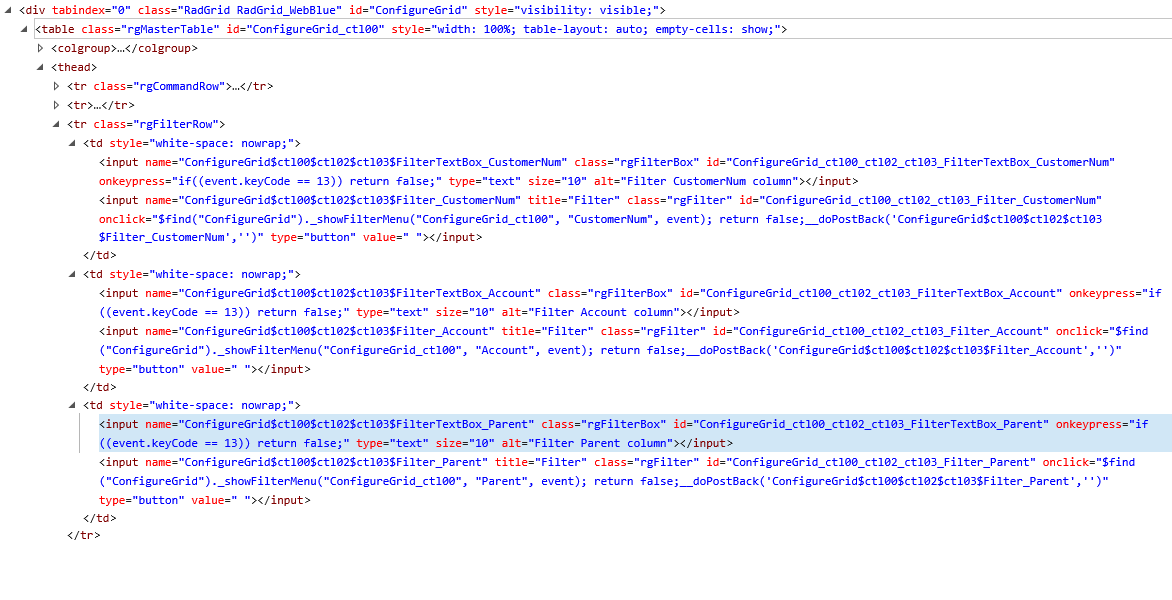

    Attached is part of the DOM for the filters.

    I did a search of the entire DOM for FilterTextBox_ and only found a single instance for each of the columns
  6. Princy
    Princy avatar
    17421 posts
    Member since:
    Mar 2007

    Posted 31 Jul 2014 in reply to Douglas Link to this post

    Hi Douglas,

    Please make sure all your columns have UniqueName generated. Please provide your full code snippet for further help.

    Thanks,
    Princy
