Shape Tooltips

3 posts, 1 answers
  1. Peter
    Peter avatar
    28 posts
    Member since:
    Oct 2006

    Posted 29 Oct 2012 Link to this post


    I'm using RadDiagram in a databound application. For each shape I have some additional information I want to provide. Is there any way to set the Tooltip of a shape? I tried to set the ToolTip property on the shape's style and even in the content of the shape I am not able to have a tooltip on a component. It seems like the Diagram itself disables all tooltips of child elements. Hope you can tell me a way to show tooltips on shapes.

    Thank you in advance.

    Best Regards,
    Peter Schmidt
  2. Answer
    Miro Miroslavov
    Miro Miroslavov avatar
    588 posts

    Posted 31 Oct 2012 Link to this post

    Hi Peter,

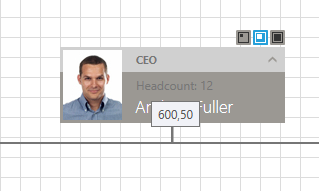

     I just tried to add a ToolTip to our Org chart example and all looks ok on my side. You can check the attached screenshot. And here is the code for it:

    <Style TargetType="local:OrgChartShape" x:Key="OrgChartShapeStyle">
        <Setter Property="Position" Value="{Binding Position, Mode=TwoWay}" />
        <Setter Property="Visibility" Value="{Binding Visibility, Mode=TwoWay}" />
        <Setter Property="IsSelected" Value="{Binding IsSelected, Mode=TwoWay}" />
        <Setter Property="Background"
                Value="{Binding Branch, Converter={StaticResource BackgroundSelector}}" />
        <Setter Property="Padding" Value="0" />
        <Setter Property="ToolTip" Value="{Binding Position}" />

    Can you try this approach and let us know if it is working for you.
    Kind regards,
    Miro Miroslavov
    the Telerik team

    Explore the entire Telerik portfolio by downloading Telerik DevCraft Ultimate.

  3. DevCraft R3 2016 release webinar banner
  4. Peter
    Peter avatar
    28 posts
    Member since:
    Oct 2006

    Posted 05 Nov 2012 Link to this post

    Hey Miro,

    thats exactly what I did. As a test, I rebuild my project step by step and found out that the ToolTip disappers when IsEnabled is set to false. I set this because I want no user interaction at that point. On my production application I am now disabling every feature (drag, resize, connect,...) with its own setter and leave IsEnabled on true. This approach works very well.

    Thank you for your hint.

    Best Regards,
