Set height of RadPanelBarItem

13 posts, 0 answers
  1. Mike
    Mike avatar
    26 posts
    Member since:
    Jun 2008

    Posted 28 Nov 2011 Link to this post

    Hi,

    I want to change the height of my RadPanelBarItem's from Height="Auto" to a larger, fix size e.g. Height="40".

    Unfortunately it doesn't work, see attached screenshot. What did I wrong?  Here is my code:

    <telerik:RadPanelBar Margin="7,7,0,25" HorizontalAlignment="Left" Width="129" Background="#FFEFEFEF" MaxHeight="400">
                   <telerik:RadPanelBarItem Header="Network Connections" Height="40" Background="#FFEFEFEF" FontFamily="Segoe UI" FontSize="12">
                       <telerik:RadPanelBarItem Header="Delete Items" />
                       <telerik:RadPanelBarItem Header="Inbox" />
                       <telerik:RadPanelBarItem Header="Send Items" />
                       <telerik:RadPanelBarItem Header="OutBox" />
                       <Button Content="Button" Style="{StaticResource LinkButton}" Height="29" Width="82" HorizontalAlignment="Left" Name="button1" VerticalAlignment="Top" Click="button1_Click" />
                       <telerik:RadPanelBarItem Header="Search Folders" />
                   </telerik:RadPanelBarItem>
  2. Andrew Jackson
    Andrew Jackson avatar
    7 posts
    Member since:
    Jun 2009

    Posted 30 Nov 2011 Link to this post

    I'm trying to use the RadPanelBar, but when an item is expanded, I would like the height of the item to be the overall height of the content it contains. In other words, I do not want the other items in the panel to be pushed right down to the bottom.

    Is this possible?
  3. UI for WPF is Visual Studio 2017 Ready
  4. Andrew Jackson
    Andrew Jackson avatar
    7 posts
    Member since:
    Jun 2009

    Posted 30 Nov 2011 Link to this post

    Forget my post, I managed to resolve it by placing the RadPanelBar in a StackPanel.
  5. Petar Mladenov
    Admin
    Petar Mladenov avatar
    2891 posts

    Posted 01 Dec 2011 Link to this post

    Hello Mike and Andrew,

     Unfortunately setting Height of the RadPanelBarItems leads to undesired behavior (the control moves up or down when expand collapse is performed)  and we can consider it as an unsupported feature. You can vote for this feature request in order to increase its development priority.

    Greetings,
    Petar Mladenov
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  6. Mike
    Mike avatar
    26 posts
    Member since:
    Jun 2008

    Posted 01 Dec 2011 Link to this post

    Hi Petar,
    Thanks for your response. I'm not sure if Andrew Jackson has/had the same problem, but in regard to my issue: Does your answer means that at the moment it is not possible to change the size (vertical height) of RadPanelBarItems?
    Mike

  7. Petar Mladenov
    Admin
    Petar Mladenov avatar
    2891 posts

    Posted 06 Dec 2011 Link to this post

    Hello Mike,

     It is possible but it leads to undesired behavior like "resizing" and "incorrect possition" issues. So we suggest not setting different Height on different RadPanleBarItems.

    Greetings,
    Petar Mladenov
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  8. Saeed
    Saeed avatar
    4 posts
    Member since:
    Dec 2011

    Posted 06 Mar 2012 Link to this post

    Hi to all
    i want to design a page with radpanelbar but there is a problem here when i want to collapse all of the panels the height of the panels become smaller. what attributes do i need to change to solve this problem?
  9. Petar Mladenov
    Admin
    Petar Mladenov avatar
    2891 posts

    Posted 06 Mar 2012 Link to this post

    Hi Saeed ,

     The Height of the Expanded RadPanelBarItems is calculated dynamically. Could you please send us your XAML and elaborate more on your desired scenario - this way we would be better able to point you in the right direction. Thank you in advance.

    All the best,
    Petar Mladenov
    the Telerik team
    Sharpen your .NET Ninja skills! Attend Q1 webinar week and get a chance to win a license! Book your seat now >>
  10. Saeed
    Saeed avatar
    4 posts
    Member since:
    Dec 2011

    Posted 06 Mar 2012 Link to this post

    Hi Petar
    thanks for your fast answering
    here is my code
    <telerik:RadPanelBar Background="White" Orientation="Horizontal"
                    VerticalAlignment="Center" HorizontalAlignment="Center" ExpandMode="Single">
             <telerik:RadPanelBarItem IsExpanded="True" HorizontalAlignment="Center" VerticalAlignment="Center">
                <telerik:RadPanelBarItem.Header>
                   <TextBlock Text="Login Page" Margin="5 3" />
                </telerik:RadPanelBarItem.Header>
                <Border Height="300" Width="400">
                <Grid HorizontalAlignment="Center" Name="grid1" VerticalAlignment="Center">
                         <TextBox Height="23" Name="textBox1" Width="120" Margin="196,55,45,159" />
                         <Label Content="Username" Height="26" Name="label1" Width="67" Margin="77,22,217,189" />
                         <TextBox Height="23" Name="textBox2" Width="120" Margin="196,23,45,191" />
                         <Label Content="Password" Height="26" Name="label2" Width="65" Margin="79,53,217,158" />
                         <Label Content="New User?" Hyperlink.Click="newUser" Margin="132,99,160,112" />
                         <Label Content="Forgot Password?" Hyperlink.Click="forgotPassword" Margin="133,132,119,77" />
                         <Button Content="Login" Height="23" HorizontalAlignment="Left" Margin="178,172,0,0" Name="button1" VerticalAlignment="Top" Width="75" />
                         <Button Content="Cancel" Height="23" HorizontalAlignment="Left" Margin="87,172,0,0" Name="button2" VerticalAlignment="Top" Width="75" />
                </Grid>
                </Border>
             </telerik:RadPanelBarItem>
             <telerik:RadPanelBarItem IsExpanded="False">
                <telerik:RadPanelBarItem.Header>
                   <TextBlock Text="Contacts" Margin="5 3" />
                </telerik:RadPanelBarItem.Header>
                <Grid Height="237" HorizontalAlignment="Center" Name="grid2" VerticalAlignment="Center" Width="361">
                   <telerik:RadCarousel x:Name="contacts" AutoGenerateDataPresenters="False" Background="Transparent">
                      <telerik:RadCarousel.Resources>
                         <telerik:BinaryImageConverter x:Key="converter" />
                         <DataTemplate DataType="ClickMode">
                            <Image Resources="../8.jpg" />
                         </DataTemplate>
                      </telerik:RadCarousel.Resources>
                   </telerik:RadCarousel>
                </Grid>
             </telerik:RadPanelBarItem>
          </telerik:RadPanelBar>
    when i collapse the first panel item the height of all panels become smaller
  11. Saeed
    Saeed avatar
    4 posts
    Member since:
    Dec 2011

    Posted 06 Mar 2012 Link to this post

    here is some pictures of my application

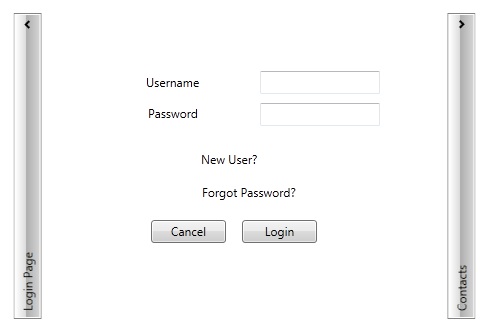

    the first picture is the first page of the application.

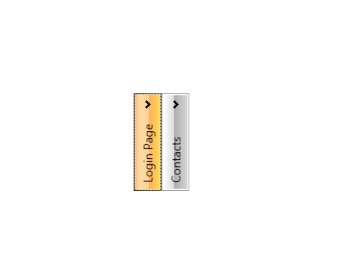

    when i collapse the login page panel the height of the panels become smaller like picture number 2.

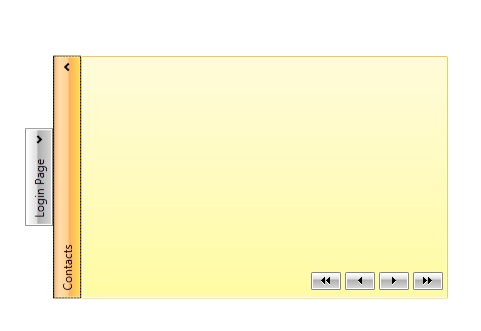

    and when i expand panel contacts the application is like picture number 3.
  12. Petar Mladenov
    Admin
    Petar Mladenov avatar
    2891 posts

    Posted 09 Mar 2012 Link to this post

    Hi Saeed ,

     Could you please check out the attached project in which I only added MinWidth and Width of the RadPanelBarItems in addition to your code? Is this suitable for you?

    Regards,
    Petar Mladenov
    the Telerik team
    Sharpen your .NET Ninja skills! Attend Q1 webinar week and get a chance to win a license! Book your seat now >>
  13. Saeed
    Saeed avatar
    4 posts
    Member since:
    Dec 2011

    Posted 11 Mar 2012 Link to this post

    Hi Petar
    really thank you
    I understand where is my mistake. I thought that I should change radpanelbarItem height attribute to solve the problem.
    But the right attribute to change was width and minwidth.
    I do not know how say "thanks" to you.
    Saeed
  14. Ali
    Ali avatar
    1 posts
    Member since:
    May 2011

    Posted 27 Jan in reply to Mike Link to this post

    Set padding of your RadPanelBarItem and it will work.



    <telerik:RadPanelBar BorderBrush="#9098a3" BorderThickness="1" Margin="10" >
                <telerik:RadPanelBarItem Header="Network Connections" Padding="10">
