Selected Items from batch enabled Grid always null on POST to Controller from custom Toolbar button

[Bill]

I posted this query as a support ticket but I'm hoping to get an answer before the weekend is over.

I have a Grid with batch editing enabled. It also features a custom toolbar with an additional button: 'Archive'.

Users will be able to check multiple rows and click the 'Archive' button in the toolbar.

The button should submit all the selected rows (models) and POST them to a server side method for processing.

I have used this post as a basis for my work:
https://www.telerik.com/forums/how-to-pass-a-grid%27s-selected-row-values-to-controller

In the post, the custom button simply gets the selected items and posts them to the appropriate Controller method.

 I need to POST an IEnumerable<T> to the Controller. Not just properties of an object.

I keep getting this error message:

"Javascript error: 'Uncaught TypeError: Cannot read properties of undefined (reading 'field')'

or the Controller gets NULL.

markup:

<div class="container-fluid"><div class="fc-day-grid-container">
        @(Html.Kendo().Grid<Core.Resources.EmPowerReconciliationDto>
    ()
    .Name("EmpFSRollGrid")
    .Columns(columns =>
    {
        columns.Select().Width(50)
             .ClientHeaderTemplate("<input type='checkbox' id='selectAll' class='k-checkbox' onClick='selectAll(this)'/>" +
                                     "<label for='selectAll'>&nbsp;All</label>").HeaderHtmlAttributes(new { @class = "k-header" });

        columns.Bound(c => c.ProjMessage).Width(100);
        columns.Bound(c => c.ProjectId).Width(150);
        columns.Bound(c => c.ElectricUtilityUtilityName).Width(150);
        columns.Bound(c => c.GasUtilityUtilityName).Width(150);
        columns.Bound(c => c.PrimaryHeatingFuel).Width(100);
        columns.Bound(c => c.ReferralSF).Width(100);
        columns.Bound(c => c.MeasureType).Width(100);
        columns.Bound(c => c.ProgramName).Width(100);
        columns.Bound(c => c.MeasureId).Width(100);
        columns.Bound(c => c.FundedAmount).Width(100).Format("{0:n}").HtmlAttributes(new { @class = "k-text-right" });
        columns.Bound(c => c.Adj).Width(100).Format("{0:n}").HtmlAttributes(new { @class = "k-text-right" });
        columns.ForeignKey(c => c.XFundingSourceId, (System.Collections.IEnumerable)ViewData["fundingsource"], "FundingSourceId", "FundingSourceDesc").Width(160).Title("Funding Source");
        columns.Bound(c => c.MeasureCategoryMeasureCategoryDesc).Width(100);
        columns.Bound(c => c.ProjectStage).Width(100);


    })
    .ToolBar(toolbar =>
    {
        toolbar.ClientTemplateId("GridToolbarTemplate");
    })
    .Excel(excel => excel
        .FileName($"EmPowerReconciliationReport{System.DateTime.Now.ToString("yyyyMMMMdd")}.xlsx")
        .Filterable(true)
        .AllPages(true)
    )
    .Editable(editable => editable.Mode(GridEditMode.InCell))
    .Pageable(pageable =>
    {
        pageable.Refresh(true);
        pageable.PageSizes(new[] { 10, 20, 50 });
    })
    .Sortable()
    .Filterable(ftb => ftb.Mode(GridFilterMode.Row))
    .Scrollable(s => s.Enabled(true))
    .Resizable(resize => resize.Columns(true))
    .PersistSelection()
    .DataSource(dataSource => dataSource
    .Ajax()
    .Model(model =>
    {
        model.Id(emp => emp.MeasureId);
        model.Field(emp => emp.ProjMessage).Editable(false);
        model.Field(emp => emp.ProjectId).Editable(false);
        model.Field(emp => emp.ElectricUtilityUtilityName).Editable(false);
        model.Field(emp => emp.GasUtilityUtilityName).Editable(false);
        model.Field(emp => emp.PrimaryHeatingFuel).Editable(false);
        model.Field(emp => emp.ReferralSF).Editable(false);
        model.Field(emp => emp.MeasureType).Editable(false);
        model.Field(emp => emp.ProgramName).Editable(false);
        model.Field(emp => emp.MeasureId).Editable(false);
        model.Field(emp => emp.FundedAmount).Editable(false);
        model.Field(emp => emp.Adj).Editable(true);
        model.Field(emp => emp.XFundingSourceId).Editable(true);
        model.Field(emp => emp.MeasureCategoryMeasureCategoryDesc).Editable(false);
        model.Field(emp => emp.ProjectStage).Editable(false);

    })
    .ServerOperation(false)
    .Batch(true)
    .Events(events => events.Error("error_handler"))
    .Events(events => events.RequestEnd("request_end"))
    .Read(read => read.Action("GetAllFsRollup", "EmPowerReconciliation"))
    .Update(update => update.Action("UpdateCompositeInvoice", "EmPowerReconciliation"))
    //.Create(create => create.Action("AddInvoice", "EmPowerInvoiceReport"))
    //.Destroy(destroy => destroy.Action("DeleteInvoice", "EmPowerInvoiceReport"))
    )
    )
    </div></div><script id="GridToolbarTemplate" type="text/x-kendo-template">
    <div class="toolbar">
        <a role="button" class="k-button k-button-icontext k-grid-excel" href="\\#"><span class="k-icon k-i-file-excel"></span>Export to Excel</a>
        &nbsp;
       <a role="button" class="k-button k-button-icontext k-grid-save-changes" href="\\#"><span class="k-icon k-i-check"></span>Save changes</a>
        &nbsp;
       <a role="button" id="cancelmeasureChanges" class="k-button k-button-icontext k-grid-cancel-changes" href="\\#"><span class="k-icon k-i-cancel"></span>Cancel changes</a>
        &nbsp;
     <a role="button" id="ArchiveChanges" class="k-button" href="\\#" onClick="Archive()"><span class="k-icon"></span>Archive</a>
        &nbsp;
         @*@(Html.Kendo().DropDownList()
                .Name("InvoicedList")
                .OptionLabel("All")
                .DataTextField("InvoiceSatusName")
                .DataValueField("InvoiceStatusId")
                .AutoBind(true)
                .Events(e => e.Change("invoicedStatusChange"))
                .DataSource(ds =>
                {
                    ds.Read("InvoiceStatuses", "EmPowerInvoiceReport");
                })
                .ToClientTemplate()
    )*@
    </div>
</script><script type="text/javascript">

   function Archive() {
        var items = {};
        //var items = [];

        var grid = $('#EmpFSRollGrid').data('kendoGrid');
        var selectedElements = grid.select();

        for (var j = 0; j < selectedElements.length; j++) {
            var item = grid.dataItem(selectedElements[j]);
            //items.push(item);
            items['archiveItems[' + j + ']'] = item;
            //items[j] = item;
        }
        $.ajax({
                   type: "POST",
                   data: items,
                   url: '@Url.Action("Archive", "EmPowerReconciliation")',
                   success: function (result) {
                       console.log(result);
                   }
               })


    }
    // ******* Select/deSelect All
    function selectAll(mainCheck) {
        var grid = $("#EmpFSRollGrid").data("kendoGrid");
        var items = grid.items();
        items.each(function (index, td) {

            var chckbx = $(td).find("input").get(0);
            $(chckbx).prop("checked", mainCheck.checked);
            var dataItem = grid.dataItem(this);
            dataItem.IsSubmitted = mainCheck.checked;

            if (mainCheck.checked) {
                //$(chckbx).closest("td").addClass("k-dirty-cell").prepend("<span class='k-dirty'></span>");
                $(chckbx).closest("tr").addClass("k-state-selected");
                dataItem.dirty = true;
                dataItem.dirtyFields = { IsSubmitted: true }
            }
            else {
                //$(chckbx).closest("td").removeClass("k-dirty-cell").remove("span.k-dirty");
                $(chckbx).closest("tr").removeClass("k-state-selected");
                dataItem.dirty = false;
                dataItem.dirtyFields = { IsSubmitted: false }
            }
        })
        if (mainCheck.checked == false) {
            dataSource = $("#EmpFSRollGrid").data("kendoGrid").dataSource
            grid._selectedIds = {};
            grid.clearSelection();
        }
    }
    // ***************** Grid Textbox edited
    $("#EmpFSRollGrid").on("change", "input.text-box.single-line.k-valid", function (e) {
        var grid = $("#EmpFSRollGrid").data("kendoGrid"),
            dataItem = grid.dataItem($(e.target).closest("tr"));
        if (dataItem.dirty) {
            grid.dataItem($(e.target).closest("tr").addClass("k-state-selected"));
            var chk = $(e.target).closest("tr").find(".k-checkbox");
            chk.prop("checked", true);
        }

    });
    // *************** Grid checkbox checked/unchecked
    $("#EmpFSRollGrid").on("change", "input.k-checkbox", function (e) {
        var grid = $("#EmpFSRollGrid").data("kendoGrid"),
            dataItem = grid.dataItem($(e.target).closest("tr"));
        dataItem.IsSubmitted = this.checked;
        if (this.checked) {
            //$(e.target).closest("td").addClass("k-dirty-cell").prepend("<span class='k-dirty'></span>");
            dataItem.dirty = true;
            dataItem.dirtyFields = { IsSubmitted: true }
        }
        else {
            // $(e.target).closest("td").removeClass("k-dirty-cell").remove("span.k-dirty");
            dataItem.dirty = false;
            dataItem.dirtyFields = { IsSubmitted: false }

            var row = e.target.closest('tr')
            var uid = $(row).data(uid)
            dataSource = $("#EmpFSRollGrid").data("kendoGrid").dataSource
            var item = dataSource.getByUid(uid.uid);
            dataSource.cancelChanges(item);
            grid.refresh();
        }
        if (!this.checked) {
            $("#selectAll").prop('checked', false);
        }
    });
    // ************** Clear the grid after an Update
    function request_end(e) {
        var grid = $("#EmpFSRollGrid").data("kendoGrid");
        var items = grid.items();
        items.each(function (index, td) {
            var chckbx = $(td).find("input").get(0);
            $(chckbx).prop("checked", false);
            $(chckbx).closest("tr").removeClass("k-state-selected");
        });
        grid._selectedIds = {};
        grid.clearSelection();
    }
    function error_handler(e) {
        if (e.errors) {
            var message = "Errors:\n";
            $.each(e.errors, function (key, value) {
                if ('errors' in value) {
                    $.each(value.errors, function () {
                        message += this + "\n";
                    });
                }
            });
            alert(message);
        }
    }

</script>



The important part is here.

 <a role="button" id="ArchiveChanges" class="k-button" href="\\#" onClick="Archive()"><span class="k-icon"></span>Archive</a>

Here:

 function Archive() {
        var items = {};
        //var items = [];

        var grid = $('#EmpFSRollGrid').data('kendoGrid');
        var selectedElements = grid.select();

        for (var j = 0; j < selectedElements.length; j++) {
            var item = grid.dataItem(selectedElements[j]);
            //items.push(item);
            items['archiveItems[' + j + ']'] = item;
            //items[j] = item;
        }
        $.ajax({
                   type: "POST",
                   data: items,
                   url: '@Url.Action("Archive", "EmPowerReconciliation")',
                   success: function (result) {
                       console.log(result);
                   }
               })


    }

Controller

[AcceptVerbs("Post")]
        public async Task<ActionResult> Archive([DataSourceRequest] DataSourceRequest request
             ,IEnumerable<EmPowerReconciliationDto> archiveItems)
        {
            return Json(archiveItems);
        }

Any help is appreciated!

[Bill]

UPDATE: I have a solution. But as is often the case, I have new problems.

To post the entire object:

 function Archive() {
        //var items = {};
        var items = [];

        var grid = $('#EmpFSRollGrid').data('kendoGrid');
        var selectedElements = grid.select();

        for (var j = 0; j < selectedElements.length; j++) {
            var item = grid.dataItem(selectedElements[j]);
            item.Archive = true;
            item.dirty = true;
            items.push(item);
        }

        var final = JSON.stringify(items);
        $.ajax({
            type: "POST",
            contentType: "application/json",
            data: final ,
                   url: '@Url.Action("Archive", "EmPowerReconciliation")',
                   success: function (result) {
                       request_end();
                   }
               })
    }



I did come up with an alternate method, which just involves changing the data and calling the dataSource.sync() method:

function Archive() {
        //var items = {};
        var items = [];

        var grid = $('#EmpFSRollGrid').data('kendoGrid');
        var selectedElements = grid.select();

        for (var j = 0; j < selectedElements.length; j++) {
            var item = grid.dataItem(selectedElements[j]);
            item.Archive = true;
            item.dirty = true;
            items.push(item);
        }
        grid.dataSource.sync();
}

But now I have new problems: The grid does NOT update after and update.

I have tried adding dataSource.read() at the end of my end_request method, but although the page seems to load & it looks like the data IS updated.....this causes a javascript error:

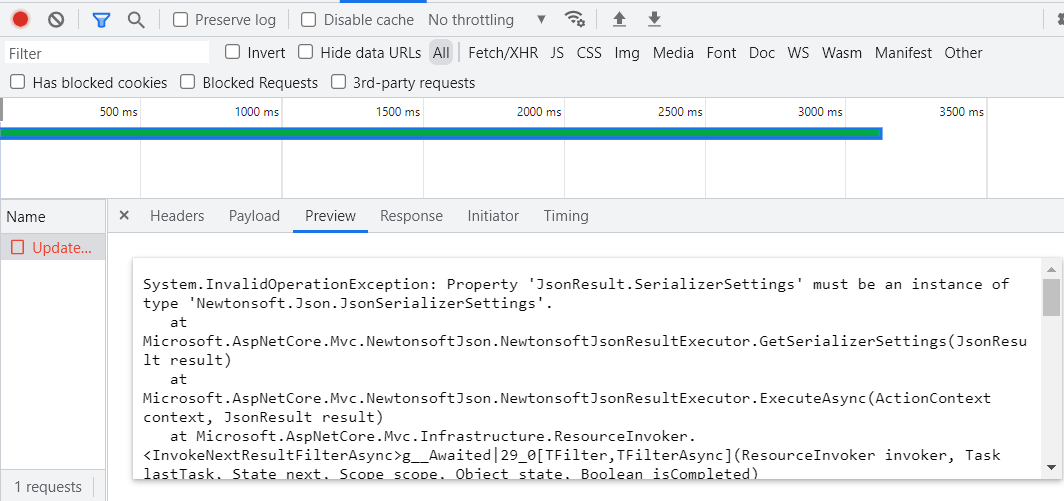

Further inspection of the 'Network' tab reveals:

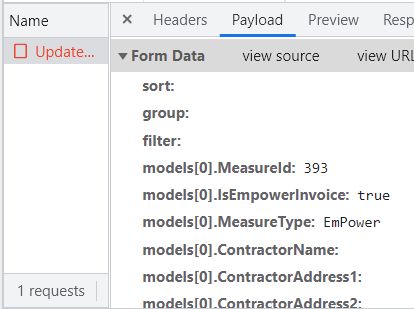

payload seems fine:



I just need the grid to udpate!





[Tsvetomir]

Hi Bill,

I have already responded to the thread in the private support system, however, for anyone who might land on this forum thread, I am pasting the suggestion here, namely, include the FromBody attribute to the IEnumerable collection:

        [AcceptVerbs("Post")]
        public async Task<ActionResult> Archive([DataSourceRequest] DataSourceRequest request
             , [FromBody]IEnumerable<OrderViewModel> archiveItems)
        {
            return Json(archiveItems);
        }

In case the issue persists, let me know.



Regards,
Tsvetomir
Progress Telerik
